Advanced Energy 2305227-C Maintenance-Proven Spare Part for Factory Uptime

Overview

Advanced Energy 2305227-C Maintenance-Proven Spare Part for Factory Uptime

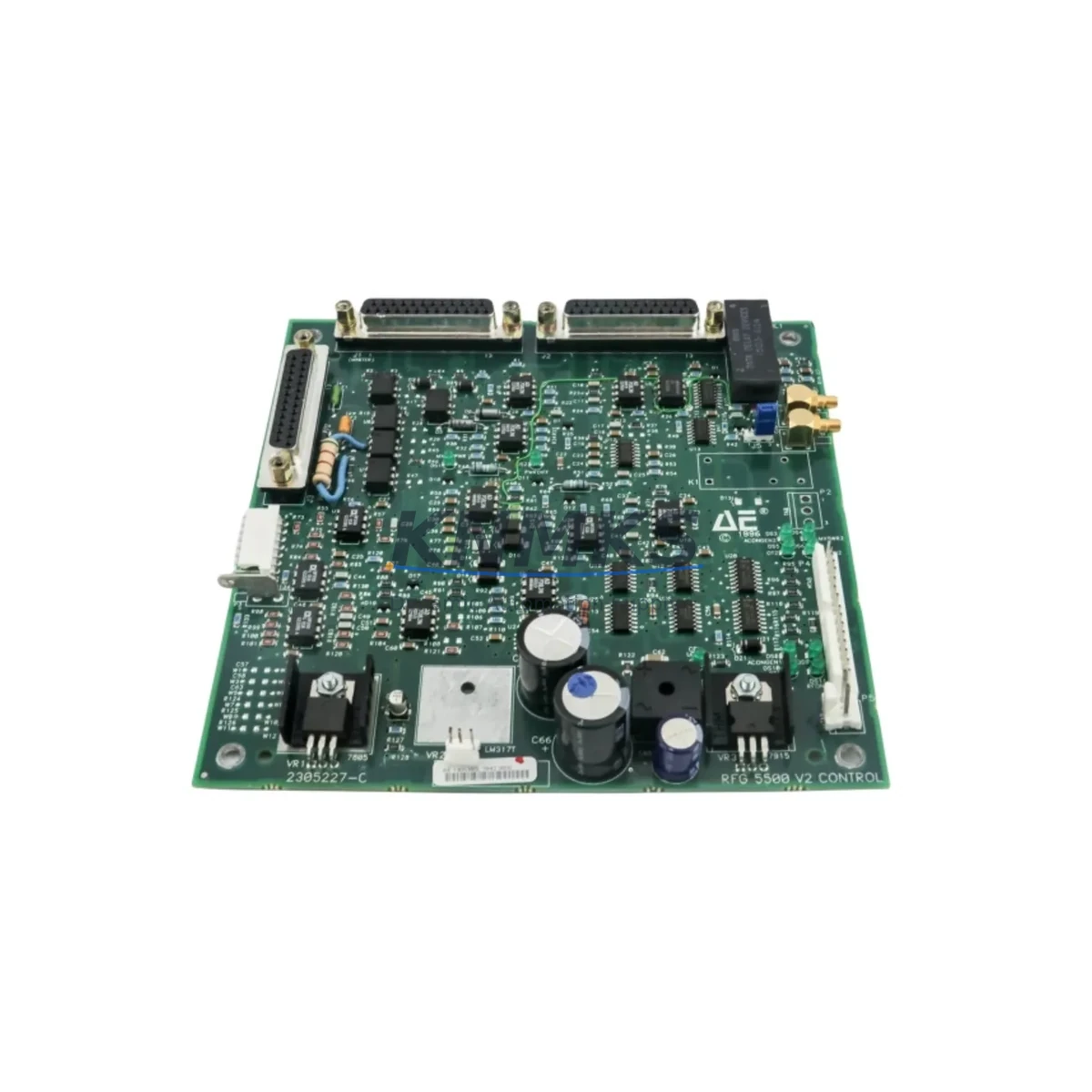

The Advanced Energy 2305227-C (cross-reference: 0620-01727 / 0620-02245) is an original RF power supply control board engineered for continuous-duty industrial plasma and semiconductor processing environments. Sourced directly from authorized supply chains, this spare part is inspection-tested and ready for immediate field deployment — minimizing unplanned downtime and protecting your production schedule.

Maintenance engineers and procurement teams operating Pinnacle, Cesar, and MDX series RF generators rely on the 2305227-C as a critical line-replaceable unit (LRU). Whether you are executing a scheduled annual overhaul, responding to an emergency RF output fault, or building a proactive spare parts buffer for a multi-tool fab, this board delivers the original-specification performance required to restore system integrity without re-qualification delays.

Every unit shipped from KNMKS undergoes pre-dispatch electrical verification, is packaged in ESD-safe materials, and is backed by a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A control board failure in an RF generator rarely occurs in isolation. When replacing the 2305227-C, a thorough site inspection of the surrounding electrical circuit is essential to prevent repeat failures and confirm root-cause resolution before returning the system to production.

Begin by verifying the AC input power module and associated line filter — degraded input power quality is a leading cause of premature control board stress in Pinnacle and MDX platforms. Inspect the DC bus capacitor bank and rectifier assembly for signs of ESR drift or thermal discoloration. If the generator is integrated into a match network, confirm that the AE MatchPro or equivalent automatic matching unit is operating within reflected power limits, as sustained high VSWR events accelerate control board wear.

On the signal side, audit the interlock and fault relay wiring harness for chafing or loose terminations — intermittent interlock signals are frequently misdiagnosed as control board failures. Check the RS-232 / RS-485 or Ethernet communication interface connections if the generator is under remote process control; a corrupted command stream can trigger protective shutdowns that mimic hardware faults. For systems using analog setpoint input (0–10 V or 4–20 mA), verify signal integrity at the terminal block and confirm shielding continuity back to the process controller or PLC I/O card.

Where the RF generator feeds a plasma chamber with multiple bias supplies, cross-check the bias RF control board (e.g., Advanced Energy Cesar series bias module) for correlated fault codes. Inspect RF output coaxial connectors and transmission line for arcing damage or contamination — a compromised RF path can back-feed transients that damage replacement boards. Finally, review the cooling fan assembly and thermal management system; blocked airflow is a silent accelerant of control electronics degradation in high-duty-cycle applications.

Stocking the 2305227-C alongside complementary spares — including the matching network control card, interlock relay module, and communication interface board — ensures that your maintenance team can execute a complete corrective action within a single planned maintenance window, rather than waiting on sequential part deliveries.

Site Replacement Workflow

1. Pre-Replacement Verification: Confirm the fault code logged by the generator’s onboard diagnostics. Cross-reference against the AE service bulletin for the 2305227-C to distinguish control board failure from upstream power or downstream load faults. Document the system’s last known good configuration parameters (frequency, power setpoint, match position) for post-replacement validation.

2. Safe Isolation: De-energize the RF generator at the main disconnect. Follow LOTO (Lockout/Tagout) procedures. Allow a minimum 5-minute discharge period for internal capacitors before opening the chassis. Use a calibrated ESD wrist strap and mat throughout the board exchange.

3. Board Removal and Inspection: Photograph connector positions before disconnection. Remove the 2305227-C by releasing the PCB retention hardware per the AE service manual. Inspect the vacated slot for signs of arcing, contamination, or connector pin damage that may indicate a systemic fault rather than an isolated board failure.

4. Installation and Reconnection: Seat the replacement 2305227-C firmly, ensuring all edge connectors are fully engaged. Reconnect signal harnesses in reverse removal order. Verify that no cables are pinched by the chassis cover before closing.

5. Functional Validation: Power up in local control mode. Confirm that the generator reaches ready state without fault. Run a low-power RF output test into a calibrated dummy load before reconnecting to the process chamber. Restore remote communication and verify setpoint response. Log the replacement in the site maintenance management system (CMMS) with the new part serial number and support terms start date.

This structured workflow reduces mean time to repair (MTTR), eliminates re-work caused by missed steps, and provides a documented audit trail for ISO and process qualification records.

Spare Parts Support FAQ

Q1: Is the 2305227-C compatible with both Pinnacle and MDX series generators?
Yes. The 2305227-C control board is cross-compatible across Advanced Energy Pinnacle, MDX, and Cesar platform variants that reference part numbers 0620-01727 or 0620-02245. If your generator nameplate lists a different revision suffix, contact our technical team with the full model and serial number for compatibility confirmation before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every 2305227-C dispatched by KNMKS undergoes electrical continuity verification, functional power-on testing where applicable, and visual inspection for component integrity and ESD damage. Units are packed in anti-static bags with foam cushioning and accompanied by a test record. The support terms confirmed by quotation period begins from the date of shipment.

Q3: How should we manage long-term spare parts inventory for aging RF generator fleets?
For facilities operating more than three Advanced Energy RF generators, we recommend maintaining a minimum of one 2305227-C control board per generator model variant in your on-site spare parts store. Given that OEM production of legacy control boards can be discontinued with limited notice, early procurement of a 2–3 year buffer stock is a proven strategy for extending system life beyond the OEM support window. KNMKS offers volume pricing and consignment stock arrangements for qualified accounts.

Q4: What is the lead time if the part is not availability confirmed by RFQ, and do you offer long-term supply agreements?
In-stock units ship same-day or next business day. For out-of-stock scenarios, typical sourcing lead time is 2–6 weeks depending on global supply conditions. KNMKS supports long-term supply agreements (LTSAs) for critical spare parts, providing price lock, priority allocation, and guaranteed annual delivery schedules — reducing procurement risk for multi-year maintenance contracts.
