ABSOPULSE MIM105-Q6949 Maintenance-Proven Spare Part

Overview

ABSOPULSE MIM105-Q6949 Maintenance-Proven Spare Part for Factory Uptime

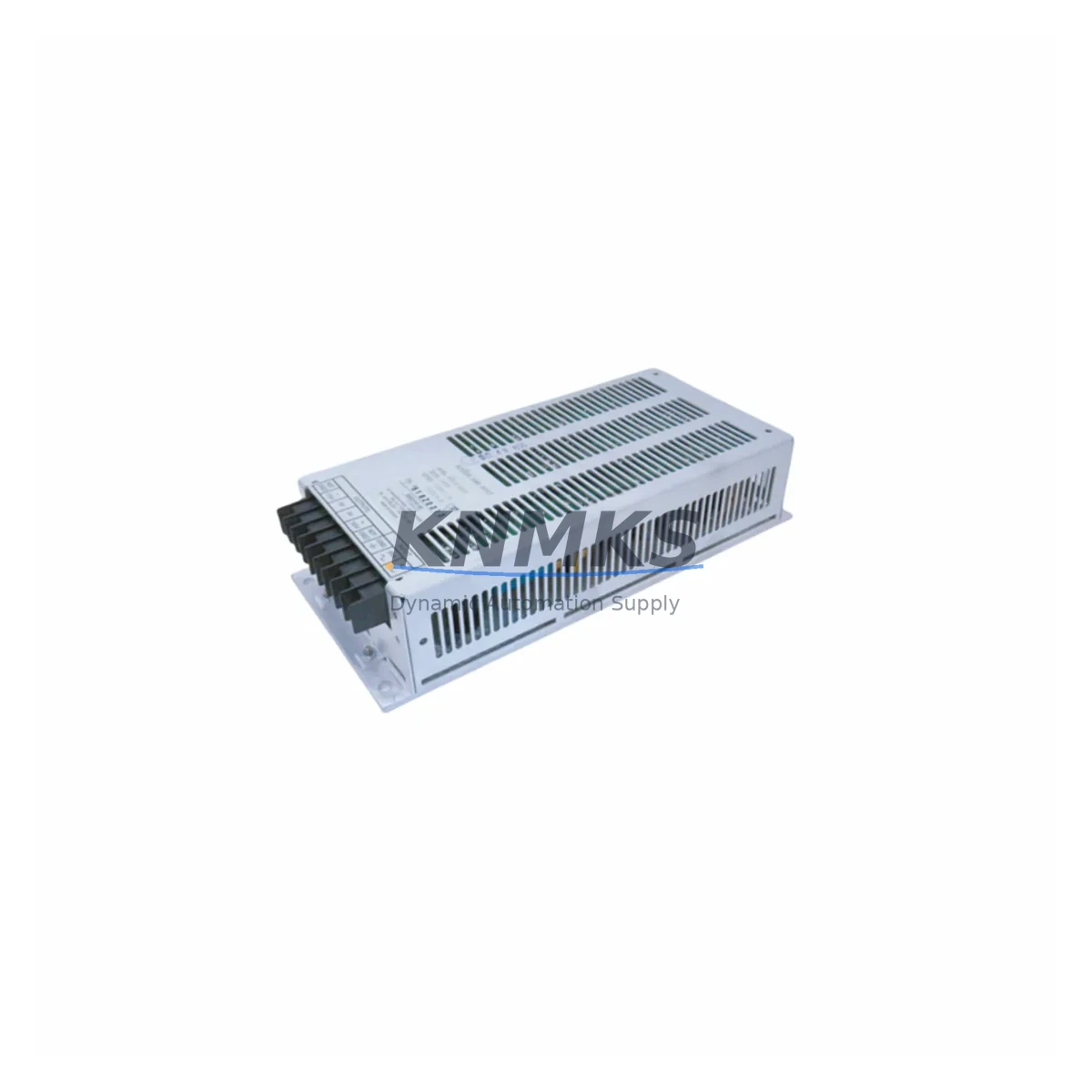

The ABSOPULSE MIM105-Q6949 is a rugged, wide-input DC-DC power converter from the MIM Series, engineered for continuous operation in demanding industrial environments. Designed to deliver stable, isolated DC output across a broad input voltage range, this module is a critical power conditioning component in automation panels, remote I/O enclosures, PLC power rails, and distributed control system (DCS) cabinets. Maintaining a verified spare of the MIM105-Q6949 is a proven strategy for minimizing unplanned downtime and accelerating fault recovery in facilities where power supply failure cascades into full production loss.

For maintenance engineers managing aging automation infrastructure, the MIM105-Q6949 represents a direct, drop-in replacement for failed or degraded units within the MIM Series lineup. Its compact form factor, wide operating temperature range, and EMI-filtered design make it suitable for retrofit and modernization projects where panel space is constrained and electrical noise is a concern. Procurement engineers sourcing long-term supply agreements will find this module available with multi-region stock, pre-shipment functional testing, and a support terms confirmed by quotation covering defects in materials and workmanship.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the MIM105-Q6949 in the field, a thorough inspection of the surrounding power distribution circuit is essential to prevent repeat failures and ensure system stability. Begin by verifying the upstream DC bus voltage is within the converter’s rated input range — voltage excursions caused by battery charger faults, generator switching transients, or failing UPS modules are a leading cause of premature DC-DC converter failure. Check the input fuse or circuit breaker protecting the MIM105-Q6949 and replace it if there is any sign of thermal stress or intermittent tripping.

Downstream of the converter, inspect the 24 VDC distribution rail and any connected load devices. Overloaded output rails — caused by the addition of new I/O modules, communication gateways, or HMI panels without recalculating total current draw — can force the converter into thermal shutdown or current limiting, accelerating wear. Verify that all terminal block connections on the input and output sides are torqued to specification and free of oxidation, particularly in humid or coastal environments.

For panels housing ABSOPULSE MIM Series converters alongside Siemens SITOP power supplies or Phoenix Contact QUINT power modules, confirm that load-sharing or redundancy configurations are correctly wired and that no single converter is carrying disproportionate load. If the panel includes a Weidmüller or Phoenix Contact signal isolator on analog I/O circuits, inspect those modules for drift or output offset that may indicate power quality issues originating from the DC-DC stage. Similarly, check any 24 VDC relay output modules — such as Omron G2R or Finder 40-series relays — for contact wear, as relay coil inrush can create momentary voltage dips that stress the converter output.

In DCS environments where the MIM105-Q6949 powers field instrument loops or HART signal conditioners, verify loop power levels at the field terminal strip before and after replacement to confirm the new unit is regulating correctly under actual load. Communication modules — including Profibus DP repeaters, Modbus RTU converters, or EtherNet/IP media converters — should also be power-cycled and checked for link re-establishment after the converter swap to confirm no configuration loss occurred during the outage.

Site Replacement Workflow

Step 1 — Isolation: De-energize the panel section feeding the MIM105-Q6949 input. Apply LOTO (Lockout/Tagout) per site safety procedure. Confirm zero voltage at the input terminals with a calibrated multimeter before proceeding.

Step 2 — Documentation: Photograph the existing wiring, label positions, and DIN rail mounting orientation before removal. Record the output voltage measured at the load rail prior to shutdown for post-installation verification.

Step 3 — Removal: Disconnect input and output terminal wiring. Release the DIN rail clip and slide the failed MIM105-Q6949 unit free. Inspect the mounting rail and adjacent modules for heat discoloration or mechanical damage.

Step 4 — Installation: Clip the replacement MIM105-Q6949 onto the DIN rail. Reconnect input and output wiring per the original documentation. Torque all terminal screws to the manufacturer’s specified value.

Step 5 — Verification: Re-energize the input supply. Measure output voltage at the load rail and confirm it matches the rated output within tolerance. Verify all downstream devices — PLCs, I/O modules, HMI panels, and communication gateways — have resumed normal operation. Log the replacement in the site maintenance record with the new unit’s serial number and support terms start date.

Compatibility Note: The MIM105-Q6949 is a direct replacement within the ABSOPULSE MIM Series. When substituting for an older MIM Series variant, confirm input voltage range, output voltage, and output current rating match the original specification before energizing. Contact KNMKS technical support if cross-variant compatibility verification is required.

Spare Parts Support FAQ

Q1: What is the support terms coverage for the MIM105-Q6949 spare?
All MIM105-Q6949 units supplied by KNMKS carry a support terms confirmed by quotation from the shipment date, covering defects in materials and workmanship under normal operating conditions. Each unit undergoes a functional load test prior to dispatch to confirm output regulation, ripple performance, and thermal stability.

Q2: How do I verify compatibility before ordering?
Confirm the input voltage range, output voltage, output current, and mounting configuration of your existing unit against the MIM105-Q6949 datasheet. If your panel uses a different MIM Series variant, contact [email protected] with your existing part number and application details for a compatibility assessment before placing an order.

Q3: Can KNMKS support long-term or blanket purchase orders for the MIM105-Q6949?
Yes. KNMKS maintains multi-region stock of MIM Series converters and supports scheduled delivery agreements, annual blanket POs, and emergency call-off orders. Long-term supply agreements are available for facilities requiring guaranteed stock for planned outages and annual maintenance cycles. Contact +86 18359268345 to discuss volume and lead time requirements.

Q4: What should I do if the replacement unit does not restore normal output?
If the replacement MIM105-Q6949 does not restore correct output voltage, do not assume the new unit is faulty. First verify the input voltage is within the rated range, check for short circuits or overloads on the output rail, and confirm all terminal connections are secure. If the fault persists, contact KNMKS technical support with your measured input/output readings and a description of the downstream load configuration for remote fault diagnosis.
