ABB ZMAC-541 Maintenance-Proven Spare Part for Factory Uptime

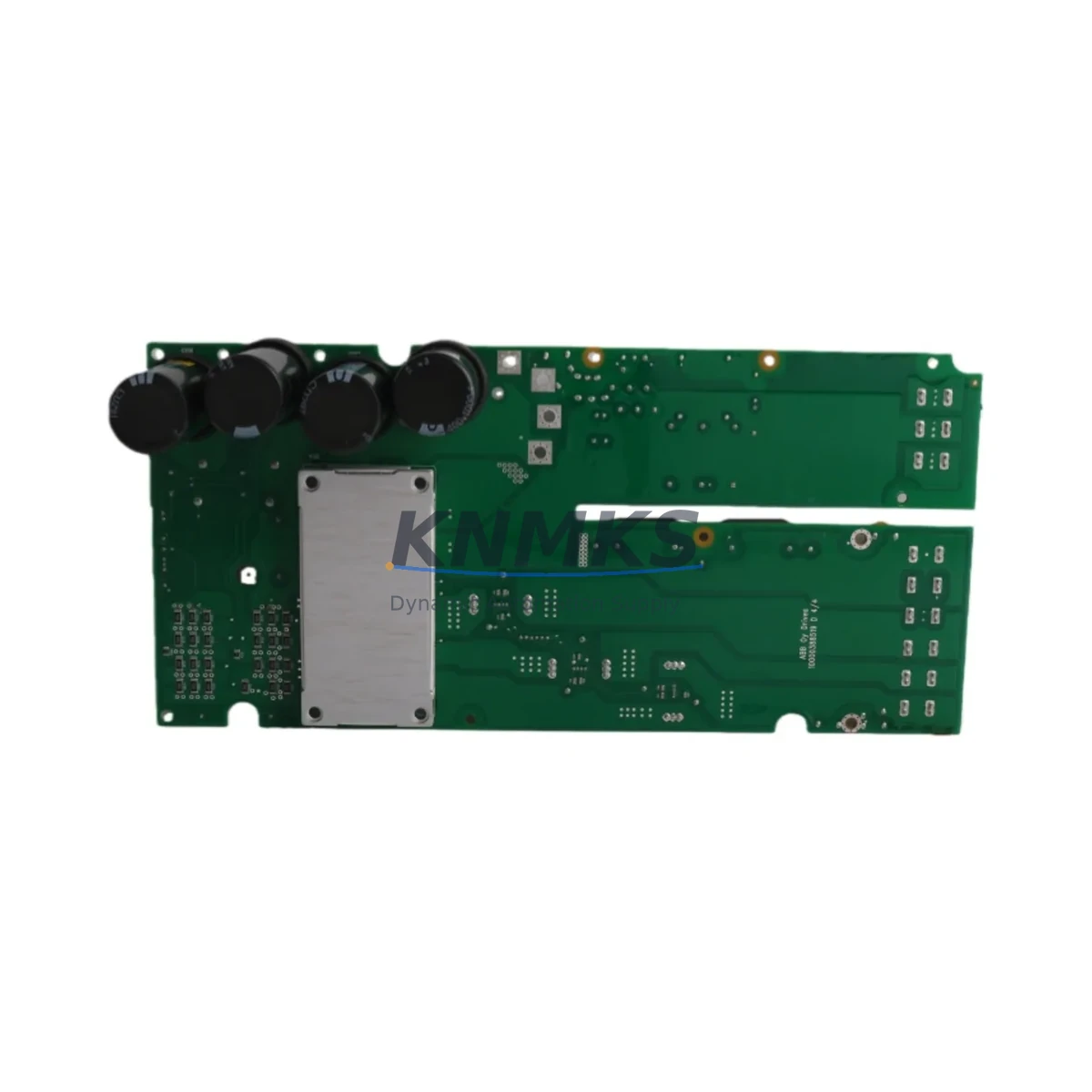

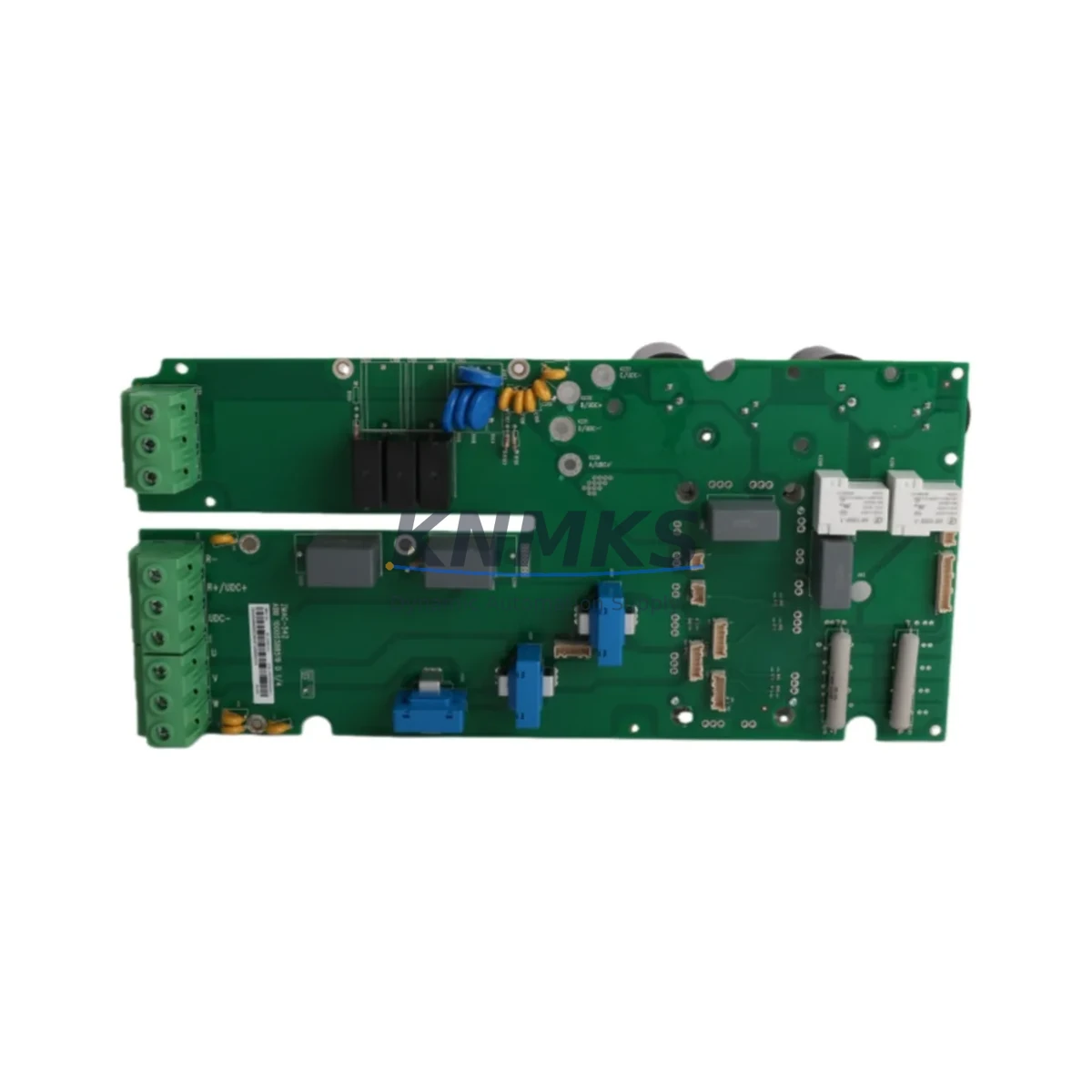

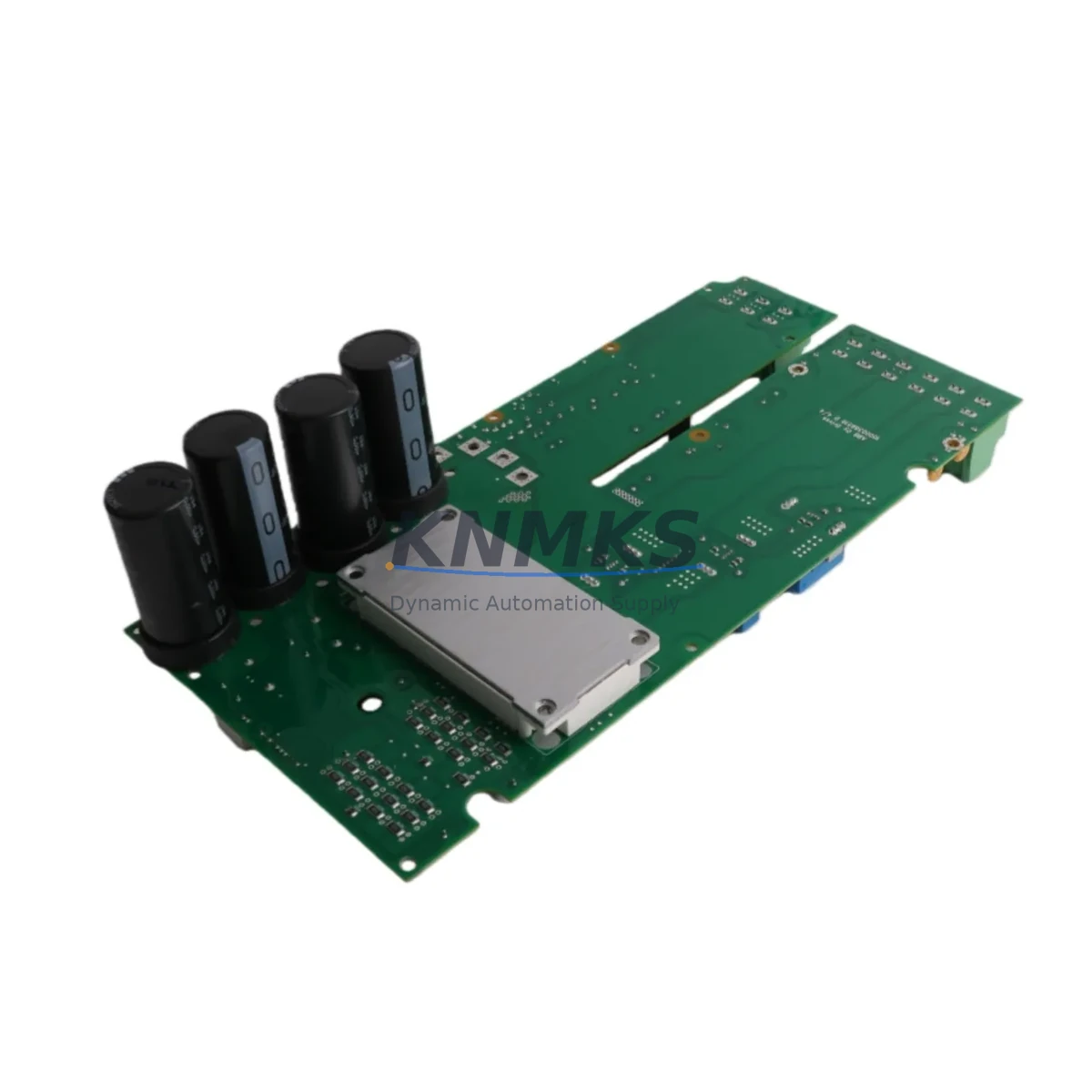

The ABB ZMAC-541 is an original AC drive power board engineered for ACS series variable frequency drives deployed across manufacturing, energy, petrochemical, and infrastructure facilities. As a critical internal component responsible for power conversion and gate drive signal distribution, the ZMAC-541 directly governs drive reliability and motor control precision. Sourcing a verified, pre-tested replacement is essential to restoring production continuity and preventing cascading failures in automated control systems.

For maintenance engineers managing aging ACS-series drive cabinets, the ZMAC-541 represents a high-priority spare. Power board failures typically manifest as overcurrent faults, DC bus irregularities, IGBT gate signal loss, or complete drive shutdown — all of which result in unplanned downtime. Having a qualified replacement on the shelf eliminates lead-time risk and enables same-shift restoration of affected production lines.

Procurement engineers sourcing ZMAC-541 replacements should prioritize original ABB-manufactured boards with traceable batch documentation. Counterfeit or refurbished power boards introduce thermal management inconsistencies and gate timing deviations that can damage IGBT modules and shorten overall drive service life. KNMKS supplies only verified original units, each pre-tested under load conditions prior to dispatch, backed by a support terms confirmed by quotation covering manufacturing defects and functional failure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ZMAC-541 power board should be treated as part of a broader drive cabinet inspection, not an isolated swap. When a power board fault is confirmed, maintenance teams should simultaneously evaluate the condition of adjacent components to prevent repeat failures and maximize the value of the planned downtime window.

Begin with the IGBT module stack — power board failures are frequently caused by or result in IGBT degradation. Inspect gate resistors and snubber capacitors for thermal stress. Verify the DC bus capacitor bank (common in ACS550 and ACS800 frames) for capacitance drift and ESR increase, as aged capacitors accelerate power board stress cycles. Check the ACS-series control board (RMIO, RDCO, or equivalent) for fault log history and communication integrity before assuming the power board is the sole failure point.

Inspect all power wiring, DC bus bar connections, and input/output terminal blocks for signs of arcing, loose torque, or insulation breakdown. Thermal imaging of the drive cabinet prior to shutdown can identify hotspots that indicate connection resistance issues. Review the drive’s cooling system — fan modules, heat sink condition, and airflow path — since thermal overload is a primary driver of power board degradation in high-cycle industrial environments.

For drives integrated into PLC or DCS control architectures, verify the fieldbus communication module (Profibus, Modbus, or PROFINET adapter) remains functional after board replacement, as power transients during failure events can corrupt communication module firmware. If the drive interfaces with an ABB ACS control panel or remote HMI, confirm parameter sets are backed up before replacement and restored post-commissioning. Signal isolators on analog speed reference inputs should also be inspected, as power board faults can introduce ground loops that affect 4–20 mA signal integrity.

Finally, review the cabinet’s fuse and circuit breaker protection — input fuses, motor branch protection, and any semiconductor fuse protecting the IGBT stack. A power board failure that was not preceded by fuse operation may indicate the protection coordination requires review before returning the drive to service.

Site Replacement Workflow

The ZMAC-541 is designed as a direct replacement for the original ABB factory-installed power board in compatible ACS series drives. No firmware modification or parameter re-mapping is required for the power board itself; however, full drive recommissioning should follow ABB’s standard startup checklist for the specific drive frame and rating.

Prior to installation, confirm the replacement board’s revision level is compatible with the installed control board firmware version. Document the existing fault log and parameter set from the drive’s control panel or via DriveStudio / Drive Composer before de-energizing. Discharge the DC bus fully (minimum 5 minutes after power removal, verified with a calibrated meter) before accessing internal components.

Remove the failed board using ESD precautions, inspect the mounting frame and bus bar contacts for damage, and install the ZMAC-541 with OEM-specified torque values. Reconnect gate drive cables and signal harnesses in sequence per the drive’s wiring diagram. After reassembly, perform a no-load power-up to verify fault-free initialization before reconnecting the motor load. Log the replacement in the site maintenance record with the board serial number and support terms start date.

This workflow minimizes total downtime to a single planned window, eliminates the risk of secondary failures from improper installation, and ensures the support terms confirmed by quotation period is correctly initiated from the commissioning date.

Spare Parts Support FAQ

Q1: Is the ZMAC-541 an original ABB component or a compatible aftermarket board?
All ZMAC-541 units supplied by KNMKS are original ABB-manufactured power boards. We do not supply aftermarket, cloned, or refurbished boards. Each unit is sourced through verified industrial supply channels and undergoes pre-shipment functional testing before dispatch.

Q2: What is the support terms coverage and how is a claim initiated?
The ZMAC-541 carries a support terms confirmed by quotation from the date of commissioning, covering manufacturing defects and functional failure under normal operating conditions. To initiate a claim, contact admin@knmks.com with the order reference, installation date, and a description of the fault. KNMKS will arrange replacement or repair within the confirmed support period.

Q3: Can KNMKS support long-term or blanket purchase orders for ZMAC-541 inventory?
Yes. KNMKS supports long-term supply agreements and blanket PO arrangements for maintenance teams managing multiple ACS-series drive installations. Stocking agreements can be structured around annual inspection cycles, fleet size, and criticality classification. Contact our sales team to discuss volume pricing and reserved inventory options.

Q4: How do I verify compatibility before ordering if my drive model is not listed?
Provide your drive model number, frame size, and existing power board part number (visible on the board label) to admin@knmks.com. Our technical team will confirm compatibility, cross-reference revision levels, and advise on any installation considerations specific to your drive configuration before the order is placed.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

ZMAC-541

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB ZMAC-541
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
