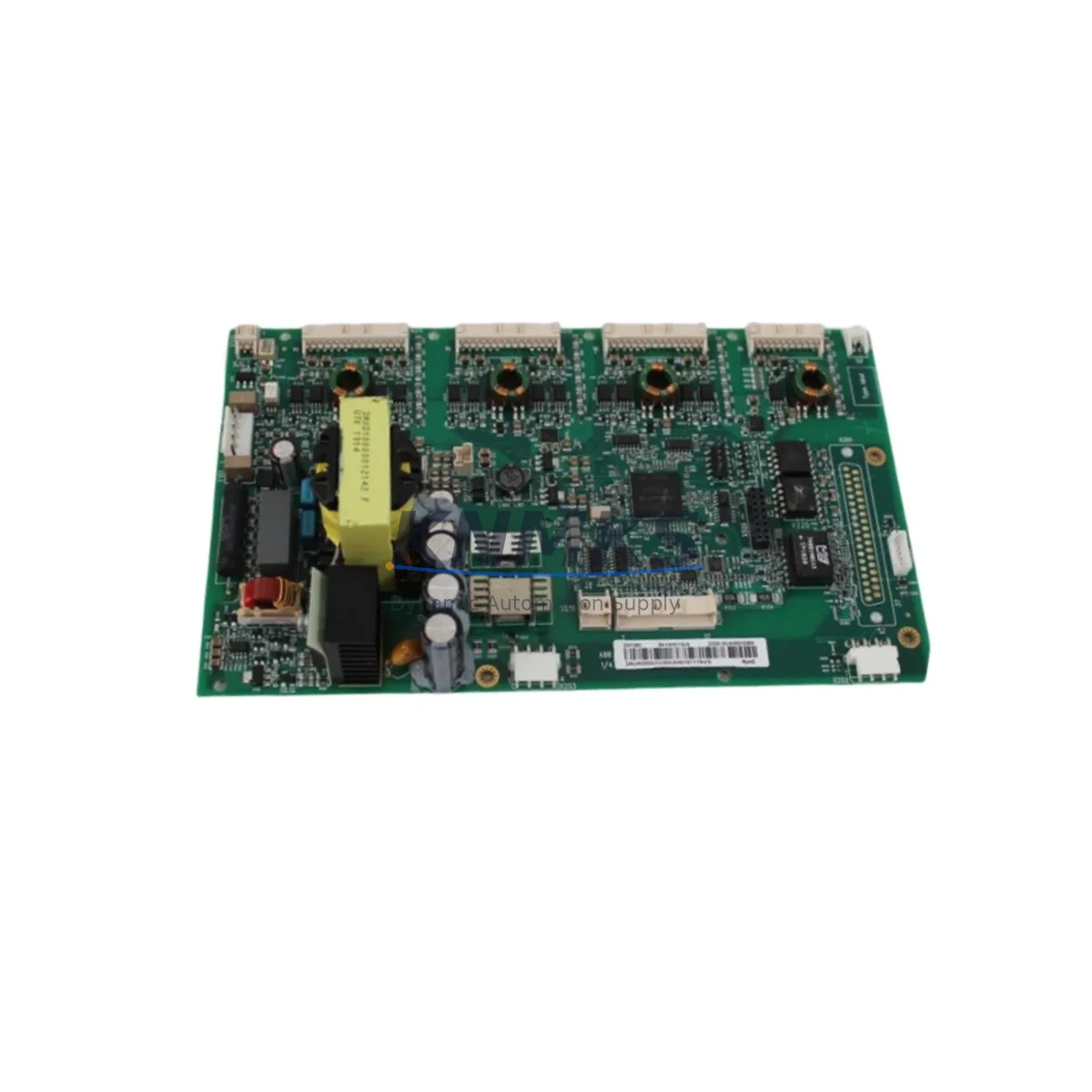

ABB ZINT-592 3AUA0000103603 Fail-Safe Inverter Power Board

Overview

ABB ZINT-592 3AUA0000103603 Fail-Safe Inverter Power Board: Fault Protection and Critical Industrial Field Reliability

The ABB ZINT-592 (part number 3AUA0000103603) is a precision-engineered inverter power board designed for the ABB ACS800 series of industrial AC drives. In continuous production environments where unplanned downtime carries severe operational and safety consequences, the ZINT-592 serves as the electrical backbone of the drive’s power conversion and gate-drive control architecture. Its robust design addresses the most demanding failure modes encountered in heavy industrial sites: voltage transients, high electromagnetic interference (EMI), thermal cycling, mechanical vibration, and moisture ingress — all of which can silently degrade inferior boards until a catastrophic trip or drive failure occurs.

Unlike generic replacement boards, the ZINT-592 3AUA0000103603 is built to ABB’s original manufacturing specification, ensuring full compatibility with the ACS800 drive’s internal firmware, IGBT gate-drive timing, and DC bus voltage monitoring circuits. This matters critically in safety-instrumented systems (SIS) and critical interlock loops, where a mismatched or degraded power board can introduce latent faults that bypass protective relay logic or cause spurious trips in motor-driven safety functions.

Every unit dispatched from our warehouse undergoes pre-shipment functional testing, including power-on verification, gate-drive signal integrity checks, and insulation resistance measurement. This ensures that the board arriving at your site is operationally verified — not simply visually inspected — reducing the risk of infant mortality failures during commissioning or emergency replacement scenarios.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a properly configured ACS800 control cabinet, the ZINT-592 3AUA0000103603 does not operate in isolation. Its reliability is directly influenced by — and in turn protects — the surrounding power and control architecture. When replacing or commissioning this board, engineers should simultaneously verify the condition of the AINT-02C / AINT-14C inverter interface board, which handles the fiber-optic communication between the control board and the IGBT power stage. A degraded AINT board can generate false gate-drive faults that are incorrectly attributed to the power board itself.

On the DC bus side, the BINT-01 brake chopper interface board and associated braking resistor circuit must be confirmed operational, particularly in high-inertia load applications such as centrifuges, hoists, or large fan systems. Excessive regenerative energy that is not properly dissipated will stress the DC bus capacitors and the power board’s voltage clamping circuits, accelerating insulation breakdown.

For drives operating in high-EMI environments — common in arc furnace facilities, variable-speed pump stations, or large motor control centers — the NOCH-01 / NOCH-02 output choke and EMC filter module upstream of the drive are essential companions to the ZINT-592. These components suppress conducted and radiated interference that would otherwise couple into the gate-drive circuitry and cause nuisance overcurrent trips or IGBT desaturation faults.

The RMIO-02 / RMIO-11 main control board of the ACS800 communicates directly with the ZINT-592 via the internal drive bus. Any firmware incompatibility or corrupted parameter set on the RMIO board can manifest as power board faults. During a ZINT-592 replacement, it is best practice to perform a full parameter backup using the ACS800 DriveWindow Light tool and verify that the drive’s software version is compatible with the replacement board revision. Additionally, the APBU-44C pulse encoder interface board used in closed-loop speed control applications should be checked for signal integrity, as encoder feedback errors can trigger emergency stop sequences that are misdiagnosed as power board failures.

Critical Industrial Safety Applications

The ABB ZINT-592 3AUA0000103603 is deployed across a wide range of safety-critical and continuous-process industrial environments where drive availability is non-negotiable.

In petrochemical and refinery facilities, ACS800 drives equipped with ZINT-592 boards control compressor trains, boiler feed pumps, and cooling water circulation systems. These applications operate under SIL 2 or SIL 3 safety integrity level requirements, where any undetected power board fault could compromise emergency shutdown (ESD) system response. The board’s stable gate-drive output ensures that the IGBT switching remains within safe operating area (SOA) limits even during grid voltage sags or harmonic distortion events common near large transformer banks.

In mining and mineral processing, ACS800 drives with ZINT-592 boards manage conveyor belt drives, ball mill motors, and slurry pump systems operating in dusty, high-vibration environments. The conformal-coated PCB and robust power supply regulation of the ZINT-592 provide the margin needed to sustain reliable operation through shift changes, load surges, and ambient temperature swings in surface and underground installations.

In water and wastewater treatment plants, the ZINT-592 supports variable-speed control of aeration blowers, sludge pumps, and UV disinfection system drives. These facilities often operate 24/7 with minimal maintenance windows, making the availability of a pre-tested, support terms-backed replacement board essential for rapid fault recovery without extended process interruption.

In steel and metallurgical plants, the board’s tolerance for high ambient temperatures and its compatibility with the ACS800’s built-in motor thermal model make it suitable for rolling mill auxiliary drives, ladle transfer car systems, and fume extraction fan drives — all of which demand consistent torque control under variable load conditions.

In port and marine applications, ACS800 drives with ZINT-592 boards are used in ship-to-shore crane hoist systems, ballast pump drives, and thruster control cabinets. The board’s resistance to humidity and vibration aligns with the demanding environmental conditions of marine-grade control enclosures.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the ZINT-592 3AUA0000103603?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional faults arising under normal operating conditions within the specified ACS800 drive environment. Support requests are supported by our technical team with replacement dispatch or repair service, minimizing your site’s exposure to extended downtime.

Q2: What pre-shipment tests are performed on each ZINT-592 board?
Each board undergoes a structured pre-shipment test protocol including: power-on functional verification, IGBT gate-drive signal output measurement, DC bus interface continuity check, and insulation resistance testing to IEC 60664 clearance standards. A test record is available upon request for quality audit purposes.

Q3: Is the ZINT-592 3AUA0000103603 compatible with all ACS800 frame sizes and voltage variants?
The ZINT-592 is designed for specific ACS800 frame sizes and power ratings. Compatibility depends on the drive’s frame designation (R2–R8 range) and DC bus voltage class. We recommend confirming your drive’s full nameplate data — including frame size, power rating, and firmware version — before ordering. Our technical team can assist with cross-referencing to confirm fitment.

Q4: Can you support long-term or recurring supply of the ZINT-592 for multi-site maintenance programs?
Yes. We maintain ready stock of the ZINT-592 3AUA0000103603 and can support scheduled procurement programs, blanket orders, and emergency call-off arrangements for multi-site industrial operators. Long-term supply agreements with defined lead times and pricing are available for maintenance managers seeking to reduce spare parts risk across ACS800 drive fleets.
