ABB ZINT-571 Migration-Ready Power Interface Board for ACS800

Overview

ABB ZINT-571 Migration-Ready Power Interface Board for ACS800

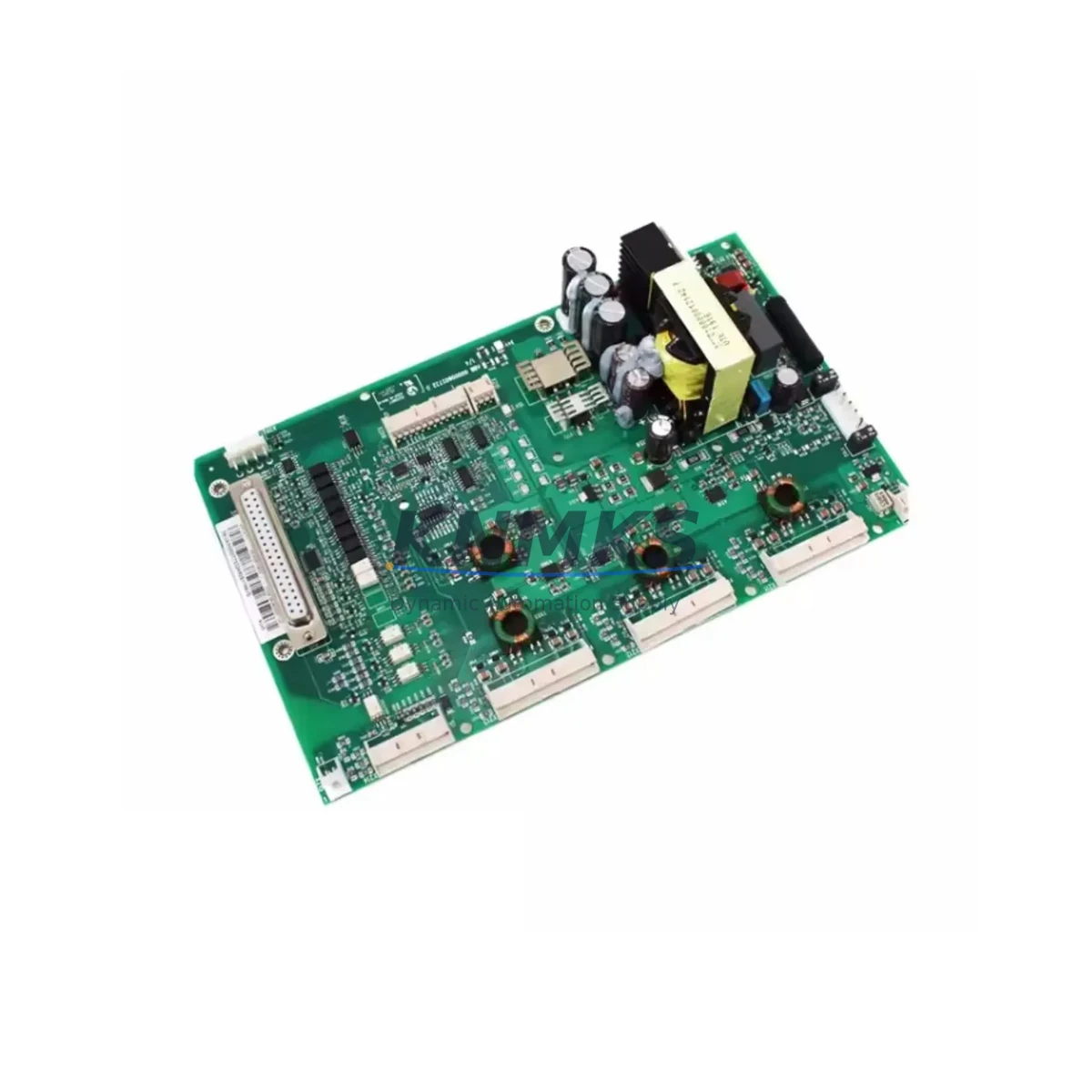

The ABB ZINT-571 (part number 3AUA0000077333) is a migration-ready power interface board engineered for the ACS800 series of AC drives. As legacy ACS800 installations age and OEM support windows close, the ZINT-571 has become a critical spare for maintenance engineers managing retrofit projects, unplanned drive failures, and phased control system upgrades. Whether you are replacing a failed board in an active production line or pre-positioning stock for a planned modernization, the ZINT-571 delivers the electrical compatibility and mechanical fit required for a low-risk, minimum-downtime swap.

The board interfaces directly with the ACS800 power section, managing gate drive signals, DC bus monitoring, and fault feedback loops that are essential to drive protection and motor control continuity. Before installation, engineers should verify DC bus voltage levels, confirm that the IGBT gate resistor values on the replacement board match the original drive rating, and inspect the ribbon cable connectors and backplane interface for corrosion or mechanical damage. Firmware compatibility between the ZINT-571 and the installed RMIO-11C or RMIO-02C control board should also be confirmed prior to energization to avoid parameter mismatch faults on first power-up.

In retrofit scenarios where the ACS800 cabinet is being partially modernized — for example, replacing the power section while retaining the existing RDCO-03 DDCS fiber optic communication module or the RTAC-01 pulse encoder interface — the ZINT-571 allows the control layer to remain intact. This is particularly valuable when the site PLC or DCS (such as an ABB AC500 or Symphony Plus controller) has been programmed with drive-specific function blocks that reference existing parameter sets. Retaining the control board and communication module eliminates the need to re-commission the drive from the HMI or reprogram the fieldbus node address on the PROFIBUS or DeviceNet network.

For sites running multiple ACS800 units in a common DC bus configuration, the ZINT-571 replacement must be coordinated carefully. The DC bus pre-charge sequence, chopper module timing, and brake resistor interlock logic are all influenced by the power interface board. Maintenance teams should isolate the affected drive from the common bus before removal, discharge the DC capacitor bank to below 50 V DC (verified with a calibrated meter), and follow the torque specifications for the bus bar connections during reassembly. Failure to re-torque bus bar bolts to specification is a common cause of post-retrofit thermal failures.

When the ZINT-571 is used as part of a broader ACS800 cabinet overhaul, it is frequently replaced alongside the AINT-02C auxiliary power supply board, which provides the 24 V DC logic supply to the control section. In drives where the AINT-02C has also degraded, replacing only the ZINT-571 may not resolve all fault codes. Similarly, if the APBU-44C pulse encoder interface board or the RDIO-01 digital I/O extension module shows signs of wear, these should be evaluated during the same maintenance window to avoid repeat shutdowns. The NINT-41C network interface card, used in Ethernet-connected ACS800 installations, should also be inspected for firmware currency if the drive is being reintegrated into a modernized SCADA or MES network.

All ZINT-571 units supplied by KNMKS are sourced from verified industrial channels, subjected to pre-shipment functional testing under simulated load conditions, and shipped with full documentation. A support terms confirmed by quotation is included as standard. Stock is maintained across multiple regional warehouses to support emergency dispatch requirements with short lead times.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Effective retrofit planning for ACS800 installations begins with a full audit of the power section components. The ZINT-571 is typically the primary replacement target when gate drive faults, overcurrent trips, or DC bus undervoltage alarms cannot be resolved through parameter adjustment or control board replacement alone. During the planning phase, engineers should map all I/O connections on the RDIO-01 digital I/O extension module, document the current parameter set from the RMIO control board using DriveWindow or DriveStudio software, and photograph the existing wiring harness before disassembly.

In installations where the ACS800 communicates with a DCS via the RDCO-03 DDCS fiber optic module, the fiber cable routing and node address assignment must be documented before the power section is disturbed. The APBU-44C pulse encoder interface, if present, should have its encoder cable shielding continuity verified after reassembly, as ground loops introduced during retrofit are a common source of speed feedback instability. If the site uses an ABB Panel Builder HMI for local drive monitoring, the HMI screen objects linked to drive status words should be validated after the ZINT-571 swap to confirm that fault code mapping remains consistent with the new board revision.

Downtime Control During System Migration

Minimizing downtime during a ZINT-571 replacement requires preparation before the maintenance window opens. The replacement board should be on-site and pre-inspected, the parameter backup should be stored on a laptop running DriveStudio, and the site safety isolation procedure (LOTO) should be reviewed with the maintenance team. The DC bus discharge time for ACS800 drives is typically 5 to 10 minutes after main power isolation; this time should be used to prepare the replacement board and lay out tools rather than waiting idle.

Once the ZINT-571 is installed and the drive is re-energized, the first step is to clear any residual fault codes and perform a no-load motor identification run if the drive parameters were reset. The RMIO control board retains its parameter set independently of the power interface board, so in most cases a full re-commissioning is not required. Communication with the PLC or DCS should be verified by checking the fieldbus status word before returning the drive to automatic control. If the site uses a PROFIBUS network, the GSD file and node address should be confirmed active before releasing the drive to production.

Retrofit Support FAQ

Q: Is the ZINT-571 a direct replacement for all ACS800 power interface board variants?
A: The ZINT-571 (3AUA0000077333) is compatible with standard ACS800 cabinet drives. Confirm your drive’s full type code and existing board part number before ordering to ensure the correct gate drive configuration.

Q: Do I need to re-commission the drive after replacing the ZINT-571?
A: In most cases, no. The RMIO control board retains the parameter set. A no-load identification run may be required if the motor data was not previously stored, but full re-commissioning is typically not necessary.

Q: Is pre-shipment testing included?
A: Yes. All ZINT-571 units are functionally tested under simulated load conditions before dispatch. Test records are available upon request.

Q: What support terms is provided?
A: A support terms confirmed by quotation from the date of shipment is included as standard on all units supplied by KNMKS.
