ABB ZINT-551 Migration-Ready Fieldbus Module for Legacy Drives

Overview

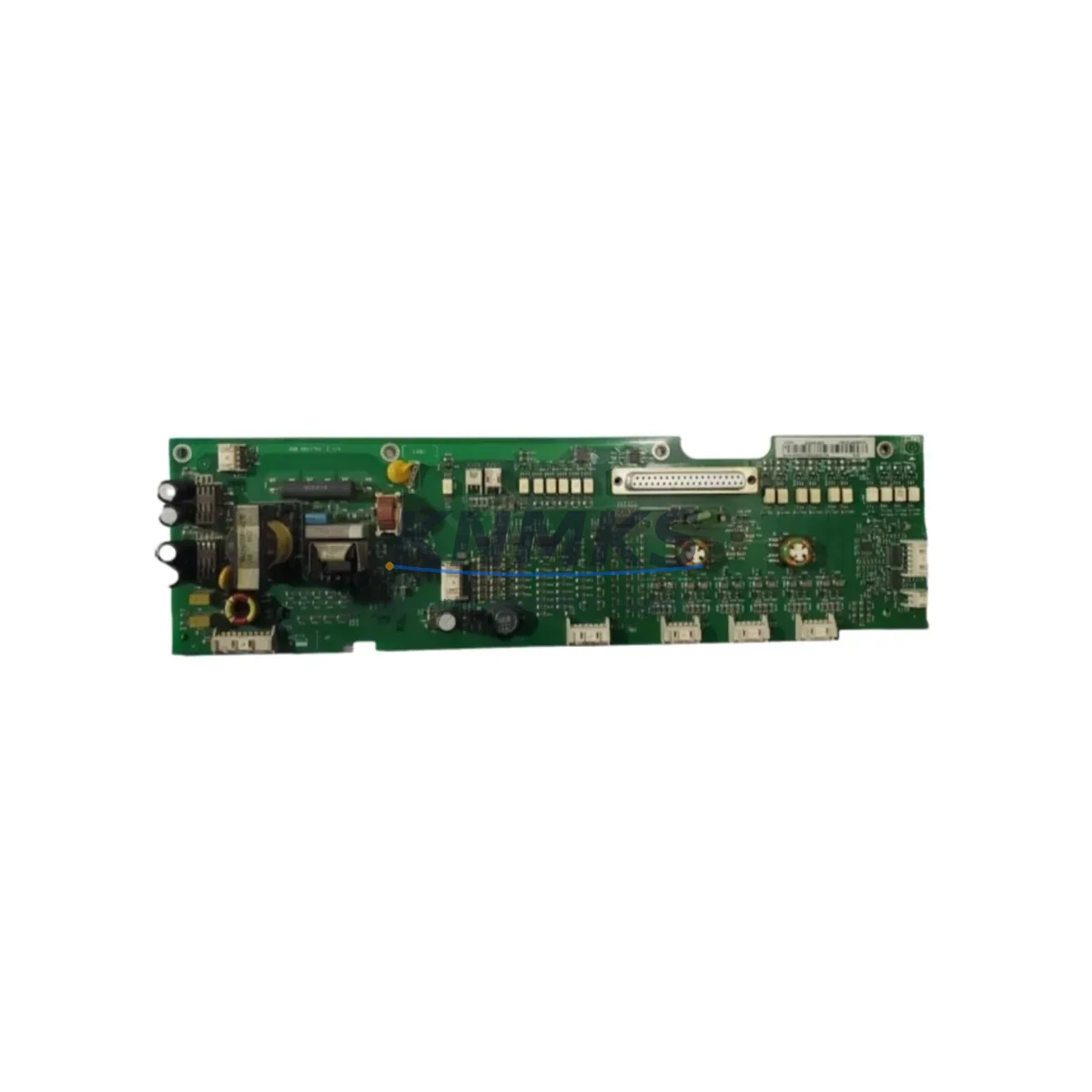

ABB ZINT-551 Migration-Ready Fieldbus Module for Legacy Drive Systems

The ABB ZINT-551 is a PROFIBUS DP fieldbus adapter module designed for the ACS800 series of AC drives. As legacy automation infrastructure ages and original ABB spare parts become increasingly difficult to source through standard distribution channels, the ZINT-551 has emerged as a critical component in drive communication retrofit programs across process industries, power generation, and heavy manufacturing. This listing provides a tested, verified replacement unit with full compatibility confirmation, ready for immediate deployment into existing ACS800 control architectures.

When planning a fieldbus module replacement on an operational ACS800 drive, engineers must confirm several parameters before committing to a swap. The ZINT-551 occupies the option slot on the ACS800 drive’s option board interface — typically Slot 1 or Slot 2 depending on the drive frame size and existing option board population. Before installation, verify that the drive firmware version supports the PROFIBUS DP protocol stack expected by the ZINT-551, as older ACS800 firmware revisions may require an upgrade to ensure stable cyclic data exchange. The module communicates via a 9-pin D-sub PROFIBUS connector and supports data rates up to 12 Mbit/s, which must be matched to the GSD file configuration loaded in the PROFIBUS master — typically a Siemens S7-300 or S7-400 PLC, or a DCS such as an Emerson DeltaV or Honeywell Experion node acting as the DP master.

Terminal wiring for the PROFIBUS segment must be reviewed carefully. Bus termination resistors at the physical ends of the PROFIBUS segment must be active, and the ZINT-551’s node address is set via the drive’s parameter group 51 (FIELDBUS ADAPTER). Confirm that the process data word mapping — particularly the control word, status word, speed reference, and actual speed feedback — matches the existing PLC program logic before energizing the drive. Mismatched data word assignments are the most common cause of unexpected drive trips during commissioning after a module swap.

In retrofit scenarios where the ACS800 drive is integrated into a larger control cabinet alongside an RDCO-02 or RDCO-03 optical communication module for DriveWindow or DriveOPC connectivity, the ZINT-551 can coexist in a separate option slot without conflict. Similarly, if the cabinet includes an AINT-02 or AINT-12 analog I/O extension module for speed trim or torque reference signals, these remain fully operational after the ZINT-551 replacement. Engineers upgrading from an older NPBA-12 PROFIBUS adapter — a common predecessor module used in ACS600 and early ACS800 installations — should note that the parameter group structure differs between the two modules, requiring a parameter mapping review before the new module is commissioned.

For sites running mixed drive fleets where ACS800 units share a PROFIBUS segment with ACS550 or ACS880 drives, the ZINT-551 replacement does not affect the segment topology, provided the GSD file for the ACS800 node is correctly maintained in the PROFIBUS master configuration. If the site is planning a phased migration from PROFIBUS DP to PROFINET or EtherNet/IP as part of a broader DCS or SCADA modernization program, the ZINT-551 provides a stable interim solution that preserves existing drive functionality while the network migration is planned and executed in parallel.

All units supplied through this listing are tested prior to shipment. Functional verification includes PROFIBUS communication handshake confirmation, parameter group 51 readback, and cyclic data exchange validation. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and communication failures under normal operating conditions. Stock is maintained in regional warehouses to support urgent replacement requirements with short lead times.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ZINT-551 retrofit begins with a full audit of the existing drive option board population. In a typical ACS800 control cabinet, the option slots may already be occupied by an AINT-02 analog I/O extension, an RDCO-02 optical communication module for DriveWindow connectivity, or an AIMA-01 multi-encoder interface. Identifying which slots are available — and which option boards must remain in service during the migration — determines the physical installation sequence and the minimum downtime window required.

The PROFIBUS segment wiring should be inspected before the new module is installed. Aging shielded twisted-pair cable, corroded D-sub connectors, or improperly terminated bus ends are common sources of intermittent communication faults that are often misattributed to the fieldbus module itself. Replacing the ZINT-551 without addressing segment integrity issues will not resolve underlying communication instability. A bus analyzer or PROFIBUS tester should be used to confirm segment health before and after the module swap.

If the ACS800 drive is controlled by a Siemens S7-300 or S7-400 PLC via PROFIBUS, the hardware configuration in STEP 7 or TIA Portal must reflect the correct GSD file for the ZINT-551. The process data word layout — typically 2 words of output (control word + speed reference) and 2 words of input (status word + actual speed) — must match the PLC program’s data block structure. Any mismatch will cause the drive to remain in the not-ready state or generate a fault 7 (fieldbus communication loss) on startup.

For sites where the ACS800 is integrated into a DCS environment — such as an Emerson DeltaV system using a PROFIBUS I/O card, or a Honeywell Experion PKS node with a PROFIBUS interface module — the device tag and GSD configuration in the DCS engineering station must be updated to reflect the replacement module. In most cases, the GSD file for the ZINT-551 is identical to that used for the predecessor NPBA-12, simplifying the DCS reconfiguration step. However, this should be confirmed against the specific DCS version and PROFIBUS stack in use at the site.

Downtime Control During System Migration

Minimizing unplanned downtime during a fieldbus module replacement on an operational ACS800 drive requires a structured pre-migration checklist. Before the drive is de-energized, the existing parameter set should be uploaded using DriveWindow Light or a compatible parameter backup tool connected via the RDCO-02 optical interface or the drive’s front panel RS-232 port. This backup preserves the full parameter set — including motor data, control mode settings, and fieldbus parameter group 51 — and allows rapid restoration if the replacement module requires parameter re-entry.

The physical replacement of the ZINT-551 is a cold-swap operation: the drive must be fully de-energized and the DC bus discharged before the option board slot is accessed. The module is secured by a single retaining screw and connects to the drive’s option board interface via a direct board-to-board connector. No soldering or cable modification is required. After installation, the drive should be powered up in local control mode first, with the PROFIBUS master in a non-commanding state, to confirm that the module is recognized and that parameter group 51 is accessible before the PROFIBUS master is brought online.

Once the PROFIBUS master is enabled and cyclic data exchange is confirmed, the drive should be tested through its full speed range under no-load conditions before the process load is reconnected. This step validates that the control word and speed reference signals are correctly mapped and that the drive responds to start, stop, and speed commands from the PLC or DCS as expected. Documenting the commissioning test results — including PROFIBUS diagnostic data and drive parameter readback — provides a baseline record for future maintenance and reduces troubleshooting time if communication issues arise later in the asset lifecycle.

Retrofit Support FAQ

Q: Is the ZINT-551 a direct replacement for the NPBA-12 used in older ACS800 installations?
A: The ZINT-551 and NPBA-12 both provide PROFIBUS DP connectivity for ABB drives, but they are not pin-compatible and use different parameter group structures. The ZINT-551 is the correct module for ACS800 drives with the standard option slot interface. If your existing installation uses an NPBA-12, a parameter group 51 review and GSD file verification are required before commissioning the ZINT-551 as a replacement.

Q: What pre-shipment testing is performed on each ZINT-551 unit?
A: Each unit undergoes a PROFIBUS communication handshake test and cyclic data exchange validation before shipment. Test records are available on request. All units are supplied with a support terms confirmed by quotation covering manufacturing defects and communication failures under normal operating conditions.

Q: Can the ZINT-551 coexist with other option modules already installed in the ACS800?
A: Yes. The ZINT-551 occupies one option slot and does not conflict with modules installed in other slots, such as the RDCO-02 optical communication module or the AINT-02 analog I/O extension. Confirm slot availability in your specific drive frame before ordering.

Q: What is the typical lead time and stock availability?
A: Units are maintained in regional warehouse stock to support urgent replacement requirements. Standard lead time is 3–7 business days for in-stock units. Contact our team for current availability and expedited shipping options for critical downtime situations.
