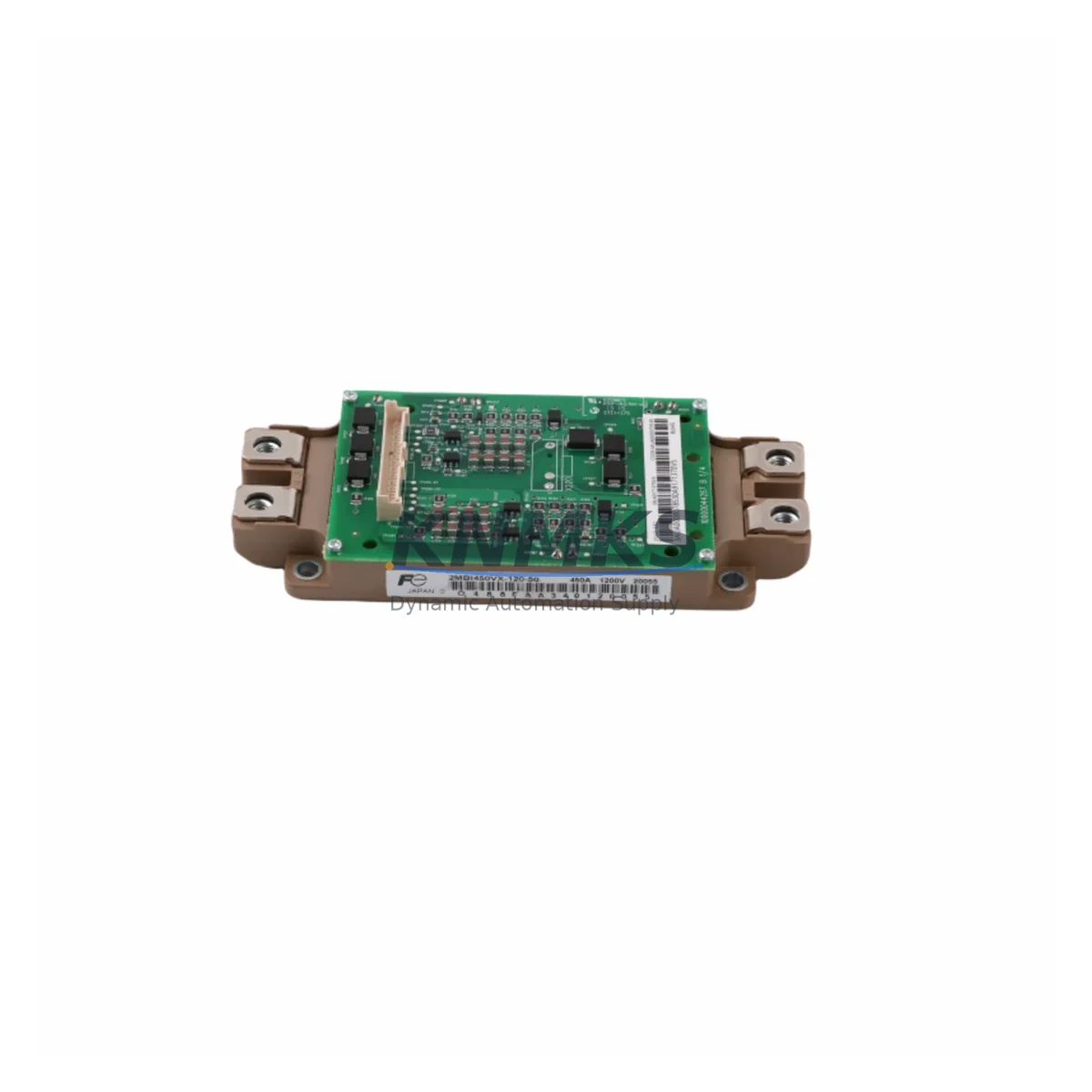

ABB ZGAD-582 Fail-Safe IGBT Gate Driver for Industrial Control

Overview

ABB ZGAD-582 Fail-Safe IGBT Gate Driver for Industrial Control Reliability

The ABB ZGAD-582 is a precision-engineered IGBT Gate Driver Board designed for mission-critical deployment within ABB ACS800 series variable frequency drives. In continuous production environments — petrochemical plants, power generation facilities, mining conveyors, water treatment stations, and heavy metallurgical lines — unplanned drive shutdowns translate directly into safety incidents, production loss, and costly emergency interventions. The ZGAD-582 addresses this risk at the hardware level, delivering fail-safe gate switching control that keeps drive output stable even under the most demanding electrical and environmental conditions.

Engineered for high-electromagnetic-interference (EMI) cabinets, the ZGAD-582 incorporates robust signal isolation and noise-rejection circuitry that prevents spurious gate triggering — a leading cause of IGBT misfires and uncontrolled motor torque events. In dusty, humid, or high-vibration field environments such as port crane control rooms or offshore pump stations, the board’s conformal-coated PCB and reinforced connector interfaces maintain signal integrity across extended operating cycles. Surge and transient voltage events — common in facilities sharing bus infrastructure with large motor starters or welding equipment — are absorbed without propagating to the IGBT module, protecting both the driver and the downstream power stage.

Within a properly configured ACS800 control cabinet, the ZGAD-582 works in close coordination with the ABB AINT-02C Optical Interface Board, which carries fiber-optic gate command signals from the drive’s main control board to the gate driver layer, eliminating ground-loop interference entirely. The ABB APOW-01C Power Supply Board provides the isolated auxiliary voltages the ZGAD-582 requires; any instability in this supply — caused by aging capacitors or loose terminal connections — will manifest as erratic gate timing, making the APOW-01C a critical companion part in any ZGAD-582 replacement project. On the IGBT module side, the ZGAD-582 interfaces directly with ABB’s 5SNA 1200G450300 or equivalent high-power IGBT modules; verifying module gate threshold voltage compatibility before installation is a mandatory pre-commissioning step.

For drives operating in safety-instrumented systems (SIS) or where IEC 61508 functional safety requirements apply, the ZGAD-582’s deterministic switching behavior and well-documented fault response characteristics support integration into safety loop documentation. When combined with the ABB RDCO-03C DDCS Communication Module for real-time drive diagnostics and the ABB RMIO-02C Motor Control Board for closed-loop speed and torque regulation, the complete ACS800 control stack achieves the redundancy and diagnostic coverage expected in SIL-rated applications. Replacement of the ZGAD-582 during a scheduled outage — rather than as an emergency reactive measure — is the recommended strategy for aging ACS800 fleets approaching 10+ years of service.

Every ZGAD-582 unit dispatched by KNMKS undergoes pre-shipment functional testing against ABB factory gate-drive waveform specifications, including rise-time, fall-time, and dead-band timing verification. Multi-region stock is maintained to support both emergency same-week dispatch and planned maintenance schedules across Asia-Pacific, Europe, and the Americas. All units carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable ACS800 control cabinet is a system — not a single component. The ZGAD-582 performs its fail-safe gate switching function most effectively when the surrounding cabinet architecture is equally robust. The ABB AINT-02C Optical Interface Board must deliver clean, jitter-free fiber-optic gate commands; degraded optical connectors or contaminated fiber ends are a known source of nuisance gate faults that the ZGAD-582 cannot compensate for. The ABB APOW-01C Power Supply Board must maintain tight auxiliary voltage regulation — a ±5% deviation on the 24 VDC rail is sufficient to shift IGBT gate threshold margins and increase switching losses, accelerating thermal aging of the gate driver itself.

On the communication and diagnostics layer, the ABB RDCO-03C DDCS Communication Module enables real-time fault logging and remote parameter access, allowing maintenance teams to detect early-stage gate drive anomalies — elevated switching temperatures, increased gate charge times — before they escalate to drive trips. For cabinet thermal management, ensuring that the drive’s internal cooling fans and heat sink assemblies are serviceable is equally important; a ZGAD-582 operating in a cabinet where ambient temperature regularly exceeds 45°C will experience accelerated electrolytic capacitor aging on its auxiliary supply filtering stage. In high-vibration installations such as mining crusher drives or ship propulsion control panels, periodic inspection of the ZGAD-582’s PCB connector seating and torque verification of the IGBT module gate terminal screws is a recommended preventive maintenance action.

Critical Industrial Safety Applications

The ABB ZGAD-582 is deployed across a wide range of safety-critical industrial sectors where drive control reliability is non-negotiable. In petrochemical and refinery environments, ACS800 drives equipped with ZGAD-582 gate drivers control boiler feed pumps, compressor trains, and cooling tower fans — processes where an uncontrolled drive trip can trigger pressure relief events or process safety system activations. In power generation facilities, the ZGAD-582 supports auxiliary drive systems including induced draft fans, cooling water pumps, and fuel handling conveyors, where continuous availability is required to maintain generation output and grid stability.

In mining and mineral processing operations, ACS800 drives with ZGAD-582 gate drivers manage conveyor belt drives, ball mill motors, and slurry pump systems operating under heavy cyclic loads and high ambient dust concentrations. The board’s EMI resistance and conformal coating are particularly valued in these environments. Water and wastewater treatment plants rely on ACS800 drives for variable-speed pump control across intake, treatment, and distribution stages; a gate driver failure in this context can interrupt chemical dosing or filtration cycles with regulatory compliance implications. In metallurgical and steel mill applications, the ZGAD-582 supports rolling mill main drives and ladle transfer car drives where precise torque control and fault-free operation during casting sequences are essential to product quality and worker safety. Port and terminal crane drives and continuous manufacturing lines in automotive and paper industries similarly depend on the ZGAD-582’s fail-safe switching performance to maintain throughput and avoid costly unplanned stoppages.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the ZGAD-582?
The support terms confirmed by quotation cover all manufacturing defects and functional failures occurring under normal operating conditions consistent with ABB ACS800 drive specifications. It includes free replacement or repair of confirmed defective units. The confirmed support period begins from the date of shipment. Units showing evidence of incorrect installation, overvoltage beyond rated limits, or physical damage from mishandling are assessed on a case-by-case basis.

Q2: What pre-shipment testing is performed on each ZGAD-582 unit?
Every unit undergoes gate waveform functional testing prior to dispatch, verifying IGBT gate signal rise time, fall time, and dead-band timing against ABB factory specifications. This testing confirms that the gate driver will perform correctly within the ACS800 power stage before it reaches the customer’s site, reducing the risk of installation-related drive faults.

Q3: Is the ZGAD-582 compatible with all ACS800 frame sizes and variants?
The ZGAD-582 is the standard gate driver board used across the ACS800 product family in configurations requiring this specific gate driver layer. Compatibility depends on the specific ACS800 frame size, power rating, and IGBT module type installed. Customers are advised to confirm the existing gate driver part number from the drive’s hardware documentation or nameplate before ordering. KNMKS technical support can assist with compatibility verification based on drive serial number or hardware revision.

Q4: Can KNMKS support long-term or scheduled supply agreements for the ZGAD-582?
Yes. KNMKS maintains multi-region stock of the ZGAD-582 to support both emergency replacement dispatch and planned maintenance schedules. For customers managing large ACS800 fleets or operating in regions with long logistics lead times, scheduled supply agreements and reserved stock arrangements are available. Contact [email protected] to discuss volume requirements, delivery schedules, and long-term supply terms.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

ZGAD-582
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB ZGAD-582
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
