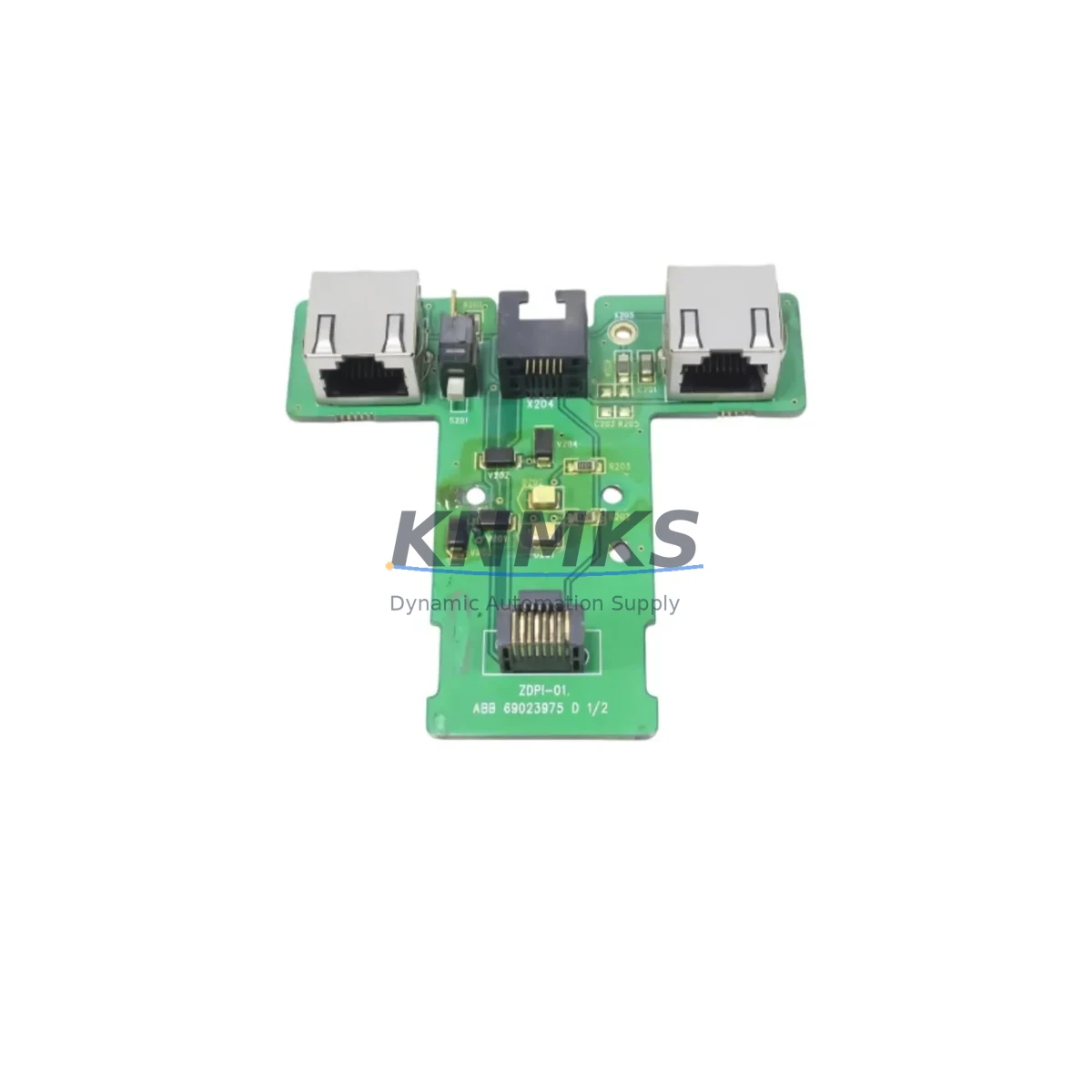

ABB ZDPI-01 3AUA0000058712 Spare ACS800 DDCS Module

Overview

ABB ZDPI-01 3AUA0000058712 Spare ACS800 DDCS Module: Maintenance-Proven Spare Part for Factory Uptime

The ABB ZDPI-01 (part number 3AUA0000058712) is an original DDCS fiber-optic extension module designed for the ABB ACS800 series industrial drives. In high-demand manufacturing environments — from paper mills and steel plants to chemical processing lines — the ZDPI-01 serves as a critical communication bridge between the ACS800 drive control board and external DDCS-based automation systems. When this module fails or degrades, the entire drive communication chain is interrupted, leading to unplanned downtime that can cost thousands of dollars per hour. Stocking a verified replacement unit is not optional for serious maintenance teams; it is a fundamental part of any responsible spare parts strategy.

At KNMKS, every ZDPI-01 unit is sourced as an original ABB spare, individually inspected, and tested prior to shipment. Our support terms confirmed by quotation cover both the module and its fiber-optic interface connectors, giving maintenance engineers and procurement teams the confidence to plan replacements without last-minute sourcing risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ZDPI-01 in the field is rarely an isolated task. Experienced maintenance engineers know that a DDCS communication fault on an ACS800 drive is often a symptom of a broader control cabinet issue. Before declaring the ZDPI-01 as the sole root cause, a thorough site inspection should cover the following areas:

RDCO-02 / RDCO-03 DDCS Communication Option Board: The ZDPI-01 works in conjunction with the RDCO series DDCS boards. If the ZDPI-01 is being replaced due to a CH0 or CH1 communication fault, the RDCO board itself should be inspected for fiber connector contamination, board-level corrosion, or firmware incompatibility. Stocking an RDCO-02 or RDCO-03 alongside the ZDPI-01 is a best practice for ACS800 sites with multiple drives.

RMIO-11C / RMIO-02C Control Board: The RMIO control board is the host for the ZDPI-01 slot. A failed or partially functional RMIO board can mimic DDCS extension faults. During any ZDPI-01 replacement, verify that the RMIO board’s firmware version is compatible with the installed ZDPI-01 hardware revision. If the RMIO board shows signs of capacitor aging or relay contact wear, plan its replacement in the same maintenance window.

Fiber-Optic Patch Cables (DDCS): Plastic optical fiber (POF) cables used in DDCS networks are sensitive to bending radius violations and connector contamination. During a ZDPI-01 swap, always clean and inspect all fiber connectors with an appropriate fiber optic cleaning kit. Degraded fiber cables are a leading cause of intermittent DDCS faults that are incorrectly attributed to the extension module itself.

APBU-44C / APBU-12C Branching Unit: In multi-drive ACS800 systems, the APBU branching unit distributes the DDCS signal to multiple drives. A failing APBU can cause cascading DDCS faults across several drives simultaneously. If multiple ACS800 units show DDCS alarms at the same time, inspect the APBU before replacing individual ZDPI-01 modules.

Drive Control Panel (ACS-CP-C / CDP312R): After any ZDPI-01 replacement, the drive control panel should be used to verify that the DDCS channel parameters (Group 70 in ACS800 parameter set) are correctly configured. A blank or corrupted parameter set following a board swap is a common cause of post-maintenance faults. Keep a parameter backup on the CDP312R or in your DRIVEWINDOW software archive.

24 VDC Auxiliary Power Supply and Fusing: The ACS800 control section relies on a stable 24 VDC auxiliary supply. Voltage dips or ripple on this rail can cause intermittent communication module resets. During a ZDPI-01 replacement, measure the auxiliary supply voltage at the control board terminals and inspect the associated fuse or miniature circuit breaker for signs of thermal stress.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before ordering, confirm the ZDPI-01 slot position on your ACS800 control board (typically slot 1 or slot 2 on the RMIO board). Cross-reference the existing module’s label against part number 3AUA0000058712 to ensure an exact match. If your site runs an older ACS800 firmware version, contact KNMKS to confirm hardware revision compatibility.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. The ACS800 DC bus must be fully discharged before any control board work. Verify zero voltage at the DC bus terminals using a calibrated meter before opening the drive cabinet.

Step 3 — Module Removal and Inspection: Disconnect all fiber-optic cables from the existing ZDPI-01. Note the cable routing and channel assignments (CH0, CH1, CH2, CH3) before removal. Inspect the vacated slot on the RMIO board for bent connector pins or contamination.

Step 4 — New Module Installation: Install the replacement ZDPI-01 into the correct slot. Reconnect fiber cables in the original channel order. Ensure all connectors are fully seated and latched.

Step 5 — Power-Up and Parameter Verification: Restore auxiliary power and verify that the ACS800 control panel shows no DDCS fault alarms. Navigate to parameter Group 70 and confirm that the DDCS node address and channel configuration match your system design. Run a communication test from the master controller (typically a AC800M, S7-300/400, or similar PLC) to confirm end-to-end DDCS integrity.

Step 6 — Documentation: Record the replacement date, new module serial number, and post-replacement test results in your maintenance management system (CMMS). Update your spare parts inventory to trigger a reorder for the consumed ZDPI-01 unit.

This workflow minimizes drive downtime to under two hours for a prepared maintenance team and eliminates the risk of repeat faults caused by incomplete restoration.

Spare Parts Support FAQ

Q1: Is the ZDPI-01 (3AUA0000058712) compatible with all ACS800 variants?
The ZDPI-01 is compatible with the full ACS800 product family, including single-drive units (ACS800-01, -04, -07) and multi-drive configurations (ACS800-11, -17, -31, -37), provided the host RMIO control board has an available DDCS extension slot. For ACS800 units with RDCO boards already installed, the ZDPI-01 adds additional DDCS channels. Always verify the slot availability and firmware version before ordering.

Q2: What is included in the support terms confirmed by quotation and how does it work?
Every ZDPI-01 supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested before dispatch using ACS800-compatible test equipment. In the event of a support terms claim, KNMKS provides a replacement unit or documented resolution support, with return shipping coordinated by our support team.

Q3: How many ZDPI-01 units should a maintenance team stock for an ACS800 installation?
For sites with 1–5 ACS800 drives, we recommend stocking a minimum of one ZDPI-01 as a critical spare. For larger installations (6+ drives) or sites where DDCS communication is on the critical path for production continuity, stocking two units is advisable. Given the long lead times for ABB legacy modules on the open market, pre-stocking eliminates the risk of extended downtime while sourcing a replacement under emergency conditions.

Q4: Can KNMKS support long-term supply of the ZDPI-01 for multi-year maintenance contracts?
Yes. KNMKS maintains ongoing stock of the ZDPI-01 (3AUA0000058712) and can support blanket purchase orders, annual supply agreements, and project-based procurement for EPC contractors and OEM service teams. Contact our sales team at [email protected] to discuss volume pricing, reserved stock arrangements, and consolidated shipment options for multi-site ACS800 maintenance programs.
