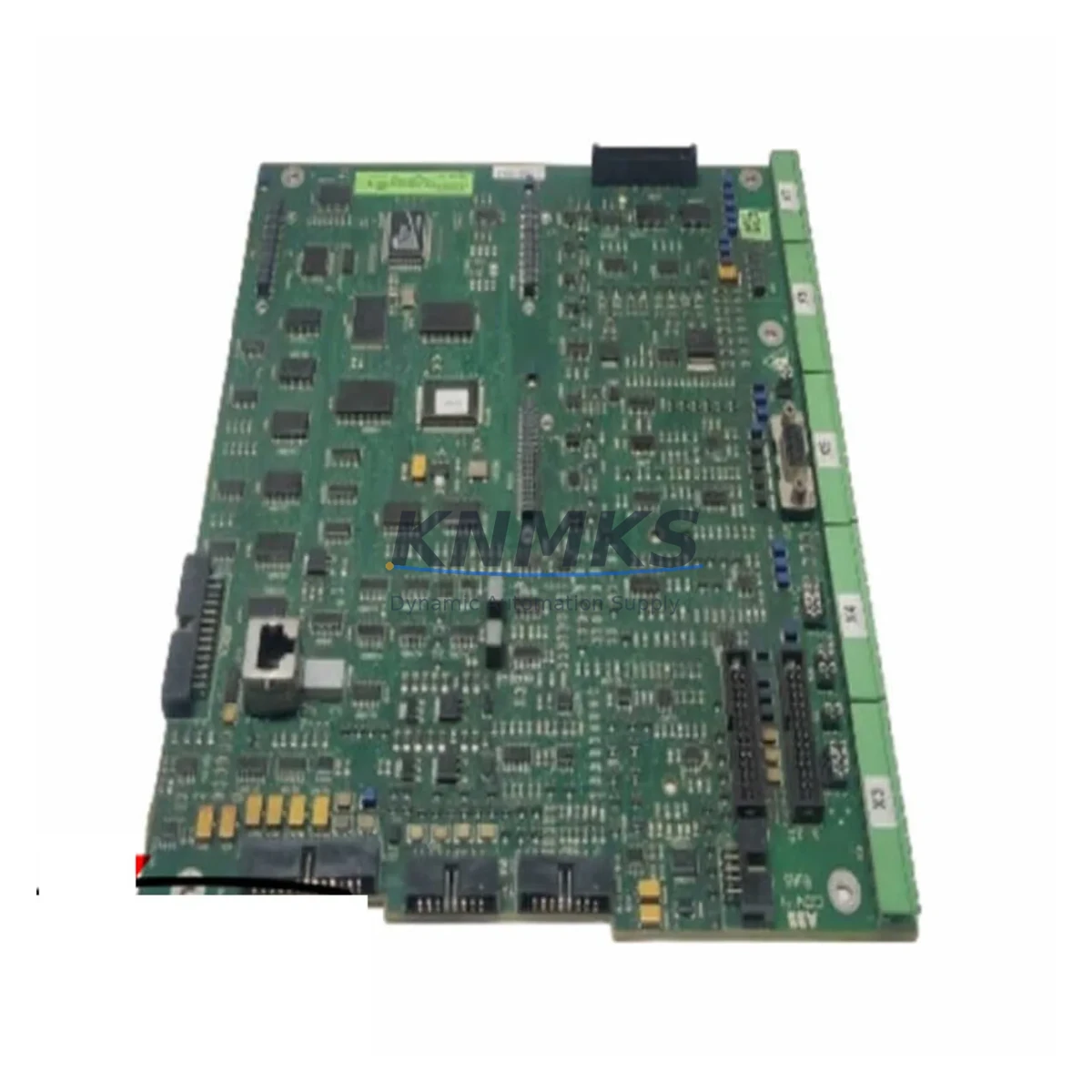

ABB ZCU-12L Migration-Ready Drive Control Card for ACS800

Overview

ABB ZCU-12L Migration-Ready Drive Control Card for ACS800: Legacy System Retrofit & Compatibility Upgrade

The ABB ZCU-12L is a drive control card engineered for the ACS800 series variable frequency drive platform — one of ABB’s most widely deployed industrial drive families across global manufacturing, pulp and paper, oil and gas, and heavy process industries. As the ACS800 series approaches end-of-life support milestones, the ZCU-12L has become a critical spare part for engineers managing legacy control system continuity, planned retrofits, and unplanned breakdown recovery.

Whether you are replacing a failed control board in an active production line, building a retrofit-ready spare parts inventory for a multi-drive installation, or executing a phased migration from an older ACS600 or DCS800 platform to a modernized ACS880 architecture, the ZCU-12L provides the hardware foundation for a controlled, low-risk transition. Each unit supplied by KNMKS is sourced from verified channels, pre-shipment tested under load conditions, and backed by a support terms confirmed by quotation covering manufacturing defects and functional performance.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ZCU-12L retrofit begins well before the replacement board arrives on site. Engineers should audit the existing ACS800 drive cabinet to confirm the frame size, verify the installed RMIO-11C or RMIO-12C application module compatibility, and document the current parameter backup using DriveWindow Light or DriveStudio software. The parameter backup is non-negotiable — it preserves motor data, speed references, PID tuning, and fault history that would otherwise require full recommissioning from scratch.

In multi-drive installations using an APBU-44C or APBU-12C pulse encoder interface unit, the ZCU-12L must be re-addressed on the DDCS fiber optic ring after installation. Node addressing errors are among the most common commissioning delays in ACS800 multi-drive retrofits and should be verified before closing the cabinet. If the installation includes an RDCO-03 DeviceNet adapter or RDCO-04 PROFIBUS-DP adapter for PLC integration, confirm that the fieldbus node address and baud rate settings are preserved in the parameter backup and re-applied after board swap.

For sites migrating from older ACS600 drives to the ACS800 platform, the ZCU-12L serves as the control intelligence layer in the new drive. In this scenario, the NIOC-01 I/O extension module or AIMA-01 analog I/O module may need to be added to the new drive cabinet to replicate the I/O point count of the legacy system. Signal isolators between the legacy PLC analog outputs and the new ACS800 analog inputs are recommended where ground loop interference is a concern in older cable infrastructure.

HMI integration should also be planned in advance. If the existing operator panel is an ACS800 CDP312R control panel, it will communicate directly with the ZCU-12L via the panel bus without additional configuration. For sites using a third-party SCADA or DCS system connected via Modbus RTU or PROFIBUS, verify that the communication adapter firmware version is compatible with the ZCU-12L hardware revision before commissioning.

KNMKS maintains stocked inventory of the ZCU-12L and related ACS800 spare parts to support both emergency breakdown recovery and planned retrofit schedules. Lead times for in-stock units are typically 3–7 business days for international shipment, with expedited options available for critical production line recovery scenarios.

Downtime Control During System Migration

Minimizing unplanned downtime during a ZCU-12L replacement requires a structured pre-swap protocol. Before de-energizing the drive, perform a full parameter backup to a laptop running DriveWindow or DriveStudio and save a secondary copy to a USB drive stored in the control cabinet. Photograph or document the X1–X4 terminal block wiring layout, particularly any non-standard analog input scaling or digital input function assignments that may not be captured in the parameter file.

During the physical swap, observe ESD precautions — the ZCU-12L contains sensitive FPGA and DSP components that are vulnerable to electrostatic discharge in dry industrial environments. Use a grounded wrist strap and anti-static mat. Re-seat the board firmly into the ACS800 control section backplane connector and verify that all ribbon cable connections to the AINT-02 or AINT-11 inverter control board are fully engaged before applying power.

On first power-up after replacement, the drive will typically display a fault or warning related to the application program not being loaded. This is expected behavior. Restore the parameter backup via DriveWindow, verify motor nameplate data in parameter group 99, and perform a motor identification run (ID Run) if the motor has not been previously identified on this drive. For applications with tight speed or torque control requirements, a full ID Run is strongly recommended even if the parameter backup appears complete.

For production lines where even a brief interruption is costly, KNMKS recommends maintaining a pre-configured hot-spare ZCU-12L with the site-specific parameter set pre-loaded. This reduces the swap-to-restart cycle to under 30 minutes in most ACS800 installations and eliminates the risk of parameter entry errors during a high-pressure breakdown recovery scenario.

Retrofit Support FAQ

Q: Is the ABB ZCU-12L a direct replacement for all ACS800 drive control card variants?
A: The ZCU-12L is compatible with the majority of ACS800 single-drive and multi-drive configurations. However, hardware revision differences between ZCU-12, ZCU-12L, and ZCU-14 variants mean that a direct label-to-label match should be confirmed before ordering. KNMKS technical support can assist with cross-referencing your existing board’s revision label and serial number to confirm compatibility.

Q: What commissioning steps are required after installing the ZCU-12L?
A: After physical installation, restore the parameter backup via DriveWindow or DriveStudio, verify motor data in parameter group 99, re-assign DDCS node addresses in multi-drive configurations, and confirm fieldbus adapter settings if PROFIBUS or DeviceNet communication is used. A motor ID Run is recommended for precision applications. Total commissioning time for a prepared technician with a parameter backup is typically 1–3 hours.

Q: Does KNMKS pre-test the ZCU-12L before shipment?
A: Yes. Every ZCU-12L unit is functionally tested prior to shipment. Testing covers power-up initialization, communication interface verification, and I/O channel functionality. A test report is available upon request. All units are shipped with ESD-protective packaging and are covered by a support terms confirmed by quotation from the shipment date.

Q: What is the typical lead time and do you maintain stock?
A: KNMKS maintains active inventory of the ABB ZCU-12L to support both emergency and planned procurement. In-stock units ship within 1–3 business days. For bulk orders or long-term supply agreements covering 12–36 months of spare parts requirements, contact our sales team to discuss dedicated stock allocation and pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

ZCU-12L
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB ZCU-12L
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
