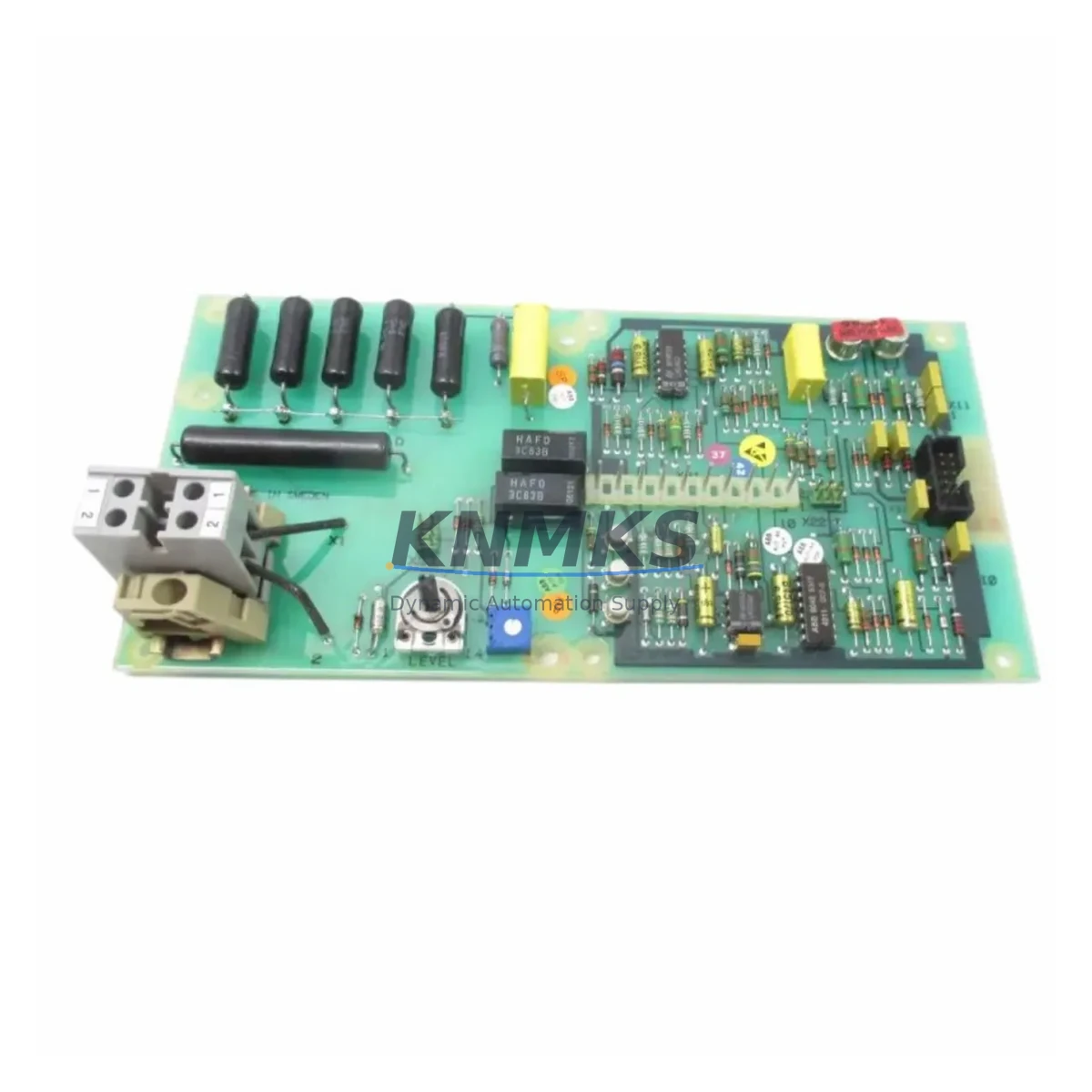

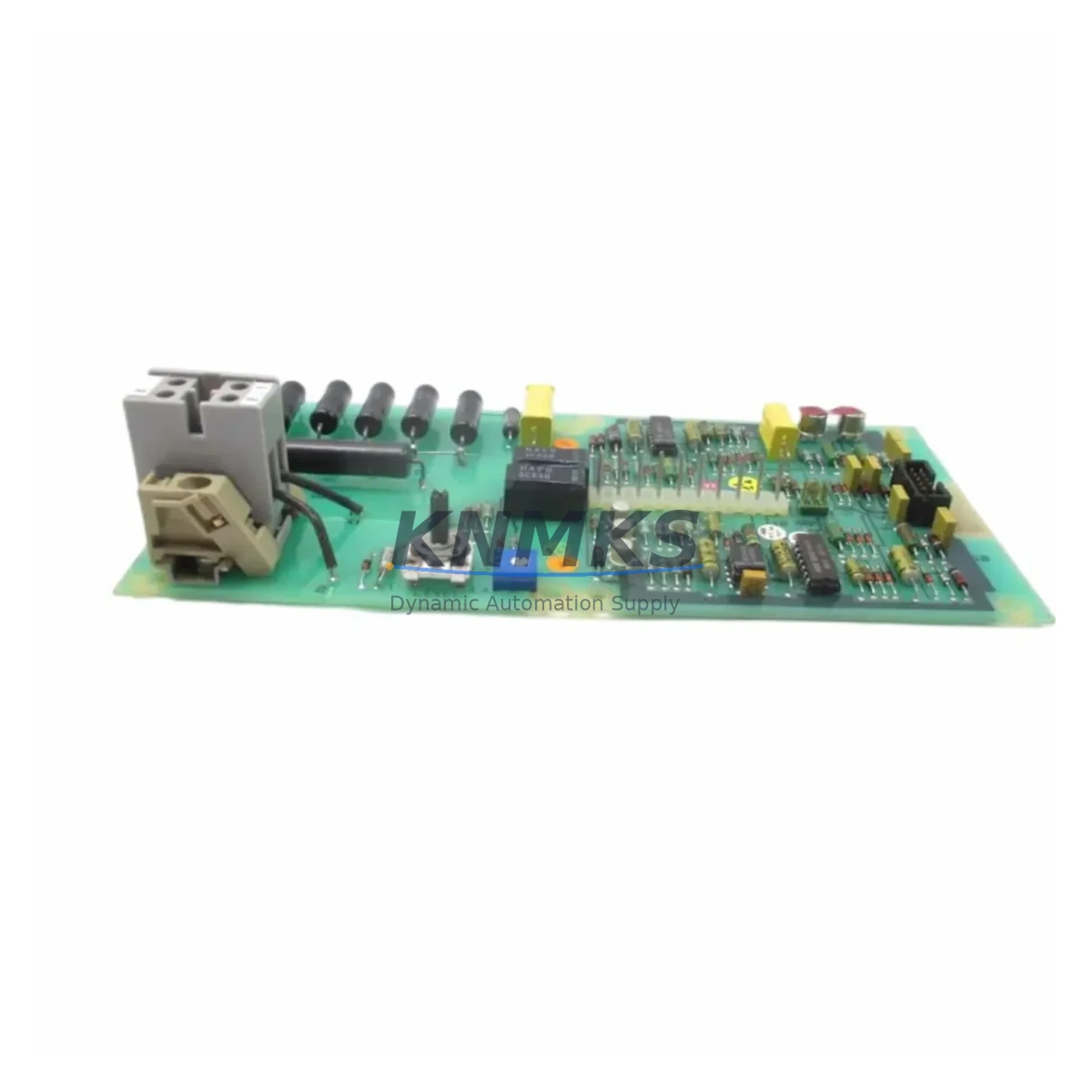

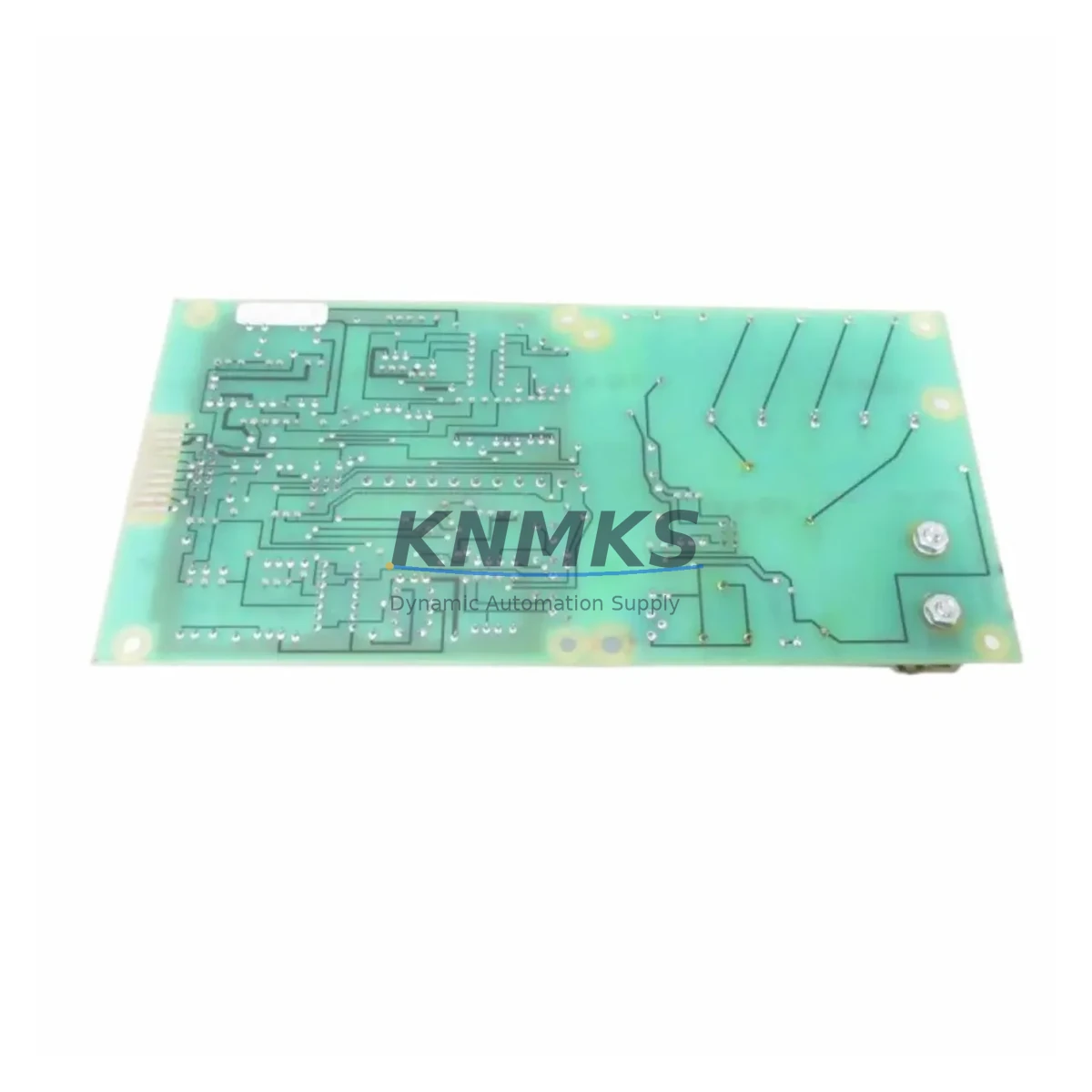

ABB YXO126 4890024-UN Migration-Ready Overvoltage Protection

Overview

ABB YXO126 4890024-UN Migration-Ready Overvoltage Protection for Legacy ASEA DC Control Systems

The ABB YXO126 4890024-UN is a migration-ready overvoltage protection module engineered for direct replacement in legacy ASEA DC drive systems and aging industrial control cabinets. As original ASEA and early ABB DCS series components reach end-of-life, plant engineers and maintenance teams face increasing pressure to source verified drop-in replacements that preserve existing wiring, backplane interfaces, and control logic without triggering a full system redesign. The YXO126 4890024-UN addresses this challenge precisely — it is form-fit-function compatible with the original ASEA DC drive architecture, enabling controlled, low-risk modernization of overvoltage protection circuits in both standalone drive cabinets and integrated multi-axis control systems.

Before committing to a replacement, engineers must verify several critical parameters: the DC bus voltage rating and surge suppression threshold of the original module, the terminal block pitch and wiring gauge compatibility, the backplane slot assignment and module address configuration, and whether the existing PLC program references any fault codes or status bits tied to the overvoltage protection channel. In ASEA-era systems, the overvoltage protection module often communicates fault states to the main controller — typically an ABB AC500 series PLC or a legacy DSPC series processor — via hardwired digital I/O rather than fieldbus. Confirming this signal path before removal prevents unexpected drive trips or loss of fault visibility during commissioning.

Power supply capacity is another key pre-installation checkpoint. The YXO126 4890024-UN draws its operating power from the drive cabinet’s internal 24 VDC auxiliary rail. If the existing DSQC power supply module or dedicated 24 V rail is already loaded near capacity due to added I/O expansion cards or communication modules, a load audit should be completed before installation. Insufficient auxiliary power is a common root cause of intermittent protection faults that are difficult to diagnose after the fact.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the YXO126 4890024-UN into an existing ASEA DC drive system requires a structured approach that accounts for the interdependencies between the overvoltage protection circuit and the broader control architecture. In a typical legacy DC drive cabinet, the overvoltage protection module sits within a rack alongside the firing pulse board, the current feedback module, and the speed reference conditioning card. Removing and replacing the YXO126 without first documenting the existing wiring harness — including shield grounding points and terminal numbering — is a common source of commissioning delays.

For systems where the DC drive is supervised by an ABB AC500 PLC or an older DSPC 110 / DSPC 172 processor module, the retrofit plan should include a review of the I/O mapping to confirm that the overvoltage fault output is correctly assigned in the controller’s I/O table. If the control system has been partially upgraded and now includes an ABB CI854 PROFIBUS communication interface or a CI840 PROFINET adapter for remote diagnostics, the fault signal routing may have been modified from the original hardwired configuration — this must be verified in the current as-built drawings before proceeding.

In multi-drive installations where several ASEA DC drives share a common DC bus, replacing the overvoltage protection module on one drive while others remain in service requires careful coordination. The common bus voltage must be monitored throughout the replacement procedure, and the drive being serviced should be isolated at the incoming contactor level rather than simply disabled via the control system. An ABB SDCS-CON-4 control board or equivalent drive controller should be placed in a safe state before any module is removed from the rack.

For plants that are simultaneously upgrading their HMI infrastructure — migrating from legacy ASEA operator panels to modern ABB CP600 series HMI terminals or third-party SCADA systems — the overvoltage protection status display should be re-mapped in the new HMI project. This is particularly important where the original HMI screen included a dedicated drive protection status page that referenced the YXO126 fault output directly. Failing to update the HMI mapping results in a silent fault condition that operators cannot detect from the control room.

Where the retrofit scope extends to I/O expansion — for example, adding an ABB TU516 terminal unit or additional digital input modules to capture more granular drive status signals — the auxiliary power budget must be recalculated to ensure the 24 VDC rail can support the additional load alongside the replacement YXO126 4890024-UN. A signal isolator, such as an inline DIN-rail-mounted isolator for the overvoltage fault output, may be required if the new I/O module operates at a different signal level than the original ASEA wiring.

Downtime Control During System Migration

Minimizing unplanned downtime during the replacement of the YXO126 4890024-UN is achievable through disciplined pre-work and a clearly defined changeover sequence. The most effective approach is to complete all documentation, wiring verification, and spare parts staging during a planned maintenance window rather than during an emergency breakdown response. Before the drive is taken offline, the existing PLC program should be backed up — including all data blocks, retentive memory values, and drive parameter sets — so that the control logic can be restored exactly as it was if any unexpected issue arises during commissioning.

During the physical replacement, the terminal wiring should be photographed and labeled before any connections are disturbed. The replacement YXO126 4890024-UN should be bench-tested for basic continuity and insulation resistance before installation. Once installed, the drive should be powered up in a controlled sequence: auxiliary power first, then the main DC bus, with the motor disconnected if possible for the initial functional test. The overvoltage protection trip threshold should be verified against the drive’s original commissioning data before the motor is reconnected and the drive is returned to production.

For critical production lines where even a short outage has significant cost implications, a parallel commissioning approach — where the replacement module is pre-wired on a test bench using a replica of the terminal configuration — can reduce the in-cabinet installation time to under 30 minutes. This approach is particularly effective when the retrofit is being carried out across multiple identical drives in the same facility, as the first installation serves as a validated template for all subsequent units.

All units supplied by KNMKS undergo full functional testing prior to dispatch. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions, providing additional assurance during the post-installation period.

Retrofit Support FAQ

Q: Is the YXO126 4890024-UN a direct replacement for the original ASEA module of the same part number?
A: Yes. The YXO126 4890024-UN is supplied as a direct form-fit-function replacement for the original ASEA DC drive overvoltage protection module. Terminal layout, mounting interface, and electrical characteristics are consistent with the original specification. We recommend verifying the terminal wiring against your as-built drawings before installation.

Q: What commissioning steps are required after installation?
A: After physical installation and wiring reconnection, verify the overvoltage trip threshold using the drive’s commissioning tool or parameter set. Confirm that the fault output signal is correctly received by the supervising PLC or control system. Perform a controlled power-up sequence with the motor disconnected before returning the drive to full production load.

Q: Can this module be used in a drive cabinet that has been partially upgraded with newer ABB components?
A: In most cases, yes. The YXO126 4890024-UN is compatible with mixed-generation ASEA/ABB DC drive cabinets provided the backplane slot, auxiliary power supply, and terminal wiring remain consistent with the original configuration. If surrounding modules have been replaced with physically wider variants, confirm that adequate rack slot clearance exists before installation.

Q: What is the support terms and what does it cover?
A: All YXO126 4890024-UN units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal industrial operating conditions. Units are fully tested before dispatch. For support requests or technical support, contact admin@knmks.com or call +86 18359268345.
