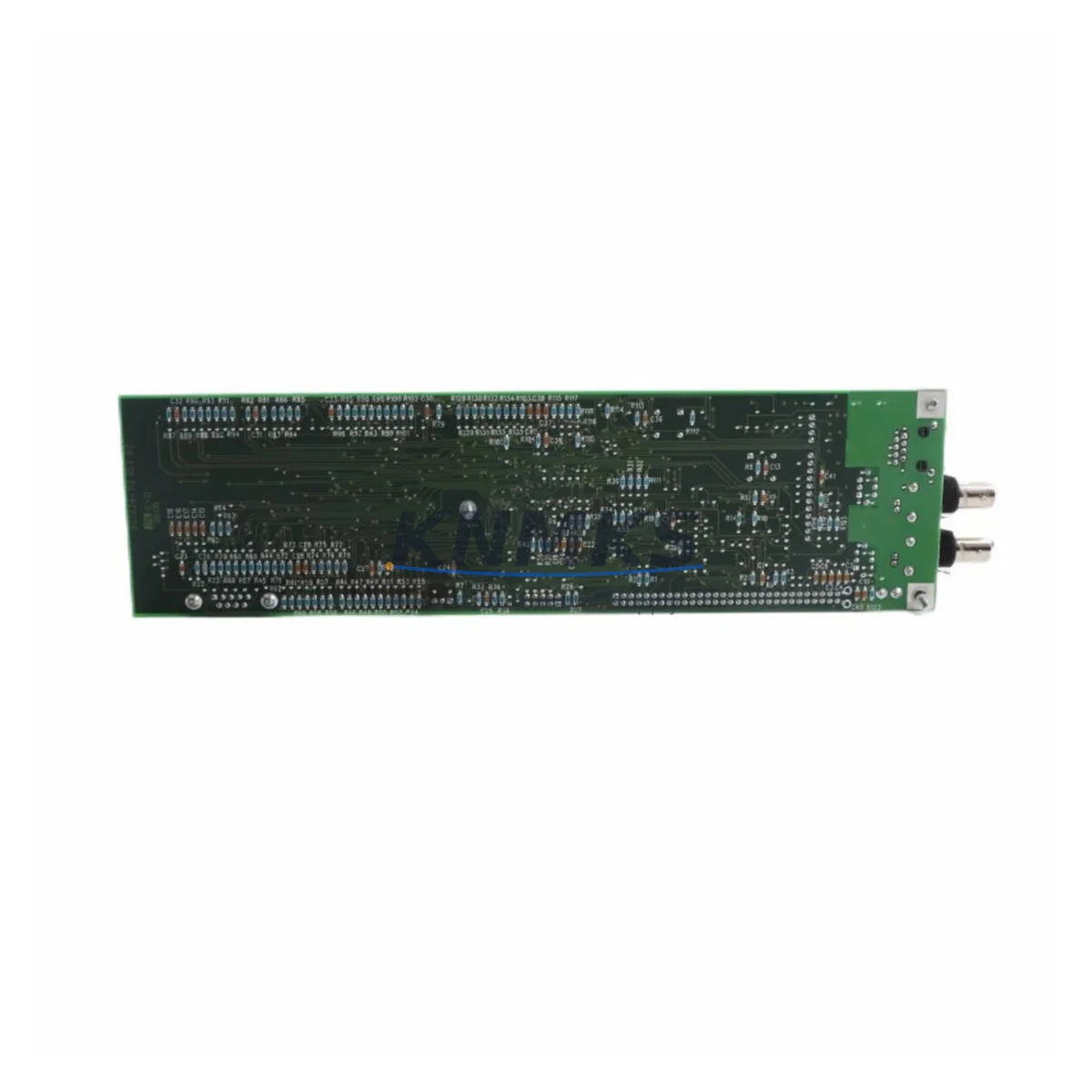

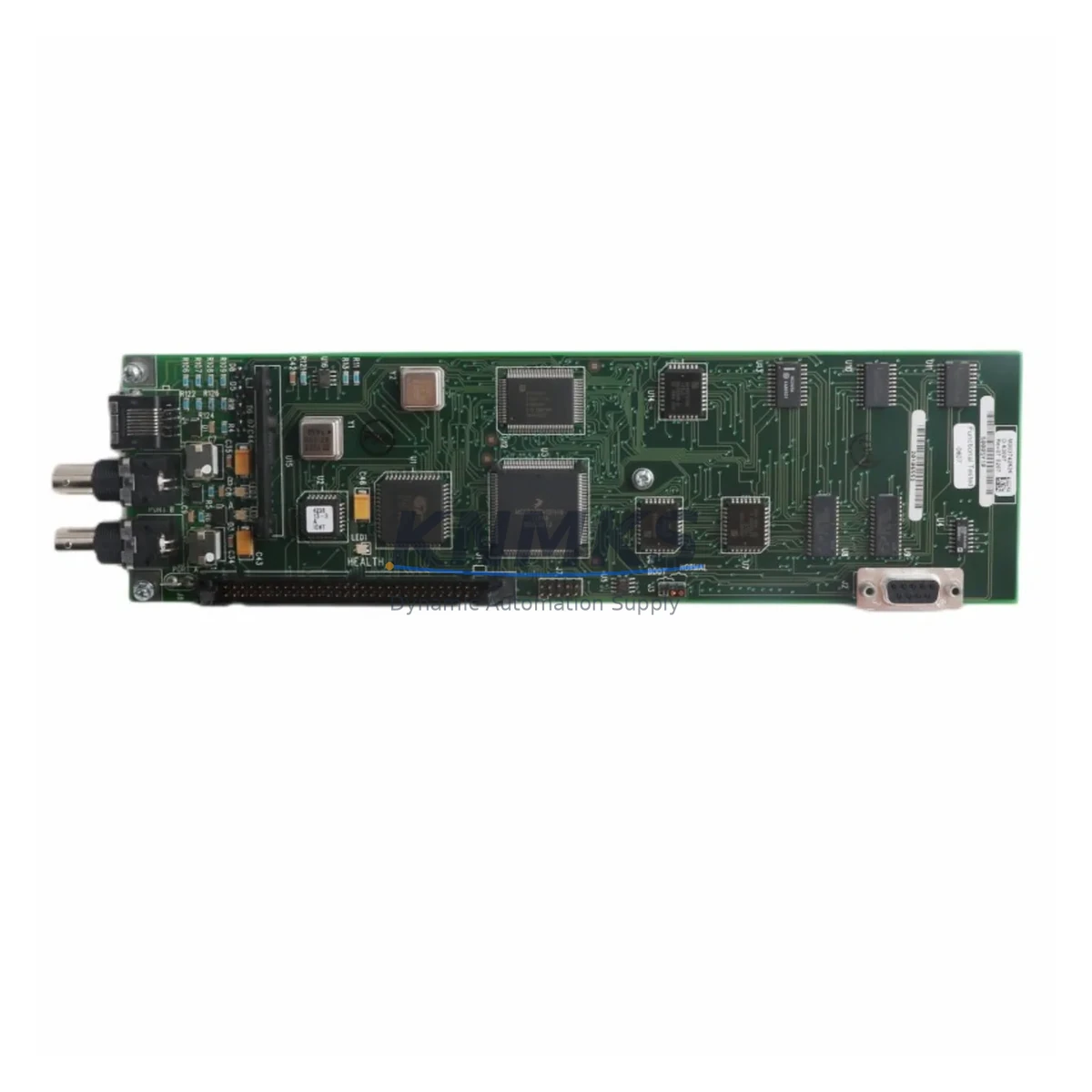

ABB 0-63007 M003742626 803624-113 Migration-Ready Drive Control Board

Overview

ABB 0-63007 M003742626 803624-113 Migration-Ready Drive Control Board: Legacy System Migration and Compatible Upgrade

The ABB 0-63007 M003742626 803624-113 is a drive control board engineered for ABB ACS series variable frequency drives, widely deployed across industrial automation systems in manufacturing, process control, water treatment, and energy sectors. As legacy ACS drive platforms approach end-of-life and original spare parts become increasingly scarce, this board serves as a verified migration-ready replacement that enables facilities to extend operational life, restore failed drives, and execute controlled system upgrades without full drive replacement.

This control board governs the core logic functions of the drive: speed reference processing, fault detection, I/O signal routing, and communication interface management. When the original board fails due to component aging, capacitor degradation, or firmware corruption, the entire drive becomes inoperable — halting production lines and triggering unplanned downtime. Sourcing a compatible, tested replacement board is the fastest path to drive restoration while preserving the existing mechanical and power infrastructure.

Before installing the ABB 0-63007 M003742626 803624-113, engineers should confirm the following: the drive’s DC bus voltage and power supply rail compatibility with the replacement board’s rated input; terminal block pinout alignment between the original and replacement board, particularly for analog reference inputs (AI1/AI2), digital inputs (DI1–DI6), relay outputs (RO1–RO3), and 24 VDC auxiliary supply; backplane connector type and slot position within the drive chassis; and the drive’s firmware version, as certain ACS platform generations require firmware alignment between the control board and the power unit to prevent initialization faults.

Program logic stored in the drive’s parameter memory may or may not be retained depending on whether the original board’s EEPROM or external memory module (such as the ABB MFDT-01 memory unit) was used for parameter backup. Engineers are strongly advised to perform a full parameter upload via DriveWindow or Drive Composer prior to board removal, ensuring that all application-specific settings — including motor nameplate data, PID tuning values, fieldbus node addresses, and I/O function assignments — can be restored after the replacement board is seated and powered.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a drive control board within an existing automation system requires a structured approach that accounts for the interdependencies between the drive and the broader control architecture. In a typical ACS drive installation, the control board interfaces with multiple upstream and downstream components that must each be evaluated before and after the swap.

The 24 VDC auxiliary power supply feeding the control board — often sourced from a dedicated DIN-rail power supply module within the control cabinet — must be verified to deliver stable voltage within the board’s rated tolerance. Voltage sag or ripple caused by an aging power supply can cause intermittent faults on the new board that are difficult to diagnose without a power quality meter.

Terminal wiring connected to the control board’s I/O block should be documented with photographs and a wiring schedule before disconnection. Analog input signals from field transmitters, digital start/stop commands from the PLC output module, and relay feedback signals to the SCADA system must all be reconnected to the correct terminals on the replacement board. In systems using an ABB RDCO-03 or RDCO-04 communication adapter for DDCS fiber-optic links to an AC800M controller or a Master Drive unit, the adapter must be reseated and the node address re-confirmed after board replacement.

For installations where the ACS drive communicates with a Siemens S7 series PLC or an Allen-Bradley ControlLogix system via a PROFIBUS DP or EtherNet/IP fieldbus adapter, the GSD file or EDS file configuration in the PLC project must be verified to match the drive’s updated firmware version. Mismatched GSD versions can prevent the fieldbus master from establishing a data exchange connection, resulting in a communication fault that halts the drive even after a successful board installation.

HMI screens configured in WinCC, FactoryTalk View, or an ABB CP600 panel that display drive status, speed feedback, and fault codes via fieldbus tags should be tested after commissioning to confirm that all data points are updating correctly. In some legacy installations, drive parameter addresses shift between firmware versions, requiring HMI tag remapping.

Where the control cabinet also houses an ABB ACS800 or ACS550 drive alongside the unit being retrofitted, engineers should confirm that the shared DC bus or common EMC filter is not affected by the board swap. Signal isolators installed between the drive’s analog outputs and the PLC analog input module should also be checked for correct scaling after the replacement board is commissioned.

Downtime Control During System Migration

Minimizing downtime during a drive control board replacement requires preparation that begins well before the maintenance window opens. The most effective strategy is to complete all pre-work — parameter backup, wiring documentation, firmware version confirmation, and spare parts staging — during normal production hours so that the actual board swap can be executed within a single planned shutdown window.

Before powering down the drive, the existing parameter set should be uploaded and saved to both a PC running Drive Composer and an MFDT-01 memory unit if one is installed. This dual-backup approach ensures that even if the PC tool connection fails during restore, the memory unit can be used to reload parameters directly from the drive’s front panel.

During the board swap, the DC bus capacitors in the drive must be allowed to fully discharge before any internal components are touched — typically a minimum of five minutes after power removal, confirmed by measuring the DC bus terminals with a calibrated voltmeter. Failure to observe this step creates a serious electrical hazard and can damage the replacement board if residual charge is present during installation.

After the replacement board is seated and the drive is powered on, the commissioning sequence should follow ABB’s standard startup procedure: verify the power-on self-test passes without fault codes, restore the parameter backup, run a motor identification (ID run) if the motor data was not fully preserved, confirm I/O signal states match the expected logic from the PLC, and verify fieldbus communication is established before releasing the drive to automatic control.

For critical production lines where even a single shift of downtime carries significant cost, maintaining a pre-tested spare board in inventory — with firmware pre-loaded and parameters pre-configured — reduces the replacement window to under two hours. This approach is particularly valuable for facilities operating ACS drives on pumps, compressors, or conveyor systems where manual bypass is not feasible.

Retrofit Support FAQ

Q: Is the ABB 0-63007 M003742626 803624-113 a direct drop-in replacement for my existing ACS drive control board?
A: This board is designed as a compatible replacement for ABB ACS series drives using the same control board platform. Before installation, confirm the backplane connector type, firmware version compatibility, and I/O terminal layout against your existing board. Our technical team can assist with cross-reference verification if you provide your drive’s full model number and existing board part number.

Q: How do I back up my drive parameters before replacing the control board?
A: Use ABB Drive Composer or DriveWindow software connected via the drive’s USB or serial port to upload and save the full parameter set to a PC. If an MFDT-01 memory unit is installed in the drive, use the drive’s keypad to copy parameters to the memory unit as a secondary backup. Always verify the backup file is complete before proceeding with the board swap.

Q: What fieldbus protocols does this control board support?
A: The board supports ABB’s standard fieldbus adapter slot, which is compatible with optional adapter modules for PROFIBUS DP, Modbus RTU, EtherNet/IP, DeviceNet, and DDCS fiber-optic communication. The specific protocol depends on which fieldbus adapter module is installed in the drive. Confirm the adapter model and GSD/EDS file version compatibility with your PLC or DCS after board replacement.

Q: What support terms and testing does this board include?
A: Every ABB 0-63007 M003742626 803624-113 board is function-tested before shipment, including power-on verification and I/O signal checks. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. For availability, lead time, and volume pricing, contact our sales team directly.
