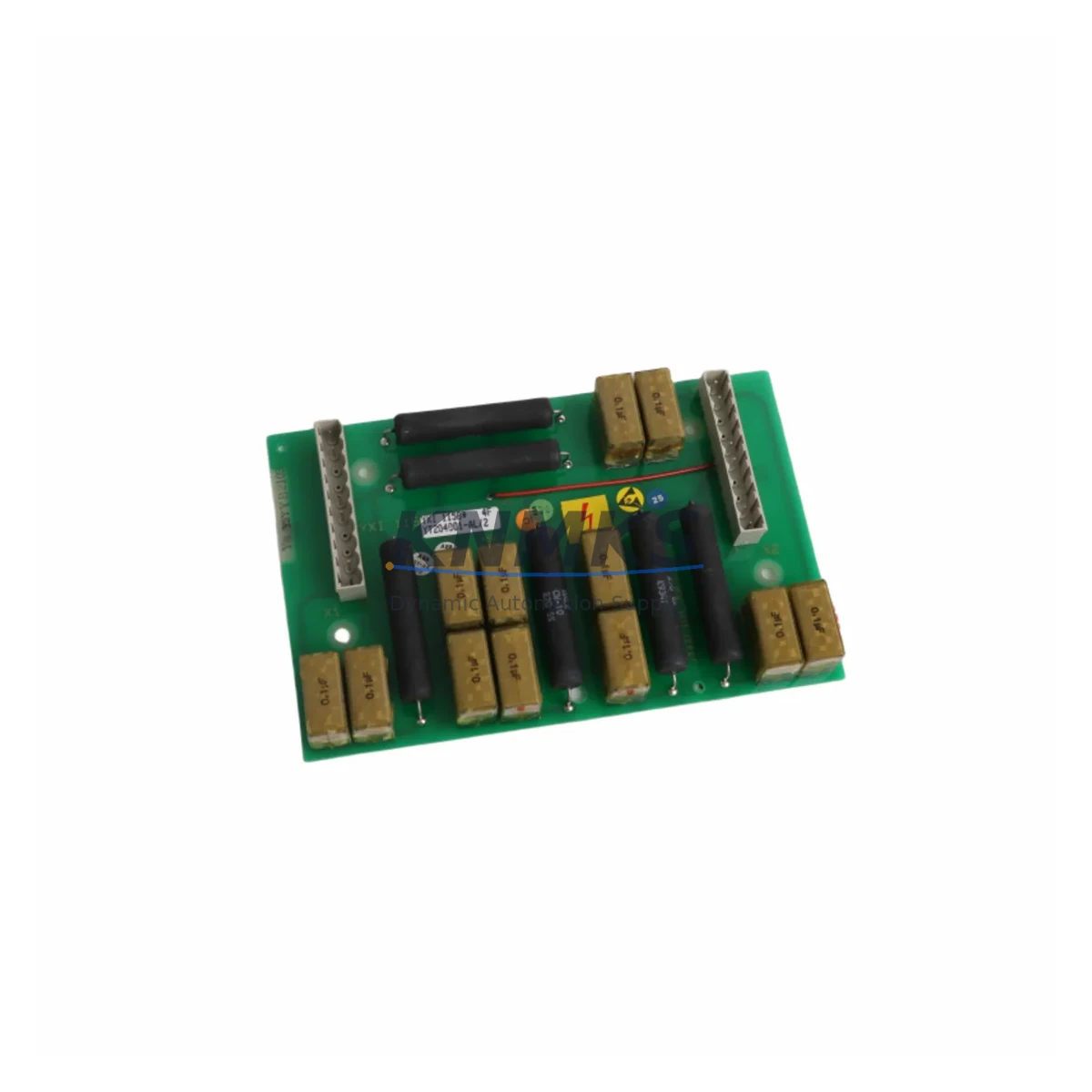

ABB YXI115B Migration-Ready Drive Control Board

Overview

ABB YXI115B Migration-Ready Drive Control Board: Legacy System Retrofit & Compatibility Upgrade

The ABB YXI115B is a migration-ready drive control board engineered for direct replacement and controlled upgrade of legacy ACS-series variable frequency drive systems. Whether you are decommissioning an end-of-life ACS 600 platform, restoring a failed ACS 800 control section, or modernizing a distributed drive cabinet in a petrochemical or manufacturing environment, the YXI115B provides a validated, drop-in compatible solution that minimizes engineering risk and reduces unplanned downtime.

This board serves as the central control intelligence within the ABB ACS drive family, managing pulse-width modulation output, IGBT gate drive signals, fault diagnostics, and fieldbus communication handshaking. Its architecture is compatible with the RDCO-02 and RDCO-03 communication option modules, enabling seamless integration into existing PROFIBUS-DP and Modbus RTU networks without requiring protocol gateway hardware or PLC program restructuring.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the YXI115B into an operating production line requires a structured pre-installation audit. Before removing the failed board, engineers should document the existing parameter set using ABB DriveWindow or the ACS 800 control panel (ACS-CP-C or ACS-CP-D), saving the full parameter backup to a PC or panel memory card. This step is critical — parameter loss during board swap is one of the most common causes of extended commissioning time in drive retrofit projects.

Power supply capacity must be verified before installation. The YXI115B draws its logic supply from the drive’s internal 24 VDC SMPS section. In aging ACS 600 cabinets where the APOW-01 power supply board has not been replaced, residual capacitor degradation may cause undervoltage faults on the new control board. It is advisable to inspect and, if necessary, replace the APOW-01 power supply module as part of the same maintenance window.

Terminal wiring on the AINT-02 or AINT-14 interface boards connected to the YXI115B must be checked for insulation integrity and correct torque. In legacy installations, corroded or loose terminals on the X1 and X2 connector rows are a frequent source of intermittent fault codes after board replacement. Signal ground loops between the drive cabinet and the connected PLC — often a Siemens S7-300 or Allen-Bradley ControlLogix in mixed-vendor plants — should be verified using a clamp meter before energizing the drive.

For plants running PROFIBUS-DP networks, the RDCO-02 communication option module must be reseated and its node address confirmed against the PLC hardware configuration. In Siemens TIA Portal or STEP 7 environments, the GSD file for the ACS 800 drive must match the installed firmware version. Mismatched GSD files are a common source of DP bus faults that appear only after the new board is powered and the network is re-initialized.

Where the control system includes an ABB Panel Builder or third-party HMI — such as a Weintek or Proface touchscreen — the drive parameter mapping used for speed reference, fault status, and run/stop commands should be re-validated after the board swap. HMI screen tags linked to drive registers via Modbus RTU may require re-polling if the communication timeout settings were tuned to the response characteristics of the original board.

I/O expansion modules connected to the drive’s AIMA-01 or AITC-01 analog I/O extension boards should be tested individually after the YXI115B is installed and the drive is powered. Verify that 4–20 mA speed reference signals from the DCS or PLC are received correctly and that the drive’s analog output channels — typically used for speed feedback to the SCADA system — are within calibrated range before returning the drive to automatic mode.

Downtime Control During System Migration

Minimizing production downtime during a YXI115B board replacement requires preparation that begins before the maintenance window opens. The replacement board should be bench-tested and confirmed functional using a drive test rig or a spare ACS 800 chassis before it is brought to the installation site. KNMKS ships all YXI115B units with a pre-dispatch functional test report, confirming gate drive output, communication port integrity, and power-on self-test results.

On-site, the recommended sequence is: isolate and lock out the drive, photograph all wiring and connector positions, remove the failed board, install the YXI115B, restore the parameter backup, and perform a no-load test run before reconnecting the mechanical load. This sequence, when followed with a pre-prepared checklist, typically allows a trained engineer to complete the board swap and return the drive to service within two to four hours — significantly less than the lead time for a full drive replacement.

Original program logic in the connected PLC does not require modification for a like-for-like YXI115B replacement. The drive’s fieldbus interface and parameter register map remain identical, so the PLC function block or ladder rung controlling the drive’s start/stop, speed reference, and fault reset commands will operate without change. This is a key advantage over full drive replacement scenarios, where PLC I/O mapping and HMI tag databases often require extensive revision.

For plants where continuous operation is critical — such as cooling water pump drives in power generation or compressor drives in gas processing — a hot-standby spare YXI115B held in the site stores significantly reduces mean time to repair. KNMKS supports long-term supply agreements and consignment stock arrangements for customers managing large fleets of ACS 600 and ACS 800 drives.

Retrofit Support FAQ

Q1: Is the YXI115B a direct replacement for the original ABB board in ACS 600 and ACS 800 drives?
Yes. The YXI115B is a direct board-level replacement for the original ABB control board in compatible ACS 600 and ACS 800 drive frames. No mechanical modification to the drive chassis is required. Parameter restore via DriveWindow or the ACS control panel is required after installation to return the drive to its original operating configuration.

Q2: What commissioning steps are required after installing the YXI115B?
After installation, restore the parameter backup using ABB DriveWindow or the ACS-CP-C/D control panel. Confirm the fieldbus node address on the RDCO communication module. Verify analog I/O signal levels and perform a no-load test run before reconnecting the mechanical load. For PROFIBUS-DP networks, confirm the GSD file version matches the drive firmware before re-initializing the DP bus.

Q3: Does KNMKS provide wiring diagrams or terminal connection support for the YXI115B installation?
Yes. KNMKS provides terminal connection reference documentation and pre-installation technical support for qualified engineers. Contact admin@knmks.com with your drive frame size, existing wiring configuration, and control system details. Our technical team will confirm compatibility and provide installation guidance before shipment.

Q4: What does the support terms confirmed by quotation cover, and what is the stock availability?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. KNMKS maintains in-stock inventory of the YXI115B to support urgent replacement requirements. Orders confirmed before 14:00 CST are typically dispatched the same business day. For volume orders or long-term supply commitments, contact our sales team to discuss consignment stock and priority allocation arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

YXI115B

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB YXI115B
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
