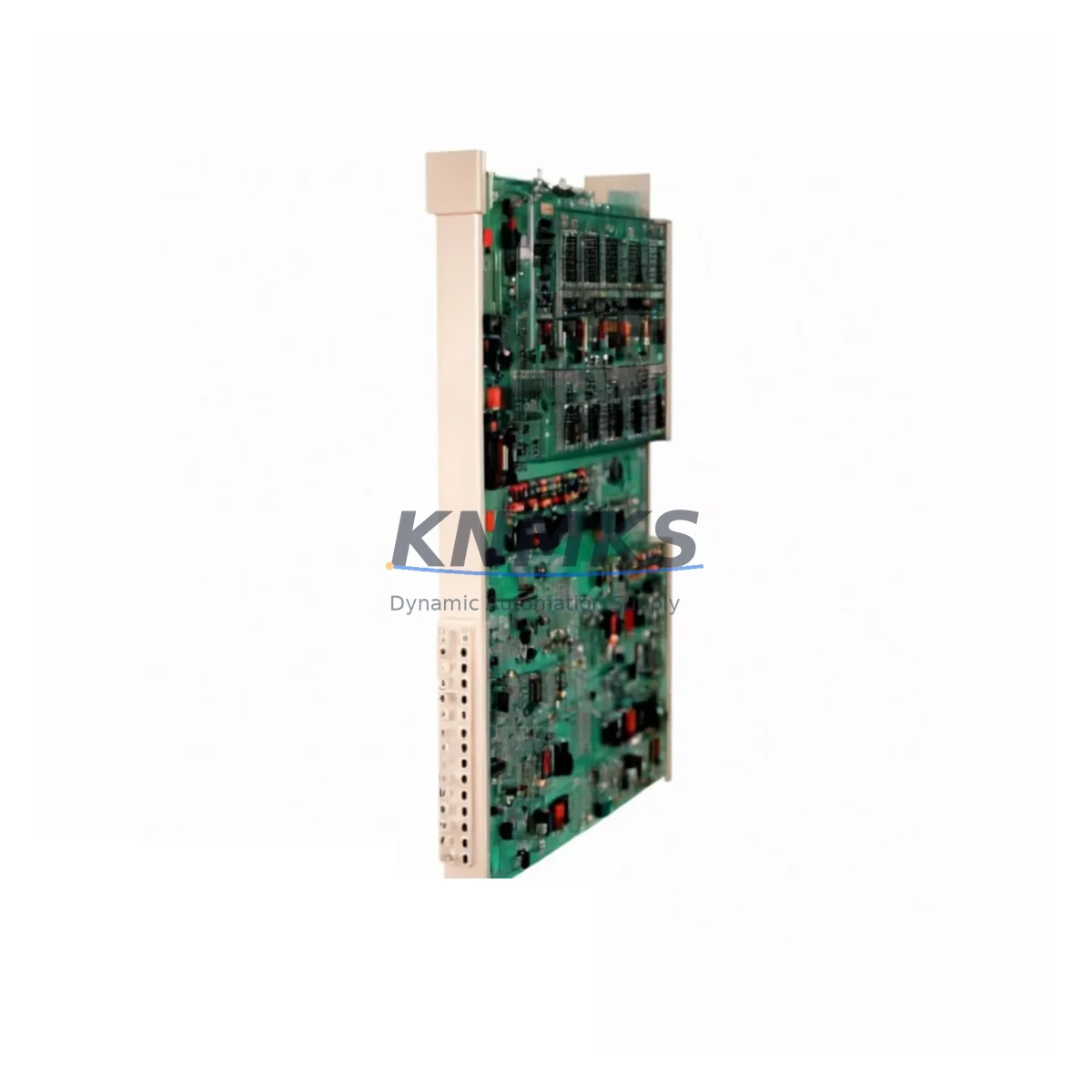

ABB YPQ101E YT204001-FS Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB YPQ101E YT204001-FS Maintenance-Proven Spare Part for Factory Uptime

The ABB YPQ101E YT204001-FS is a critical control module within the IRC5 robot controller family, engineered to sustain continuous operation in high-demand industrial environments. Whether deployed in automotive body-in-white lines, foundry automation, palletizing cells, or precision assembly stations, this module governs core robot control functions that directly affect cycle time, positional accuracy, and system availability. When this component fails or degrades, the entire robot cell is at risk of unplanned downtime — making rapid access to a verified, pre-tested replacement essential for any maintenance team managing IRC5-based installations.

Sourced as an original ABB spare, the YPQ101E YT204001-FS is inspected, functionally tested, and dispatched with a support terms confirmed by quotation. Each unit undergoes pre-shipment verification to confirm electrical integrity and compatibility with the IRC5 controller architecture before leaving our facility. Our multi-region stock ensures short lead times for emergency replacements and planned annual maintenance cycles alike.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Maintaining an IRC5 robot controller to production standards requires a systematic approach that extends well beyond the YPQ101E YT204001-FS module itself. During any scheduled replacement or fault-driven intervention, maintenance engineers should conduct a concurrent inspection of the IRC5 power supply unit (PSU) — particularly the DSQC661 or equivalent — to confirm stable DC bus voltage and rule out upstream power anomalies that may have contributed to module stress or failure.

The IRC5 drive unit and axis computer boards should be checked for fault logs and thermal signatures, as intermittent control faults often originate from communication breakdowns between the control module and the drive section. The DSQC639 computer unit and DSQC643 axis computer are common co-inspection targets when diagnosing YPQ101E-related faults in multi-axis IRC5 configurations.

I/O system integrity is equally important: the IRC5 I/O module (such as the DSQC652 digital I/O board) should be verified for correct signal mapping and terminal block seating. Loose or corroded terminal connections on the I/O rack can generate spurious fault signals that are misattributed to the control module. Similarly, the DeviceNet or PROFIBUS communication module — if installed — should be inspected for address conflicts and cable continuity, as communication faults can cascade into control module errors.

For installations with a FlexPendant (teach pendant), the pendant cable and junction box should be inspected for wear, particularly in high-cycle environments where cable flex fatigue is common. The IRC5 safety board (DSQC400 or equivalent) should also be reviewed during any major maintenance window to confirm that emergency stop circuits, safeguard inputs, and enabling device logic are functioning correctly — these are often overlooked until a safety-related shutdown occurs.

Procurement engineers building annual spare parts kits for IRC5 installations should consider stocking the YPQ101E YT204001-FS alongside the IRC5 PSU, axis computer, and at least one I/O module to cover the most statistically frequent failure modes in a single maintenance event. This approach minimizes repeat call-outs and reduces mean time to repair (MTTR) across the robot fleet.

Site Replacement Workflow

Before replacing the YPQ101E YT204001-FS on-site, ensure the IRC5 controller is fully de-energized and locked out per site LOTO procedures. Document the existing module’s position, connector orientation, and any visible fault codes displayed on the FlexPendant or main computer panel prior to removal — this information is valuable for root cause analysis and future maintenance records.

On installation of the replacement module, verify that all connectors are fully seated and that no terminal pins are bent or displaced. Power up the IRC5 controller in a controlled sequence and confirm that the system boots without residual fault codes. Run a short diagnostic cycle — including axis calibration verification and I/O signal check — before returning the robot cell to production. This step is critical for confirming that the replacement module has restored full system functionality and that no secondary faults were masked by the original failure.

For sites migrating from older IRC5 variants or transitioning from legacy ABB S4C+ controllers, the YPQ101E YT204001-FS supports the IRC5 platform’s backward-compatible architecture, enabling phased upgrades without full controller replacement. This makes it a cost-effective solution for extending the operational life of existing robot installations while deferring capital expenditure on new controller hardware.

Spare Parts Support FAQ

Q: Is the YPQ101E YT204001-FS compatible with all IRC5 controller variants?
A: The YPQ101E YT204001-FS is designed for the ABB IRC5 controller family, including Single Cabinet, Dual Cabinet, and Panel Mounted configurations. Compatibility should be confirmed against your specific IRC5 revision and software version before installation. Our technical team can assist with compatibility verification prior to dispatch.

Q: What pre-shipment testing is performed on this module?
A: Each YPQ101E YT204001-FS unit undergoes functional electrical testing and visual inspection before dispatch. Testing confirms module integrity and basic operational parameters. A support terms confirmed by quotation is included with every unit shipped.

Q: Can you support long-term or blanket purchase orders for IRC5 spare parts?
A: Yes. We support scheduled delivery agreements and blanket POs for customers managing multi-site IRC5 fleets or annual maintenance budgets. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stock options.

Q: What is your lead time for emergency replacement orders?
A: In-stock units are dispatched within 24–48 hours via express courier. Multi-region warehouse coverage supports short transit times to major industrial hubs in Asia, Europe, and the Americas. Contact us directly for urgent requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

YPQ101E YT204001-FS
IRC5 Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB YPQ101E YT204001-FS
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
