ABB 086339-501 Migration-Ready Control Board for DSQC

Overview

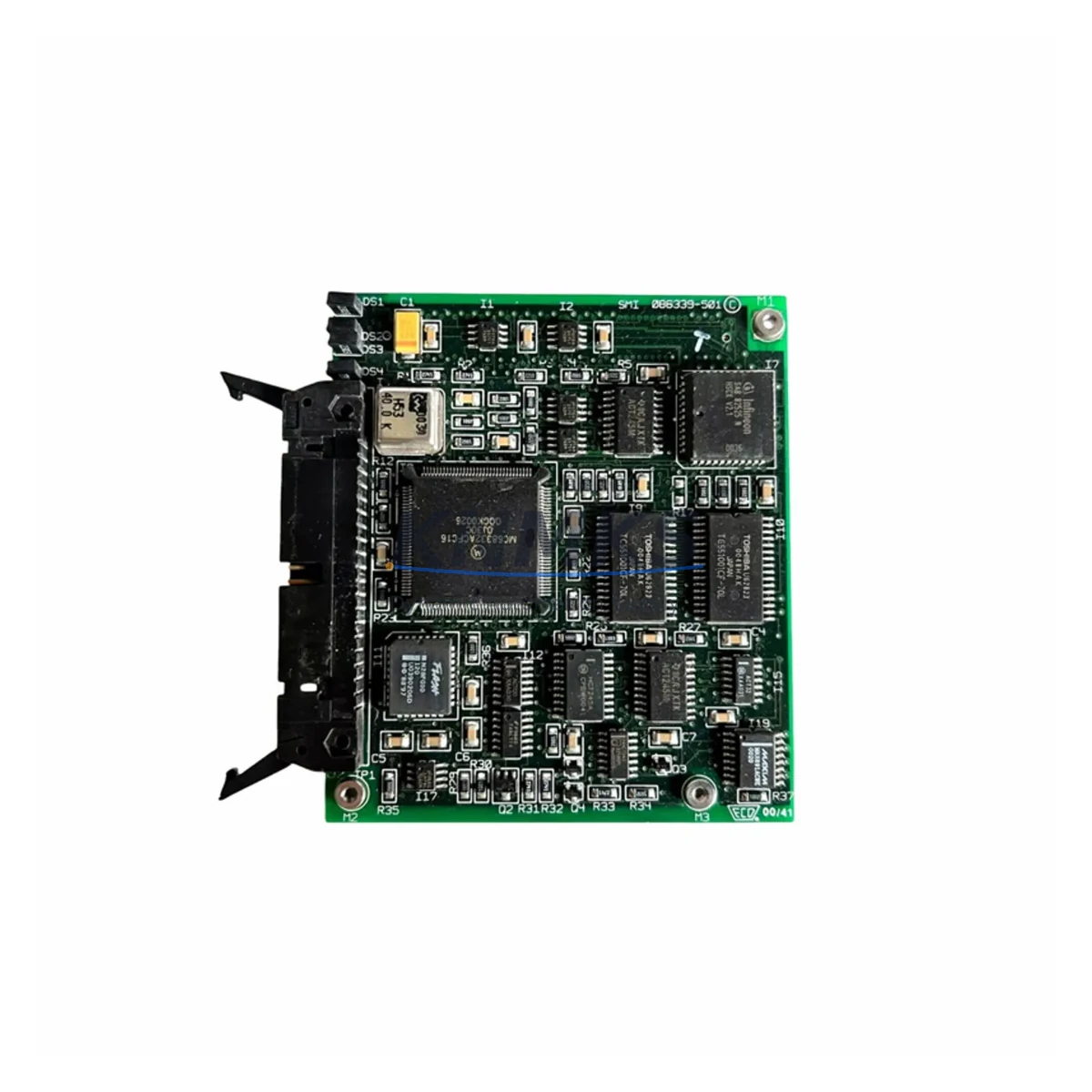

ABB 086339-501 Migration-Ready Control Board for DSQC Legacy Robotics Systems

The ABB 086339-501 is a migration-ready control board engineered for direct replacement and retrofit integration within ABB DSQC-series robot controller platforms. As legacy ABB IRC5, S4C+, and S4 controller installations approach end-of-support milestones, maintenance engineers and automation managers face increasing pressure to source verified spare parts that preserve existing program logic, I/O mapping, and communication architecture without triggering full system requalification. The 086339-501 addresses this challenge by offering a functionally equivalent, pre-tested replacement that supports phased modernization strategies across active production lines.

This board is commonly deployed in applications where the original ABB DSQC control board has failed or degraded, and where a full controller replacement — such as migrating to an IRC5 Compact or OmniCore platform — is not yet operationally feasible. Engineers sourcing this part should verify backplane slot compatibility, confirm the firmware revision loaded on the replacement board matches the robot controller’s current software baseline, and review the teach pendant (FlexPendant or TP) communication interface before installation. In multi-robot cells, the 086339-501 can be installed during a scheduled maintenance window with minimal disruption to adjacent robot programs, provided the system backup (RAPID module archive and I/O configuration) has been captured in advance using RobotStudio or the controller’s internal backup utility.

Pre-shipment functional testing is performed on every unit. Each 086339-501 is verified against ABB DSQC board-level electrical specifications, including power rail integrity, communication bus continuity, and connector pin-out conformance. Units are shipped with protective anti-static packaging and include a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ABB 086339-501 into an existing robot controller requires a structured retrofit plan that accounts for the interdependencies between the control board and surrounding system components. Engineers should begin by auditing the DSQC 661 power supply module output to confirm that the 24VDC logic rail can sustain the replacement board’s current draw without voltage sag under peak I/O load. In installations where the DSQC 661 is also approaching end-of-life, simultaneous replacement of both the power supply and the control board during the same maintenance window reduces cumulative downtime risk.

The DSQC 652 digital I/O module and DSQC 643 analog I/O module, commonly installed alongside the 086339-501 in mixed-signal control cabinets, should be inspected for connector wear and terminal block integrity before the new board is seated. Loose or corroded terminal connections on adjacent I/O modules are a frequent source of post-replacement signal faults that are incorrectly attributed to the new control board. Similarly, the DSQC 679 teach pendant interface board should be checked for firmware compatibility if the FlexPendant is being retained from the original installation.

In systems where the robot controller communicates with a Siemens S7 or Allen-Bradley ControlLogix PLC via PROFIBUS-DP or DeviceNet, the fieldbus node address configured on the 086339-501 must match the address stored in the PLC’s hardware configuration. Address mismatches will prevent the fieldbus master from recognizing the robot controller after restart, causing production line faults that can be difficult to diagnose without access to the PLC engineering station. Confirming the node address setting before powering the system is a critical commissioning step. Where the communication link uses an Ethernet/IP adapter such as the DSQC 669, the IP address and subnet mask assigned to the robot controller should also be verified against the plant network topology documentation.

For installations involving signal isolation between the robot controller and external process equipment, the presence of signal isolators or relay interface modules in the control cabinet wiring should be documented before the 086339-501 is replaced, as these components affect the effective I/O signal levels seen by the new board and may require recalibration after installation.

Downtime Control During System Migration

Minimizing unplanned downtime during control board replacement begins with a complete system backup captured before any hardware is disturbed. Using RobotStudio or the IRC5 controller’s built-in backup function, engineers should archive all RAPID modules, system parameters, I/O configuration files, and safety configuration data to an external storage device. This backup serves as the recovery baseline if the replacement board requires a clean software load or if the controller fails to restore automatically from its internal memory after the hardware swap.

Physical replacement of the 086339-501 should be performed with the controller powered down and the main disconnect locked out in accordance with site LOTO procedures. The card cage slot should be inspected for debris or connector damage before the new board is inserted. After seating the board and restoring power, the controller’s boot sequence should be monitored via the FlexPendant or a connected RobotStudio session to confirm that the board is recognized and that no hardware fault codes are generated during initialization.

Once the system has booted successfully, the archived backup should be restored and the robot’s RAPID program execution verified through a dry-run cycle with the robot in manual reduced-speed mode before returning to automatic production mode. I/O signal states should be confirmed against the pre-replacement baseline to ensure that all digital and analog channels are responding correctly. In multi-robot cells, adjacent robots should remain in hold mode during the commissioning of the replaced controller to prevent unintended interaction during the verification phase. Following successful commissioning, a new system backup should be captured to document the post-replacement configuration as the new operational baseline.

Retrofit Support FAQ

Q: Is the ABB 086339-501 a direct replacement for the original DSQC control board?
A: Yes. The 086339-501 is a functionally equivalent replacement for the original DSQC-series control board of the same part number. Before installation, confirm that the firmware revision on the replacement board is compatible with the RobotWare version running on your IRC5 or S4C+ controller. If a firmware update is required, this can be performed using RobotStudio with a valid software license.

Q: What pre-shipment testing is performed on each unit?
A: Every 086339-501 unit undergoes board-level electrical testing prior to shipment, including power rail verification, communication bus continuity checks, and connector pin-out conformance testing. Units that do not meet ABB DSQC board specifications are not shipped. A support terms confirmed by quotation is included with each unit covering manufacturing defects and functional failure under normal operating conditions.

Q: How do I confirm backplane and communication compatibility before ordering?
A: Identify the DSQC card cage slot designation in your controller’s hardware documentation and confirm that the 086339-501 is listed as the correct board for that slot. For fieldbus communication compatibility (DeviceNet, PROFIBUS-DP, or Ethernet/IP), cross-reference the communication module type installed in your controller — such as the DSQC 667 or DSQC 669 — against the protocol supported by the 086339-501 variant in your system. Contact our technical team with your controller serial number and RobotWare version for pre-order compatibility confirmation.

Q: What is the typical lead time and stock availability?
A: The ABB 086339-501 is maintained availability confirmed by RFQ for immediate dispatch. Orders placed before the daily shipping cutoff are typically processed and dispatched the same business day. For urgent breakdown situations, expedited shipping options are available. Multi-unit orders for planned maintenance programs or spare parts inventory replenishment can be accommodated — contact [email protected] or call +86 18359268345 to confirm quantity availability and lead time for bulk requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

086339-501
IRC5 Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB 086339-501
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
