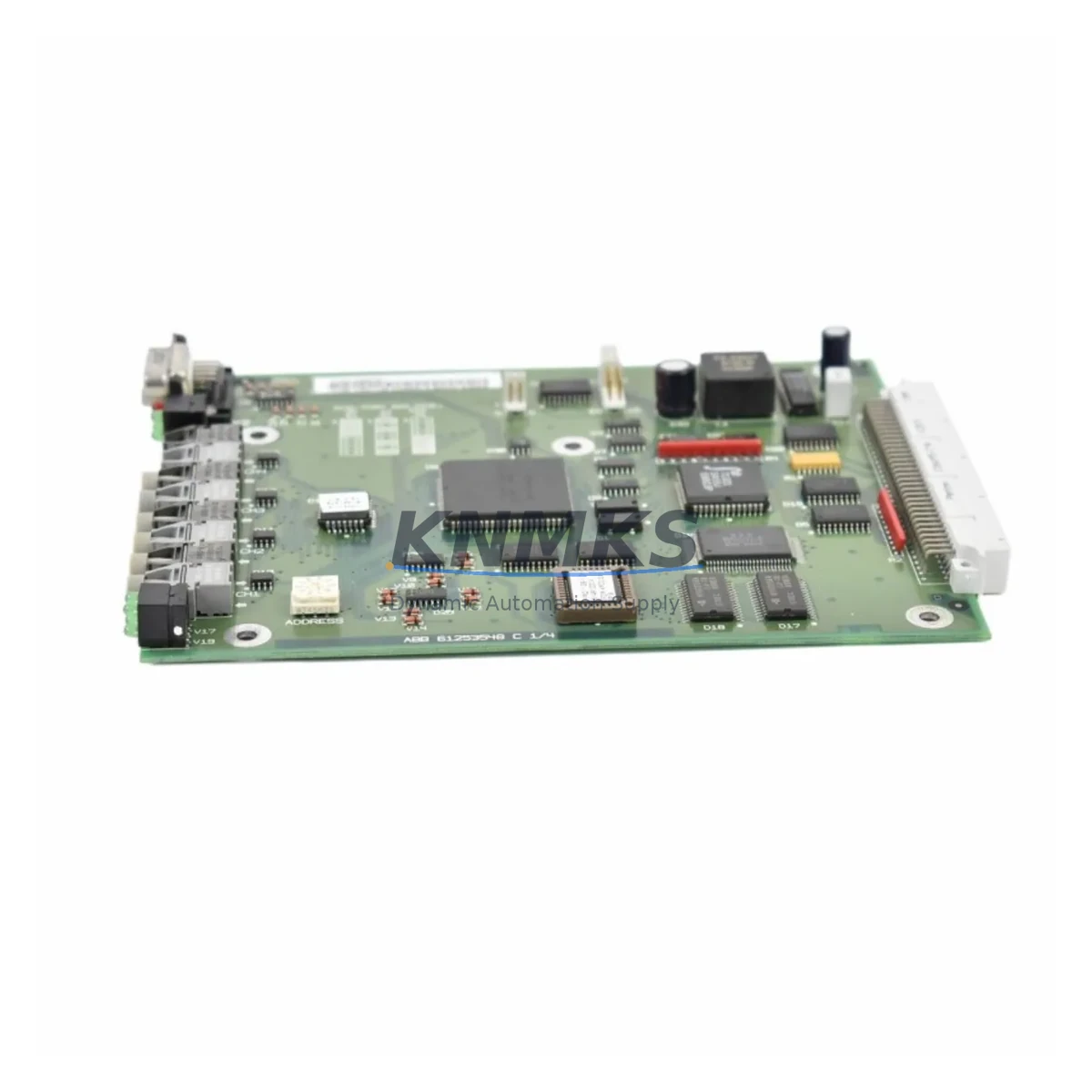

ABB YPQ-112B DDCS63986780 Fail-Safe DDCS Fiber Control Board

Overview

ABB YPQ-112B DDCS63986780 Fail-Safe DDCS Fiber Control Board: Critical Industrial Reliability

The ABB YPQ-112B (DDCS63986780) is a high-integrity DDCS fiber-optic communication control board engineered for fail-safe operation in demanding industrial drive systems. Designed as a core communication interface for ABB ACS800 and DCS800 series variable-speed drives, this module ensures uninterrupted signal transmission between the drive control unit and peripheral I/O, encoder feedback, and master controller layers — even under severe electromagnetic interference, voltage transients, and harsh ambient conditions.

In continuous production environments — including petrochemical processing, power generation, mining extraction, water treatment, metallurgical rolling mills, port crane systems, and marine propulsion — a single communication fault on the drive fiber link can trigger an unplanned shutdown, cascade interlock trips, or dangerous uncontrolled deceleration. The YPQ-112B addresses these risks through galvanically isolated fiber-optic signal paths that eliminate ground loop interference, suppress conducted EMI from adjacent VFD switching noise, and maintain deterministic latency across the DDCS ring topology.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable drive cabinet operation depends on a coordinated protection architecture. The YPQ-112B DDCS fiber board works in concert with the ABB RDCO-03 DDCS communication option board to extend the fiber ring to external master controllers or fieldbus gateways, maintaining ring redundancy and preventing single-point communication failure. In high-power ACS800 multi-drive cabinets, the ABB AINT-02 or AINT-14 inverter control boards rely on the DDCS link maintained by the YPQ-112B to synchronize PWM gating signals — a broken fiber link here causes immediate drive fault and motor coast-to-stop.

On the power supply side, cabinet stability is reinforced by ABB APOW-01 power supply boards, which provide regulated 24 VDC auxiliary rails to the control electronics. Pairing a healthy APOW-01 with a verified YPQ-112B eliminates two of the most common root causes of unexplained ACS800 communication faults. For encoder feedback integrity, the ABB RTAC-01 pulse encoder interface module feeds speed and position data through the same DDCS ring — making the YPQ-112B the backbone of the entire closed-loop control chain.

In safety-critical interlock circuits, the ABB AIMA-01 analog I/O extension module transmits process variable signals over the DDCS link. Any degradation in fiber link quality — caused by a failing YPQ-112B — can introduce signal latency or dropouts that mimic process anomalies, triggering false safety trips or, worse, masking genuine fault conditions. Proactive replacement of the YPQ-112B as a scheduled spare part is therefore a recognized best practice in ABB drive preventive maintenance programs.

Critical Industrial Safety Applications

Petrochemical & Refinery: In compressor train and pump drive systems, the YPQ-112B sustains continuous DDCS communication between the ACS800 drive and the DCS safety layer. Loss of this link in a flammable-atmosphere zone triggers emergency shutdown sequences — a verified spare on-site eliminates multi-day procurement delays during unplanned outages.

Power Generation: Coal mill drives, induced draft fans, and boiler feed pump VFDs in thermal power plants operate under high ambient temperature and heavy vibration. The fiber-optic isolation of the YPQ-112B prevents ground potential differences between the MCC room and the control room from corrupting drive feedback signals, protecting turbine interlock integrity.

Mining & Mineral Processing: Conveyor belt drives, ball mill drives, and hoist systems in underground or open-pit mines expose control electronics to extreme dust, moisture, and mechanical shock. The YPQ-112B’s fiber path is inherently immune to the high-frequency interference generated by large motor starts and SCR rectifier banks common in mining substations.

Water & Wastewater Treatment: Pump station VFDs operating in humid, chemically aggressive environments depend on reliable DDCS communication for remote SCADA monitoring and automatic speed adjustment. A failed YPQ-112B in this context can disable remote control, forcing manual operation and increasing overflow or under-pressure risk.

Metallurgy & Rolling Mills: High-speed rolling mill drives require microsecond-level synchronization across multiple ACS800 units. The DDCS ring managed by the YPQ-112B is the timing backbone — any fiber link degradation introduces speed mismatch between stands, causing strip breaks and costly production losses.

Port Cranes & Marine: Ship-to-shore cranes and vessel propulsion drives operate in salt-laden, high-humidity environments with frequent load transients. The galvanic isolation provided by the YPQ-112B fiber interface protects the drive control electronics from hull ground currents and lightning-induced surges on the vessel’s power distribution network.

Safety and Quality FAQ

Q1: What support terms does the ABB YPQ-112B DDCS63986780 carry?
All YPQ-112B units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Support requests are supported with direct technical assistance and replacement dispatch.

Q2: Is each unit tested before shipment?
Yes. Every YPQ-112B undergoes outgoing functional verification prior to dispatch. Testing confirms fiber transceiver integrity, board power-up behavior, and communication handshake capability. A test record is available upon request for quality-critical procurement.

Q3: Is the YPQ-112B compatible with all ACS800 and DCS800 variants?
The YPQ-112B / DDCS63986780 is designed for ABB DDCS ring architectures used across the ACS800 and DCS800 drive families. Compatibility depends on the specific drive firmware version and DDCS node configuration. KNMKS technical support can verify compatibility against your drive serial number and software version before order confirmation.

Q4: Can KNMKS support long-term and emergency spare parts supply?
KNMKS maintains stock of the YPQ-112B and related ABB DDCS communication boards to support both planned maintenance schedules and emergency breakdown situations. For critical production sites, we recommend holding at least one verified spare on-site. Contact our team at [email protected] or +86 18359268345 to discuss consignment stock or priority supply agreements.
