ABB YPP105F YT204001-JN Migration-Ready Controller Module

Overview

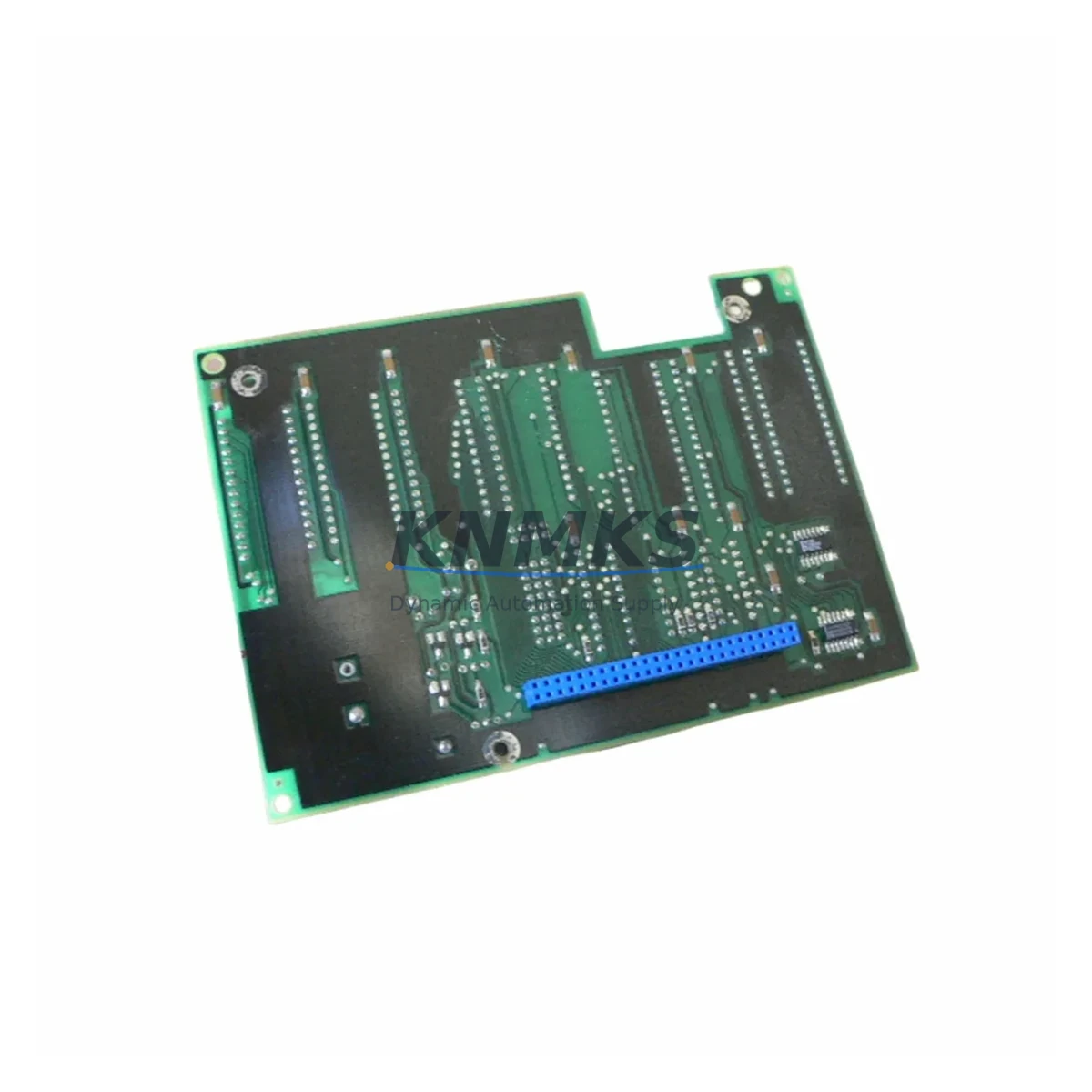

ABB YPP105F YT204001-JN Migration-Ready Controller Module for Legacy Control Systems

The ABB YPP105F YT204001-JN is a migration-ready controller module engineered for IRC5 robot controller cabinets and legacy ABB automation platforms facing end-of-life support cycles. As ABB progressively phases out older IRC5 hardware variants, maintenance engineers and system integrators are under increasing pressure to source verified replacement modules that preserve existing program logic, I/O mapping, and communication architecture without triggering a full system overhaul. The YPP105F YT204001-JN addresses this challenge directly — offering a drop-in compatible solution with pre-shipment functional testing, confirmed firmware compatibility, and a support terms confirmed by quotation backed by in-stock global dispatch.

When planning a retrofit around the YPP105F YT204001-JN, engineers must verify several critical parameters before installation. Power supply capacity within the IRC5 cabinet must be confirmed against the module’s rated draw; in many legacy installations, the DSQC 604 or DSQC 661 power distribution units are already operating near their rated ceiling, and adding a replacement controller board without auditing the power budget can introduce instability. Terminal wiring assignments on the backplane connector must be cross-referenced against the original wiring diagram — particularly for axis computer signal lines and safety chain inputs. Backplane interface compatibility between the YPP105F and the IRC5 M2004 or M2000 drive unit generations should be validated prior to module seating.

Module address configuration is another area requiring careful attention. In multi-robot cells where the IRC5 controller communicates with external PLCs or SCADA systems via DeviceNet or Profibus-DP, the node address assigned to the YPP105F must match the original module’s address table to avoid communication faults on startup. Engineers should also confirm that the RAPID program stored on the existing SMB (Serial Measurement Board) remains intact and that the axis calibration data is preserved through the swap — failure to do so will require a full recalibration cycle, significantly extending downtime.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the YPP105F YT204001-JN typically involves a coordinated review of the surrounding IRC5 hardware ecosystem. The DSQC 639 axis computer, which manages servo drive communication and position feedback, must be confirmed as compatible with the replacement controller revision — mismatched firmware between the axis computer and the main controller board is a common source of post-swap fault codes. Similarly, the DSQC 643 I/O unit and any DSQC 652 digital I/O boards installed in the cabinet should be inventoried and their firmware versions logged before the swap begins.

For installations where the IRC5 controller interfaces with an ABB FlexPendant (teach pendant) via the SMB connection, engineers should verify that the FlexPendant firmware is aligned with the RobotWare version active on the replacement YPP105F. In multi-axis systems, the DSQC 668 drive unit and associated rectifier modules should also be inspected for wear, as a controller swap is an opportune moment to address adjacent hardware that may be approaching end-of-life. Where the control cabinet communicates upstream to a Siemens S7 or Allen-Bradley ControlLogix PLC via Profibus or Ethernet/IP, the communication module configuration — including GSD files and EDS files — must be re-validated after the controller replacement to ensure the fieldbus master recognizes the IRC5 node correctly.

Wiring adaptation is rarely required for a like-for-like YPP105F swap, but engineers working on older M2000-generation cabinets retrofitting to M2004-compatible modules should audit the 48VDC bus wiring and confirm that the safety chain relay circuit — including the emergency stop chain and the enabling device circuit — remains correctly routed through the new module’s safety input terminals.

Downtime Control During System Migration

Minimizing unplanned downtime during an IRC5 controller module replacement requires a structured pre-swap checklist. Before powering down the cabinet, engineers should perform a full backup of the robot system using RobotStudio or the FlexPendant backup function — this captures the RAPID program, system parameters, I/O configuration, and calibration data in a single archive that can be restored to the replacement YPP105F within minutes of installation.

The physical swap itself — removing the existing controller board and seating the YPP105F YT204001-JN — is typically completed within 30 to 60 minutes on an accessible IRC5 cabinet. The critical time variable is the post-installation commissioning phase: restoring the system backup, verifying axis calibration, confirming I/O signal mapping, and running a dry-cycle test of the RAPID program before returning the robot to production. Teams that pre-stage the replacement module with the correct RobotWare license and system backup loaded in advance can reduce total downtime to under two hours for a straightforward swap.

For production environments where continuous operation is critical, a parallel commissioning approach — where the replacement controller is pre-configured and tested on a bench IRC5 cabinet before the live swap — is strongly recommended. This approach eliminates firmware surprises and ensures that the YPP105F YT204001-JN is fully validated against the target robot’s program and calibration data before the production cabinet is taken offline.

Retrofit Support FAQ

Q1: Is the YPP105F YT204001-JN a direct replacement for earlier YPP105 revisions?
Yes. The YPP105F YT204001-JN is the current production revision of the YPP105 controller board family and is designed as a functional replacement for earlier YPP105A through YPP105D variants used in IRC5 M2000 and M2004 cabinets. Confirm your cabinet generation and active RobotWare version before ordering to ensure firmware alignment.

Q2: What pre-shipment testing is performed on this module?
Each YPP105F YT204001-JN unit undergoes functional testing prior to dispatch, including power-on verification and communication interface checks. A support terms confirmed by quotation is provided from the date of shipment. Test records are available upon request.

Q3: Do I need to recalibrate the robot after replacing the controller module?
If the SMB (Serial Measurement Board) and its calibration data remain intact during the swap, recalibration is typically not required. However, if the SMB is also replaced or if calibration data is lost, a full axis calibration cycle will be necessary. Always perform a system backup before beginning the swap.

Q4: What is the lead time and stock availability?
The YPP105F YT204001-JN is held availability confirmed by RFQ for immediate dispatch. Global shipping is available with standard lead times of 3–7 business days depending on destination. For urgent requirements or volume orders, contact the sales team directly to confirm allocation and expedited dispatch options.

—
