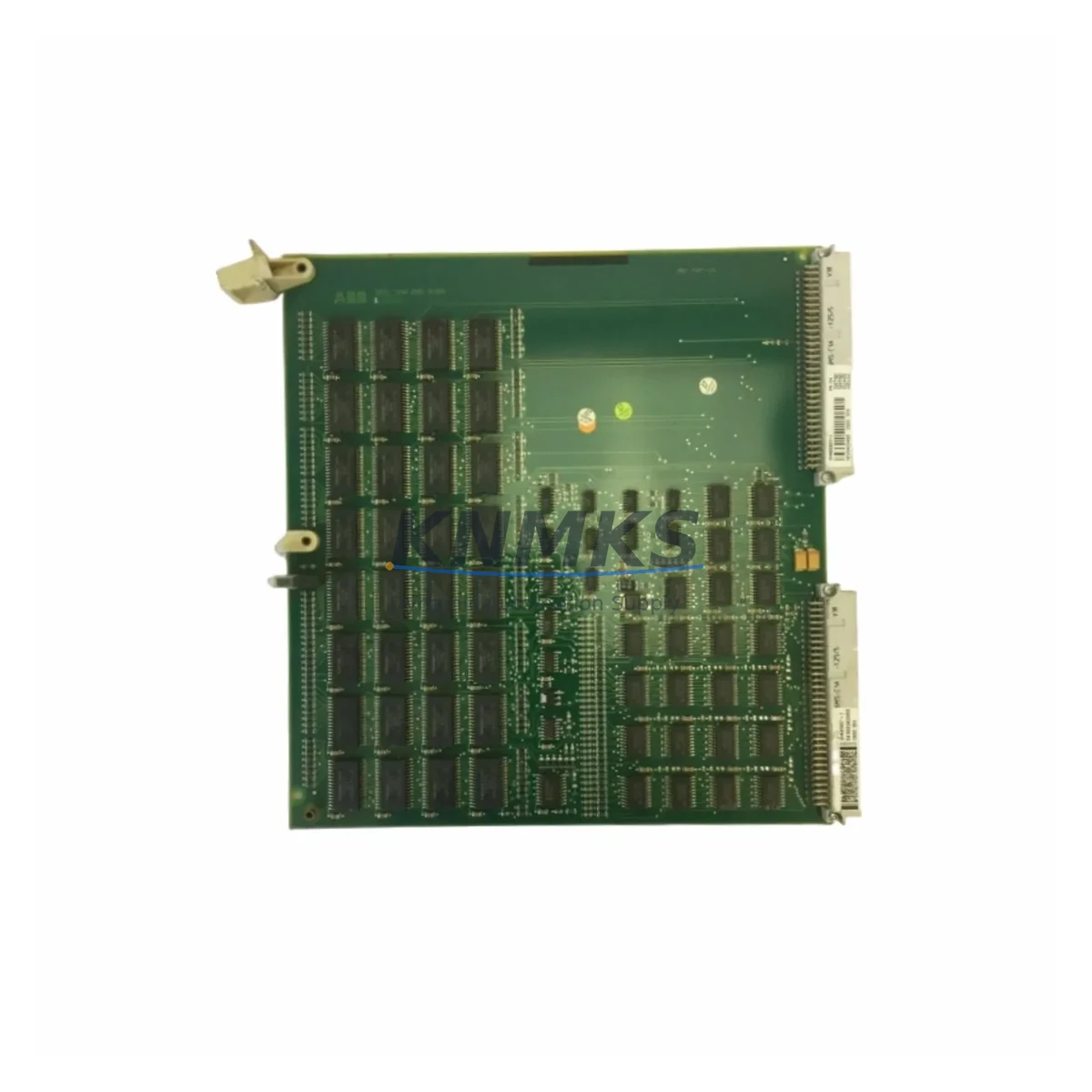

ABB 3HAB5957-1 Migration-Ready Memory Board for Legacy IRC5: Retrofit and Compatibility Upgrade

The ABB 3HAB5957-1 is a memory expansion board engineered for ABB IRC5 robot controllers, widely deployed across automotive body shops, arc welding cells, material handling lines, and general-purpose industrial automation. As legacy IRC5 cabinets approach end-of-support cycles and OEM spare part availability tightens, the 3HAB5957-1 has become a critical component in retrofit planning — enabling engineers to extend the operational life of existing robot systems without committing to a full controller replacement.

This board supports direct installation into the IRC5 main computer unit, restoring memory capacity and system stability in controllers that exhibit fault codes related to memory overflow, program corruption, or boot failure. For facilities running ABB RobotWare 5.x environments, the 3HAB5957-1 provides a verified drop-in path that preserves existing RAPID program logic, I/O configurations, and safety parameter sets — minimizing re-commissioning time and protecting accumulated process knowledge.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ABB 3HAB5957-1 into a legacy IRC5 retrofit requires a structured approach that accounts for the full control architecture — not just the memory board itself. Engineers planning a cabinet upgrade should begin by auditing the DSQC639 main computer unit, which hosts the memory board and governs overall controller processing. If the DSQC639 shows signs of capacitor aging or intermittent fault behavior, replacing it in conjunction with the 3HAB5957-1 eliminates the risk of a secondary failure shortly after the memory board swap.

The IRC5 power supply module — typically the DSQC609 or its successor — must be verified for output stability before installation. A degraded power supply delivering voltage outside specification will stress the new memory board and may produce erratic fault codes that are difficult to distinguish from software issues. Measure DC rail voltages at the backplane connector before and after board installation to confirm supply integrity.

For systems using fieldbus communication, the installed DSQC688 DeviceNet master or DSQC667 PROFIBUS adapter should be inspected for firmware currency. Outdated fieldbus module firmware can cause communication timeouts after a main computer memory refresh, particularly if the controller re-initializes node tables during the first warm start following installation. Coordinate firmware updates with the memory board replacement to avoid compounding variables during commissioning.

I/O expansion modules connected via the IRC5 backplane — including digital I/O boards such as the DSQC652 and analog I/O modules — retain their hardware addresses independently of the memory board. However, the I/O configuration stored in the controller memory must be verified post-installation to confirm that signal assignments, safety relay mappings, and interlock logic have been correctly restored from backup. Always perform a full I/O verification cycle before releasing the cell to production.

Where the IRC5 cabinet interfaces with an ABB CP600 or CP400 HMI panel, screen layout files and alarm text libraries should be backed up independently before the retrofit. Memory board replacement does not affect HMI panel firmware, but controller-side variable bindings may require re-validation if the RAPID program was modified during the upgrade window. Confirm that all HMI status displays reflect live controller data before closing out the work order.

Downtime Control During System Migration

Minimizing unplanned downtime during a memory board retrofit begins with preparation completed before the maintenance window opens. A full controller backup — including system parameters, RAPID modules, I/O configuration, and safety data — must be exported to an external USB drive or network share using RobotStudio or the FlexPendant backup utility. This backup serves as the recovery baseline if the installation encounters unexpected behavior.

The physical swap of the 3HAB5957-1 is a board-level operation that typically requires less than 30 minutes for a technician familiar with the IRC5 cabinet layout. The primary time variables are the controller warm start sequence, the I/O verification cycle, and the RAPID program integrity check — each of which should be scripted into the commissioning checklist before the maintenance window begins. Pre-staging the replacement board, having the backup file accessible, and pre-printing the commissioning checklist reduces the risk of procedural errors under time pressure.

For production lines where the IRC5 robot is part of a synchronized multi-robot cell, coordinate the maintenance window with the cell controller or PLC — typically a Siemens S7-300 or Allen-Bradley ControlLogix managing the line sequence — to ensure that upstream and downstream stations are safely parked before power is removed from the IRC5 cabinet. Restoring the robot to automatic mode should only occur after all safety interlocks have been re-confirmed and a dry-run cycle has been completed without fault.

Pre-shipment functional testing of the 3HAB5957-1 is performed before dispatch, reducing the probability of a DOA scenario during the maintenance window. Stock is maintained for immediate dispatch, supporting same-day or next-business-day shipping to minimize the gap between order placement and on-site availability.

Retrofit Support FAQ

Q: Is the ABB 3HAB5957-1 a direct drop-in replacement for the original board in my IRC5 controller?
A: Yes, the 3HAB5957-1 is designed as a direct replacement for the same SKU in IRC5 main computer units. Verify the hardware revision label on the existing board before installation to confirm revision compatibility. If the installed board carries a different revision suffix, contact our technical team for a compatibility assessment before proceeding.

Q: What commissioning steps are required after installing the 3HAB5957-1?
A: After physical installation, perform a controller warm start and restore the system backup via the FlexPendant or RobotStudio. Verify that all I/O signals are correctly mapped, confirm fieldbus communication status on any connected DeviceNet or PROFIBUS modules, and run a dry-cycle of the RAPID program before returning the cell to automatic mode. Document all commissioning steps for the maintenance record.

Q: How do I confirm wiring and backplane interface compatibility before installation?
A: The 3HAB5957-1 connects via the IRC5 main computer backplane — no external wiring is required. Confirm that the backplane connector pins are clean and undamaged before insertion. If the cabinet has experienced a power surge or moisture ingress event, inspect the backplane for corrosion before installing the new board.

Q: What support terms and testing coverage is included with this part?
A: Every 3HAB5957-1 unit is pre-shipment tested for functional integrity before dispatch. A support terms confirmed by quotation is provided from the shipment date, covering manufacturing defects and functional failure under normal operating conditions. Stock is available for immediate dispatch to support urgent retrofit and breakdown recovery requirements.
