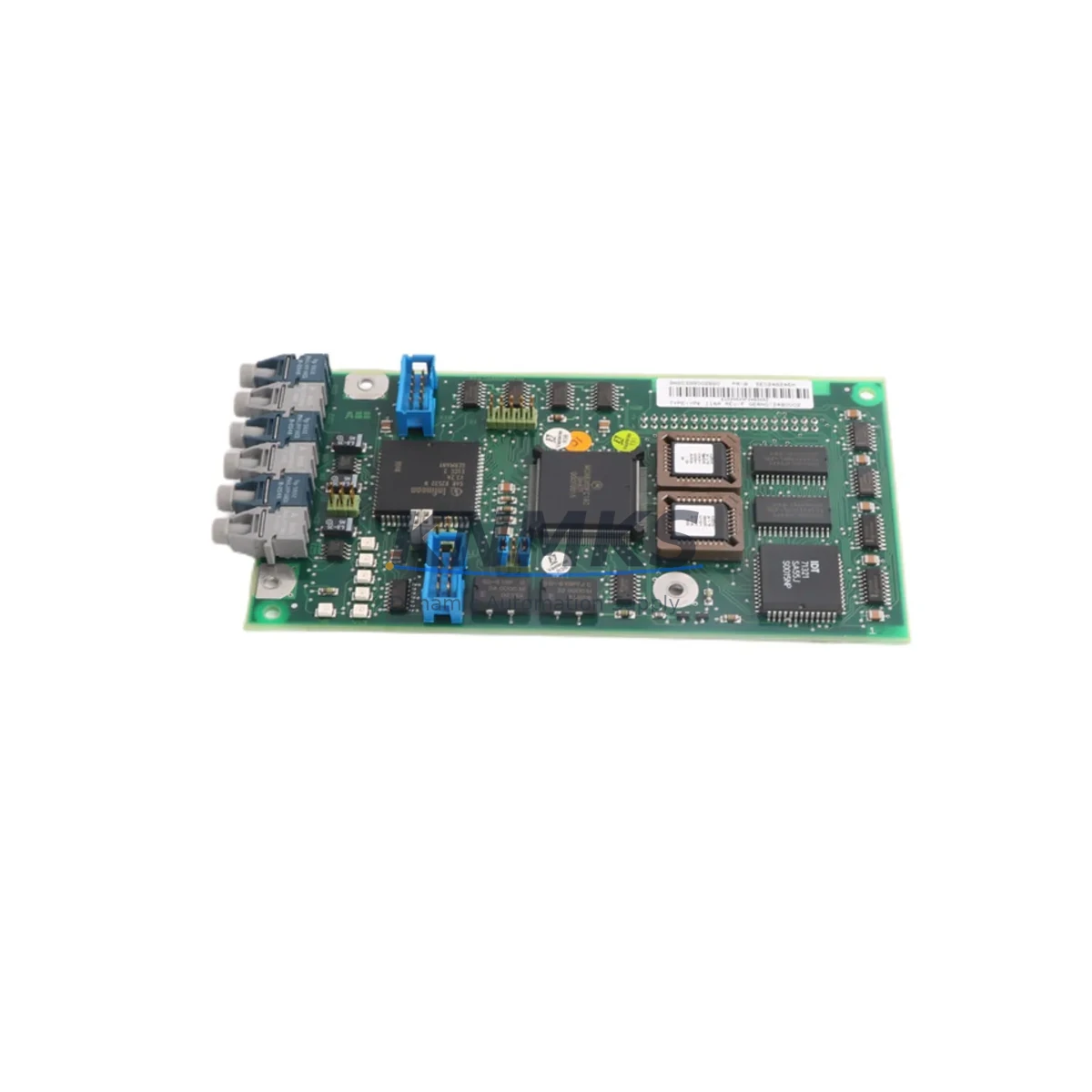

The ABB YPK114A (part number 3ASD399002B20 / 3ASD399002B2) is an original communications module designed for the ABB ACS800 series variable frequency drive platform. As a critical interface component within the drive’s control architecture, the YPK114A enables reliable fieldbus communication between the ACS800 drive and the plant-level control network. For maintenance engineers managing aging automation infrastructure, stocking a verified YPK114A spare is a direct investment in production continuity and unplanned downtime prevention.

Every unit supplied by KNMKS is sourced from authorized channels, individually tested prior to dispatch, and backed by a support terms confirmed by quotation. Our inventory is maintained to support both emergency replacement orders and planned annual maintenance schedules, ensuring long-term supply availability for facilities running ACS800 drive systems.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a YPK114A communications module fails or degrades, the ACS800 drive loses its fieldbus link to the supervisory control layer — triggering drive faults, halting motor control, and potentially shutting down an entire production line. Experienced maintenance engineers treat the YPK114A not as a reactive replacement item, but as a scheduled spare that belongs in every ACS800 control cabinet’s spare parts kit.

During routine control cabinet inspections, the YPK114A should be checked alongside the ACS800’s RDCO-02 or RDCO-03 optical communication modules, which handle DDCS fiber-optic links between the drive and external control units. A degraded RDCO module can produce intermittent communication errors that are often misdiagnosed as YPK114A faults — both should be evaluated together during fault isolation. Similarly, the AINT-02 or AINT-14 inverter control boards within the ACS800 cabinet share the same internal communication bus and should be inspected for firmware version compatibility when replacing the YPK114A.

Power supply integrity is equally critical. The APOW-01 power supply module feeding the ACS800 control electronics must deliver stable 24 VDC to the option slot where the YPK114A is installed. Voltage ripple or transient spikes from a degraded APOW-01 can cause repeated communications module resets. Procurement engineers should consider stocking the APOW-01 alongside the YPK114A as a paired spare.

On the field side, the YPK114A’s external connector and associated shielded fieldbus cable should be inspected for corrosion, mechanical damage, or improper termination resistance. For PROFIBUS-DP installations, bus termination resistors at both ends of the segment must be verified. I/O modules connected downstream — such as the AIMA-01 multi-axis adapter or external relay output modules — should also be tested for correct addressing after a YPK114A replacement to confirm the fieldbus segment has re-initialized cleanly.

For facilities running legacy ACS800 systems beyond their original design life, a proactive spare parts strategy should include the YPK114A, RDCO optical modules, APOW power supply, and relevant I/O adapter boards. This approach minimizes mean time to repair (MTTR) and supports extended system life without requiring full drive replacement.

Site Replacement Workflow

Step 1 — Fault Confirmation: Log the drive fault codes from the ACS800 panel or via the CDP control panel. Communication faults (e.g., Fault 35 PANEL LOSS or fieldbus timeout alarms) pointing to the option slot confirm YPK114A involvement.

Step 2 — Safe Isolation: Follow local LOTO (Lockout/Tagout) procedures. De-energize the ACS800 drive and wait for the DC bus to discharge fully before opening the cabinet.

Step 3 — Module Removal: Disconnect the fieldbus connector from the YPK114A. Release the module retention clip and slide the YPK114A out of the option slot. Note the slot position (Option Slot 1, 2, or 3) for correct reinstallation.

Step 4 — Replacement Installation: Insert the new YPK114A into the same option slot. Reconnect the fieldbus cable and verify connector seating. Confirm bus termination settings match the original configuration.

Step 5 — Parameter Restore: Power up the drive and navigate to the fieldbus parameter group (typically Group 51 or Group 98 depending on ACS800 firmware). Restore node address, baud rate, and protocol settings from the maintenance record or drive parameter backup.

Step 6 — Communication Verification: Confirm the fieldbus master (PLC or DCS) recognizes the drive on the network. Verify cyclic data exchange is active and no fault codes remain. Run a no-load test before returning the drive to production.

This workflow supports minimal downtime replacement and is compatible with ACS800 single-drive, multidrive, and cabinet-built configurations. The YPK114A is a direct plug-in replacement that does not require drive firmware updates in most ACS800 revisions.

Spare Parts Support FAQ

Q1: Is the YPK114A 3ASD399002B20 compatible with all ACS800 variants?
The YPK114A is designed for the ABB ACS800 series and fits drives equipped with a compatible option slot. It is compatible with ACS800-01, ACS800-02, ACS800-04, ACS800-07, and ACS800-11 variants, among others. Always verify the option slot type and firmware revision of your specific drive before installation. KNMKS technical support can assist with compatibility confirmation prior to order.

Q2: What pre-shipment testing does KNMKS perform on the YPK114A?
Each YPK114A unit undergoes functional verification testing before dispatch, including communication interface checks and visual inspection for physical integrity. Units that do not pass testing are not shipped. A support terms confirmed by quotation cover all supplied units against manufacturing defects and functional failure under normal operating conditions.

Q3: Can KNMKS support long-term or repeat supply of the YPK114A for multi-site maintenance programs?
Yes. KNMKS maintains standing inventory of high-demand ACS800 spare parts including the YPK114A to support scheduled maintenance programs, annual shutdown kits, and multi-site procurement contracts. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stocking arrangements.

Q4: What should I do if the replacement YPK114A does not resolve the communication fault?
If the fault persists after YPK114A replacement, the issue may lie with the fieldbus cable, bus termination, PLC/DCS configuration, or an upstream RDCO optical module. KNMKS recommends a systematic fault isolation approach: verify cable continuity, check termination resistance, confirm PLC node configuration, and inspect the RDCO module. Our technical team is available to support remote troubleshooting for complex fault scenarios.
