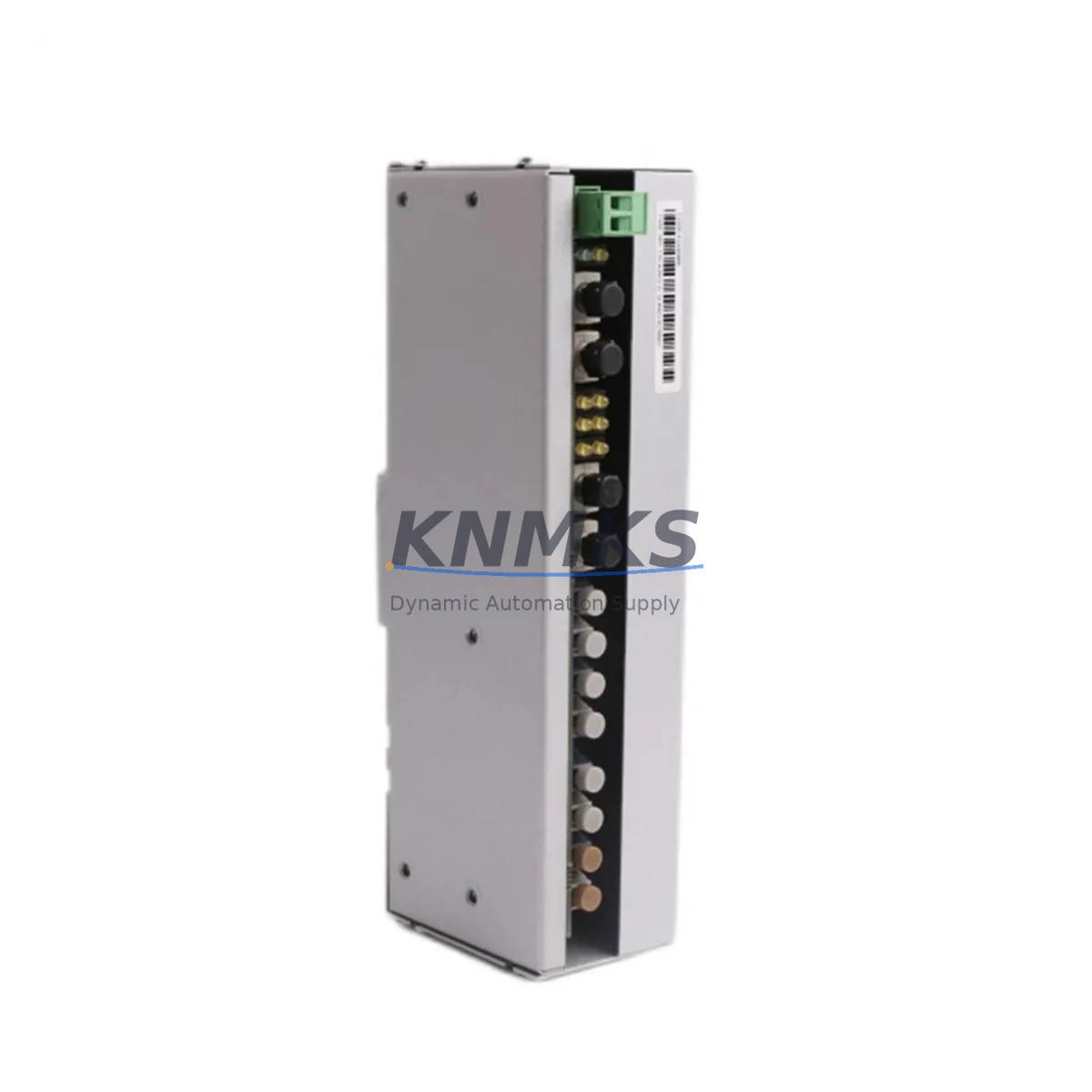

ABB YPC115 61037454 Fail-Safe Inverter Power Module

Overview

ABB YPC115 61037454 Fail-Safe Inverter Power Module: Fault Protection for Critical Industrial Control Reliability

The ABB YPC115 61037454 is a high-performance inverter power module engineered for the ABB ACS800 series variable speed drives, purpose-built to sustain uninterrupted operation in the most demanding industrial environments. Where control continuity is non-negotiable — continuous process lines, critical interlock circuits, high-load motor control cabinets, and hazardous-area installations — this module delivers the fail-safe power conversion and fault-tolerant architecture that modern industrial safety standards demand.

Designed to operate reliably under conditions of high electromagnetic interference, voltage transients, ambient dust, humidity, elevated temperature, and mechanical vibration, the YPC115 61037454 addresses the full spectrum of risks that threaten drive availability: control interruption, spurious tripping, signal drift, power supply fluctuation, communication anomalies, surge impulse damage, cabinet thermal runaway, and unplanned downtime. Its robust internal architecture ensures that even under grid disturbances or load-side faults, the inverter power stage maintains stable DC bus regulation and gate drive integrity — protecting both the drive system and the connected motor load from cascading failure.

Every unit supplied by KNMKS undergoes pre-shipment functional verification, including power-on self-test, gate signal integrity check, and thermal performance validation, ensuring that the module arrives ready for immediate installation without commissioning risk. Backed by a support terms confirmed by quotation, the YPC115 61037454 is maintained in ready stock to support urgent replacement and scheduled maintenance programs alike.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered ACS800 motor control cabinet, the YPC115 61037454 inverter power module operates as the core power conversion element, but its reliability is inseparable from the integrity of the surrounding protection architecture. To achieve true fail-safe cabinet performance, the power module must be supported by a coordinated set of protective and monitoring components.

On the DC bus side, the ABB RINT-5514C rectifier and DC choke assembly conditions incoming power and suppresses low-frequency harmonic disturbances before they reach the inverter stage, reducing the risk of DC bus overvoltage events that can stress the YPC115’s internal clamping circuits. Upstream, a properly rated ABB SACE Tmax molded-case circuit breaker provides short-circuit and overload protection for the entire drive cabinet, ensuring that a downstream fault does not propagate into the inverter power module or the control power supply.

For control-side protection, the ABB RDCO-03 DDCS communication module maintains the fiber-optic control link between the ACS800 drive and the master PLC or DCS, ensuring that gate drive commands and fault status signals are transmitted without electromagnetic corruption — a critical requirement in high-EMI environments such as arc furnace control rooms or variable-frequency pump stations. Alongside this, the ABB APBU-44C branching unit manages multi-drive communication topology, preventing a single node fault from disrupting the entire drive network.

On the power supply side, the ABB SPSU-01 auxiliary power supply module provides stable 24 VDC control voltage to the gate drive board and I/O interfaces, isolating the control circuit from mains-side disturbances. In installations subject to frequent power interruptions or voltage sags, pairing the YPC115 with an ABB UPS module or equivalent 24 VDC buffer capacitor bank ensures that the gate drive logic remains powered through transient events, preventing spurious fault trips and uncontrolled motor coast-down in safety-critical applications.

Critical Industrial Safety Applications

The ABB YPC115 61037454 is deployed across a broad range of safety-critical and continuous-process industrial sectors where drive availability directly impacts operational safety and production economics.

In petrochemical and refinery facilities, ACS800 drives equipped with this power module control boiler feed pumps, compressor trains, and cooling water circulation systems that must maintain flow continuity to prevent process upsets and thermal runaway. The module’s robust overcurrent and desaturation protection prevents drive failure from propagating into process safety system trips.

In electric power generation and transmission, the YPC115 supports excitation control and auxiliary drive systems where an unplanned stop can trigger grid instability. Its stable DC bus regulation under voltage sag conditions ensures that the drive remains operational through grid disturbances that would cause lesser modules to fault out.

In underground mining and tunneling operations, where ventilation fan drives and conveyor systems must operate continuously in dusty, humid, and vibration-intensive environments, the conformal-coated design and integrated thermal protection of the YPC115 provide the environmental resilience required for extended mean time between failures.

In municipal water treatment and pumping stations, the module supports variable-speed pump drives that must respond to demand fluctuations without interruption, with the fault detection architecture ensuring that a single drive fault does not cascade into a station-wide outage.

In metallurgical and steel mill applications — including rolling mill main drives, ladle transfer cars, and fume extraction systems — the YPC115’s surge and EMI tolerance makes it suitable for the electrically hostile environment of high-power arc furnace installations. Port and shipboard crane drive systems similarly benefit from the module’s vibration resistance and wide operating temperature range, ensuring reliable hoist and travel drive performance in marine and coastal environments.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the ABB YPC115 61037454?
The support terms confirmed by quotation cover manufacturing defects, component failure under normal operating conditions, and functional non-conformance identified during installation or commissioning. Support requests are supported with direct technical assistance and priority replacement dispatch to minimize site downtime.

Q2: What pre-shipment testing is performed on each YPC115 61037454 unit?
Each unit undergoes a structured pre-shipment inspection protocol including power-on self-test, gate drive signal integrity verification across all IGBT channels, DC bus insulation resistance check, and thermal sensor continuity validation. A test record is available upon request for quality-critical procurement programs.

Q3: Is the YPC115 61037454 a direct OEM-compatible replacement for the ABB ACS800 series?
Yes. The YPC115 61037454 is an OEM-specification inverter power module designed for direct replacement in ABB ACS800 series drives. No firmware modification or mechanical adaptation is required. Compatibility extends across the standard ACS800 frame sizes that utilize this power module assembly, and installation follows the standard ABB ACS800 hardware manual procedure.

Q4: Can long-term supply continuity be assured for ongoing maintenance programs?
KNMKS maintains dedicated stock of the YPC115 61037454 to support both emergency replacement and planned preventive maintenance schedules. For customers operating multiple ACS800 drives across a facility, framework supply agreements with reserved inventory allocation are available to guarantee parts availability over multi-year maintenance horizons without exposure to spot-market lead time risk.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

YPC115 61037454
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB YPC115 61037454
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
