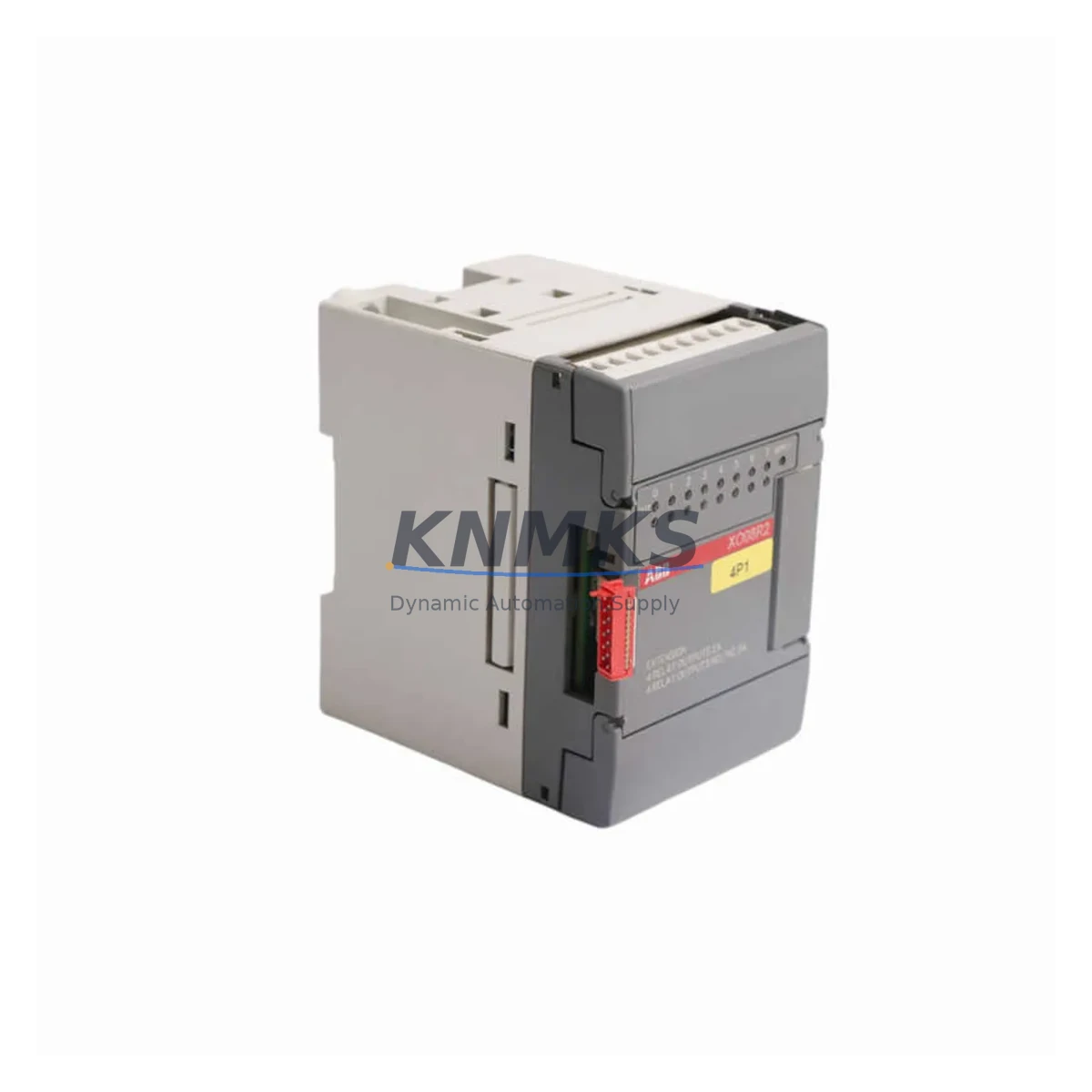

ABB XO08R2-A4.0 Fail-Safe Relay Output Module

Overview

ABB XO08R2-A4.0 Fail-Safe Relay Output Module: Fault Protection and Critical Industrial Field Reliability

The ABB XO08R2-A4.0 is an 8-channel relay output module engineered for the ABB AC500 PLC platform, designed to deliver fail-safe switching performance in demanding industrial control environments. In continuous production facilities, critical interlock systems, and high-load control cabinets where unplanned downtime carries severe operational and safety consequences, the XO08R2-A4.0 provides the switching reliability and fault tolerance that modern industrial automation demands.

Built to ABB’s AC500 modular architecture standards, this relay output module supports robust load switching across a wide range of actuator types — including solenoid valves, motor contactors, alarm annunciators, and safety-rated output loads. Its relay-based output design inherently provides galvanic isolation between the PLC logic side and the field load side, a critical feature in environments where ground loops, inductive kickback, and high-frequency EMI from variable frequency drives (VFDs) or large motor starters can corrupt control signals or damage solid-state outputs.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the XO08R2-A4.0 relay output module does not operate in isolation — it functions as part of a coordinated protection and control architecture. When paired with the ABB AC500 CPU module (e.g., PM564-ETH), the XO08R2-A4.0 receives deterministic scan-cycle commands that ensure output switching occurs within defined timing windows, preventing race conditions in interlock logic. For digital input acquisition on the same control loop, the ABB XI08D1-A4.0 digital input module provides the complementary 8-channel input side, enabling closed-loop feedback confirmation that relay outputs have actuated correctly.

Power supply integrity is equally critical. The ABB CP-E 24/5.0 or equivalent 24 V DC panel power supply provides stable bus voltage to the AC500 backplane, ensuring that relay coil energization is not compromised by voltage sag during motor start transients or inrush events. In cabinets with high electromagnetic interference from VFDs or large contactors, supplementary ABB surge protection devices (SPDs) on the 24 V DC supply rail protect the module’s internal logic from conducted transients that could cause spurious output toggling or module reset.

For installations requiring safety-rated interlock circuits — such as emergency stop (E-stop) loops, safety gate monitoring, or burner management systems — the XO08R2-A4.0 relay outputs can be integrated with ABB Pluto safety controllers or third-party safety relays to form a dual-channel, monitored output architecture. This approach satisfies PLd/SIL2 interlock requirements in many process industry applications. Additionally, in communication-intensive cabinets running PROFIBUS DP or Modbus TCP fieldbus architectures, the relay output module’s galvanic isolation prevents fieldbus ground reference interference from propagating into the output switching circuit — a common failure mode in poorly designed control panels.

Critical Industrial Safety Applications

The ABB XO08R2-A4.0 is deployed across a broad range of critical industrial sectors where control reliability directly impacts process safety and production continuity:

Petrochemical and Refinery Plants: In continuous process units — distillation columns, reactor feed systems, and compressor trains — the XO08R2-A4.0 drives solenoid valve outputs in emergency shutdown (ESD) and process interlock loops. Its fail-safe relay design ensures that on loss of PLC power or CPU fault, outputs de-energize to a safe state, closing isolation valves and preventing uncontrolled process releases.

Power Generation and Substation Control: In thermal power plant auxiliary systems and substation automation panels, the module controls circuit breaker trip coils, alarm annunciators, and auxiliary relay panels. The relay contact’s ability to switch 250 V AC loads directly eliminates the need for intermediate interposing relays in many circuit configurations, reducing cabinet complexity and potential failure points.

Mining and Mineral Processing: In underground and surface mining operations, control cabinets face extreme vibration, dust ingress, and wide temperature swings. The XO08R2-A4.0’s DIN rail mounting and robust relay contact design maintain reliable switching performance in conveyor drive control, crusher interlock systems, and ventilation fan control circuits — environments where solid-state output modules frequently fail due to surge and thermal stress.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on the module for pump station control, dosing system interlocks, and UV/chlorination system enable outputs. The galvanic isolation protects the PLC backplane from ground potential differences common in wet, multi-grounded field installations.

Metallurgy and Steel Production: In rolling mill and furnace control systems, the XO08R2-A4.0 manages high-cycle switching of cooling water valves, hydraulic system solenoids, and furnace burner enable outputs. Its rated operating temperature range accommodates the elevated ambient temperatures typical of furnace-adjacent control rooms.

Port, Marine, and Shipboard Automation: In port crane control systems and shipboard automation panels, the module’s vibration tolerance and wide operating temperature range make it suitable for hoist interlock control, mooring winch safety circuits, and engine room auxiliary control panels where environmental conditions are severe and maintenance access is limited.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the ABB XO08R2-A4.0?
All XO08R2-A4.0 units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Support terms support includes replacement or repair, with priority processing for critical production applications.

Q2: Is the module tested before shipment?
Yes. Every XO08R2-A4.0 unit undergoes pre-shipment functional verification prior to dispatch. This includes relay contact continuity testing, coil energization confirmation, and backplane interface checks. Units that do not pass verification are not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is the XO08R2-A4.0 compatible with all AC500 CPU variants?
The XO08R2-A4.0 is designed for the ABB AC500 modular PLC platform and is compatible with the PM5xx series CPUs, including PM554, PM564, PM573, PM583, and PM592 variants, as well as their Ethernet-enabled counterparts. Compatibility with specific firmware versions should be confirmed against the ABB AC500 system manual for the target installation. For legacy AC500 V2 systems, backward compatibility is generally maintained within the same backplane generation.

Q4: Can long-term supply be guaranteed for maintenance and spare parts programs?
Yes. We maintain dedicated stock of the XO08R2-A4.0 to support long-term spare parts programs for facilities operating ABB AC500-based control systems. For maintenance contracts, planned turnaround (PTA) shutdowns, or end-of-life system support where OEM supply has been discontinued, we provide committed supply agreements with defined lead times. Contact our sales team to discuss volume requirements and scheduled delivery programs.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

XO08R2-A4.0
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB XO08R2-A4.0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
