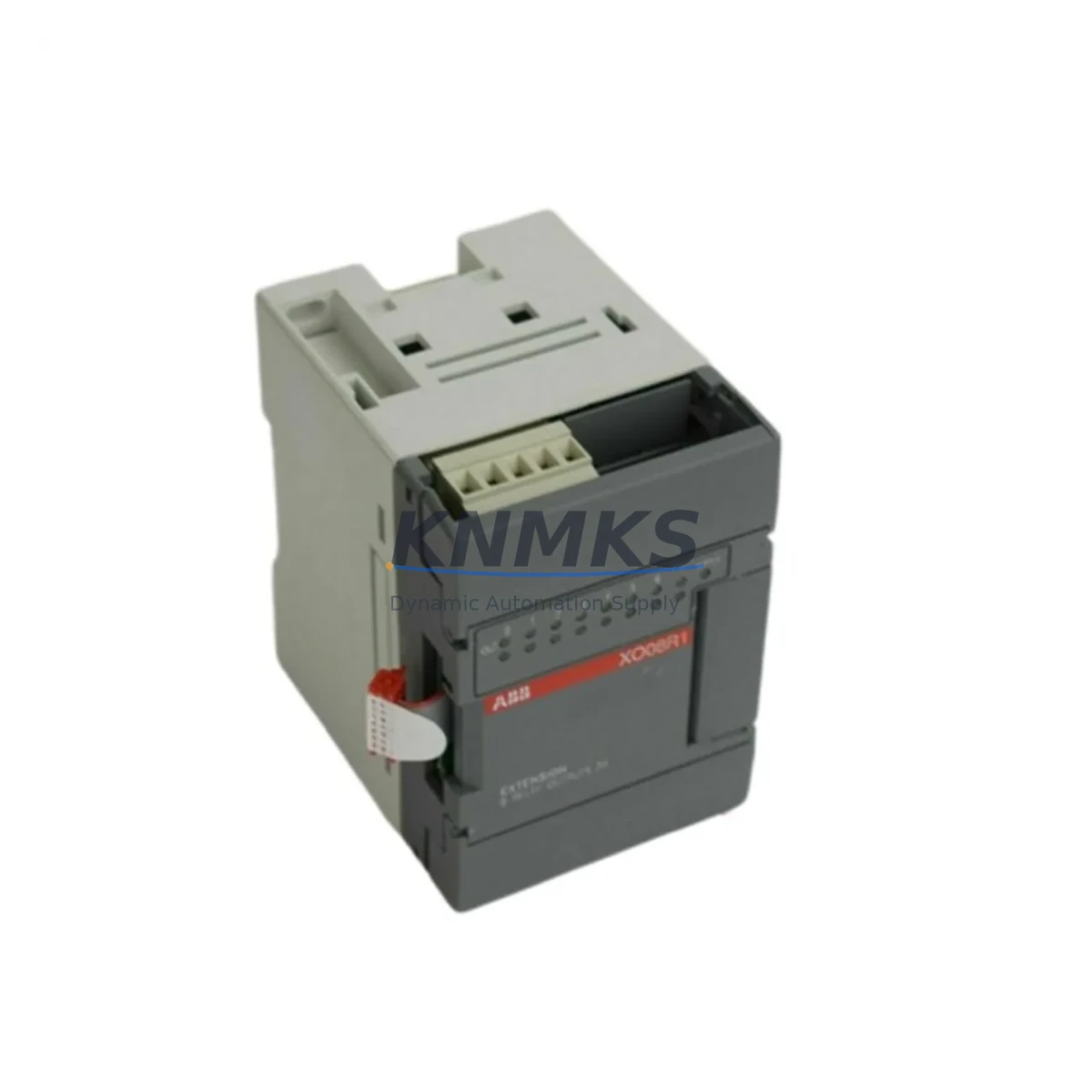

ABB XO08R1 1SBP260101R1001 Fail-Safe Relay Output Module

Overview

ABB XO08R1 1SBP260101R1001 Fail-Safe Relay Output Module: Fault Protection and Critical Industrial Reliability

The ABB XO08R1 (Part No. 1SBP260101R1001) is an 8-channel relay output module engineered for the ABB AC500 programmable logic controller platform. Designed to operate reliably in the most demanding industrial environments, this module delivers deterministic switching performance, robust fault isolation, and sustained output integrity across continuous production cycles, critical interlock circuits, and high-load control cabinets. Whether deployed in petrochemical processing, power generation, mining automation, or heavy manufacturing, the XO08R1 is built to keep control loops closed and plant operations running — even when conditions deteriorate.

In industrial facilities where unplanned downtime carries significant safety and financial consequences, the reliability of every relay output channel matters. The XO08R1 addresses this directly: each of its eight relay channels provides galvanic isolation between the field device and the PLC backplane, preventing fault propagation from actuator-side anomalies into the controller logic. This isolation architecture is fundamental to fail-safe design — a single field-side short circuit or surge event will not cascade into adjacent channels or corrupt the CPU’s execution state.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The XO08R1 is rarely deployed in isolation. In a well-engineered AC500-based control cabinet, it works in concert with a coordinated set of modules and protective components to deliver system-level fault tolerance. The ABB DC532 (1SAP240600R0001) digital combination I/O module is commonly paired with the XO08R1 in mixed-signal cabinets, handling discrete input acquisition while the XO08R1 manages the relay-switched output loads — together forming a complete field interface layer without requiring additional I/O expansion racks.

For power supply integrity, the XO08R1 relies on a stable 24 VDC rail. Pairing it with an ABB CP-E 24/5.0 (1SVR427034R0000) or equivalent AC500-rated SMPS power supply ensures that voltage sag, brownout, or transient surge events on the incoming AC supply do not translate into relay chatter or false output switching. In cabinets with high inductive load switching — motor starters, solenoid valves, or contactor coils — surge suppression across each relay output load is strongly recommended to protect contact life and prevent EMI re-injection into the backplane.

Communication integrity is equally critical. The AC500 CPU modules such as the ABB PM554-TP-ETH (1SAP130300R0271) rely on deterministic backplane communication with I/O modules including the XO08R1. In high-EMI environments — variable frequency drives, large motor banks, or arc furnace proximity — proper cabinet shielding, grounded cable trays, and ferrite suppression on signal cables prevent communication anomalies that could cause spurious output state changes. The ABB TK501 (1SAP170100R0001) programming cable and associated Automation Builder configuration tools allow engineers to verify relay output diagnostics and channel status directly from the engineering workstation, enabling rapid fault isolation without physical cabinet access.

In safety interlock circuits, the XO08R1 is often used alongside ABB F-series safety relay modules or third-party safety PLCs in a dual-channel architecture. The relay contacts serve as the final switching element in emergency stop, machine guard, or process shutdown loops, where contact weld detection and forced-guided relay principles are applied at the system design level. Specifying the correct relay output module — one with verified contact ratings, known switching endurance, and traceable manufacturing origin — is a non-negotiable element of functional safety compliance under IEC 62061 or ISO 13849.

Critical Industrial Safety Applications

Petrochemical and Refinery Automation: In continuous process plants, the XO08R1 controls critical valve actuators, pump motor starters, and emergency isolation circuits. Its galvanic isolation prevents ground loop interference from long field cable runs — a common source of spurious trips in refinery DCS/PLC hybrid architectures. The module’s wide operating temperature range supports installation in outdoor marshalling cabinets and heat-traced enclosures.

Power Generation and Substation Control: Relay output modules in power plant control systems must withstand high levels of conducted and radiated EMI from switchgear, bus bars, and transformer proximity. The XO08R1’s EMI-hardened design and robust contact ratings make it suitable for turbine auxiliary control, excitation system interfaces, and protection relay output circuits where contact bounce and signal integrity are safety-critical parameters.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to vibration, dust ingress, humidity cycling, and voltage fluctuations from diesel generator sets. The XO08R1’s compliance with IEC 60068 environmental standards supports reliable operation in conveyor drive control, crusher interlock systems, and ventilation fan management — applications where a relay output failure can trigger a full section shutdown.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities require continuous, unattended operation of pump stations, dosing systems, and UV/chlorination equipment. The XO08R1 provides the switching reliability needed for 24/7 pump control, alarm output circuits, and SCADA-interfaced actuator control, with the added assurance of a support terms confirmed by quotation covering field-deployed units.

Metallurgy and Steel Production: High-temperature, high-vibration environments in rolling mills, electric arc furnaces, and continuous casting lines demand I/O modules with proven thermal stability and mechanical robustness. The XO08R1’s rated operating range and DIN rail mounting design support integration into existing AC500-based mill automation systems, including tension control, cooling water valve sequencing, and furnace zone management.

Port Logistics and Heavy Crane Control: Ship-to-shore cranes, rubber-tyred gantries, and automated stacking systems rely on relay output modules for hoist brake control, anti-collision interlock outputs, and emergency stop circuit switching. The XO08R1’s 8 A per channel contact rating handles the inductive loads typical of crane brake coils and contactor pilot circuits without derating.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the XO08R1?
The support terms confirmed by quotation cover manufacturing defects, component failure, and functional non-conformance under normal operating conditions as specified in the ABB AC500 system documentation. Support requests are supported by pre-shipment test records. Units showing physical damage from incorrect installation, overvoltage beyond rated limits, or unauthorized modification are excluded from support terms coverage.

Q2: How is the XO08R1 tested before shipment?
Every XO08R1 unit undergoes full functional verification prior to dispatch. This includes relay contact continuity testing across all 8 channels, backplane communication handshake verification, and visual inspection for physical integrity. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is the XO08R1 compatible with all AC500 CPU variants?
The XO08R1 is designed for the ABB AC500 modular PLC platform and is compatible with PM5xx series CPUs. Compatibility with specific CPU firmware versions and I/O bus configurations should be verified against the ABB AC500 system manual (document 3ADR010066) and the Automation Builder project configuration. Mixed-generation AC500 cabinets may require firmware alignment before commissioning new I/O modules.

Q4: Can long-term supply continuity be guaranteed for the XO08R1?
We maintain dedicated stock of the XO08R1 (1SBP260101R1001) to support both new project builds and ongoing spare parts programs. For facilities operating AC500-based systems with multi-year maintenance contracts, we recommend establishing a standing spare parts agreement to ensure availability during planned shutdowns and emergency replacement scenarios. Contact our sales team to discuss volume pricing and reserved stock arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

XO08R1 XOO8R1-B04 1SBP260101R1001
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB XO08R1 XOO8R1-B04 1SBP260101R1001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
