ABB UNS0868B-P V2 3BHE013940R0002 Migration-Ready Power Supply

Overview

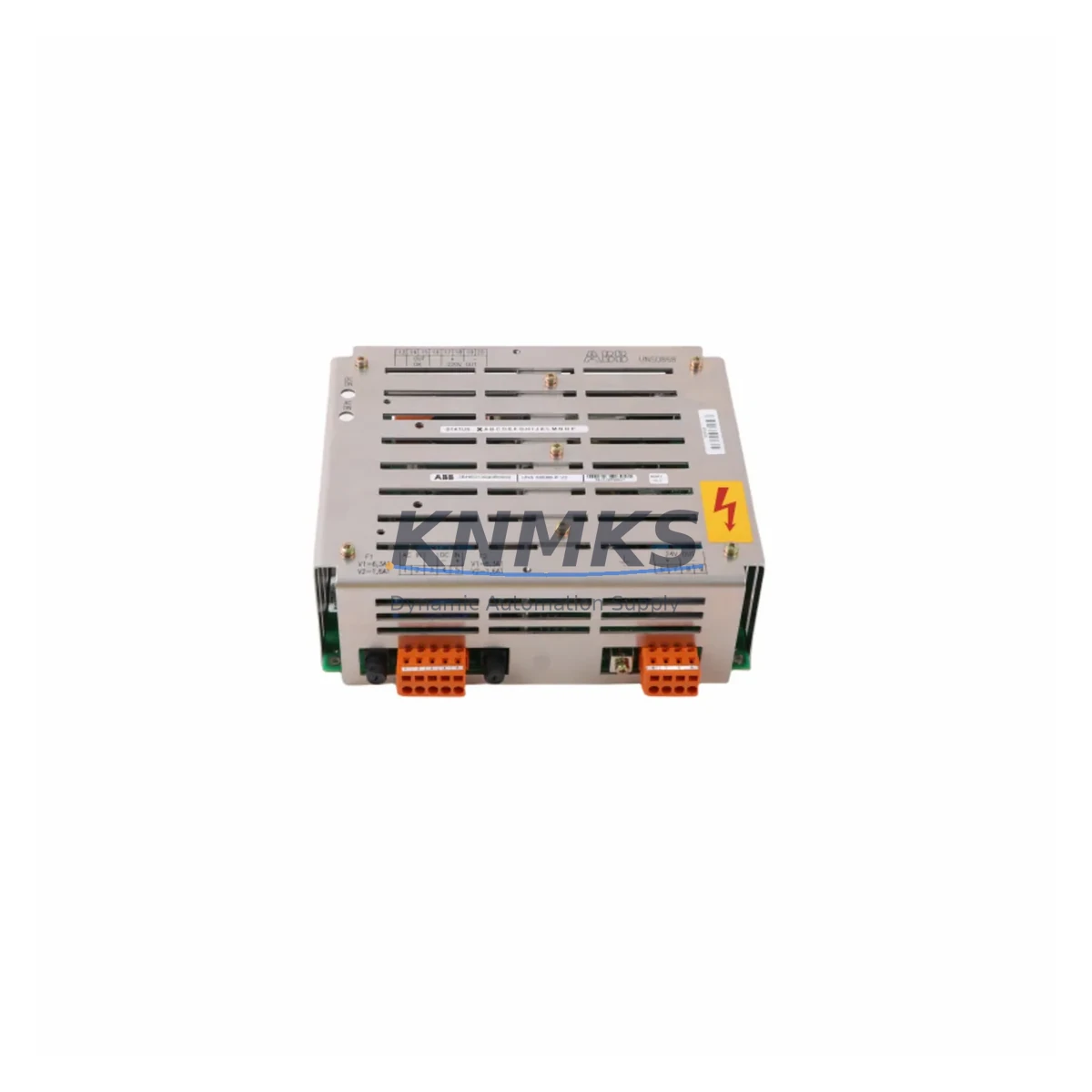

ABB UNS0868B-P V2 3BHE013940R0002 Migration-Ready Power Supply for Legacy Control Systems

The ABB UNS0868B-P V2 (part number 3BHE013940R0002) is a migration-ready power supply module engineered for AC800M controller platforms and Symphony Plus distributed control systems. As legacy ABB installations approach end-of-support milestones, engineering teams managing scheduled outages, emergency replacements, and phased modernization projects rely on verified drop-in replacements to maintain system continuity without full platform migration. This unit is pre-tested, stocked across multiple regions, and backed by a support terms confirmed by quotation — making it a dependable choice for both planned retrofits and unplanned downtime recovery.

The UNS0868B-P V2 supplies regulated DC power to the AC800M controller backplane, supporting the PM861, PM864, and PM866 processor modules commonly deployed in refinery, power generation, pulp and paper, and chemical processing environments. When the original power supply degrades or fails, the replacement process requires careful verification of input voltage range (typically 24 VDC nominal), output current capacity, backplane connector alignment, and DIN rail or rack mounting clearance. Skipping any of these checks during a live system changeover can introduce ground faults or backplane communication errors that extend unplanned downtime.

Before installation, confirm that the firmware version loaded on the PM864 or PM866 processor module is compatible with the V2 revision of the power supply. In most AC800M configurations, the power supply does not carry firmware itself, but the processor’s boot sequence performs a hardware handshake with the power rail that can flag mismatches in older firmware builds. Updating the processor firmware to the latest supported release prior to the power supply swap eliminates this risk and is strongly recommended as part of any retrofit planning checklist.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful power supply retrofit in an AC800M-based control cabinet requires more than a like-for-like swap. Engineering teams should treat the UNS0868B-P V2 replacement as an opportunity to audit the surrounding infrastructure. Begin with the cabinet power distribution: verify that the 24 VDC panel power supply feeding the AC800M rack — often a dedicated SITOP PSU or equivalent industrial DIN rail unit — is delivering clean, stable voltage within the module’s input tolerance. A degraded panel PSU is frequently the root cause of repeated power module failures and should be replaced concurrently if output ripple exceeds specification.

Next, inspect the S800 I/O modules connected to the AC800M backplane. Modules such as the AI810, AO810, DI810, and DO810 draw power through the backplane rail, and a failing power supply often causes intermittent I/O faults before complete failure. Replacing the UNS0868B-P V2 while the I/O modules are still in service allows you to confirm that all field signals are restored cleanly after the swap — a critical verification step before returning the loop to automatic control.

For installations using PROFIBUS DP communication between the AC800M and remote I/O clusters or third-party field devices, confirm that the DP segment termination resistors are correctly set and that the CI854 or CI858 communication interface module is seated firmly in the backplane after the power cycle. A cold restart of the AC800M following a power supply replacement will re-initialize all PROFIBUS segments, and any loose termination or unseated interface card will surface as a communication fault in the 800xA event log.

If the control cabinet includes an SC510 or TB820 termination unit for marshalling field wiring, verify that terminal block connections are torqued to specification after the power supply is installed. Vibration from adjacent machinery can loosen terminal screws over time, and a power supply replacement outage is the ideal moment to perform a full terminal inspection without additional process interruption.

Finally, if the site uses an AC800M with redundant processor configuration (PM864 or PM866 in 1:1 redundancy), the power supply replacement should be performed on the standby controller first, with a controlled switchover before replacing the active unit. This approach keeps the process running throughout the maintenance window and limits exposure to a single, planned switchover event rather than an uncontrolled failover.

Downtime Control During System Migration

Minimizing downtime during a power supply replacement in a live DCS environment requires a structured pre-outage checklist and a clear rollback plan. Before isolating the AC800M rack, export a full backup of the controller application using Control Builder M. This preserves the current program logic, parameter sets, and I/O configuration so that if the replacement introduces an unexpected fault, the application can be reloaded without manual re-entry of setpoints or loop tuning values.

Coordinate the replacement window with the process control team to identify a period of low production load or a scheduled maintenance break. Even a direct swap of the UNS0868B-P V2 requires a controller power cycle, which will interrupt all I/O scanning for the duration of the restart sequence — typically 30 to 90 seconds for an AC800M depending on application size and I/O count. Operators should be briefed to expect a brief loss of DCS display updates during this window, and any interlocks that could trip on loss of signal should be placed in manual or bypass mode with appropriate authorization.

After the new power supply is installed and the controller has completed its boot sequence, verify the following before returning to automatic: all I/O modules show green status in the 800xA hardware tree, PROFIBUS DP communication is active on all configured segments, no unacknowledged alarms are present in the event list related to the replaced hardware, and the HMI faceplate for each critical loop shows the correct process value and mode. Only after this verification is complete should the process be returned to automatic control and the bypass or manual overrides removed.

Keeping a spare UNS0868B-P V2 unit on-site as a cold standby is strongly recommended for critical process applications. Given the end-of-production status of many AC800M-generation components, maintaining a local buffer stock eliminates the lead time risk associated with emergency procurement and ensures that a second failure — however unlikely — can be addressed within the same maintenance shift.

Retrofit Support FAQ

Q1: Is the UNS0868B-P V2 (3BHE013940R0002) a direct replacement for the V1 revision?
Yes. The V2 revision is backward-compatible with all AC800M rack positions that previously housed the V1 unit. No wiring changes, address reassignment, or software modification is required. The backplane connector and mechanical footprint are identical. Confirm the input voltage specification matches your panel PSU output before installation.

Q2: What pre-shipment testing is performed on each unit?
Every UNS0868B-P V2 unit undergoes full functional testing prior to dispatch, including input voltage range verification, output voltage and current load testing, and backplane connector integrity check. A test report is available on request. All units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Q3: Can this power supply be used in a Symphony Plus cabinet alongside newer S900 I/O modules?
The UNS0868B-P V2 is designed for the AC800M controller backplane and is not a direct power source for S900 I/O clusters, which use their own dedicated power supplies. However, it can coexist in the same control cabinet as S900 I/O infrastructure when the AC800M processor is retained as the control platform during a phased migration. Consult your system architecture drawing to confirm power distribution boundaries before installation.

Q4: What is the typical lead time and do you hold stock for emergency orders?
This unit is held in multi-region stock and is available for same-day or next-day dispatch for emergency replacement orders. Standard lead time for non-urgent orders is 1–3 business days depending on destination. Contact [email protected] or call +86 18359268345 to confirm current stock availability and arrange expedited shipping if required.
