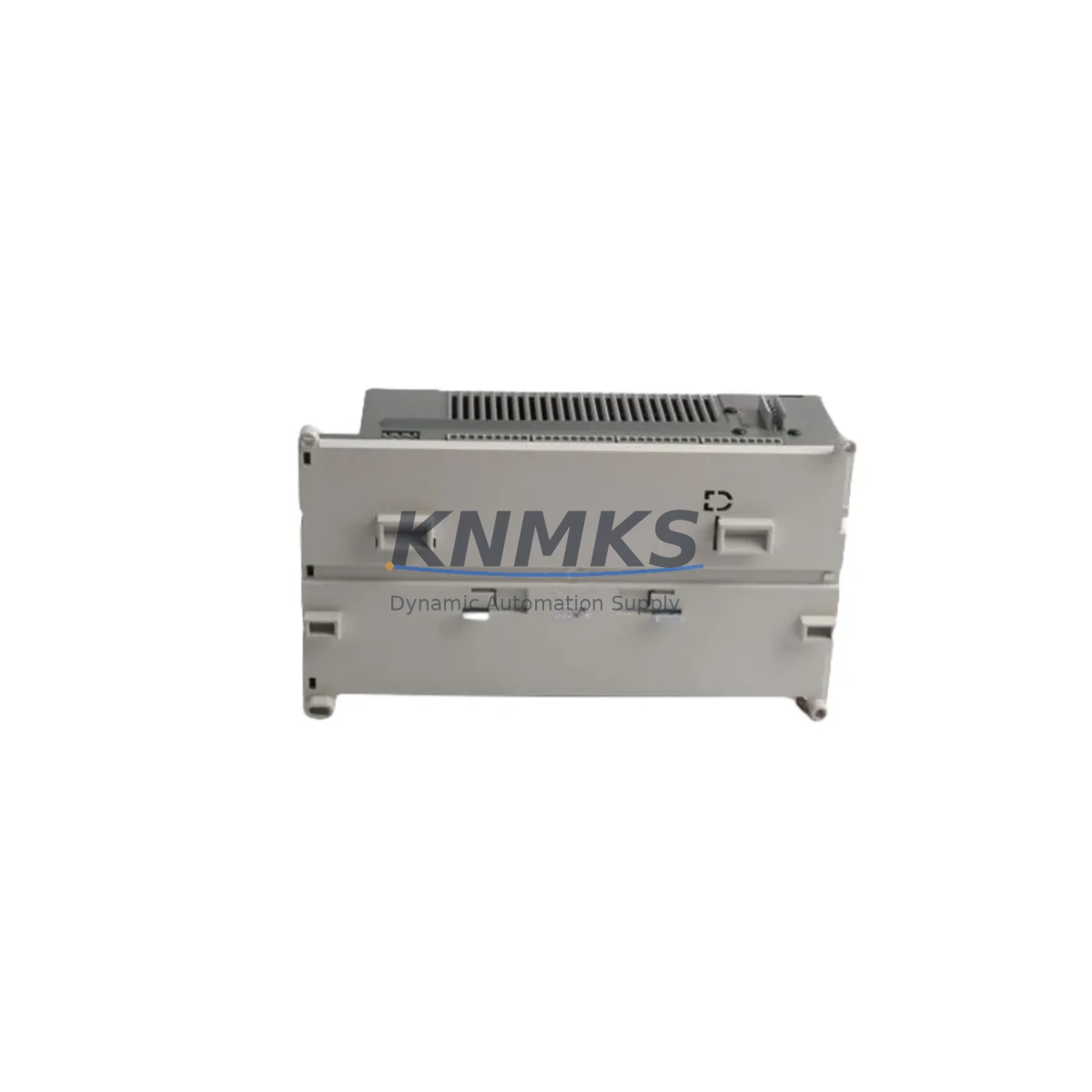

ABB 3BHB006449R0002 Migration-Ready Power Supply for Legacy Control Systems

Overview

ABB 3BHB006449R0002 Migration-Ready Power Supply for Legacy Control Systems

The ABB 3BHB006449R0002 is a DCS power supply module engineered for the ABB AC800M distributed control system platform. As legacy AC800M installations approach end-of-life support cycles, plant engineers and maintenance teams face increasing pressure to source verified replacement power supply modules that maintain full backward compatibility with existing backplane interfaces, terminal wiring layouts, and firmware revisions. The 3BHB006449R0002 addresses this challenge directly — it is a drop-in replacement unit that preserves the original power rail architecture, minimises retrofit engineering hours, and eliminates the need for control cabinet redesign.

Whether you are managing a scheduled turnaround, responding to an unplanned power module failure, or executing a phased control system modernisation programme, the 3BHB006449R0002 provides a reliable, pre-tested supply path that keeps your AC800M controllers, I/O modules, and communication links operational without interruption. Each unit is pre-shipment tested under load conditions and backed by a support terms confirmed by quotation, giving procurement and reliability teams the confidence to plan long-term spare parts strategies around a single verified source.

In retrofit and upgrade projects, the power supply module is often the first component to be evaluated — it defines the available power budget for the entire control cabinet, including processor modules such as the ABB PM865 or PM866, communication interface modules like the CI854 Profibus DP adapter, and distributed I/O units connected via the S800 I/O series. Confirming that the 3BHB006449R0002 meets the aggregate current draw of all installed modules is a mandatory step before any migration work begins on the backplane or field wiring.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AC800M power supply retrofit begins well before the module arrives on site. The engineering team must audit the existing control cabinet to confirm the total power consumption of all installed modules. In a typical AC800M configuration, this includes the main processor module (PM865 or PM866), one or more communication interface modules such as the CI854 for Profibus DP connectivity to field devices, and multiple S800 I/O modules handling analogue and digital signals from sensors, actuators, and transmitters across the process area.

Beyond the power budget calculation, the retrofit plan must address terminal block wiring continuity. In legacy installations where the original power supply has been in service for ten or more years, terminal screws, ferrules, and cable insulation should be inspected and replaced as part of the planned maintenance window. This is also the appropriate time to verify that the backplane connector on the replacement 3BHB006449R0002 seats correctly in the rack and that the rack itself — typically an ABB TB820 or equivalent mounting base — shows no signs of corrosion or mechanical damage that could affect contact integrity.

For sites running Profibus DP or FOUNDATION Fieldbus communication segments, the migration window should include a verification step to confirm that the communication modules retain their configured node addresses and baud rate settings after the power supply is cycled. In some AC800M configurations, the CI856 FOUNDATION Fieldbus interface module stores segment parameters in non-volatile memory, but a cold restart following a power supply replacement can trigger a re-initialisation sequence that must be monitored through the ABB Control Builder M engineering workstation.

HMI screens connected to the AC800M via OPC DA or OPC UA should be monitored during the commissioning phase to confirm that all process variable tags resume normal update cycles after the new power supply is energised. Any tag that remains in a stale or error state after the system restarts should be investigated at the communication link level before the plant is returned to automatic control.

Where the retrofit scope extends beyond a single power supply replacement to include I/O expansion or signal isolation improvements, the 3BHB006449R0002 provides the stable power foundation needed to support additional S800 I/O modules or signal isolators added to the rack. Confirm the revised power budget with the updated module count before closing the cabinet and returning the system to service.

Downtime Control During System Migration

Minimising unplanned downtime is the primary operational constraint in any legacy control system migration. For AC800M power supply replacements, the most effective downtime reduction strategy is to complete all pre-installation verification steps — power budget calculation, wiring inspection, firmware version confirmation, and spare module pre-testing — before the maintenance window opens. When the 3BHB006449R0002 arrives on site, it should already have been confirmed as the correct replacement unit, reducing the in-window installation time to a straightforward module swap.

Before removing the existing power supply, the site engineer should export a full backup of the AC800M application programme from Control Builder M. This backup preserves all function block logic, I/O channel assignments, communication configurations, and alarm setpoints, ensuring that the programme can be restored immediately if any unexpected behaviour is observed after the new module is installed. The backup should be stored on a local engineering workstation as well as a network-accessible location to protect against workstation failure during the migration window.

During the physical swap, field wiring connected to the power supply input terminals should be isolated at the upstream circuit breaker rather than disconnected at the terminal block, preserving the wiring layout and reducing the risk of reconnection errors. Once the 3BHB006449R0002 is seated in the rack and the input supply is restored, the module’s status LEDs provide the first indication of correct operation. A green run indicator with no fault LEDs active confirms that the module has initialised correctly and is supplying the backplane within specification.

Post-installation, the engineer should monitor the AC800M event log in Control Builder M for a minimum of fifteen minutes under normal process load before declaring the migration complete. Any power-related events or module fault messages logged during this period should be investigated before the system is returned to automatic control. This structured commissioning approach, combined with the pre-shipment load testing performed on every 3BHB006449R0002 unit, ensures that the replacement module performs reliably from the first moment of operation.

Retrofit Support FAQ

Q1: Is the ABB 3BHB006449R0002 a direct replacement for the original AC800M power supply without any wiring or mechanical modification?
Yes. The 3BHB006449R0002 is designed as a drop-in replacement for the standard AC800M power supply slot. It uses the same backplane connector, occupies the same rack slot dimensions, and is wiring-compatible with the original terminal layout. No rewiring of field terminals or mechanical modification of the control cabinet is required for a standard replacement.

Q2: What commissioning steps are required after installing the 3BHB006449R0002?
After installation, confirm that the module’s run LED is active and no fault indicators are lit. Verify that all processor modules (PM865/PM866), communication interface modules (CI854/CI856), and S800 I/O modules have resumed normal operation. Check the AC800M event log in Control Builder M for any power-related fault messages. Monitor HMI tag update cycles to confirm that all process variables are communicating correctly before returning the system to automatic control.

Q3: How do I confirm firmware and backplane compatibility before ordering?
Provide your AC800M firmware revision, rack type (e.g., TB820 or equivalent), and the full list of installed modules to our technical team at [email protected]. We will verify compatibility against our reference database and confirm the correct replacement unit before shipment. Each 3BHB006449R0002 is pre-shipment tested under load to ensure it meets ABB specifications prior to dispatch.

Q4: What support terms and stock availability does KNMKS offer for the 3BHB006449R0002?
Every 3BHB006449R0002 supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. Units are held availability confirmed by RFQ at our Xiamen facility and are available for immediate dispatch. For projects requiring long-term spare parts planning (12–36 months), we can discuss reserved stock agreements to ensure supply continuity for your AC800M installations.
