ABB TK811V015 Maintenance-Proven Spare Part for Factory Uptime

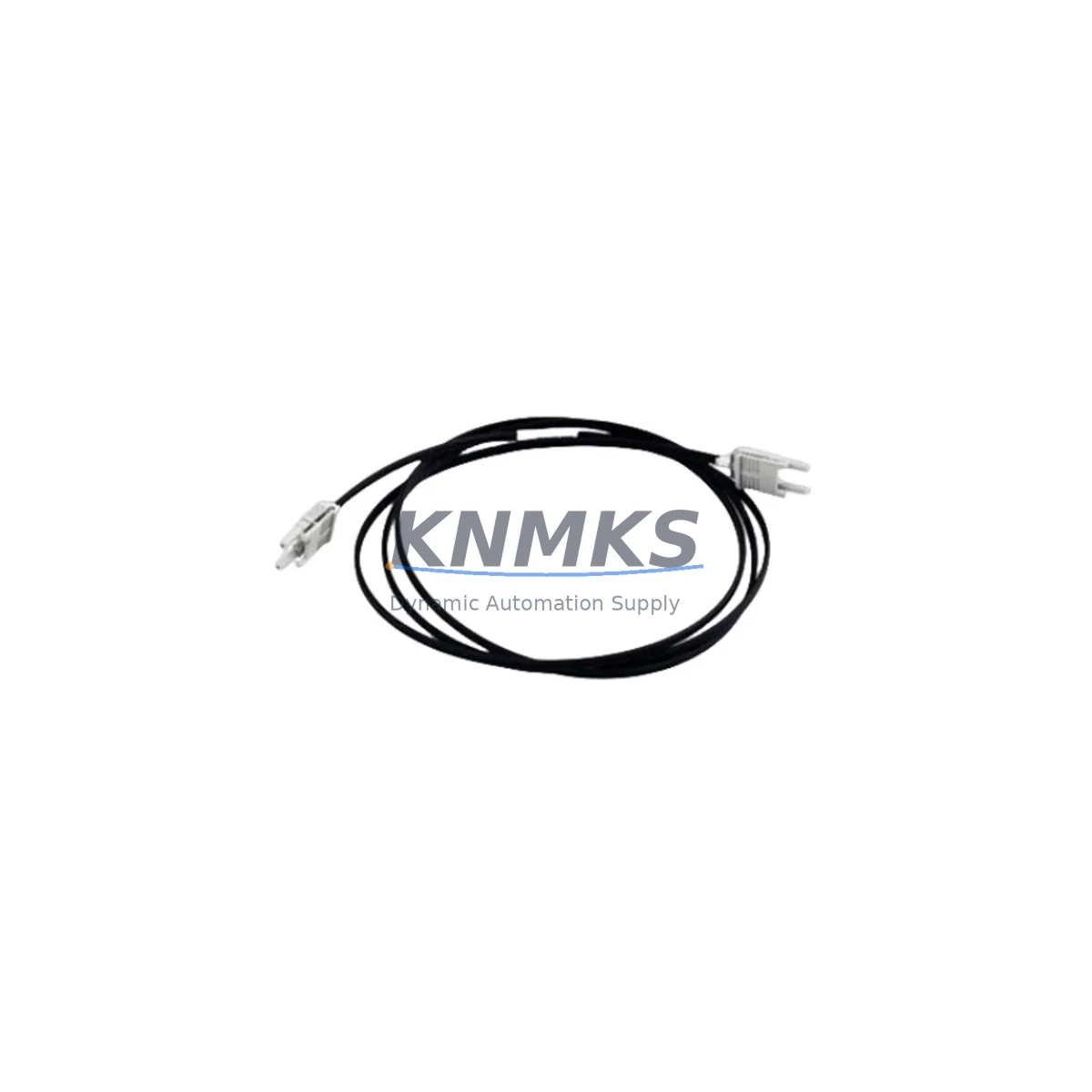

The ABB TK811V015 is a 15-metre Plastic Optical Fiber (POF) cable engineered for reliable data transmission in ABB AC500 PLC systems, PROFIBUS-DP networks, and INSUM motor management installations. As a direct OEM-equivalent spare, it restores communication integrity between CPU modules, I/O expansion racks, and field devices without requiring firmware changes or hardware reconfiguration. For maintenance engineers managing aging control infrastructure, stocking a verified TK811V015 eliminates the single-point-of-failure risk that a degraded fiber link represents — particularly in continuous-process environments where unplanned downtime carries significant production cost.

Every unit shipped by KNMKS undergoes pre-shipment continuity and attenuation testing. Each order is backed by a support terms confirmed by quotation covering manufacturing defects and optical performance. Long-term supply agreements are available for multi-site procurement teams requiring guaranteed availability across 12–36 month maintenance windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A POF cable failure in an AC500 system typically manifests as intermittent communication faults on the CPU’s optical port — often misdiagnosed as a module fault before the fiber link is inspected. When scheduling a TK811V015 replacement, maintenance engineers should treat the event as a full optical segment audit. Begin by verifying the condition of the ABB TK811V009 (9 m POF variant) or TK811V003 (3 m short-run cable) used elsewhere in the same rack or MCC bus, as connector contamination and jacket brittleness tend to progress uniformly across cables of similar age and installation environment.

Simultaneously, inspect the ABB PM564-ETH or PM582 CPU module’s optical transceiver port for dust ingress or mechanical damage — a degraded port will continue to cause signal errors even after a new cable is installed. Check the ABB TU515 or TU516 terminal unit seating and backplane connector integrity, as loose backplane connections can introduce noise that mimics fiber faults. For PROFIBUS-DP optical segments, confirm that the ABB RPBA-01 PROFIBUS adapter or equivalent optical repeater is operating within its specified signal budget.

In INSUM motor management installations, the TK811V015 typically connects the INSUM gateway to intelligent motor controllers (IMCs). During replacement, verify the INSUM IMC relay output wiring and confirm that the 24 VDC auxiliary supply to the gateway is stable — power supply fluctuations are a common secondary cause of communication resets that follow a fiber replacement. Where the control cabinet houses a ABB S800 I/O module cluster, inspect the I/O bus termination resistors and confirm that no I/O channel alarms are masked by the communication fault currently being cleared.

For procurement engineers, the TK811V015 should be classified as a Tier-1 critical spare — minimum stock of two units per AC500 system node is recommended. Its relatively low unit cost versus the downtime exposure of a fiber-induced communication blackout makes it a high-ROI stocking decision. KNMKS supports blanket purchase orders and consignment stocking arrangements for facilities managing five or more AC500 nodes.

Site Replacement Workflow

Step 1 — Isolate and document: Before disconnecting the existing TK811V015, record the current CPU diagnostic status and note any active PROFIBUS or INSUM fault codes. This baseline confirms whether the fiber is the sole fault source or a contributing factor alongside a module or power issue.

Step 2 — Safe disconnection: Power down the optical segment if the system architecture permits a hot-swap bypass; otherwise, coordinate with the control room for a controlled communication pause. Clean both connector ferrules on the new cable with a lint-free IPA swab before insertion.

Step 3 — Install and verify: Route the 15 m cable following the original cable path to avoid bend radii below 25 mm. Seat connectors firmly and confirm the CPU optical port LED returns to steady green (or equivalent status indicator per the AC500 CPU variant in use).

Step 4 — System restore and log: Clear latched fault codes, restore normal operating mode, and monitor the PROFIBUS or INSUM bus for a minimum of 15 minutes to confirm stable communication. Update the maintenance log with the replacement date, cable serial number, and post-installation test result. This record supports support requests and future predictive maintenance scheduling.

The TK811V015 is a direct replacement for legacy ABB fiber cables used in earlier AC500 V1 hardware generations. No firmware update or parameter change is required when replacing like-for-like within the same CPU generation. Cross-generation compatibility (e.g., AC500 V1 to V3 migration) should be verified against the ABB AC500 system manual before installation.

Spare Parts Support FAQ

Q1: Is the TK811V015 compatible with both AC500 V1 and V3 CPU generations?
The TK811V015 uses the standard ABB POF connector format common to the AC500 platform. It is directly compatible with AC500 V1 and V2 CPU modules. For AC500 V3 (PM5000 series), verify the optical port specification in the ABB hardware manual, as some V3 variants use an updated connector format. KNMKS technical support can assist with compatibility confirmation prior to order.

Q2: What pre-shipment testing is performed on each TK811V015 unit?
Every TK811V015 shipped by KNMKS undergoes optical continuity testing and insertion loss measurement before dispatch. Units that do not meet ABB’s specified attenuation limits are quarantined and not shipped. A test record is available upon request for quality-controlled procurement processes.

Q3: Can KNMKS support long-term supply agreements for multi-site AC500 maintenance programs?
Yes. KNMKS offers blanket purchase orders, consignment stocking, and 12–36 month supply agreements for the TK811V015 and related AC500 spare parts. Contact [email protected] with your site count and annual consumption estimate to receive a tailored supply proposal.

Q4: What does the support terms confirmed by quotation cover, and how is a support terms claim initiated?
The support terms confirmed by quotation cover manufacturing defects and optical performance failures under normal operating conditions. It does not cover damage caused by incorrect installation, excessive bend radius, or connector contamination. To initiate a claim, contact [email protected] with the order reference, installation date, and a description of the fault. KNMKS will arrange a replacement or credit within 5 business days of claim verification.
