ABB TK566 3BSE012153R1 Migration-Ready Bus Interconnector

Overview

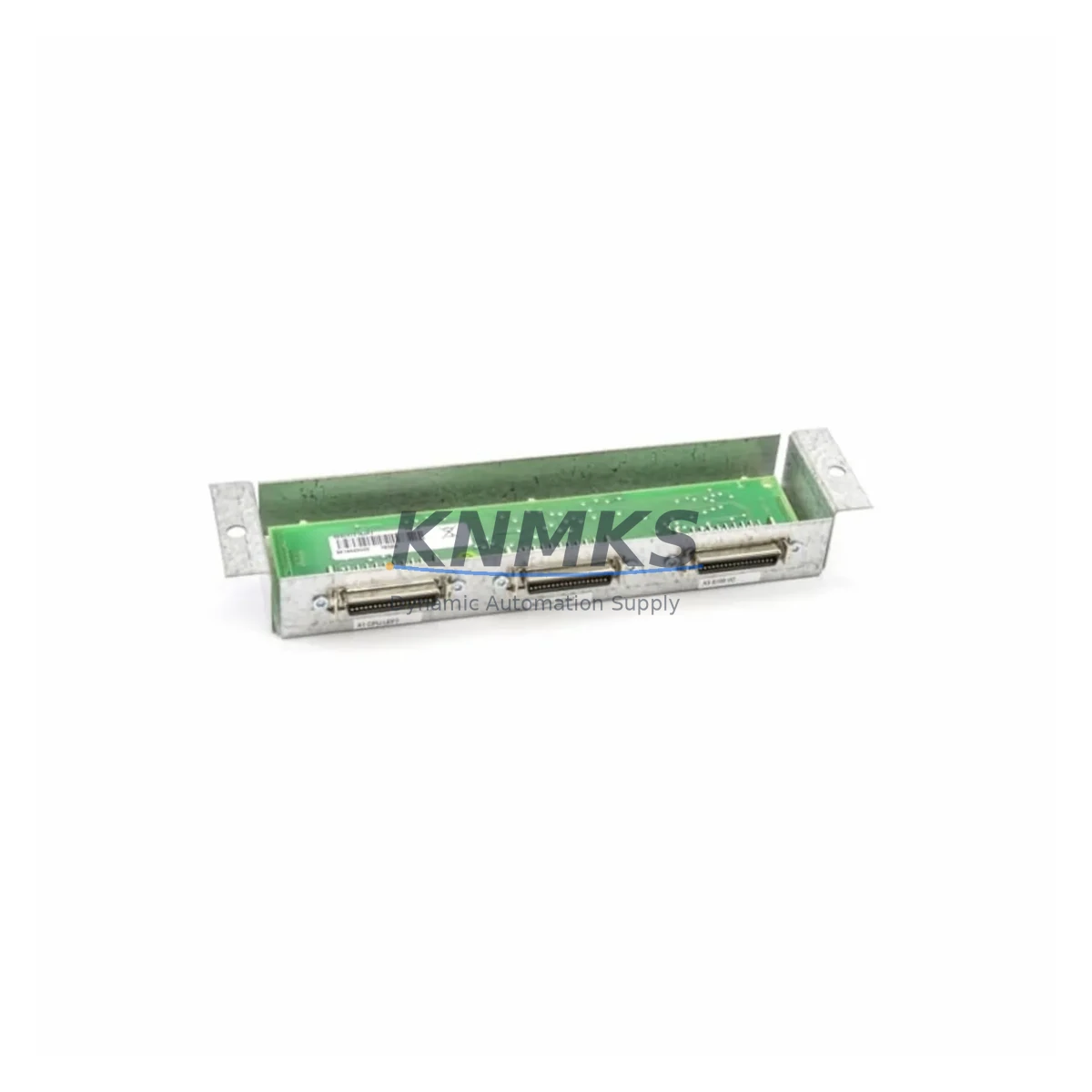

ABB TK566 3BSE012153R1 Migration-Ready Bus Interconnector for Legacy Control Systems

The ABB TK566 (3BSE012153R1) is a bus interconnector module designed for the ABB AC500 PLC platform, serving as a critical backplane communication bridge between CPU modules, I/O expansion modules, and communication interfaces within the AC500 control cabinet architecture. As legacy ABB control systems approach end-of-life and OEM support windows close, the TK566 has become one of the most sought-after retrofit components for engineers managing aging automation infrastructure across process industries, utilities, and discrete manufacturing.

At KNMKS, we maintain verified stock of the TK566 3BSE012153R1 with full functional testing, support terms confirmed by quotation coverage, and same-week dispatch capability. Each unit undergoes pre-shipment inspection to confirm bus signal integrity, terminal condition, and backplane connector alignment — ensuring drop-in compatibility with your existing AC500 rack configuration without requiring program modification or HMI screen reconfiguration.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the ABB TK566 3BSE012153R1, engineers must account for the full module ecosystem within the AC500 rack. The TK566 functions as the internal bus bridge, meaning its failure or degradation directly impacts communication between the CPU — typically a PM581 or PM591 processor module — and downstream I/O expansion modules such as the DC532 digital input/output module or AI523 analog input module. Before replacement, confirm that the rack’s power supply module, such as the TA521 power supply unit, is delivering stable 24 VDC within tolerance, as bus errors are frequently misdiagnosed when the root cause is power instability rather than interconnector failure.

For systems integrating fieldbus communication, verify that the CI590-CS31-HA communication interface or equivalent PROFIBUS/CANopen communication module remains correctly addressed after the TK566 swap. Module addressing in AC500 is rack-position dependent, so any physical slot change during the retrofit must be reflected in the Control Builder Plus project configuration. If the existing program was compiled against a specific hardware configuration, re-download may be required — though in most direct TK566 replacements, the program logic and HMI variable bindings remain intact.

For sites running legacy HMI panels connected via serial or Ethernet to the AC500 CPU, confirm that the HMI communication link — whether CP600 panel or a third-party SCADA interface — re-establishes correctly after the rack power cycle. In multi-rack configurations using TK501 or TK502 expansion cables, inspect cable seating and connector integrity as part of the same maintenance window to avoid repeat downtime. Signal isolators on analog loops should also be verified post-restart to confirm 4–20 mA loop continuity is unaffected by the bus restoration.

Where the TK566 is being replaced as part of a broader control cabinet upgrade — for example, migrating from an older AC31 or S500 platform to AC500 — the interconnector selection must align with the target rack model. KNMKS can advise on rack-level compatibility and supply associated modules including CPU, I/O, and communication cards as a coordinated retrofit kit, reducing procurement lead time and ensuring hardware generation consistency across the upgraded cabinet.

Downtime Control During System Migration

Bus interconnector replacement on an AC500 rack is a controlled, low-risk procedure when properly planned — but unplanned failure of a TK566 in a live production environment can result in complete rack communication loss, halting all I/O operations on that segment. To minimize exposure, KNMKS recommends maintaining at least one spare TK566 3BSE012153R1 on-site for any facility operating more than two AC500 racks.

For planned replacements, the recommended procedure is to export and archive the current Control Builder Plus project, document all module slot assignments and I/O addresses, and perform the swap during a scheduled maintenance window. The AC500 CPU retains its program in non-volatile memory, so a cold restart after TK566 replacement will reload the application automatically — provided no hardware configuration mismatch is detected. If the CPU enters configuration fault mode post-restart, a forced download of the existing project (without logic changes) is sufficient to restore normal operation in most cases.

For facilities where continuous operation is critical, consider staging a parallel rack with pre-configured modules before cutover. This approach allows full functional verification — including I/O scan, communication link confirmation, and HMI variable validation — before the live system is touched, compressing the actual cutover window to under 30 minutes in most AC500 retrofit scenarios.

KNMKS ships TK566 3BSE012153R1 units with pre-shipment test reports. For urgent requirements, expedited dispatch is available with tracking confirmation within 24 hours of order placement.

Retrofit Support FAQ

Q1: Is the ABB TK566 3BSE012153R1 a direct replacement for all AC500 rack configurations?
The TK566 is compatible with the standard AC500 rack family. However, rack model and slot position must be confirmed before ordering. KNMKS technical support can verify compatibility based on your existing rack part number and CPU model.

Q2: Will replacing the TK566 require any changes to my PLC program or HMI screens?
In a direct slot-for-slot replacement, no program or HMI changes are required. The AC500 CPU will resume normal operation after a power cycle. If the module is being relocated to a different slot position, hardware configuration in Control Builder Plus must be updated accordingly.

Q3: What pre-shipment testing is performed on TK566 units?
All TK566 3BSE012153R1 units supplied by KNMKS are functionally tested for bus signal integrity, connector condition, and backplane interface continuity. A test report is available upon request. Each unit is covered by a support terms confirmed by quotation from the date of shipment.

Q4: What is the typical lead time and do you maintain stock?
KNMKS maintains ready stock of the TK566 3BSE012153R1. Standard orders ship within 3–5 business days. Expedited same-week dispatch is available for urgent retrofit requirements. Contact our team at [email protected] or +86 18359268345 to confirm current inventory and arrange shipment.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

TK566-3BSE012153R1
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB TK566-3BSE012153R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
