ABB TDSTD150A 57160001-UH Migration-Ready Termination Unit

Overview

ABB TDSTD150A 57160001-UH Migration-Ready Termination Unit for Legacy Control Systems

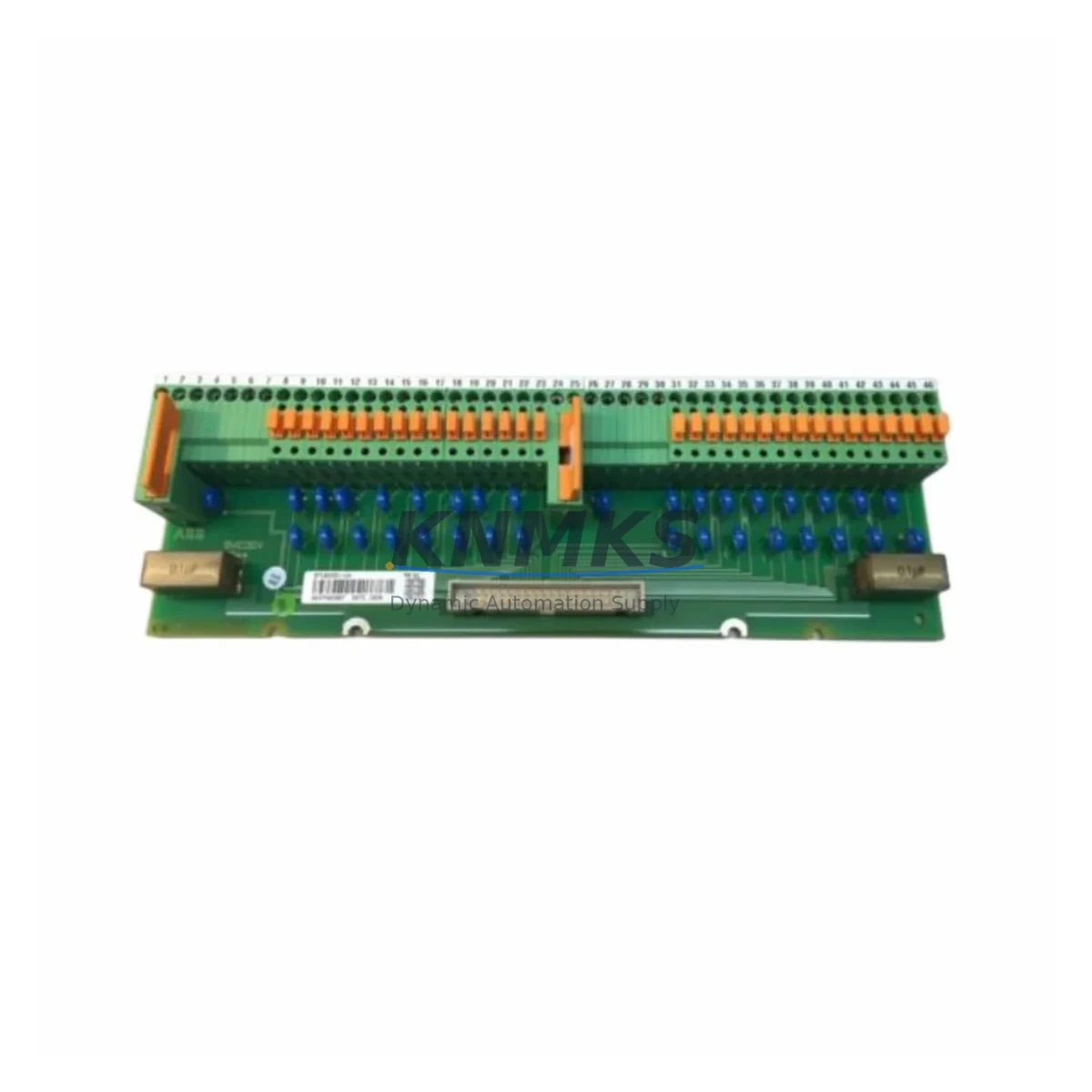

The ABB TDSTD150A (part number 57160001-UH) is a migration-ready DCS termination unit designed for seamless integration into ABB MOD 300 and DSCS distributed control system architectures. As legacy control platforms approach end-of-life and original spare parts become increasingly scarce, the TDSTD150A provides a reliable, wiring-compatible replacement that minimizes retrofit complexity and reduces unplanned downtime during system modernization projects.

This termination unit serves as the critical interface between field wiring and the DCS I/O modules, preserving existing cable schedules and terminal assignments during panel upgrades. Engineers undertaking control cabinet retrofits can retain original field wiring without re-termination, significantly compressing the migration timeline and reducing the risk of wiring errors during cutover.

For facilities operating ABB Bailey MOD 300 systems — including process industries such as pulp and paper, power generation, oil and gas, and chemical manufacturing — the TDSTD150A addresses the most common challenge in legacy system migration: maintaining signal integrity and I/O continuity while transitioning to modern control hardware. The unit is fully compatible with the standard 19-inch rack mounting used across the MOD 300 platform, ensuring no mechanical modifications are required to existing control cabinets.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the TDSTD150A begins with a thorough audit of the existing control architecture. Before ordering, engineers should document the current rack layout, confirm available backplane slots, and verify that the existing ABB NTPS01 or NTPS02 power supply module can support the additional load introduced by the replacement termination unit. Undersized power supplies are a common cause of post-retrofit instability and should be addressed proactively.

Field wiring compatibility is the next critical checkpoint. The TDSTD150A uses the same screw-terminal pitch as the original DSCS termination units, allowing existing cable schedules to be preserved. However, engineers should inspect terminal blocks for corrosion, verify wire gauge compatibility, and confirm that signal types — whether 4–20 mA analog, discrete 24 VDC, or thermocouple inputs — match the I/O module being paired with the termination unit. When replacing analog I/O modules such as the DSDX110 or DSAI130, signal range calibration should be re-verified after installation.

Module addressing is another area requiring careful attention. The TDSTD150A must be assigned the same logical address as the unit it replaces to ensure the DCS controller — typically an ABB DSPC172 or DSPC360 processor module — can recognize the new hardware without requiring program modifications. Address switches or DIP settings on the module should be configured before installation to match the original hardware configuration documented in the system’s I/O database.

For facilities also upgrading their HMI layer, it is important to verify that existing graphic displays and faceplates reference the correct I/O tag names. If the migration involves transitioning from an older ABB Operate IT or MOD 300 console to a modern 800xA system, HMI screen updates may be required in parallel with the hardware swap. Communication links between the DCS controller and the operator station should be tested under simulated load conditions before the final cutover.

In projects involving I/O expansion — for example, adding new measurement points to an existing control loop — the TDSTD150A can be paired with additional DSDX110 digital I/O modules or DSAI130 analog input modules to extend the system’s field connectivity without replacing the core controller. This approach preserves the existing program logic and reduces the scope of Factory Acceptance Testing (FAT) required before commissioning.

Where communication protocol migration is required — for instance, transitioning field devices from HART to Profibus PA or Foundation Fieldbus — a protocol gateway or signal isolator should be installed between the field device and the termination unit. Signal isolators also provide galvanic isolation that protects the DCS backplane from ground loops introduced by long cable runs in industrial environments.

Downtime Control During System Migration

Minimizing production downtime is the primary concern for any control system retrofit. The TDSTD150A supports a structured hot-swap approach when the system architecture permits: the replacement unit is pre-configured offline, verified against the original I/O database, and installed during a planned maintenance window. This approach limits the cutover window to the time required for physical module swap and signal verification — typically 30 to 90 minutes per termination unit, depending on the number of field connections.

To protect original program logic, a full backup of the DCS controller — including the DSPC172 or DSPC360 processor module’s application program, I/O configuration, and alarm setpoints — should be completed before any hardware changes are made. This backup serves as the recovery baseline if the retrofit encounters unexpected compatibility issues during commissioning.

Field control continuity can be maintained during the migration by placing affected control loops in manual mode at the operator station before disconnecting the original termination unit. Operators should be briefed on the expected duration of manual control and the escalation procedure if the cutover extends beyond the planned window. For critical loops — such as reactor temperature control or compressor surge protection — a temporary bypass or hardwired interlock may be required to maintain process safety during the transition.

Post-installation, each I/O channel should be verified using a loop calibrator or signal simulator before returning loops to automatic control. Communication link integrity between the termination unit, the I/O module, and the DCS controller should be confirmed via the system’s diagnostic console. All findings should be documented in the site’s maintenance management system to support future audits and spare parts planning.

Every TDSTD150A 57160001-UH unit shipped by KNMKS undergoes a pre-shipment functional test to verify terminal continuity, backplane connector integrity, and module identification. Units are supplied with a support terms confirmed by quotation covering manufacturing defects, providing assurance for both planned retrofit projects and emergency spare parts requirements.

Retrofit Support FAQ

Q: Is the TDSTD150A 57160001-UH a direct drop-in replacement for the original DSCS termination unit?
A: In most MOD 300 installations, yes. The TDSTD150A shares the same terminal layout, backplane connector, and rack footprint as the original DSCS termination units. However, engineers should cross-reference the original part number against the ABB Bailey spare parts cross-reference list and verify module address settings before installation to confirm full compatibility with their specific system revision.

Q: What commissioning steps are required after installing the TDSTD150A?
A: After physical installation, verify module address configuration, confirm backplane communication via the DCS diagnostic console, perform a channel-by-channel loop check using a signal simulator or loop calibrator, and return each control loop to automatic mode only after signal integrity is confirmed. Document all commissioning results for the site maintenance record.

Q: Can the TDSTD150A be used in systems that are migrating from MOD 300 to ABB 800xA?
A: The TDSTD150A is designed for MOD 300 / DSCS architecture. In an 800xA migration project, the termination unit may be retained as part of a phased migration strategy if the 800xA system is configured to communicate with legacy MOD 300 I/O via an S800 I/O gateway or equivalent interface module. Full migration to native 800xA I/O would require replacement with compatible S800 termination units.

Q: What is the support terms coverage and how is stock availability confirmed?
A: All TDSTD150A 57160001-UH units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and are subject to pre-shipment functional testing. Stock availability is confirmed at the time of order. For urgent retrofit requirements or bulk procurement, contact our sales team directly to confirm lead times and reserve inventory.
