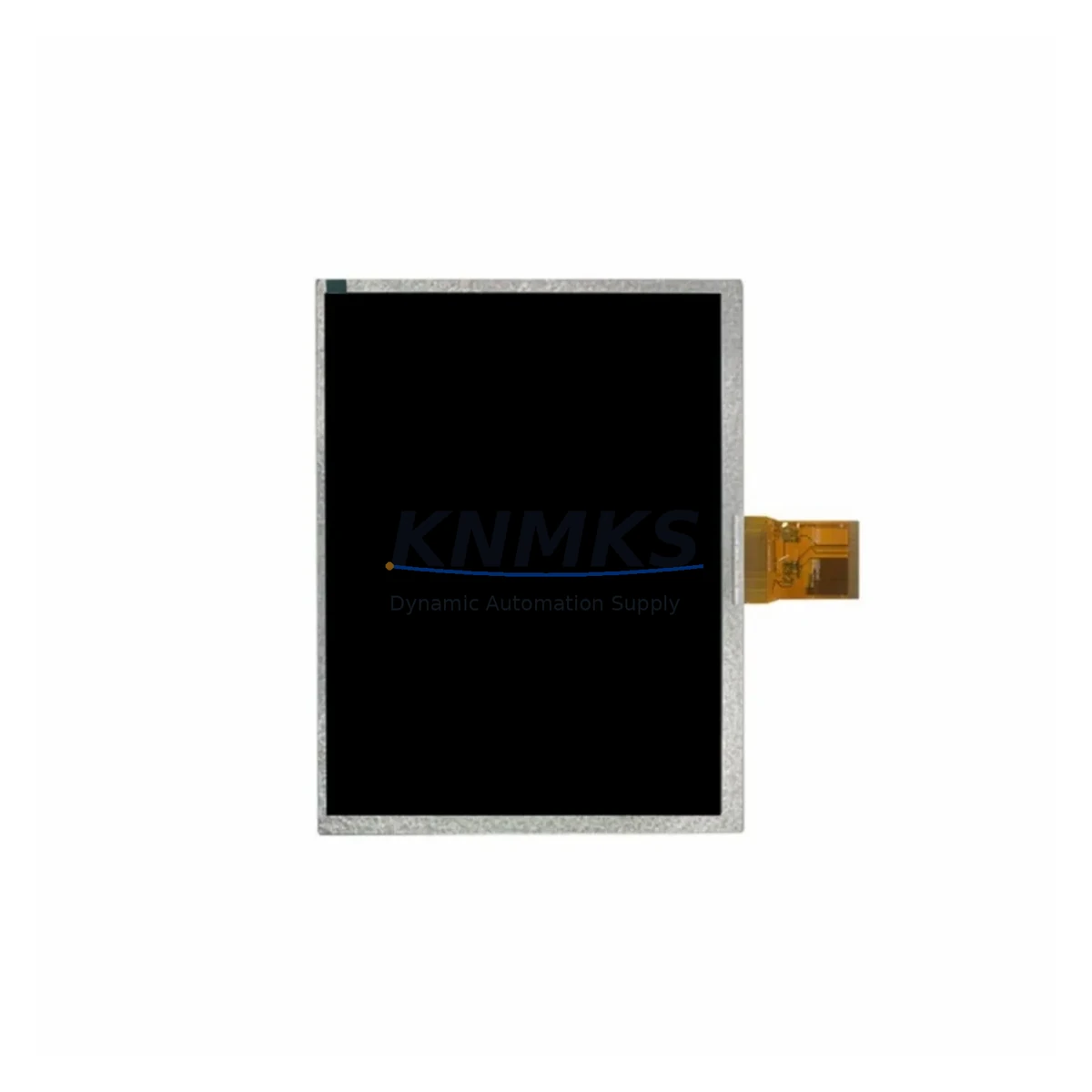

ABB TCG057VGLBA-G00 Migration-Ready HMI for Legacy Systems

Overview

ABB TCG057VGLBA-G00 Migration-Ready HMI for Legacy Control Systems

The ABB TCG057VGLBA-G00 is a 5.7-inch TFT color HMI display panel engineered as a direct migration-ready replacement for legacy ABB CP600 series operator panels deployed across process automation, machine control, and utility substations. As ABB progressively phases out CP600-series hardware, facilities running aging control cabinets face increasing pressure to source compatible replacements before obsolescence creates unplanned downtime. The TCG057VGLBA-G00 addresses this challenge by maintaining electrical, mechanical, and communication compatibility with existing CP600 installations, enabling a controlled, low-risk retrofit without requiring full PLC reprogramming or cabinet redesign.

Before initiating a replacement, engineers must verify several critical parameters. Power supply compatibility is the first checkpoint: the TCG057VGLBA-G00 operates on 24 VDC, consistent with standard CP600 panel power rails, but the supply capacity of the existing cabinet should be confirmed to ensure adequate current headroom, particularly when the HMI shares a rail with ABB AC500 I/O modules or communication adapters. Terminal wiring follows the same connector pinout as the CP600 series, which significantly reduces rewiring time during panel swap, though technicians should inspect terminal block condition and verify signal integrity on analog input lines before reconnection.

Backplane interface and mounting dimensions are mechanically compatible with standard CP600 cutout specifications (138 mm × 108 mm panel cutout), allowing the TCG057VGLBA-G00 to be installed into existing enclosures without modification. Module addressing is handled through the ABB CP600 configuration tool or Automation Builder, and existing project files can typically be migrated with minimal screen object remapping. Where HMI screens reference legacy tag addresses tied to ABB AC500 PLC variables or Modbus RTU device registers, a tag audit should be performed prior to commissioning to confirm address continuity.

Communication protocol migration is a key consideration. The TCG057VGLBA-G00 supports Modbus RTU, Modbus TCP/IP, and PROFIBUS DP, covering the majority of legacy fieldbus architectures found in CP600-era installations. Facilities transitioning from serial PROFIBUS DP to Ethernet-based PROFINET or Modbus TCP/IP should plan for a communication adapter such as the ABB FPBA-01 PROFIBUS adapter or a dedicated protocol gateway, which can be mounted within the same control cabinet. This migration step also provides an opportunity to consolidate communication links and reduce the number of discrete serial cables running to field devices.

For installations where the CP600 panel interfaces with ABB AC500 PLCs, the TCG057VGLBA-G00 integrates natively through the Automation Builder engineering environment, preserving existing ladder logic and function block programs without modification. Where the legacy system includes ABB S800 I/O modules connected via ModuleBus, the existing I/O architecture remains unaffected by the HMI replacement, as the TCG057VGLBA-G00 operates as a pure visualization and operator interface layer. Similarly, installations using ABB CI840 communication interface modules for PROFIBUS coordination will find that the TCG057VGLBA-G00 connects to the same network segment without requiring reconfiguration of the CI840 node address or baud rate settings.

Firmware version compatibility should be confirmed before deployment. The TCG057VGLBA-G00 ships with current ABB CP600 firmware and is compatible with Automation Builder 2.x and later. Legacy projects created in CP600 Pro ES should be exported and validated in Automation Builder before field deployment to identify any deprecated function blocks or screen objects that require updating. KNMKS performs pre-shipment functional testing on every unit, including display calibration, communication port verification, and firmware version confirmation, ensuring the panel arrives ready for installation.

Installation space within the control cabinet should be assessed for adequate ventilation clearance. The TCG057VGLBA-G00 requires a minimum 50 mm clearance on all sides for thermal management, and the rear-mounted communication ports must remain accessible for cable routing. Where cabinet depth is constrained, the compact profile of the TCG057VGLBA-G00 — consistent with CP600 series dimensions — ensures compatibility with standard 300 mm deep enclosures commonly used in process control and machine automation applications.

All units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment, with in-stock availability supporting rapid dispatch to minimize production downtime during planned maintenance windows or emergency replacement scenarios.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful TCG057VGLBA-G00 retrofit begins with a structured audit of the existing control architecture. In most CP600-era installations, the HMI panel operates alongside an ABB AC500 PLC as the primary controller, with I/O expansion handled by ABB S800 I/O modules distributed across the cabinet or remote I/O stations. The retrofit scope is typically limited to the HMI layer, leaving the AC500 CPU, S800 I/O modules, and field wiring untouched — a significant advantage in terms of risk containment and downtime minimization.

Where the legacy system includes a dedicated 24 VDC power supply module such as the ABB CP-E 24/5.0 or equivalent, the existing supply is generally sufficient to power the TCG057VGLBA-G00 without upgrade, provided no additional loads have been added to the rail since the original installation. Engineers should measure actual rail voltage under load before proceeding.

Communication wiring between the HMI and the AC500 PLC should be inspected for cable condition, shielding continuity, and connector integrity. In PROFIBUS DP installations, the bus termination resistors at each end of the segment must be verified, particularly if the CP600 panel was the last node on the bus. The TCG057VGLBA-G00 includes an integrated PROFIBUS DP port with configurable termination, simplifying this step.

For facilities upgrading to Ethernet-based communication, an ABB CI873 PROFINET communication interface or equivalent Modbus TCP/IP gateway can be added to the AC500 rack to bridge the legacy fieldbus to the new Ethernet segment. This approach allows the TCG057VGLBA-G00 to communicate over Modbus TCP/IP while the existing S800 I/O and field devices continue operating on their original protocols, providing a phased migration path that avoids a full system cutover.

HMI screen migration from CP600 Pro ES to Automation Builder should be completed and validated in a test environment before the maintenance window. Screen objects, alarm lists, trend displays, and recipe management functions should be verified against the live PLC program to confirm tag mapping accuracy. Where legacy screens reference obsolete function blocks, updated equivalents in Automation Builder’s library should be substituted and tested prior to deployment.

Downtime Control During System Migration

Minimizing production downtime during an HMI replacement requires careful pre-staging and a clearly defined cutover sequence. The TCG057VGLBA-G00 should be fully configured, firmware-verified, and communication-tested on a bench setup before the maintenance window begins. The existing CP600 panel’s project file should be exported, migrated to Automation Builder, and validated against a PLC simulator or offline AC500 program to confirm screen functionality and alarm behavior before the unit is removed from service.

During the physical swap, the AC500 PLC continues running in its current state — the HMI replacement does not interrupt PLC scan cycles or field I/O operation. Control continuity is maintained at the field level throughout the panel exchange, with the only interruption being the brief period during which the HMI is disconnected and reconnected. For critical processes, this window can be further reduced by pre-connecting the TCG057VGLBA-G00 communication cables to a patch panel or terminal strip before removing the legacy CP600 unit.

Post-installation commissioning should follow a structured checklist: power-on verification, communication link establishment, screen navigation test, alarm acknowledgment test, and operator interface functional check. KNMKS recommends retaining the legacy CP600 panel on-site for a minimum of 30 days post-cutover as a contingency, allowing rapid reversion if an unforeseen compatibility issue is identified during initial operation. All units supplied by KNMKS are pre-tested and firmware-confirmed, reducing the probability of field failures during commissioning to near zero.

Retrofit Support FAQ

Q: Is the ABB TCG057VGLBA-G00 a direct replacement for all CP600 series panels?
A: The TCG057VGLBA-G00 is a direct mechanical and electrical replacement for 5.7-inch CP600 series panels sharing the 138 × 108 mm cutout specification. Panels with different display sizes or non-standard cutouts may require a bezel adapter. Contact KNMKS with your existing panel model number for a confirmed compatibility assessment before ordering.

Q: Can existing CP600 project files be used without modification?
A: CP600 Pro ES project files must be exported and imported into ABB Automation Builder 2.x for use with the TCG057VGLBA-G00. Most screen objects and tag references migrate automatically, but deprecated function blocks and legacy communication drivers may require manual substitution. KNMKS recommends completing this migration in a test environment before the scheduled maintenance window.

Q: What communication protocols does the TCG057VGLBA-G00 support for legacy system integration?
A: The TCG057VGLBA-G00 supports Modbus RTU (RS-232/RS-485), Modbus TCP/IP, and PROFIBUS DP, covering the primary fieldbus architectures used in CP600-era installations. For facilities migrating to PROFINET or EtherNet/IP, a protocol gateway or communication interface module should be added to the AC500 rack to bridge the legacy and new network segments.

Q: What support terms and pre-shipment testing does KNMKS provide?
A: Every ABB TCG057VGLBA-G00 unit supplied by KNMKS undergoes full pre-shipment functional testing, including display calibration, communication port verification, and firmware version confirmation. All units are covered by a support terms confirmed by quotation from the date of shipment. In-stock availability supports rapid dispatch, with global shipping to Europe, North America, and Asia-Pacific regions.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

TCG057VGLBA-G00
Legacy Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: ABB TCG057VGLBA-G00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
