ABB TB511-ETH-XC 1SAP311100R0270 Spare Part for Factory Uptime

Overview

ABB TB511-ETH-XC 1SAP311100R0270 Spare Part for Factory Uptime

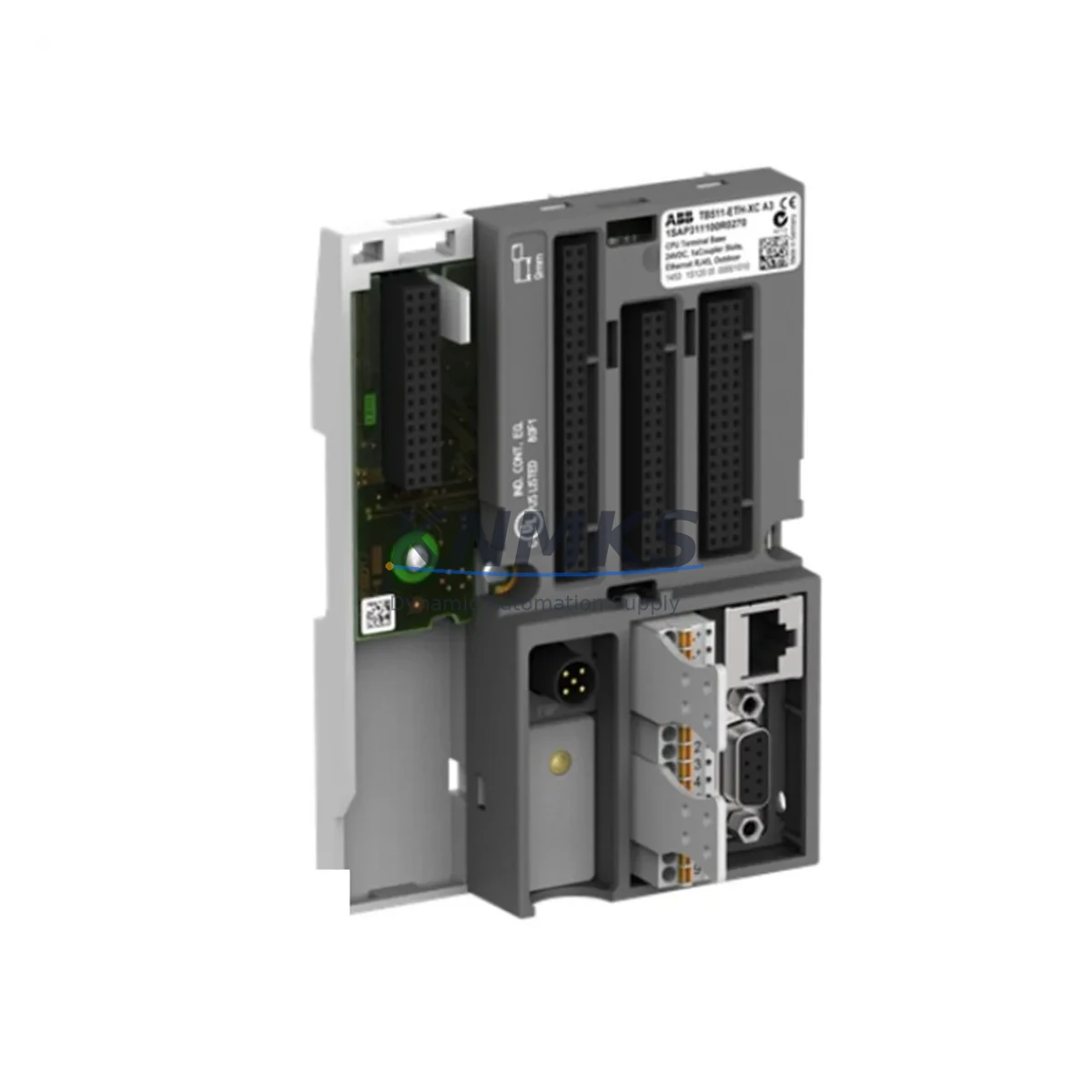

The ABB TB511-ETH-XC (Part No. 1SAP311100R0270) is an Ethernet communication module designed for the ABB AC500-XC extreme-condition PLC series. Built to operate reliably in harsh industrial environments — including wide temperature ranges, high humidity, and vibration-intensive installations — this module serves as a critical network interface between the AC500-XC CPU and plant-level Ethernet infrastructure. Maintaining a verified spare of the TB511-ETH-XC in your parts inventory is a proven strategy for minimizing unplanned downtime and protecting production continuity in automation-dependent facilities.

For maintenance engineers managing aging AC500-XC control systems, the TB511-ETH-XC enables PROFINET, Modbus TCP, and standard Ethernet IP communication, making it indispensable in distributed control architectures where loss of network connectivity can cascade into full line stoppages. Procurement engineers sourcing replacement modules should confirm compatibility with the installed AC500-XC CPU variant and firmware revision before deployment. KNMKS supplies this module as an original ABB spare, fully tested prior to shipment, with a support terms confirmed by quotation covering manufacturing defects.

Whether you are executing a planned annual overhaul, responding to an unscheduled fault, or building a strategic spare parts buffer for a multi-line facility, the TB511-ETH-XC represents a low-risk, high-reliability procurement decision backed by ABB’s industrial pedigree and KNMKS’s long-term supply commitment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the TB511-ETH-XC in an AC500-XC control cabinet, a disciplined maintenance engineer will treat the module swap as an opportunity to audit the surrounding electrical environment. Begin by inspecting the AC500-XC CPU module (such as the PM573-XC or PM583-XC) for firmware currency and backplane connector integrity — a degraded CPU slot can cause intermittent communication faults that are misdiagnosed as module failures.

Check the TB521-ETH or TB541-ETH communication modules installed in adjacent slots if your system uses redundant or multi-network configurations; a failing neighbor module can introduce bus contention that stresses the TB511-ETH-XC beyond its rated load. Verify that the 24 VDC power supply module feeding the AC500-XC rack — typically an ABB CP series or equivalent industrial DIN-rail PSU — is delivering stable voltage within ±1% tolerance, as undervoltage conditions accelerate communication module degradation in XC-rated environments.

Inspect all Ethernet patch cables and RJ45 connectors within the cabinet. In XC installations subject to vibration or thermal cycling, connector fatigue is a common root cause of intermittent network dropouts that precede module failure. Replace any cable showing jacket cracking or connector play. If the control system includes signal isolators or surge protection devices on the Ethernet line — particularly in installations near high-voltage drives or welding equipment — verify that the isolator’s bandwidth rating is compatible with the TB511-ETH-XC’s communication speed.

For cabinets integrating ABB CP600 or CP400 series HMI panels communicating over Ethernet, confirm that the HMI’s IP address and subnet configuration will remain valid after the module replacement, especially if the TB511-ETH-XC is being swapped for a unit with a different MAC address. Finally, check terminal blocks and I/O wiring on any digital or analog modules sharing the same AC500-XC rack — loose terminations discovered during a planned module swap are far less costly to address than an unplanned fault during production.

Site Replacement Workflow

Replacing the TB511-ETH-XC on-site follows a structured sequence designed to minimize downtime and eliminate re-work. Before removing the existing module, document the current Ethernet configuration — IP address, subnet mask, gateway, and active protocol settings — using the ABB Automation Builder software or a direct console connection to the CPU. This record is essential if the replacement module requires re-parameterization.

Power down the AC500-XC rack following your site’s lockout/tagout procedure. Remove the TB511-ETH-XC by releasing the module latch and sliding it clear of the communication slot. Inspect the backplane connector pins for corrosion or mechanical damage before inserting the replacement unit. Seat the new TB511-ETH-XC firmly until the latch engages, then restore power and verify that the module’s status LEDs indicate normal Ethernet link and activity states.

Re-apply the documented network parameters via Automation Builder and perform a communication test to each networked device — SCADA server, HMI, remote I/O nodes, or drive controllers — before returning the system to production. For facilities operating legacy AC500 (non-XC) systems, note that the TB511-ETH-XC is specifically rated for XC environments; confirm that your CPU variant supports the XC communication slot before procurement to avoid compatibility mismatches. KNMKS can assist with compatibility verification prior to order confirmation.

Spare Parts Support FAQ

Q1: Is the TB511-ETH-XC 1SAP311100R0270 compatible with standard AC500 (non-XC) CPUs?
The TB511-ETH-XC is designed and rated for the AC500-XC extreme-conditions platform. While the physical form factor may appear similar to standard AC500 communication modules, XC-rated modules are optimized for extended temperature and humidity ranges. Compatibility with non-XC CPU variants should be verified against ABB’s system configuration documentation or confirmed with KNMKS before ordering.

Q2: How is the TB511-ETH-XC tested before shipment?
Each unit supplied by KNMKS undergoes functional verification including power-on self-test, Ethernet port continuity check, and visual inspection of connector and housing integrity. Units are shipped with protective packaging appropriate for industrial components. A support terms confirmed by quotation covering manufacturing defects is included with every order.

Q3: What is the recommended spare parts inventory strategy for AC500-XC Ethernet modules?
For facilities with three or more AC500-XC racks in continuous operation, maintaining one TB511-ETH-XC spare per five installed units is a practical baseline. For single-rack critical systems — such as those controlling utilities or safety-adjacent processes — a dedicated on-site spare is strongly recommended. KNMKS supports long-term supply agreements to ensure availability across multi-year maintenance cycles.

Q4: Can KNMKS supply the TB511-ETH-XC for long-term or repeat procurement?
Yes. KNMKS maintains stock and sourcing channels for ABB AC500-XC series components including communication modules, CPU units, and power supply modules. Long-term supply arrangements, blanket orders, and priority allocation for critical spares are available. Contact [email protected] or +86 18359268345 to discuss your facility’s ongoing requirements.
