ABB SS832 3BSC610068R1 Fail-Safe Power Voting Module

Overview

ABB SS832 3BSC610068R1 Fail-Safe Power Voting Module: Fault Protection and Critical Industrial Field Reliability

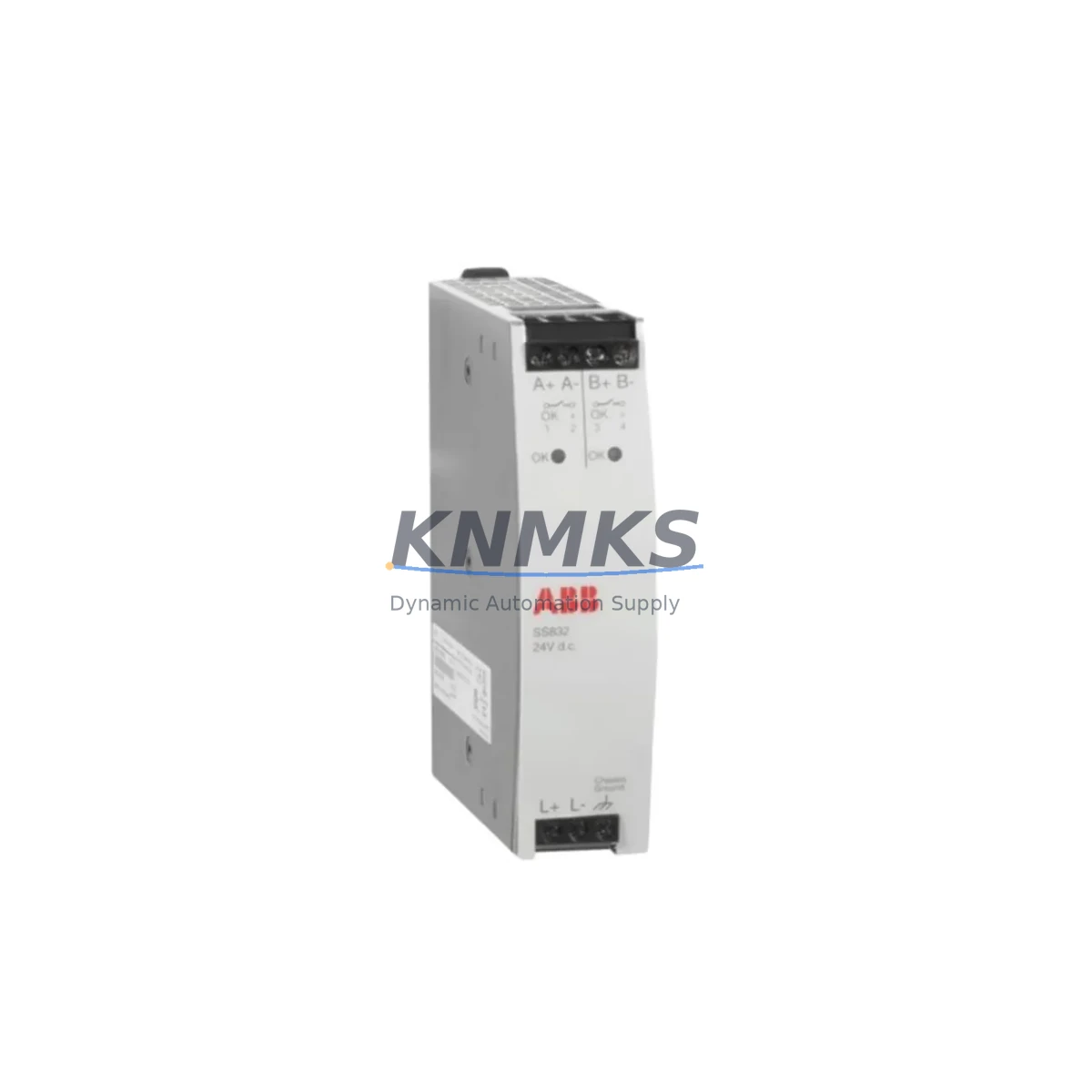

The ABB SS832 (3BSC610068R1) is a redundant power voting module engineered for the ABB AC450 Distributed Control System (DCS). In continuous production environments where an unplanned shutdown carries six- or seven-figure consequences, the SS832 performs a single non-negotiable function: it arbitrates between redundant power supply rails and ensures that only a healthy, stable voltage reaches the control backplane. When one supply degrades, surges, or fails entirely, the SS832 switches arbitration without interrupting the control loop — eliminating the single point of failure that would otherwise propagate through every I/O module, processor card, and field instrument downstream.

Designed and manufactured in Germany to ABB’s industrial-grade specifications, the SS832 carries the thermal tolerance, vibration resistance, and EMI immunity required for installation inside high-density control cabinets operating in petrochemical, power generation, mining, water treatment, metallurgical, and port automation facilities. Its compact form factor integrates directly into the AC450 rack without adapter hardware, preserving the original system architecture and minimising retrofit complexity during spare-part replacement.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet is a system, not a collection of individual modules. The SS832 anchors the power layer, but its protective value is fully realised only when paired with complementary components across the same AC450 architecture. In high-load cabinets where multiple processor and I/O racks share a common power bus, the ABB SD832 (3BSC610036R1) power supply module works in tandem with the SS832 to deliver conditioned DC voltage to each rack segment — the SS832 votes on which supply is authoritative while the SD832 maintains output regulation under load transients.

At the communication layer, the ABB CI854A (3BSE030220R1) PROFIBUS DP interface module depends on a stable, uninterrupted backplane supply to maintain fieldbus timing. A power interruption of even a few milliseconds can cause the CI854A to drop its PROFIBUS master role, triggering a cascade of field device faults across the entire segment. The SS832’s bumpless switchover characteristic directly protects this communication integrity.

For processor redundancy, the ABB PM864AK01 (3BSE018161R1) processor module relies on the same backplane power rail. In a redundant CPU configuration, an undetected power anomaly that corrupts the active processor’s execution state — without triggering a clean switchover — is among the most dangerous failure modes in a DCS. The SS832 eliminates this risk at the source by ensuring the rail voltage never falls outside the processor’s specified operating window.

In cabinets installed near variable-frequency drives, large motor starters, or arc furnace controls, conducted EMI and fast transients are a persistent threat to analogue I/O accuracy. The ABB AI830A (3BSE040662R1) analogue input module, when powered through a properly arbitrated and surge-clamped rail maintained by the SS832, maintains signal integrity and prevents the millivolt-level drift that can cause a process controller to misread a temperature or pressure transmitter and initiate an unnecessary safety trip.

Finally, in safety instrumented system (SIS) architectures where the AC450 interfaces with a dedicated safety PLC or emergency shutdown system, the ABB DO820 (3BSE008510R1) digital output module must respond to shutdown commands within the SIL-rated response time. Backplane power instability is a common root cause of delayed or missed output transitions. The SS832 removes this variable from the reliability equation.

Critical Industrial Safety Applications

Petrochemical & Refinery: In continuous cracking and distillation units, the AC450 DCS manages hundreds of control loops simultaneously. A power voting failure that interrupts the backplane even briefly can cause multiple PID loops to fall back to manual mode simultaneously — a scenario that operators cannot safely manage in real time. The SS832 prevents this by maintaining uninterrupted arbitration across the full production cycle.

Power Generation: Thermal and hydroelectric plants use the AC450 for turbine governor control and boiler management. In these applications, the SS832 protects the control system from the high-amplitude voltage transients generated during generator synchronisation and load shedding events — conditions that routinely damage unprotected power distribution components.

Mining & Mineral Processing: Underground and open-pit mining environments combine high vibration, conductive dust, and wide ambient temperature swings. The SS832’s rated operating envelope and sealed construction make it suitable for control rooms that cannot be maintained to data-centre standards, ensuring the conveyor, crusher, and ventilation control systems remain operational through shift changes and seasonal extremes.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operate 24/7 with minimal staffing during night shifts. The SS832’s autonomous failover capability means that a power supply degradation event is handled automatically — without requiring an operator to intervene — preserving pump sequencing, dosing control, and effluent compliance without interruption.

Metallurgy & Steel: Electric arc furnace and rolling mill control systems generate some of the most severe electromagnetic environments in industry. The SS832’s EMI immunity rating and surge clamping capability are directly relevant to these installations, where conducted interference on the control cabinet power bus is a documented cause of spurious trips and module failures.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the SS832 3BSC610068R1?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its power voting and arbitration function within the confirmed support period, we provide replacement or repair at no additional cost. Support terms coverage begins from the date of shipment.

Q2: How is the SS832 tested before shipment?
Every SS832 unit undergoes a full functional verification test prior to dispatch. This includes power-on self-test validation, dual-rail switchover verification, and output voltage stability checks. Test records are available upon request for quality-critical procurement processes.

Q3: Is the SS832 3BSC610068R1 compatible with all AC450 DCS rack configurations?
The SS832 is designed for direct integration into the ABB AC450 backplane and is compatible with standard AC450 rack configurations. For non-standard or heavily modified system architectures, we recommend confirming the rack revision and power supply complement (e.g., SD832 pairing) before installation. Our technical team can assist with compatibility verification.

Q4: Can long-term supply of the SS832 be secured for multi-site maintenance contracts?
Yes. We maintain stock of the SS832 3BSC610068R1 and can support blanket purchase orders and scheduled delivery agreements for facilities managing multiple AC450 installations across sites. Long-term supply commitments help avoid the lead-time risk associated with sourcing legacy DCS spare parts on the spot market.
