ABB SRFC4620C Fail-Safe EMC Filter for Industrial Control

Overview

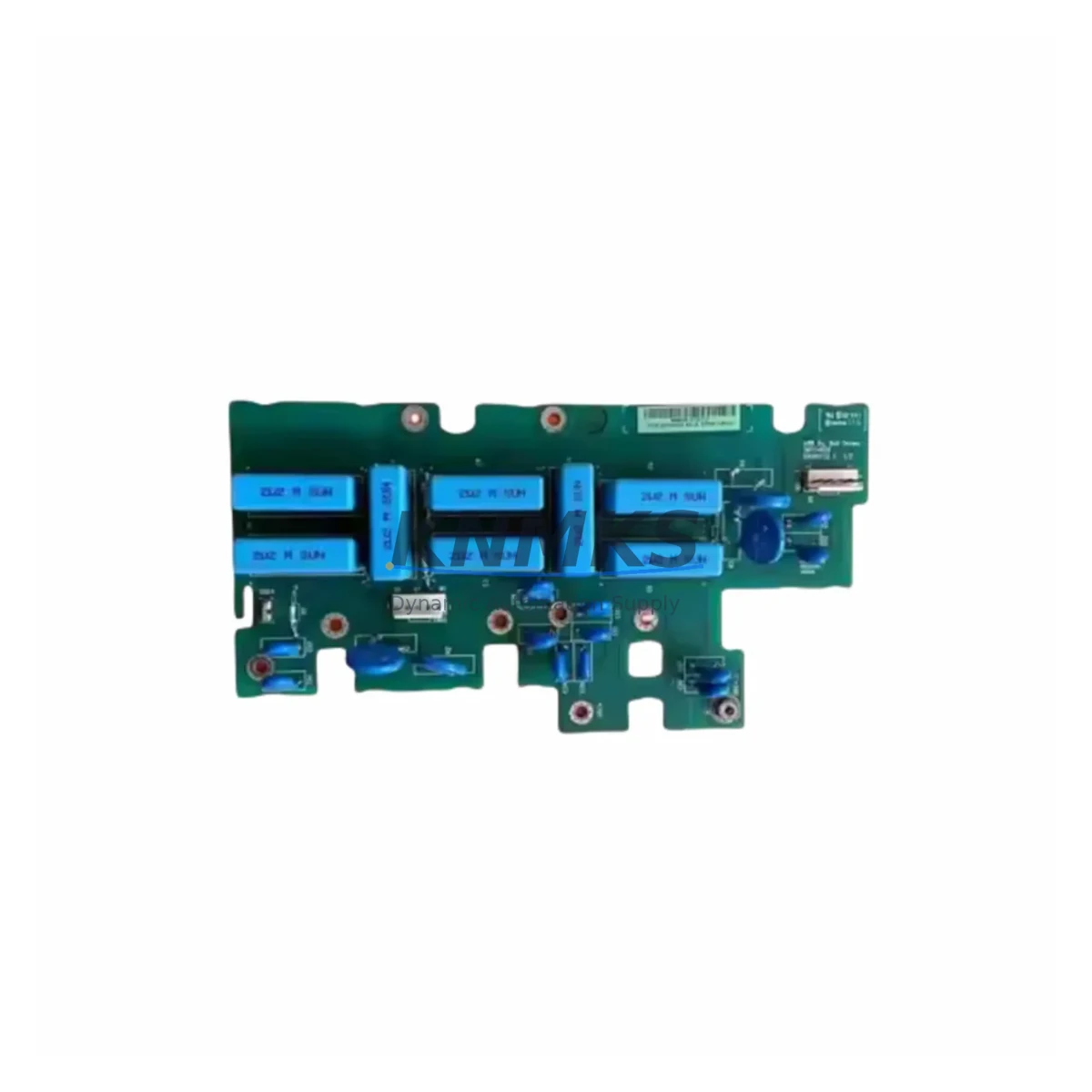

ABB SRFC4620C Fail-Safe EMC Filter for Industrial Control Reliability

The ABB SRFC4620C is a safety-grade EMC filter plate engineered for ACS800 series variable frequency drives operating in continuous production environments, critical interlock circuits, and heavy-duty control cabinets. Designed to suppress conducted electromagnetic interference at the source, the SRFC4620C protects downstream control loops from signal drift, voltage transients, and surge impulses that routinely cause unplanned shutdowns in high-EMI industrial sites including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port terminals, and marine propulsion systems.

In facilities where drive-generated harmonic noise propagates through shared power rails, the SRFC4620C acts as the first line of defense — attenuating common-mode and differential-mode interference before it reaches PLC input modules, safety relay circuits, or fieldbus communication backbones. This directly reduces the risk of nuisance trips, false interlock activations, and communication anomalies on PROFIBUS, Modbus RTU, or DeviceNet networks sharing the same cabinet infrastructure.

The filter is rated for operation in environments with elevated dust ingress, condensation, and mechanical vibration — conditions common to outdoor switchgear enclosures, coastal installations, and underground mining drives. Its compact footprint integrates directly into the ACS800 drive mounting frame without additional hardware, minimizing installation time during scheduled outages or emergency replacements.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-designed ACS800 control cabinet, the SRFC4620C works in coordination with a layered protection architecture. On the power input side, a properly rated ABB NOCH0010-62 input choke reduces harmonic current distortion before the drive’s rectifier stage, while the SRFC4620C handles high-frequency conducted emissions on the output side. For cabinets housing multiple drives on a common DC bus, the ABB BAMU-01 brake unit and associated braking resistors generate additional switching transients; the SRFC4620C’s attenuation capability prevents these transients from coupling into adjacent signal wiring or 24 VDC control power supplies.

In safety-critical applications, the filter is typically installed alongside ABB AINT-02 or RDCO-03 communication adapter modules that carry PROFIBUS or optical fiber links to the plant DCS. Electromagnetic noise that bypasses EMC filtering can corrupt cyclic data frames, triggering watchdog faults or drive coast-stop events at the worst possible moment in a production cycle. The SRFC4620C’s insertion loss characteristics are sufficient to maintain signal integrity on these communication paths even in high-power drive rooms with multiple 400 kW to 630 kW units running simultaneously.

For cabinet thermal management, the filter’s low insertion loss minimizes self-heating, supporting the overall cabinet cooling strategy alongside ABB’s standard drive cooling fans and optional cabinet air conditioning units. This is particularly relevant in tropical or desert installations where ambient temperatures regularly approach the drive’s thermal derating threshold.

Critical Industrial Safety Applications

Petrochemical & Refinery: In hazardous area drive rooms controlling compressor trains and pump stations, the SRFC4620C prevents EMI-induced false trips on safety instrumented system (SIS) inputs, maintaining process continuity and avoiding costly emergency shutdowns that require full restart procedures.

Power Generation: Boiler feed pump drives and cooling water circulation drives in thermal power plants operate in environments with high ground-loop noise. The SRFC4620C ensures that speed reference signals and process feedback from 4–20 mA transmitters remain stable, preventing boiler pressure excursions caused by erratic pump speed control.

Mining & Mineral Processing: Conveyor belt drives, crusher drives, and slurry pump drives in underground and open-pit mines are subject to extreme vibration and dust. The SRFC4620C’s robust construction and EMC performance maintain reliable drive operation even when cable runs exceed 100 meters between the drive cabinet and the motor terminal box.

Water & Wastewater Treatment: In pumping stations with variable-speed submersible pumps, EMC filter performance directly affects the accuracy of flow control loops. The SRFC4620C reduces interference on PLC analog input cards, preventing flow measurement errors that could lead to overflow events or treatment process upsets.

Metallurgy & Steel Mills: Rolling mill drives and ladle crane drives generate severe voltage spikes during regenerative braking. The SRFC4620C, combined with appropriate surge protection devices on the control cabinet incoming supply, provides a comprehensive barrier against conducted disturbances that could damage sensitive measurement electronics or trigger unintended safety relay operations.

Port & Marine: Ship-to-shore crane drives and vessel propulsion drives operate in salt-laden, high-humidity environments. The SRFC4620C’s corrosion-resistant construction and wide operating temperature range make it suitable for marine-grade control panels where long-term reliability between dry-dock maintenance intervals is essential.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the SRFC4620C?
The support terms confirmed by quotation cover all manufacturing defects, premature component failure, and performance deviations from ABB’s published specifications. Support requests are supported with replacement dispatch from multi-region stock, minimizing site downtime. The confirmed support period begins from the date of confirmed delivery.

Q2: What pre-shipment testing is performed before dispatch?
Every SRFC4620C unit undergoes functional verification including insulation resistance measurement, continuity checks on all filter stages, and visual inspection for mechanical integrity. Units that do not meet ABB’s original factory acceptance criteria are quarantined and not dispatched. Test records are available upon request for quality-critical procurement processes.

Q3: Is the SRFC4620C compatible with all ACS800 drive variants and cabinet configurations?
The SRFC4620C is designed for ACS800 single drive units and multi-drive cabinet configurations in the applicable current rating range. Compatibility should be confirmed against the specific ACS800 hardware revision and cabinet layout drawing. Our technical team can cross-reference the drive serial number and hardware revision to confirm fitment before order confirmation.

Q4: Can long-term supply agreements be arranged for scheduled maintenance programs?
Yes. For customers with planned maintenance schedules, annual outage programs, or fleet-wide ACS800 drive populations, long-term supply agreements with reserved stock allocation are available. This ensures priority access to SRFC4620C units during peak demand periods and eliminates lead-time risk for time-critical outage windows.
