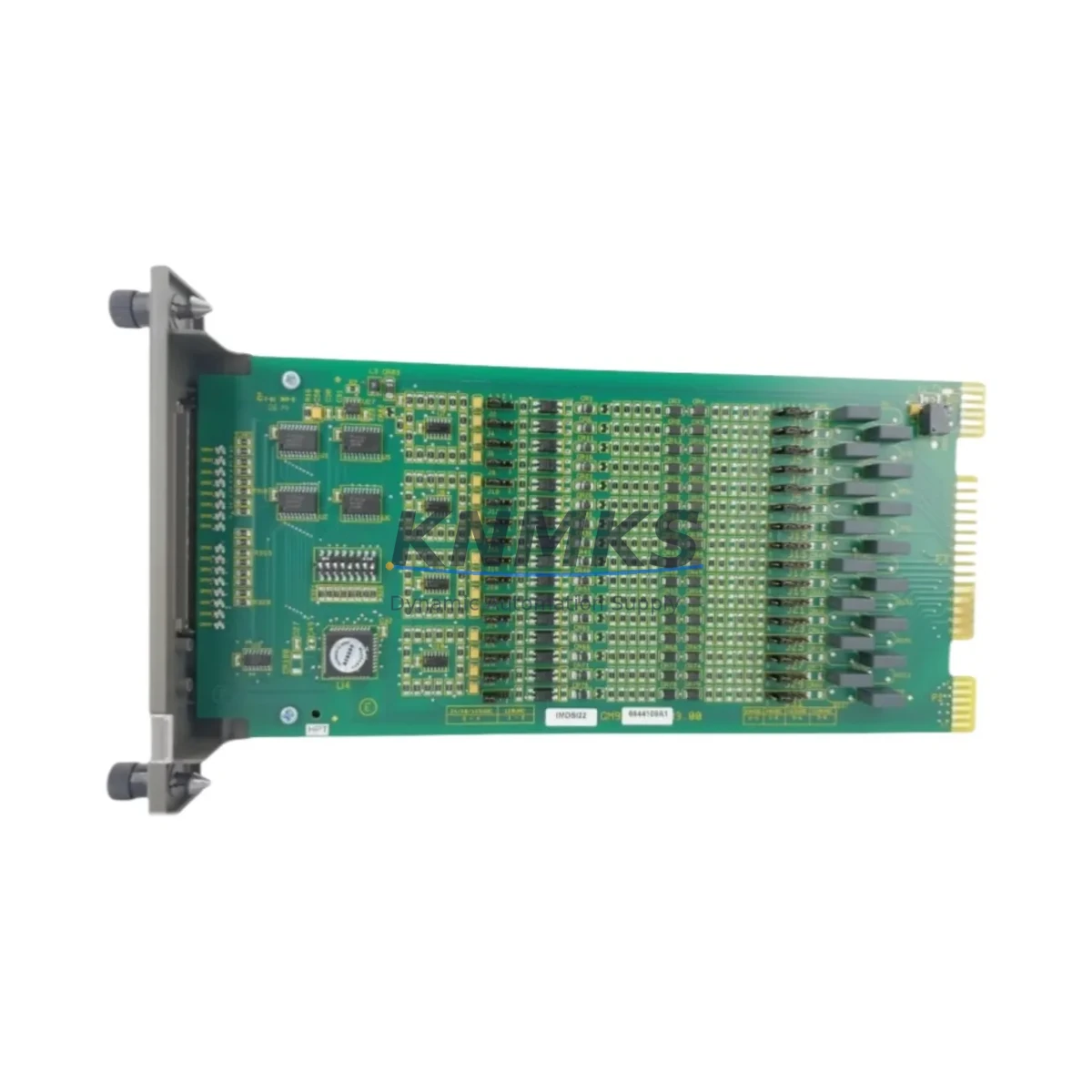

ABB SPRIO22 Fail-Safe Digital Output for Industrial Control

Overview

ABB SPRIO22 Fail-Safe Digital Output for Industrial Control Reliability

The ABB SPRIO22 is a 16-channel digital output module engineered for safety-critical and continuous-process industrial environments. Designed as a core component of the ABB AC500 and S500 I/O platform, the SPRIO22 delivers deterministic, fail-safe output switching that protects control loops from unplanned interruptions, signal drift, and output misfires — even under the most demanding field conditions. Whether deployed in high-electromagnetic-interference (EMI) switchgear rooms, dusty and humid process enclosures, or high-vibration machinery cabinets, the SPRIO22 maintains output integrity where conventional modules fail.

Industrial automation systems depend on the reliability of every output channel. A single misfired digital output can trigger an unplanned shutdown, damage downstream actuators, or — in safety-instrumented systems — compromise a protective interlock. The SPRIO22 addresses this risk through robust surge suppression on each output channel, wide operating temperature tolerance, and tight integration with the ABB AC500 CPU platform, ensuring that control commands are executed accurately and without latency under load transients or power fluctuation events.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the SPRIO22 does not operate in isolation. Its reliability is amplified when paired with complementary ABB AC500 platform components that together form a layered protection architecture. The ABB PM573 or PM591 CPU modules serve as the processing backbone, executing the control logic that drives SPRIO22 output commands with cycle-time precision. For input acquisition, the ABB SPDI16 16-channel digital input module works alongside the SPRIO22 to close the control loop — capturing field sensor states and feeding them back to the CPU before the next output scan.

Power integrity is equally critical. The ABB CP600 or equivalent 24 V DC power supply modules provide stable, regulated voltage to the S500 I/O bus, preventing the output voltage sag that can cause SPRIO22 channels to drop below their switching threshold during inrush events. For applications where power continuity is non-negotiable — such as emergency shutdown (ESD) panels or fire and gas detection cabinets — an uninterruptible power supply (UPS) module integrated upstream of the SPRIO22 power rail eliminates the risk of nuisance trips during utility voltage dips.

In high-EMI environments such as variable frequency drive (VFD) rooms or arc furnace control stations, the ABB TU515 or TU516 terminal units provide shielded field wiring termination for the SPRIO22, reducing common-mode noise injection into output channels. Communication integrity between the AC500 CPU and remote I/O racks is maintained through the ABB CI501 PROFIBUS DP or CI502 PROFINET communication interface modules, ensuring that output commands reach the SPRIO22 without packet loss or bus timeout faults even under heavy network load. Together, these components create a control cabinet ecosystem where the SPRIO22 can deliver its full fail-safe output performance across the entire service life of the installation.

Critical Industrial Safety Applications

The SPRIO22 is deployed across a wide range of safety-critical and continuous-process industries where output reliability directly affects personnel safety, asset protection, and regulatory compliance.

In petrochemical and refinery plants, the SPRIO22 drives solenoid valves in emergency isolation and blowdown systems. Its per-channel short-circuit detection ensures that a wiring fault in one valve circuit does not cascade into a loss of control over adjacent safety valves — a requirement aligned with IEC 61511 functional safety standards for process industries.

In electric power generation and substation automation, the SPRIO22 controls circuit breaker trip coils and auxiliary relay outputs. The module’s surge suppression capability is essential in high-voltage switchyards where inductive load switching generates transient voltages that can destroy unprotected output transistors.

In underground mining and tunneling operations, where dust ingress, mechanical vibration, and humidity are constant threats, the SPRIO22’s wide environmental tolerance allows it to operate reliably inside compact local control panels mounted close to conveyor drives, ventilation fans, and dewatering pump stations — environments where module replacement downtime is costly and logistically difficult.

In water and wastewater treatment facilities, the SPRIO22 manages pump start/stop commands, valve actuator control, and chemical dosing system outputs across distributed SCADA architectures. Its compatibility with the AC500 platform’s redundant CPU configurations supports the high-availability requirements of continuous water supply infrastructure.

In metallurgical and steel mill applications, the SPRIO22 withstands the high ambient temperatures and electromagnetic interference generated by induction furnaces and rolling mill drives, maintaining stable output switching for cooling water control, fume extraction, and casting line interlocks.

In port and marine terminal automation, the SPRIO22 is used in ship-to-shore crane control panels and automated stacking crane (ASC) systems, where reliable digital output switching is essential for safe load handling and anti-collision interlock functions.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the SPRIO22?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the SPRIO22 fails to perform its specified digital output switching function within the confirmed support period, we provide a replacement unit or documented resolution support. The confirmed support period begins from the date of confirmed shipment and applies to all units supplied from our inventory.

Q2: How is each SPRIO22 unit tested before shipment?
Every SPRIO22 unit undergoes a full functional output verification test prior to dispatch. This includes channel-by-channel output activation checks, short-circuit protection response testing, and bus communication handshake verification with an AC500 CPU. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is the SPRIO22 compatible with all ABB AC500 CPU generations?
The SPRIO22 is designed for the ABB S500 I/O bus and is compatible with the full range of ABB AC500 V2 and V3 CPU modules, including the PM573, PM583, PM591, and PM595 series. It is also compatible with AC500-S safety CPUs when used in standard (non-safety-rated) output applications. For safety-rated SIL output applications, please consult the ABB AC500-S system documentation for approved module combinations.

Q4: Can long-term supply and spare part availability be guaranteed?
We maintain dedicated stock of the SPRIO22 to support both immediate replacement needs and planned maintenance programs. For customers operating large AC500 installations, we recommend establishing a blanket order arrangement to secure priority allocation and fixed pricing over a 12–24 month horizon. Our supply chain covers both new production units and verified surplus stock, ensuring continuity even during periods of manufacturer lead-time extension.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SPRIO22
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB SPRIO22
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
