ABB SPHSS03 Fail-Safe Hydraulic Servo Control for Industrial Reliability

Overview

ABB SPHSS03 Fail-Safe Hydraulic Servo Control for Industrial Reliability

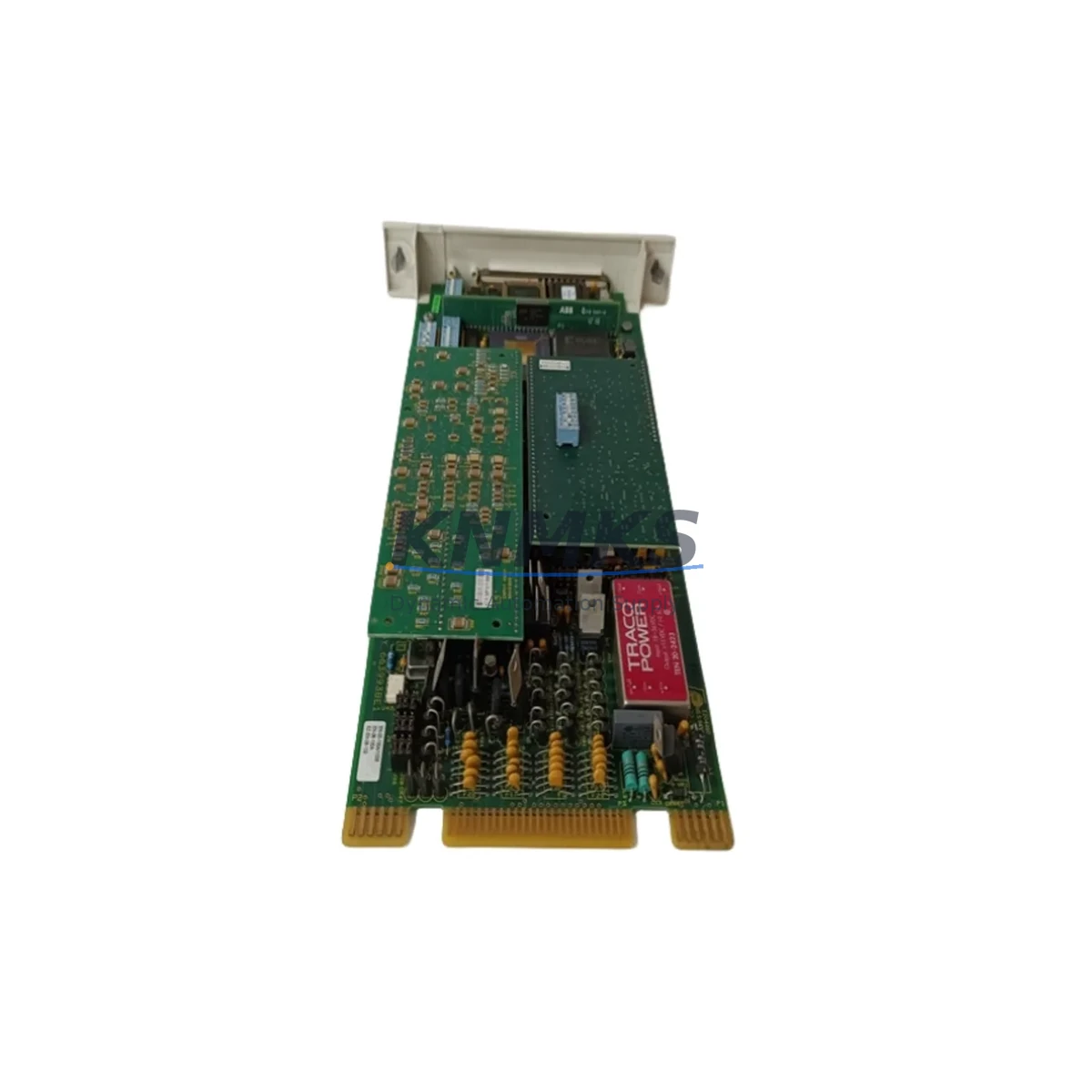

The ABB SPHSS03 is a precision hydraulic servo control module engineered within the ABB AC500 DCU (Drive Control Unit) platform, purpose-built for continuous production environments where control interruption is not an option. Designed and manufactured in Germany to ABB’s stringent safety standards, the SPHSS03 delivers deterministic closed-loop servo positioning for hydraulic actuators in high-demand industrial applications — from heavy-press metallurgy lines to critical valve-control loops in petrochemical processing.

In environments characterized by high electromagnetic interference, dust ingress, humidity fluctuations, and mechanical vibration, the SPHSS03 maintains signal integrity across its full operating range. Its onboard signal conditioning circuitry actively suppresses noise-induced drift, ensuring that position feedback from LVDT or analog sensors remains accurate even when adjacent variable-frequency drives, large contactors, or high-current bus bars generate significant EMI. This makes it a preferred choice for control cabinets installed near heavy motor starters, transformer bays, or arc furnace control rooms.

The module integrates directly with the ABB AC500 safety PLC ecosystem, enabling coordinated fail-safe shutdown sequences when paired with safety-rated I/O modules such as the ABB SM560-S safety CPU or TU582-S safety terminal units. In a typical hydraulic press or injection molding control cabinet, the SPHSS03 works in concert with ABB CM589-PNIO PROFINET communication modules to relay real-time servo status to the supervisory SCADA layer, ensuring that any deviation from the commanded position profile triggers an immediate controlled stop rather than an uncontrolled mechanical event.

Power supply stability is a critical prerequisite for reliable servo control. The SPHSS03 is designed to tolerate input voltage fluctuations and transient surges common in industrial substations, but for maximum protection, it is recommended to pair it with a ABB CP-E 24/5.0 or equivalent DIN-rail power supply with active surge suppression. In high-risk installations — such as offshore platforms or mining headframes — additional transient voltage suppression (TVS) devices upstream of the control cabinet 24 VDC bus further protect the module from lightning-induced surges and switching transients.

Communication reliability is equally important. In distributed control architectures, the SPHSS03 interfaces with the AC500 backplane bus, and its servo command data is transmitted over deterministic fieldbus protocols. When communication anomalies occur — such as CRC errors, timeout faults, or bus-off conditions — the module’s onboard watchdog logic initiates a safe hold or controlled retract of the hydraulic actuator, preventing uncontrolled motion that could damage tooling, injure personnel, or trigger a process safety event. This behavior aligns with IEC 61508 SIL 2 design principles for hydraulic servo control in safety-instrumented systems.

For facilities managing aging control infrastructure, the SPHSS03 serves as a validated migration-ready replacement for legacy hydraulic servo controllers from earlier ABB DCU generations. Its backward-compatible I/O pinout and parameter structure minimize re-engineering effort during planned shutdowns, reducing mean time to repair (MTTR) and enabling like-for-like spare parts substitution without full system reconfiguration. Complementary modules such as the ABB TB541-ETH Ethernet communication board and ABB DC532 digital I/O module are commonly stocked alongside the SPHSS03 to support complete cabinet-level refurbishment projects.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust hydraulic servo control cabinet built around the SPHSS03 requires a layered protection strategy that addresses power quality, signal integrity, communication continuity, and thermal management simultaneously. At the power layer, a high-quality 24 VDC DIN-rail supply — such as the ABB CP-E 24/5.0 — provides regulated, ripple-free power to the AC500 backplane, while upstream surge protection devices guard against transient overvoltages from capacitor bank switching or nearby lightning strikes. At the I/O layer, the ABB DC532 digital I/O module handles discrete interlock signals from limit switches, pressure switches, and emergency stop circuits, feeding validated status data to the SPHSS03’s control logic without introducing ground loops or common-mode noise.

For safety-critical hydraulic press or valve-actuator applications, the ABB SM560-S safety CPU coordinates the overall safety function, monitoring the SPHSS03’s servo output against defined safe-state parameters and commanding a controlled shutdown if position error exceeds the configured tolerance band. The ABB TU582-S safety terminal unit provides the physical I/O interface for safety-rated sensors and actuators, ensuring that the entire safety loop — from field sensor to servo valve — meets the required SIL integrity level. Communication to the plant DCS or SCADA system is handled by the ABB CM589-PNIO PROFINET module, which transmits servo diagnostics, fault codes, and position data in real time, enabling remote condition monitoring without requiring a technician to access the cabinet locally.

Thermal management within the control cabinet is often overlooked but is critical for long-term SPHSS03 reliability. In high-ambient-temperature environments — such as steel mill pulpit rooms or tropical offshore platforms — cabinet cooling units or forced-air fans must maintain internal temperatures below 55 °C. Periodic inspection of cabinet door seals, filter mats, and heat exchanger fins prevents dust accumulation that can restrict airflow and cause localized hotspots near the AC500 backplane, which directly affects the servo module’s long-term mean time between failures (MTBF).

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous catalytic cracking units and hydrocracker feed systems, the SPHSS03 controls hydraulic actuators on high-pressure control valves where precise positioning is essential to maintain process stability. A servo positioning error of even a few percent can cause pressure excursions that trigger safety instrumented system (SIS) shutdowns, resulting in costly production losses. The SPHSS03’s fail-safe hold behavior ensures that on any control system fault, the valve remains in its last commanded position rather than failing open or closed unpredictably.

Electric Power Generation: In steam turbine governor control systems and hydraulic pitch control for wind turbines, the SPHSS03 provides the deterministic servo response required to maintain rotor speed within tight frequency regulation bands. Its compatibility with the AC500 safety PLC platform allows integration into IEC 61511-compliant turbine protection systems, where the servo control loop must respond to overspeed or load-rejection events within defined reaction times.

Mining and Mineral Processing: In underground longwall mining systems and surface ore-processing plants, hydraulic servo control modules manage roof support advance cylinders, crusher gap actuators, and flotation cell dart valves. The SPHSS03’s high EMI immunity is particularly valuable in these environments, where large variable-speed drives for conveyor belts and ball mills generate significant conducted and radiated interference that can corrupt position feedback signals in lesser-specified modules.

Water and Wastewater Treatment: In large pumping stations and desalination plants, the SPHSS03 controls hydraulic actuators on large-bore butterfly valves and sluice gates, where precise flow control is critical to maintaining system pressure and preventing water hammer events. Its 24 VDC backplane power architecture simplifies integration into UPS-backed control panels, ensuring continued servo operation during mains power interruptions.

Metallurgy and Steel Production: In continuous casting machines and rolling mill hydraulic adjustment systems, the SPHSS03 delivers the sub-millimeter positioning accuracy required for roll gap control and strand guide adjustment. Its robust design tolerates the high vibration levels, thermal radiation, and airborne metallic dust characteristic of steelmaking environments, where lesser modules frequently suffer premature connector corrosion or PCB contamination failures.

Port and Marine Applications: In ship-loader hydraulic luffing systems and port crane slewing drives, the SPHSS03 provides reliable servo control in salt-air environments with high humidity and cyclic mechanical loading. Its integration with the ABB AC500 platform allows port operators to standardize their spare parts inventory across multiple crane and conveyor control systems, reducing the number of unique module types held in the maintenance store.

Safety and Quality FAQ

Q1: What support terms coverage does the SPHSS03 carry?
The SPHSS03 is supplied with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. The confirmed support period begins from the date of shipment. In the event of a support terms claim, we provide direct technical support and module replacement to minimize your site downtime.

Q2: What pre-shipment testing is performed on each SPHSS03 unit?
Every SPHSS03 unit undergoes a full functional verification test prior to dispatch. This includes power-on self-test validation, servo command response verification, I/O signal integrity checks, and communication interface confirmation. A test record is maintained for each unit, and results are available upon request for quality-assurance documentation purposes.

Q3: Is the SPHSS03 compatible with existing ABB AC500 DCU installations?
Yes. The SPHSS03 is designed for direct integration into the ABB AC500 DCU platform and is backward-compatible with existing AC500 backplane configurations. It can be installed as a like-for-like replacement for earlier ABB hydraulic servo control modules without requiring changes to the PLC program structure or I/O mapping, provided the firmware version of the AC500 CPU meets the minimum requirement specified in the ABB hardware compatibility matrix.

Q4: Can long-term spare parts supply be guaranteed for the SPHSS03?
We maintain dedicated stock of the SPHSS03 and complementary AC500 DCU modules to support long-term spare parts strategies for facilities with 5–10 year maintenance horizons. For sites managing aging ABB AC500 installations, we recommend establishing a consignment stock agreement or scheduled replenishment plan to ensure module availability aligns with your planned maintenance shutdown calendar. Contact our technical sales team to discuss multi-unit procurement and long-term supply arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
