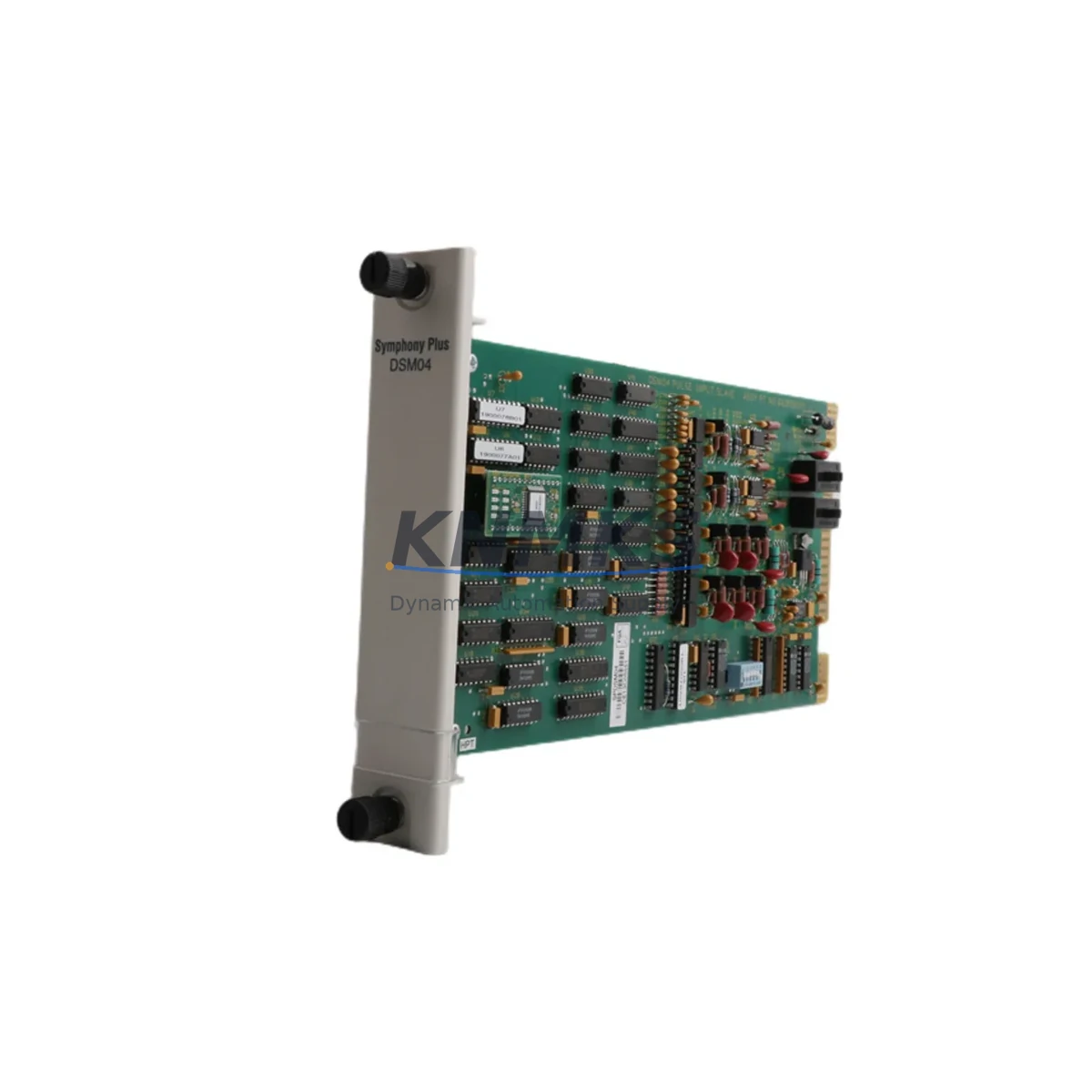

ABB SPDSM04 Fail-Safe Pulse Frequency Module

Overview

ABB SPDSM04 Fail-Safe Pulse Frequency Module: Fault-Protected Reliability for Critical Industrial Control

The ABB SPDSM04 is a high-performance 4-channel pulse and frequency input module designed for the ABB AC500 PLC platform, engineered to deliver fail-safe signal acquisition in the most demanding industrial environments. With a measurement bandwidth of up to 100 kHz per channel, the SPDSM04 provides precise, real-time monitoring of rotational speed, flow rate, position encoding, and frequency-based process variables — all while maintaining signal integrity under conditions of high electromagnetic interference, mechanical vibration, thermal stress, and airborne contamination.

In continuous production facilities, control interruptions caused by signal drift, input module failure, or communication anomalies can trigger cascading shutdowns, equipment damage, and costly unplanned downtime. The SPDSM04 addresses these risks through robust hardware design, wide operating temperature tolerance, and seamless integration with the AC500 safety architecture — making it a trusted component in critical interlock loops, drive feedback systems, and protective relay circuits across petrochemical, power generation, mining, water treatment, metallurgical, and port logistics applications.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable pulse and frequency measurement begins with a well-engineered control cabinet ecosystem. The SPDSM04 is designed to operate as part of a coordinated protection architecture rather than as a standalone component. In high-EMI environments — such as those found near variable frequency drives, large motor starters, or high-current bus bars — the module’s onboard EMC filtering works in conjunction with proper cabinet grounding, shielded cable routing, and surge suppression devices to maintain signal fidelity across all four input channels.

For power supply integrity, the SPDSM04 relies on a stable 24 VDC rail. Pairing it with an ABB CP-E 24/5.0 or CP-S 24/10.0 power supply module ensures that voltage fluctuations, inrush events, and transient surges from adjacent loads do not propagate into the measurement circuitry. In cabinets housing multiple AC500 I/O modules — such as the ABB DC532 digital input module for discrete safety interlocks or the ABB AX522 analog input module for 4–20 mA process signals — the SPDSM04 shares the backplane bus, making backplane power distribution and thermal management critical design considerations.

Where communication reliability is paramount, the SPDSM04 integrates with AC500 CPU modules such as the ABB PM564-ETH, which supports PROFINET, Modbus TCP, and EtherNet/IP protocols. This allows real-time frequency data to be transmitted to SCADA systems, DCS platforms, or safety PLCs without communication latency or packet loss — even under heavy network load. For installations requiring functional safety compliance, the SPDSM04 can be deployed alongside ABB SM560-S safety CPU modules to form a certified safety loop meeting IEC 62061 or EN ISO 13849 requirements. Additionally, ABB TU515 or TU516 terminal units provide field-wiring termination that simplifies module replacement without disturbing field cables — a critical feature for hot-swap maintenance in continuous-process plants.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hydrocarbon processing facilities, the SPDSM04 monitors pump shaft speed, compressor rotation, and turbine frequency to detect overspeed conditions before they escalate to mechanical failure or process release events. Its high-frequency resolution enables early detection of bearing wear through vibration signature analysis, supporting predictive maintenance programs that reduce unplanned shutdowns.

Power Generation & Substation Control: Generator synchronization, turbine governor feedback, and cooling fan speed monitoring all depend on accurate, low-latency frequency measurement. The SPDSM04’s 100 kHz bandwidth and noise-immune input design make it suitable for deployment in high-voltage switchgear rooms and generator control panels where electromagnetic interference from bus bars and transformers is severe.

Mining & Mineral Processing: Conveyor belt speed monitoring, crusher rotation feedback, and slurry pump flow measurement in dusty, vibration-intensive mining environments demand modules that maintain calibration accuracy without frequent recalibration. The SPDSM04’s wide temperature range and vibration-rated construction ensure stable operation in underground and open-pit installations.

Water & Wastewater Treatment: Flow meter pulse counting, dosing pump stroke monitoring, and aeration blower speed control in water treatment plants require modules that operate reliably in humid, chemically aggressive environments. The SPDSM04’s sealed cabinet compatibility and corrosion-resistant design support long-term deployment in these conditions.

Metallurgy & Steel Production: Rolling mill speed synchronization, ladle crane positioning, and furnace exhaust fan control in steel plants involve high thermal loads and intense electromagnetic fields. The SPDSM04’s thermal tolerance and EMC robustness allow it to maintain measurement accuracy in these extreme conditions without signal drift or module lockup.

Port Logistics & Marine Applications: Crane hoist speed control, ship loading conveyor synchronization, and ballast pump monitoring in port and marine environments expose control hardware to salt air, humidity, and mechanical shock. The SPDSM04’s industrial-grade construction and DIN rail mounting provide the mechanical stability and environmental resilience required for reliable operation in these settings.

Safety and Quality FAQ

Q1: What support terms coverage does the SPDSM04 carry?
Every SPDSM04 unit shipped by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and firmware-related issues. Support requests are processed with priority turnaround to minimize your site downtime.

Q2: What pre-shipment testing is performed on each unit?
All SPDSM04 modules undergo functional verification testing prior to dispatch, including channel-by-channel frequency response checks, power-on self-test validation, and visual inspection for physical integrity. Units are shipped in anti-static packaging with individual test records available upon request.

Q3: Is the SPDSM04 compatible with my existing AC500 system?
The SPDSM04 is fully compatible with the ABB AC500 PLC platform, including PM5xx and PM5xx-ETH series CPU modules. It mounts on standard AC500 backplanes and terminal units (TU515/TU516) without hardware modification. For specific firmware version compatibility or mixed-generation system integration, our technical team can provide configuration guidance before shipment.

Q4: Can KNMKS support long-term supply and emergency replacement needs?
Yes. KNMKS maintains stock of the SPDSM04 and related AC500 I/O modules to support both planned maintenance schedules and emergency replacement requirements. We offer expedited shipping for critical site situations and can provide multi-unit supply agreements for customers managing large installed bases of AC500 systems.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SPDSM04
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB SPDSM04
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
