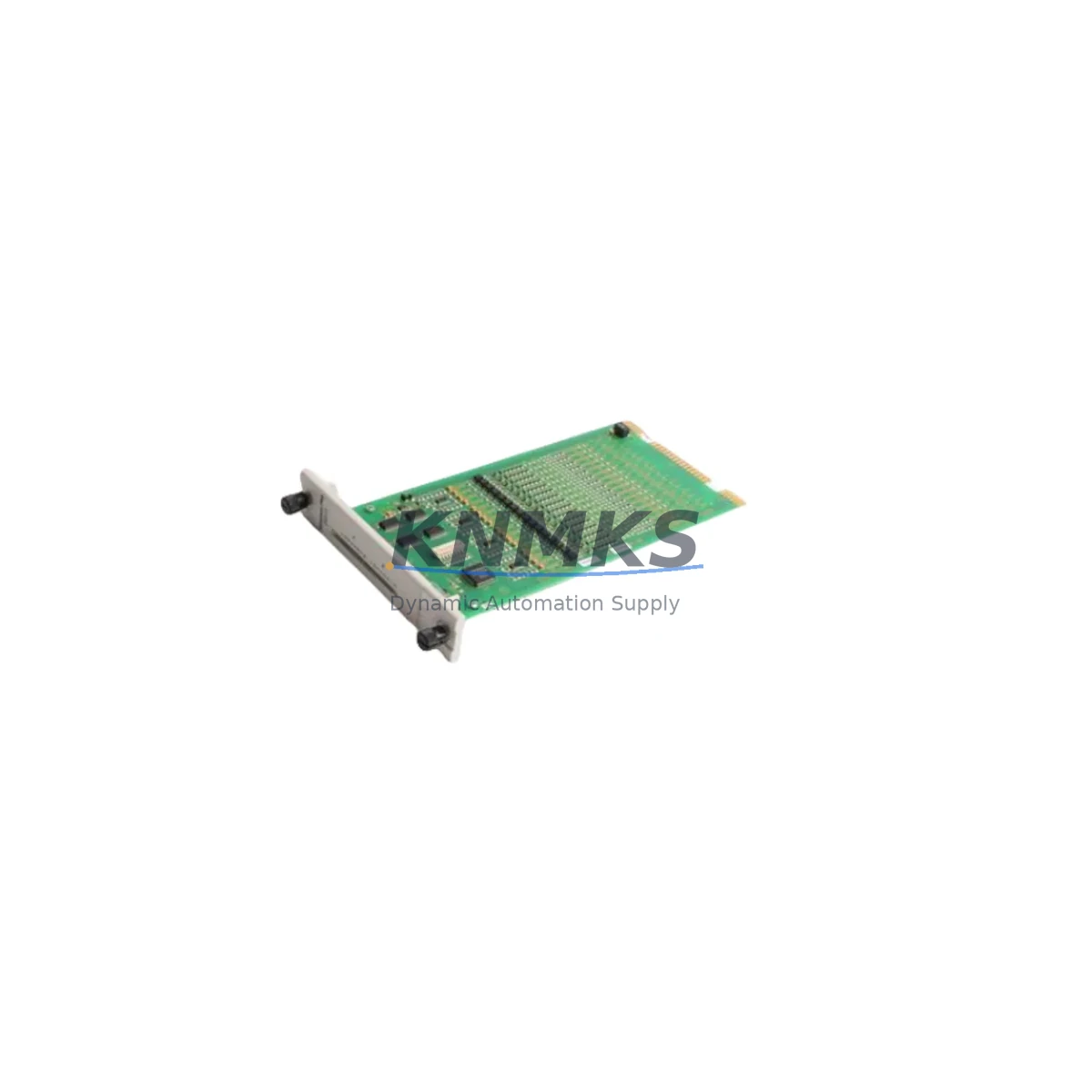

ABB SPDSI22 Fail-Safe Digital Input for Industrial Control

Overview

ABB SPDSI22 Fail-Safe Digital Input for Industrial Control Reliability

In continuous production environments where a single undetected input fault can cascade into a full-line shutdown, the ABB SPDSI22 delivers the fail-safe digital input architecture that modern safety-critical control systems demand. Designed as a core component of the ABB AC500-S Safety PLC platform, the SPDSI22 provides 22 channels of 24 VDC digital input with integrated diagnostic coverage, making it the preferred choice for engineers specifying safety instrumented systems (SIS) across petrochemical, power generation, mining, water treatment, metallurgy, port logistics, and continuous manufacturing facilities.

Unlike standard digital input modules that rely on the controller to detect faults, the SPDSI22 performs on-module self-diagnostics at every scan cycle. Short-circuit detection, wire-break monitoring, and cross-fault identification are executed locally, ensuring that any abnormal input condition is flagged before it can propagate into a false interlock trip or — more critically — a missed safety event. This architecture directly reduces the risk of control loop interruption, spurious actuator operation, and unplanned downtime in high-availability processes.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust safety control cabinet is never built around a single module — it is an integrated system where every component contributes to overall fault tolerance. The SPDSI22 is most effective when deployed alongside complementary ABB AC500-S components that collectively eliminate single points of failure across the power, logic, output, and communication layers.

On the power supply side, the ABB CP-E 24/10.0 or CP-S 24/5.0 SMPS units provide regulated, filtered 24 VDC with active output current limiting — preventing voltage sag events that could cause the SPDSI22’s input thresholds to drift and generate false LOW readings during heavy load switching. Pairing the SPDSI22 with the ABB SPDSO14 fail-safe digital output module on the same AC500-S rack creates a complete safety I/O layer: inputs are read with diagnostic coverage, and outputs are switched with dual-channel, cross-monitored actuation — a configuration widely used in emergency shutdown (ESD) and burner management systems (BMS).

For applications requiring analog process variable monitoring alongside discrete safety interlocks, the ABB SPASI81 safety analog input module can be integrated on the same backplane, allowing the AC500-S CPU to correlate 4–20 mA transmitter signals with the SPDSI22’s digital interlock states in a single safety program. In high-EMI environments — common in arc furnace control rooms, variable-frequency drive (VFD) cabinets, and heavy motor control centers — the SPDSI22’s built-in transient suppression works in concert with external ABB OVR surge protection devices installed at the cabinet entry point, providing a two-stage defense against conducted and radiated interference that could otherwise corrupt input signal integrity.

Communication redundancy is equally critical. When the AC500-S CPU is configured with ABB CM579-PNIO PROFINET or CM577-ETH Ethernet communication modules, the SPDSI22’s diagnostic data — including per-channel fault codes — is transmitted to the SCADA or DCS layer in real time, enabling predictive maintenance teams to identify degrading field wiring before a nuisance trip occurs. This closed-loop visibility is a key differentiator in facilities operating under IEC 61511 functional safety management requirements.

Critical Industrial Safety Applications

The SPDSI22 has established a strong operational record across the most demanding industrial safety applications globally.

In petrochemical and refinery environments, it serves as the primary discrete input interface for emergency shutdown systems, reading signals from flame detectors, gas detectors, pressure switches, and manual call points. Its SIL 3 diagnostic architecture satisfies the requirements of IEC 61511 safety lifecycle management without requiring external voting logic hardware.

In power generation and substation control, the SPDSI22 monitors breaker position feedback, protection relay trip signals, and transformer Buchholz relay contacts. Its high EMI immunity — validated to IEC 61000-4-3 at 10 V/m — ensures signal integrity in environments saturated with high-frequency switching transients from power electronics.

In underground mining and tunneling operations, where dust ingress, humidity cycling, and mechanical vibration are constant stressors, the SPDSI22’s wide operating temperature range and vibration-rated design allow it to function reliably in surface control rooms and portal substations without derating.

In water and wastewater treatment plants, it interfaces with level switches, pump seal failure contacts, and chlorine dosing interlock circuits — applications where a missed input signal can result in regulatory non-compliance or environmental release. The module’s wire-break detection ensures that an open-circuit field device is immediately flagged rather than silently defaulting to a safe state assumption.

In port and marine terminal automation, the SPDSI22 is deployed in crane anti-collision systems, mooring winch overload interlocks, and fire and gas detection panels aboard vessels and at berth-side control stations, where salt-laden air and vibration from heavy machinery demand components with proven environmental robustness.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the SPDSI22?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified digital input and diagnostic functions within the confirmed support period, KNMKS will arrange replacement or repair. Support requests are processed with priority to minimize control system downtime. Contact [email protected] to initiate a support terms case.

Q2: What pre-shipment testing is performed on each SPDSI22 unit?
Every SPDSI22 unit undergoes a full functional verification test before dispatch. This includes channel-by-channel input response testing, diagnostic output verification (short-circuit and wire-break simulation), and power consumption measurement. Units that do not meet ABB’s published specifications are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is the SPDSI22 compatible with all AC500-S CPU variants?
The SPDSI22 is designed for the ABB AC500-S Safety PLC platform and is compatible with AC500-S CPU modules including the PM573-ETH, PM591, PM592, and PM595. It connects via the AC500 internal I/O bus and is configured through ABB’s Automation Builder engineering software. For retrofit projects involving older AC500 (non-Safety) CPUs, compatibility must be verified against the specific firmware version — KNMKS technical support can assist with compatibility assessment at no charge.

Q4: Can KNMKS support long-term spare parts supply for the SPDSI22?
Yes. KNMKS maintains stock of the SPDSI22 and related AC500-S I/O modules to support long-term maintenance agreements of 12 to 36 months. For facilities operating continuous processes where unplanned procurement delays are unacceptable, KNMKS offers reserved inventory arrangements with agreed lead times. Contact [email protected] or call +86 18359268345 to discuss a supply agreement tailored to your maintenance schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SPDSI22
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB SPDSI22
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
