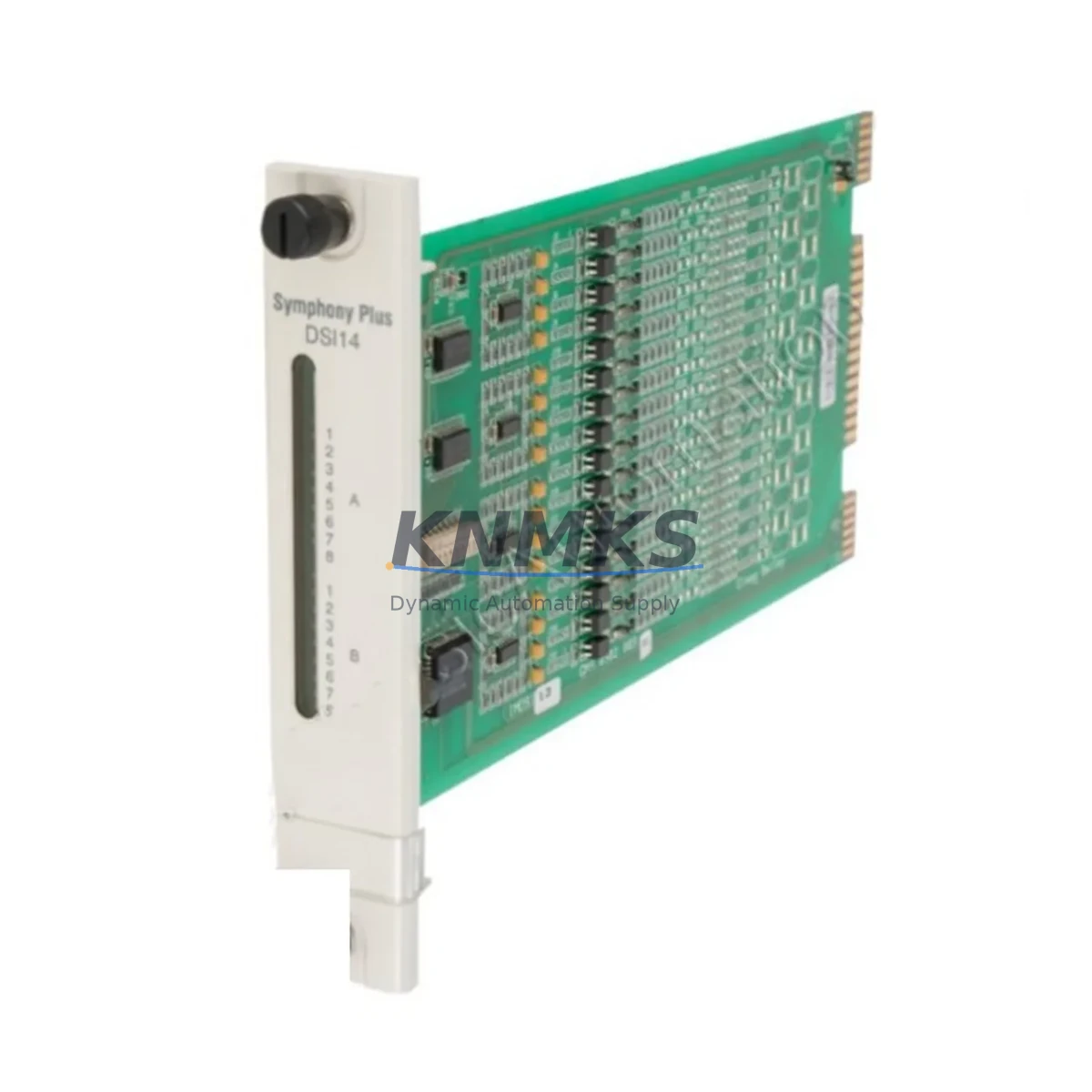

ABB SPDSI14 Fail-Safe Digital Input for Industrial Control

Overview

ABB SPDSI14 Fail-Safe Digital Input for Industrial Control Reliability

The ABB SPDSI14 is a 14-channel safety-grade digital input module engineered for the AC500-S Safety PLC platform. Designed to meet the demands of continuous production environments, critical safety interlocks, and high-consequence control loops, the SPDSI14 delivers deterministic signal acquisition with built-in fail-safe diagnostics. Whether deployed in a high-EMI switchgear room, a dust-laden mining headframe, a humid coastal water treatment plant, or a high-vibration compressor station, this module maintains signal integrity and control loop continuity where conventional I/O would fail.

In safety-instrumented systems (SIS) and safety-related control architectures, digital input reliability is non-negotiable. The SPDSI14 supports SIL 2 / SIL 3 capable configurations when paired with the AC500-S CPU, enabling engineers to implement IEC 61508 and IEC 62061 compliant safety functions — including emergency stop monitoring, valve position feedback, pressure switch interlocks, and motor protection relay status acquisition — without compromising scan cycle performance or diagnostic coverage.

Signal drift, contact bounce, and wiring faults are leading causes of spurious trips and unplanned shutdowns in process industries. The SPDSI14 addresses these failure modes through hardware-level input filtering, short-circuit detection, and wire-break diagnostics on each channel. These self-monitoring capabilities allow the safety controller to distinguish between a genuine process event and a field wiring fault, dramatically reducing nuisance trips in petrochemical reactors, power generation auxiliaries, and metallurgical furnace control systems.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust safety control cabinet built around the SPDSI14 requires a coordinated architecture of complementary components. The ABB AC500-S Safety CPU (PM573-ETH) serves as the central safety controller, executing the safety program and managing fail-safe I/O communication over the internal backplane bus. Alongside the SPDSI14 digital input module, a SPDSO14 Safety Digital Output Module handles actuator commands — solenoid valves, motor contactors, and safety relays — completing the safety loop from sensor to actuator.

Power supply stability is critical in safety-rated cabinets. An ABB CP-E 24/5.0 or CP-S 24/5.0 SMPS provides regulated 24 V DC with active power factor correction and output buffering, protecting the AC500-S backplane from voltage sags caused by large motor starts or utility switching events. For surge and transient protection at the cabinet entry point, Phoenix Contact TRABTECH or ABB OVR surge protective devices are commonly integrated to clamp lightning-induced and switching transients before they reach sensitive I/O terminals.

In high-EMI environments such as variable frequency drive (VFD) rooms or arc furnace control buildings, shielded I/O cables terminated with Weidmüller or Phoenix Contact EMC cable glands and ferrite core suppressors are recommended at the SPDSI14 terminal block to prevent common-mode noise from corrupting digital input states. Cabinet thermal management — using Rittal TopTherm fan-and-filter units or heat exchangers — ensures the module operates within its rated temperature envelope even in high-ambient enclosures, preventing thermally induced diagnostic faults that could trigger unnecessary safety shutdowns.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: The SPDSI14 is deployed in emergency shutdown (ESD) systems monitoring high-pressure vessel level switches, flame detector relay outputs, and gas detection alarm contacts. Its per-channel wire-break diagnostics ensure that a broken field cable is immediately flagged rather than silently misread as a safe state — a critical distinction in SIL 2 ESD loops protecting against hydrocarbon release.

Electric Power Generation and Transmission: In turbine protection panels and generator excitation control cabinets, the SPDSI14 acquires status signals from vibration trip relays, bearing temperature switches, and differential protection relay auxiliary contacts. The module’s deterministic response time supports fast-acting protection functions where milliseconds determine whether a fault is contained or escalates to equipment damage.

Mining and Mineral Processing: Conveyor belt safety systems, hoist overwind protection, and crusher jam detection circuits in underground and open-cut mines rely on fail-safe digital inputs to monitor pull-wire switches, zero-speed sensors, and belt alignment switches. The SPDSI14’s wide operating temperature range and vibration tolerance make it suitable for surface-mounted junction boxes and underground substation environments.

Water and Wastewater Treatment: Pump station motor protection relay contacts, valve position limit switches, and chlorine gas detector alarm outputs are acquired through the SPDSI14 in water utility SCADA and safety systems. The module’s humidity tolerance and corrosion-resistant terminal design support reliable operation in wet, chemically aggressive plant rooms.

Metallurgy and Steel Production: In continuous casting lines, rolling mill drive control, and ladle transfer car safety systems, the SPDSI14 monitors position sensors, hydraulic pressure switches, and safety mat relay outputs. Its ability to detect cross-faults between adjacent channels prevents dangerous actuator commands resulting from wiring insulation breakdown in high-temperature cable trays.

Port, Marine, and Offshore: Crane anti-collision systems, mooring winch overload protection, and offshore platform emergency shutdown panels use the SPDSI14 to acquire safety-critical digital signals in salt-air, high-vibration environments where signal integrity and module longevity are paramount.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the SPDSI14?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional non-conformances under normal operating conditions. If the module fails to perform its specified safety input functions within the confirmed support period, we provide replacement or repair at no charge. Support requests are processed with priority to minimize control system downtime.

Q2: What pre-shipment testing is performed on each SPDSI14 unit?
Every SPDSI14 unit undergoes functional verification prior to dispatch, including channel-by-channel input response testing, diagnostic self-test confirmation, and visual inspection for physical integrity. Units sourced from authorized distribution channels are supplied with original ABB packaging and traceable batch documentation.

Q3: Is the SPDSI14 compatible with existing AC500 (non-safety) PLC installations?
The SPDSI14 is specifically designed for the AC500-S Safety PLC backplane and requires an AC500-S safety CPU for full safety-rated operation. It is not interchangeable with standard AC500 I/O modules. For mixed safety and standard I/O architectures, ABB’s AC500-S platform supports integration of both safety and non-safety modules within a coordinated control cabinet design.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
Yes. We maintain standing inventory of the SPDSI14 and key AC500-S series components to support planned maintenance schedules, emergency replacements, and multi-year spare parts programs. For critical infrastructure operators requiring guaranteed availability, we recommend establishing a framework supply agreement to ensure priority allocation and consistent lead times.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SPDSI14
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB SPDSI14
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
