ABB SPAM150C RS641006 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB SPAM150C RS641006 Maintenance-Proven Spare Part for Factory Uptime

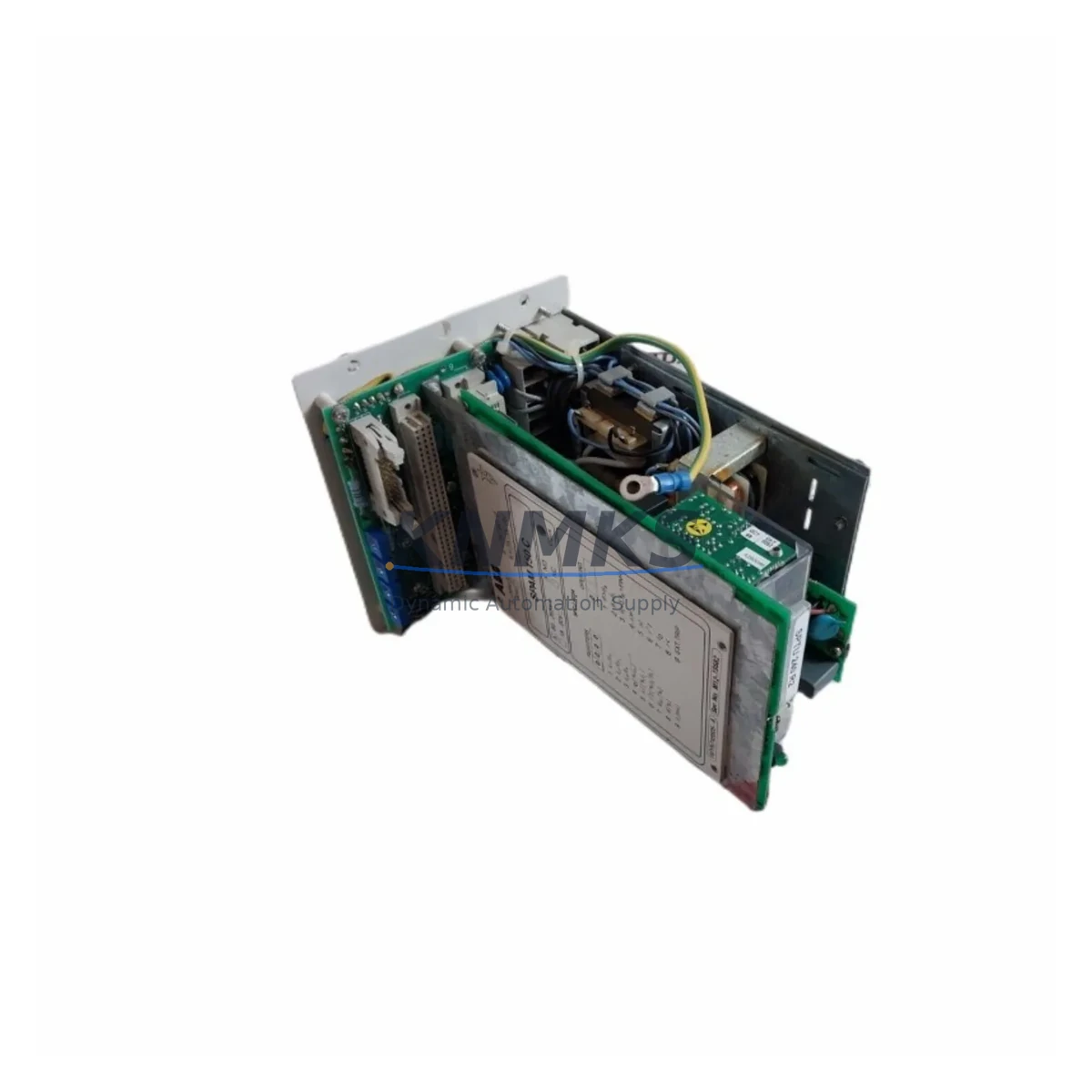

The ABB SPAM150C RS641006 is a motor protection relay from ABB’s SPAM Series, engineered for continuous industrial operation in demanding environments. Designed for integration into motor control centers, switchgear panels, and protection circuits, this relay provides overcurrent, earth fault, and thermal overload protection for medium-voltage and low-voltage motor applications. For maintenance engineers managing aging control systems, securing a verified spare of the SPAM150C RS641006 is a critical step in reducing unplanned downtime and sustaining production continuity.

This unit is sourced as an original ABB spare, pre-shipment tested, and backed by a support terms confirmed by quotation. It is suitable for direct replacement in existing SPAM Series protection schemes without requiring panel redesign or firmware reconfiguration in most standard installations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the ABB SPAM150C RS641006 in a live motor protection circuit, a thorough inspection of the surrounding electrical environment is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should treat this replacement as an opportunity to audit the full protection loop.

Begin with the auxiliary power supply feeding the relay — verify that the 24 VDC or 110/220 VAC supply rail is within tolerance and free of ripple or transient spikes that could affect relay pickup accuracy. Check the current transformer (CT) secondary wiring connected to the SPAM150C’s input terminals; degraded CT insulation or loose terminations are a common root cause of nuisance trips and relay damage in SPAM Series installations.

Inspect the terminal blocks and wiring harness in the motor protection panel. Loose or corroded terminals on the trip output circuit can cause delayed or failed trip commands, defeating the purpose of the protection relay. If the panel includes an ABB REF615 or REM615 feeder protection relay in the same protection zone, verify that the interlock and trip matrix settings remain consistent after the SPAM150C swap.

For sites running ABB’s MNS or UniGear switchgear, confirm that the relay’s output contacts are correctly mapped to the motor circuit breaker’s shunt trip coil. A mismatch here can result in a protection relay that operates correctly in isolation but fails to trip the breaker under fault conditions.

Review the signal isolation and analog input modules if the SPAM150C feeds status signals into a DCS or SCADA system. Degraded signal isolators can introduce ground loops or signal offset errors that affect alarm and trip logging. Also inspect any surge protection devices (SPDs) on the relay’s I/O terminals — these are frequently overlooked during routine maintenance and can fail silently after a nearby lightning strike or switching transient.

Finally, check the panel fuses and miniature circuit breakers (MCBs) protecting the relay’s auxiliary supply. A blown fuse on the auxiliary circuit is a common cause of relay de-energization that is misdiagnosed as relay failure. Keeping a stock of the correct fuse ratings alongside the SPAM150C RS641006 spare is a practical inventory strategy for rapid fault clearance.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Isolate the motor circuit and apply LOTO (Lockout/Tagout) to the motor circuit breaker and the relay auxiliary supply. Confirm zero energy state with a calibrated voltage tester before opening the panel.

Step 2 — Documentation: Photograph the existing SPAM150C RS641006 wiring, terminal assignments, and setting dial positions before removal. Record the current protection settings (pickup current, time delay, earth fault threshold) from the relay’s front panel or commissioning records.

Step 3 — Removal: Disconnect CT secondary leads, auxiliary supply, and trip output wiring in sequence. Remove the relay from its mounting rail or panel cutout. Inspect the vacated space for signs of overheating, moisture ingress, or insulation damage.

Step 4 — Installation: Mount the replacement SPAM150C RS641006. Reconnect wiring in reverse order of removal, referencing the documentation from Step 2. Torque all terminal screws to the manufacturer’s specified values to prevent loose connections under vibration.

Step 5 — Settings Restoration: Restore protection settings to the documented values. If the original settings are unavailable, apply the motor nameplate data (FLA, service factor) to calculate appropriate overcurrent and thermal overload thresholds per ABB SPAM Series application guidelines.

Step 6 — Commissioning Test: Apply auxiliary power and verify relay self-test completion. Perform a secondary injection test on the CT inputs if test equipment is available. Confirm trip output continuity to the circuit breaker shunt trip coil before re-energizing the motor circuit.

Step 7 — Return to Service: Remove LOTO, re-energize the circuit, and monitor the relay’s status indicators during the first motor start cycle. Log the replacement in the site maintenance management system (CMMS) with the new unit’s serial number and support terms start date.

Spare Parts Support FAQ

Q1: Is the SPAM150C RS641006 a direct drop-in replacement for other SPAM150C variants?
In most cases, yes. The SPAM150C RS641006 shares the same mechanical form factor and terminal layout as other SPAM150C variants within the ABB SPAM Series. However, always verify the relay’s rated auxiliary voltage and CT input range against your panel’s specifications before installation. Minor variant differences in setting ranges or output contact configurations may exist — consult the ABB SPAM150C datasheet or contact our technical team for confirmation.

Q2: What pre-shipment testing is performed on this unit?
Each SPAM150C RS641006 unit undergoes functional testing and insulation resistance verification before dispatch. Testing confirms relay pickup, trip output operation, and auxiliary supply integrity. A test report is available upon request. Units are packaged in anti-static, shock-protected packaging to prevent transit damage.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events beyond the relay’s rated limits, or physical damage in transit after delivery. Support requests are processed with return authorization — contact admin@knmks.com to initiate a claim.

Q4: Can you support long-term or repeat supply of the SPAM150C RS641006 for multi-site maintenance programs?
Yes. We maintain sourcing relationships for ABB SPAM Series relays and can support blanket purchase orders, scheduled deliveries, and multi-site spare parts programs. For maintenance teams managing fleets of motor protection panels across multiple facilities, we recommend establishing a minimum stock level agreement to ensure availability during peak maintenance seasons or emergency outages. Contact us to discuss volume pricing and lead time commitments.
