ABB SNAZ-812 F Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB SNAZ-812 F Maintenance-Proven Spare Part for Factory Uptime

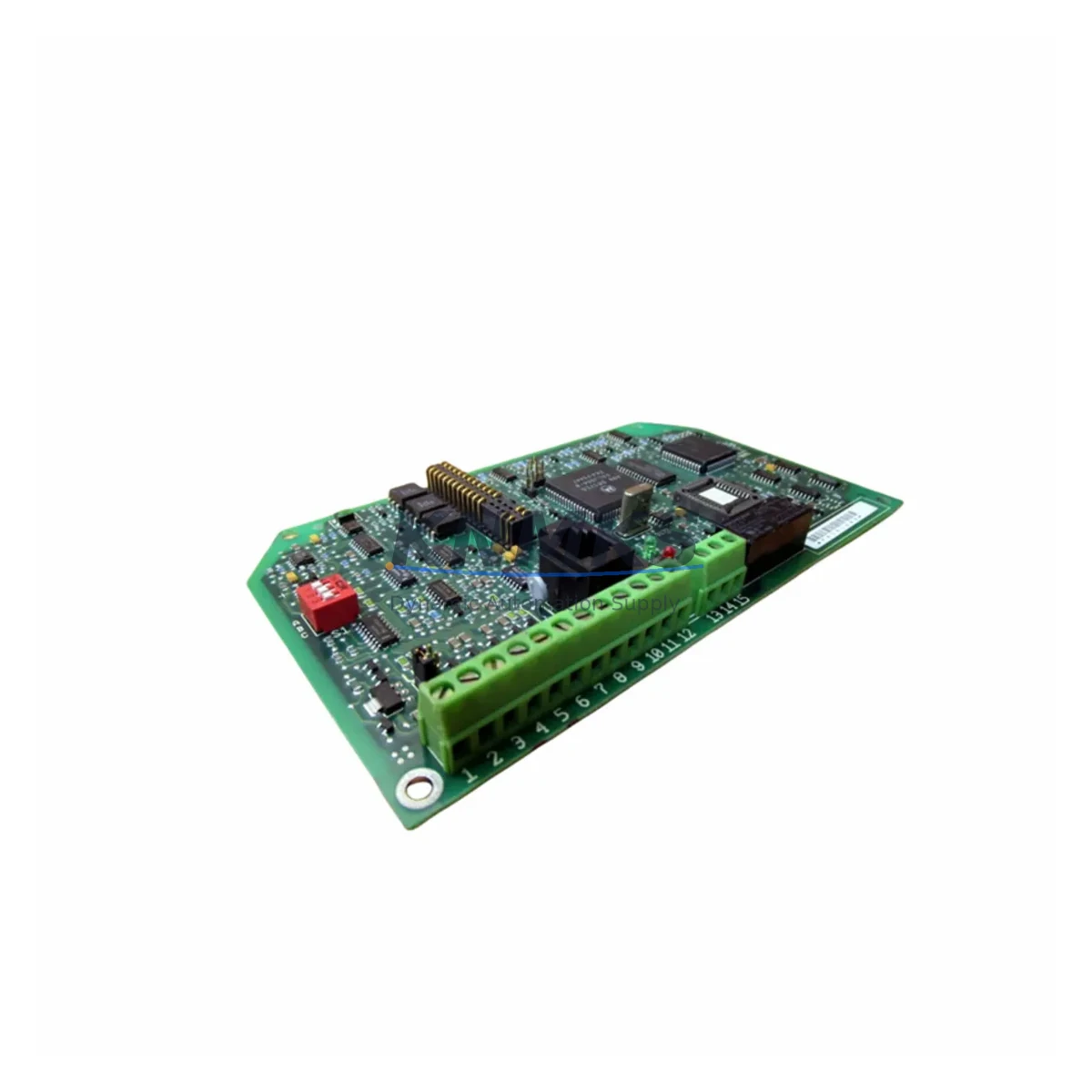

The ABB SNAZ-812 F is an original drive control board engineered for ABB ACS series variable frequency drives, widely deployed across energy, manufacturing, petrochemical, and infrastructure automation systems. As a maintenance-proven spare part, the SNAZ-812 F supports rapid fault recovery, planned annual overhauls, and long-term system life extension for aging ACS drive platforms. Each unit is sourced from verified supply channels, functionally tested prior to shipment, and backed by a support terms confirmed by quotation — giving maintenance engineers and procurement teams the confidence to stock and deploy with minimal risk.

Whether you are responding to an unplanned drive trip, executing a scheduled control cabinet inspection, or building a strategic spare parts inventory for a critical production line, the SNAZ-812 F delivers the compatibility, reliability, and traceability required for industrial-grade replacement operations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a drive control board such as the SNAZ-812 F fails or is flagged during a routine control cabinet inspection, the fault rarely exists in isolation. Experienced maintenance engineers know that a board-level failure in an ACS drive is often accompanied by stress on adjacent components. Before returning the drive to service, it is essential to inspect the 24 VDC auxiliary power supply feeding the control board — voltage ripple or transient spikes are a common root cause of control board degradation. Verify that the RDCO-02 or RDCO-03 communication option module (if installed) is seated correctly and that its fiber optic connections are clean and undamaged.

The I/O terminal block wiring should be checked for loose connections, corrosion, or insulation breakdown, particularly on analog input channels used for speed reference and process feedback. If the drive is part of a fieldbus-controlled system, inspect the FPBA-01 PROFIBUS adapter or equivalent communication module for firmware compatibility with the replacement control board. In drives where a RAIO-01 analog I/O extension module is fitted, confirm that the module’s configuration is preserved and that parameter settings are reloaded after board replacement.

For drives operating in high-ambient or dusty environments, this is also the right moment to clean the cooling fan assembly and verify that the DC bus capacitor bank shows no signs of bulging or electrolyte leakage. Replacing the SNAZ-812 F without addressing a degraded capacitor bank risks a repeat failure within months. Additionally, check the input fuse or circuit breaker upstream of the drive — a nuisance trip that caused the original board fault may have left the protective device in a weakened state. Where surge protection devices (SPDs) or EMC filters are installed on the drive input, verify their condition as part of the same maintenance window.

For sites running legacy ACS platforms beyond their standard product lifecycle, stocking the SNAZ-812 F alongside compatible AINT-02 or AINT-14 inverter control boards and a set of SNAT-series gate driver boards provides a comprehensive spare parts buffer that can sustain system uptime through multiple maintenance cycles without waiting on lead times.

Site Replacement Workflow

Step 1 — Isolation and Lockout: De-energize the ACS drive and apply LOTO (Lockout/Tagout) procedure. Allow a minimum of 5 minutes for DC bus capacitors to discharge before opening the drive enclosure.

Step 2 — Documentation: Photograph the existing wiring, connector positions, and parameter backup. Use the ABB Drive Composer or ACS control panel to export the full parameter set before removing the faulty board.

Step 3 — Board Removal: Disconnect all ribbon cables, option module connectors, and I/O terminal blocks from the SNAZ-812 F. Note the board revision label and firmware sticker for cross-reference with the replacement unit.

Step 4 — Compatibility Confirmation: Verify that the replacement SNAZ-812 F hardware revision matches the drive’s existing configuration. Confirm firmware compatibility — if a firmware update is required, prepare the update tool before installation.

Step 5 — Installation and Parameter Restore: Install the replacement board, reconnect all cables and modules, and restore the parameter backup. Perform a no-load test run before reconnecting the motor load.

Step 6 — Commissioning Check: Confirm drive status via the control panel or fieldbus diagnostic tool. Verify analog and digital I/O signals, communication link status, and fault history clearance before returning the drive to production.

This workflow minimizes downtime to a single maintenance shift and eliminates the risk of parameter loss or wiring errors that can cause secondary faults after board replacement.

Spare Parts Support FAQ

Q1: Is the SNAZ-812 F compatible with all ABB ACS series drives?
The SNAZ-812 F is designed for specific hardware revisions within the ABB ACS drive family. Compatibility depends on the drive’s hardware revision and firmware version. Always cross-reference the drive nameplate and existing board revision label before ordering. Our technical team can assist with compatibility verification prior to purchase.

Q2: How is each unit tested before shipment?
Every SNAZ-812 F unit undergoes functional testing on a compatible drive test bench before dispatch. Test results are logged and available upon request. Units that do not pass functional verification are not shipped. This process ensures that the board you receive is ready for immediate installation.

Q3: What is the support terms coverage and what does it include?
All SNAZ-812 F units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Support requests are processed with priority to minimize your downtime.

Q4: Can you support long-term or blanket purchase orders for ongoing maintenance programs?
Yes. For maintenance teams managing multiple ACS drives across a facility or fleet, we support long-term supply agreements, scheduled delivery programs, and reserved stock arrangements. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stock options tailored to your annual maintenance plan.
