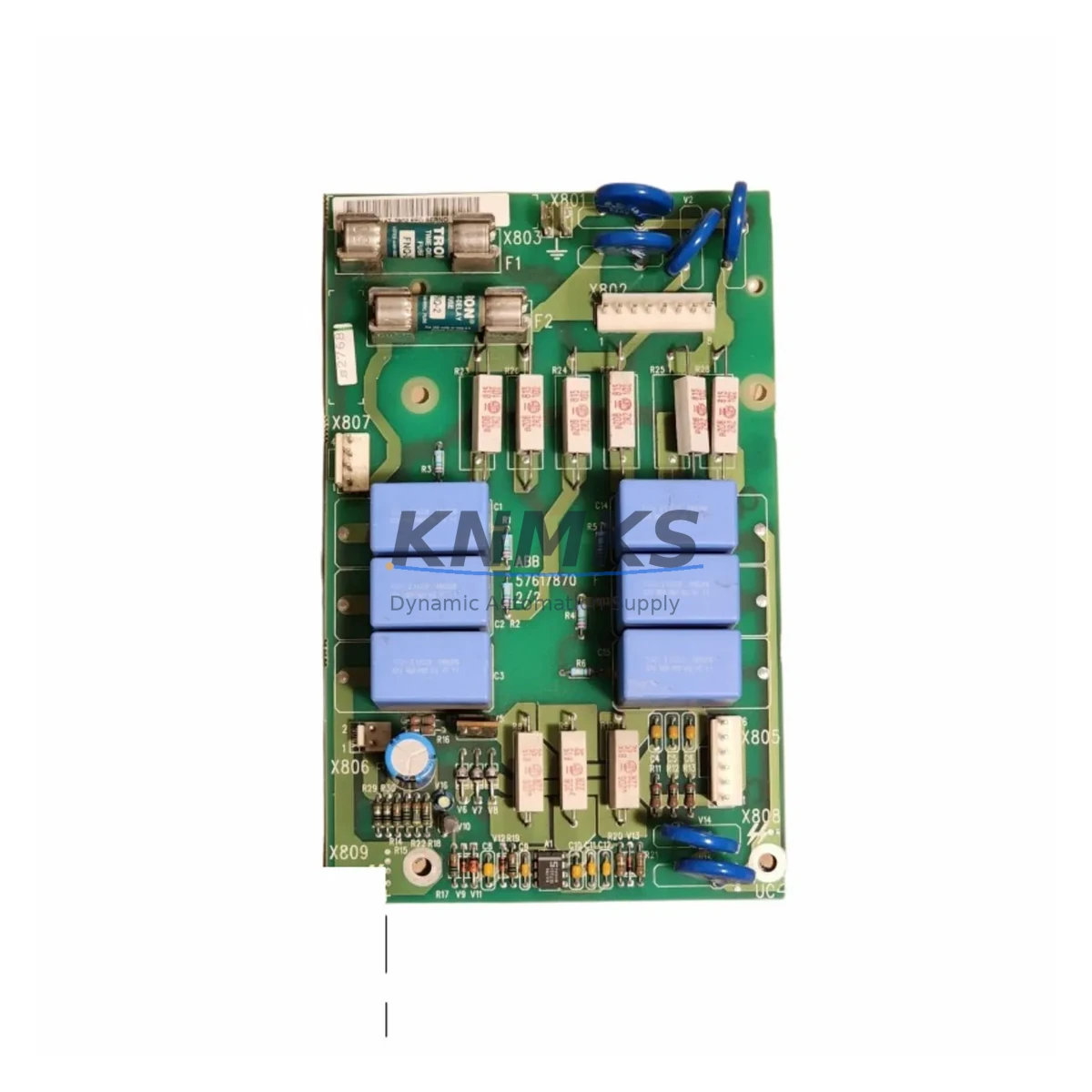

ABB SNAT7902 EFD Fail-Safe Fault Detection Module

Overview

ABB SNAT7902 EFD Fail-Safe Fault Detection Module: Fault Protection and Critical Industrial Field Reliability

The ABB SNAT7902 EFD is a precision-engineered fault detection module designed for ABB ACS and DCS drive platforms operating in demanding industrial environments. As a dedicated fail-safe fault detection component, the SNAT7902 EFD continuously monitors drive control circuits for abnormal electrical conditions — including overcurrent events, ground faults, phase imbalance, and insulation degradation — enabling the control system to execute a safe, controlled shutdown before catastrophic equipment failure occurs.

In continuous production facilities where unplanned downtime translates directly to lost revenue and safety risk, the SNAT7902 EFD serves as a critical first line of defense. Its fast-response detection logic is engineered to distinguish genuine fault conditions from transient noise, reducing nuisance trips while ensuring that real fault events are captured and acted upon within the drive’s protection response window.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Effective control cabinet protection in heavy industrial environments requires a layered approach. The ABB SNAT7902 EFD integrates into this strategy as the fault detection backbone, working in coordination with complementary protection and power components to maintain system integrity under adverse conditions.

In high-load drive cabinets, the SNAT7902 EFD is typically deployed alongside the ABB AINT-02 analog input module and RDCO-02 communication adapter, which together provide real-time signal monitoring and fieldbus connectivity. When signal drift or communication anomalies are detected upstream, the SNAT7902 EFD’s fault logic ensures the drive responds with a controlled stop rather than an uncontrolled trip, protecting both the motor and the driven load.

For power quality protection, the SNAT7902 EFD is commonly paired with ABB SNAT4031 power supply boards and external surge protection devices (SPDs) rated for the cabinet’s supply voltage. In environments with frequent voltage transients — such as those found near large induction furnaces, arc welders, or variable-speed compressor banks — this combination prevents surge-induced false fault signals from propagating through the detection circuit.

In safety-critical interlock loops, the SNAT7902 EFD works alongside ABB SDCS-CON-4 control boards and dedicated safety relays to ensure that fault detection outputs are hardwired into the emergency stop (E-stop) chain. This architecture guarantees that a detected fault results in a deterministic, auditable safety response — a requirement in SIL-rated applications under IEC 61508 and IEC 62061.

For installations in dusty, humid, or high-vibration environments — such as cement plants, mining headframes, or offshore platforms — the SNAT7902 EFD’s robust PCB construction and conformal coating options provide long-term protection against environmental ingress, reducing the risk of premature failure due to contamination or condensation.

Critical Industrial Safety Applications

The ABB SNAT7902 EFD is deployed across a wide range of critical industrial sectors where control reliability and fail-safe operation are non-negotiable:

Petrochemical & Refining: In hazardous area drive panels controlling pumps, compressors, and agitators, the SNAT7902 EFD provides the fault detection layer required to prevent uncontrolled motor runaway in the event of insulation breakdown or ground fault — conditions that carry explosion risk in Zone 1 and Zone 2 classified areas.

Power Generation & Transmission: Auxiliary drive systems in thermal and hydroelectric power plants rely on fault detection modules to protect boiler feed pumps, cooling water systems, and excitation drives. The SNAT7902 EFD’s fast fault response minimizes the risk of cascading failures that could force a unit trip.

Mining & Mineral Processing: Conveyor drives, hoist systems, and crusher drives in underground and open-pit mining operations are subject to extreme vibration, dust ingress, and voltage fluctuation. The SNAT7902 EFD’s robust detection logic maintains reliable fault monitoring even under these conditions, supporting continuous production targets.

Water & Wastewater Treatment: Variable-speed pump drives in water treatment facilities must operate continuously with minimal intervention. The SNAT7902 EFD enables predictive fault detection, allowing maintenance teams to schedule interventions before a fault escalates to a full drive failure and service interruption.

Metallurgy & Steel Production: Rolling mill drives and ladle transfer systems operate under extreme thermal and electrical stress. The SNAT7902 EFD’s ability to detect early-stage insulation faults and phase anomalies provides the early warning needed to prevent costly unplanned stops in high-throughput steel production lines.

Port & Marine Applications: Crane drives, winch systems, and vessel propulsion controllers in port and shipboard environments demand fault detection modules that can withstand salt-laden air, high humidity, and continuous mechanical vibration. The SNAT7902 EFD meets these requirements, supporting safe and reliable load handling operations.

Safety and Quality FAQ

Q1: What support terms does the ABB SNAT7902 EFD carry?
All SNAT7902 EFD units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Support requests are supported with direct technical assistance and replacement dispatch.

Q2: Is the SNAT7902 EFD tested before shipment?
Yes. Every unit undergoes pre-shipment functional verification to confirm that fault detection circuits, output signals, and board-level components meet ABB’s original performance specifications. Test records are available upon request for quality-critical procurement processes.

Q3: Is the SNAT7902 EFD compatible with all ABB ACS drive variants?
The SNAT7902 EFD is designed for use within ABB’s ACS and DCS drive auxiliary module architecture. Compatibility depends on the specific drive model and firmware revision. Contact our technical team with your drive model number to confirm fit before ordering — we provide compatibility verification at no charge.

Q4: Can KNMKS support long-term supply and emergency replacement needs?
Yes. KNMKS maintains standing inventory of the SNAT7902 EFD and related ABB drive modules to support both planned maintenance schedules and emergency replacement requirements. For critical sites with zero-tolerance for downtime, we recommend establishing a consignment or reserved-stock arrangement. Contact our sales team to discuss supply continuity options.
