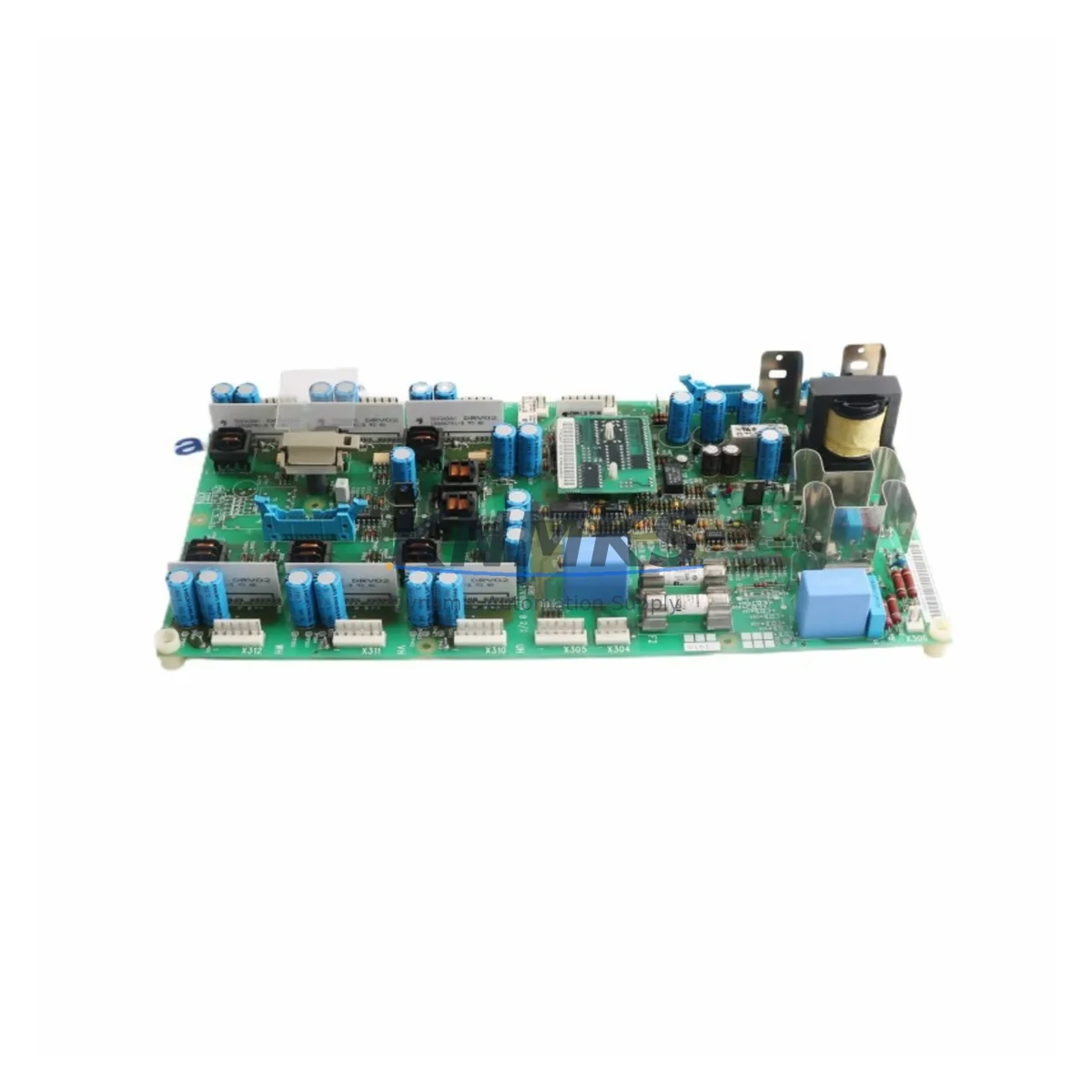

ABB SNAT7261INT Fail-Safe Drive Interface for ACS800

Overview

ABB SNAT7261INT Fail-Safe Drive Interface for ACS800: Fault Protection and Critical Industrial Reliability

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In heavy-duty control cabinets serving continuous production lines — petrochemical reactors, steel rolling mills, or port crane systems — a single drive communication failure can cascade into an unplanned shutdown costing tens of thousands per hour. The ABB SNAT7261INT is engineered to eliminate that risk at the drive interface layer.

Within a well-designed ACS800 control cabinet, the SNAT7261INT works in concert with the ABB RDCO-03 DDCS communication module to maintain deterministic fibre-optic communication between the drive and the master controller, even under severe electromagnetic interference generated by high-power switching. Upstream, a properly rated ABB NPOW-41C power supply board ensures the interface board receives clean, regulated DC power, preventing the voltage sags and micro-interruptions that cause spurious drive trips.

For installations where the ACS800 is part of a safety-rated interlock loop — common in mining hoists, chemical dosing systems, and water treatment pump stations — the SNAT7261INT’s signal integrity architecture supports reliable feedback to the safety PLC. Pairing it with an ABB AINT-02 inverter control board and a correctly configured AGPS-21C gate driver board creates a layered fault-containment strategy: if any layer detects an anomaly, the drive can execute a controlled stop rather than a hard trip, protecting both the process and the mechanical load.

In environments with significant dust ingress, condensation cycles, or high-vibration machinery — foundries, cement plants, offshore platforms — the conformal-coated PCB of the SNAT7261INT resists corrosion and maintains insulation resistance over extended service intervals. Supplementing the drive cabinet with an ABB IOEC-4 I/O extension module for local sensor monitoring further reduces the risk of undetected field faults propagating to the drive control layer.

Surge events from nearby motor starts, capacitor bank switching, or lightning-induced transients on field cabling are a leading cause of interface board failure in industrial drives. The SNAT7261INT’s onboard transient suppression, combined with proper cabinet-level surge protection on the incoming power feed, provides a robust two-barrier defence against surge-induced data corruption or hardware damage.

Critical Industrial Safety Applications

Petrochemical & Refining: In hazardous-area pump and compressor drives, the SNAT7261INT supports the continuous, fault-free communication required between the ACS800 drive and the safety instrumented system (SIS). Any communication dropout in these environments can trigger emergency shutdown sequences; the board’s EMI immunity and surge tolerance minimise nuisance trips that erode process availability.

Electric Power Generation & Transmission: Auxiliary drives in power plants — boiler feed pumps, induced-draft fans, cooling water pumps — operate under strict reliability mandates. The SNAT7261INT ensures the drive interface remains operational during grid disturbances, voltage dips, and the high-frequency noise generated by nearby high-voltage switchgear.

Mining & Mineral Processing: Hoist drives, conveyor drives, and crusher drives in underground and open-cut mines are subject to extreme vibration, dust, and humidity. The SNAT7261INT’s ruggedised construction and conformal coating make it a dependable replacement or spare for ACS800-based drive systems in these demanding environments, reducing the risk of unplanned downtime in safety-critical hoist applications.

Water & Wastewater Treatment: Variable-speed pump drives in water treatment plants must operate continuously with minimal intervention. The SNAT7261INT supports reliable drive-to-SCADA communication, enabling accurate flow control and preventing the over-speed or under-speed faults that can damage pump impellers or cause process upsets.

Metallurgy & Steel: Rolling mill and continuous casting drives demand microsecond-level response and zero tolerance for communication errors. The SNAT7261INT’s differential signal architecture and low-latency interface design support the tight synchronisation required in multi-drive rolling line configurations.

Port & Marine: Crane and winch drives in port terminals and on vessels face salt-laden air, vibration, and wide temperature swings. The SNAT7261INT’s environmental ratings and robust PCB construction make it a reliable long-term spare for ACS800 drives in these corrosive, high-cycle-count applications.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the SNAT7261INT fails to perform its specified drive interface function within the confirmed support period, we will provide a replacement or documented resolution support. The confirmed support period begins from the date of confirmed delivery.

Q2: How is the board tested before shipment?
Every SNAT7261INT unit undergoes a 100% functional test prior to dispatch. Testing includes power-on verification, communication signal integrity checks, and visual inspection for physical damage or component anomalies. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is this board compatible with all ACS800 variants?
The SNAT7261INT is designed for use within the ABB ACS800 drive family. Compatibility depends on the specific ACS800 variant and firmware version in your installation. We recommend confirming your drive’s hardware revision against the ABB SNAT7261INT compatibility matrix before ordering. Our technical team at [email protected] can assist with compatibility verification.

Q4: Can you guarantee long-term supply for ongoing maintenance programmes?
Yes. We maintain dedicated stock of the SNAT7261INT and other ACS800 spare boards to support planned maintenance schedules and emergency replacement requirements. For customers with multi-site or multi-drive installations, we can discuss consignment stock or priority supply agreements to ensure your critical drives are never left without a qualified spare.
