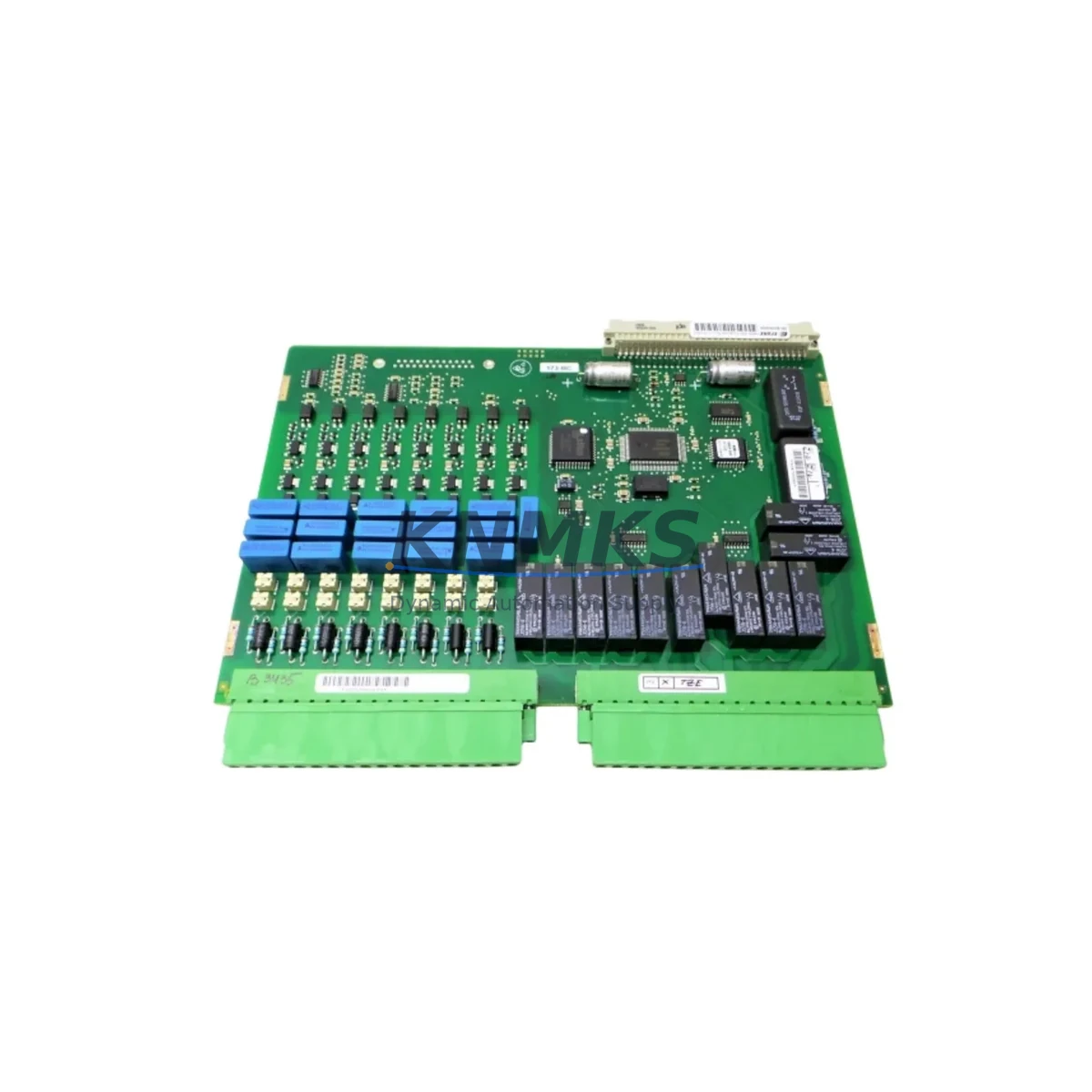

The ABB SNAT631PAC is a gate drive control board engineered for the ACS600 series of AC drives — one of ABB’s most widely deployed variable frequency drive platforms in heavy industrial environments. As a direct OEM replacement, the SNAT631PAC governs IGBT gate firing sequences, ensuring precise motor control, thermal protection coordination, and fault-safe switching across demanding production cycles. For maintenance engineers managing aging ACS600 installations, stocking a verified SNAT631PAC spare is a foundational element of any credible uptime strategy.

At KNMKS, every SNAT631PAC unit is sourced from authorized supply channels, individually inspected, and function-tested prior to shipment. Each board ships with a support terms confirmed by quotation and full traceability documentation, giving procurement engineers the confidence to approve the purchase without secondary verification delays.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a gate drive fault is traced to the SNAT631PAC, experienced maintenance engineers know that the board rarely fails in isolation. A systematic inspection of the surrounding drive architecture is essential before returning the ACS600 to service. Begin with the IGBT power module stack — gate drive faults frequently originate from or propagate to the power semiconductors, and replacing the SNAT631PAC without verifying IGBT integrity risks repeat failure within weeks.

Next, inspect the AINT (Analog Interface Board) and DINT (Digital Interface Board) assemblies within the same ACS600 chassis. These boards share the internal backplane bus with the gate drive circuit, and a transient fault event can corrupt communication between them. Similarly, the RMIO (Motor Control and I/O Board) should be checked for parameter integrity and I/O signal continuity — any drift in speed reference or torque feedback signals will mask the true root cause of the original fault.

On the power supply side, verify the APOW (Auxiliary Power Supply Board) output rails. Undervoltage on the 24 VDC or 5 VDC internal rails is a known contributor to spurious gate drive faults in ACS600 drives operating in high-ambient or poorly ventilated enclosures. If the drive cabinet has been in service for more than five years, proactively replacing the APOW alongside the SNAT631PAC is a cost-effective maintenance decision that eliminates a second unplanned outage.

For drives integrated into process control loops, also inspect the fieldbus adapter module (e.g., NPBA or NIBA series) and the fiber optic communication cables connecting the gate drive board to the control unit. Fiber degradation is a silent failure mode that produces intermittent gate timing errors, which are often misdiagnosed as board-level faults. Terminal blocks, fuse holders, and 24 VDC control circuit wiring within the drive cabinet should be torque-checked and visually inspected for heat discoloration or insulation cracking — particularly on drives cycling through frequent start-stop sequences in pump, fan, or compressor applications.

A complete spare parts kit for an ACS600 installation should include the SNAT631PAC gate drive board, at least one APOW auxiliary power supply, a set of IGBT gate resistors, a spare RMIO board, and the relevant fieldbus adapter module for your communication protocol. This kit approach reduces mean time to repair (MTTR) from days to hours and is the standard recommendation for facilities operating ACS600 drives in critical process lines.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the ACS600 drive and apply full LOTO (Lockout/Tagout) procedure. Allow a minimum of 5 minutes for DC bus capacitors to discharge before opening the drive enclosure. Verify bus voltage with a calibrated meter before touching internal components.

Step 2 — Fault Documentation: Record all active fault codes from the ACS600 control panel or connected DCS/SCADA system before powering down. Fault history provides critical context for root cause analysis and should be preserved in the maintenance log.

Step 3 — Board Removal: Following the ACS600 hardware manual, disconnect the gate drive signal connectors and fiber optic links from the SNAT631PAC. Note connector positions and cable routing before removal. Use an ESD wrist strap throughout the procedure.

Step 4 — Replacement Installation: Install the new SNAT631PAC, reconnect all signal connectors and fiber optic cables in the documented sequence. Verify that the board is fully seated on the mounting guides and that all locking clips are engaged.

Step 5 — Parameter Verification: Before energizing, confirm that the ACS600 parameter set (motor data, control mode, protection thresholds) is intact — either from a backup file or from the RMIO board’s non-volatile memory. Restore from backup if any parameters were lost during the fault event.

Step 6 — Commissioning Test: Energize the drive in local control mode and run a no-load motor test at low speed. Monitor gate drive status signals and verify that no fault codes are generated before returning the drive to automatic process control.

This workflow is applicable to ACS600 frame sizes commonly found in pump, compressor, conveyor, and HVAC applications. For legacy installations where the ACS600 has been discontinued in the local service network, KNMKS maintains long-term stock of SNAT631PAC and associated boards to support extended system life beyond OEM support windows.

Spare Parts Support FAQ

Q1: Is the SNAT631PAC compatible with all ACS600 frame sizes?
The SNAT631PAC is designed for specific frame configurations within the ACS600 series. Compatibility depends on the drive’s frame size, power rating, and internal hardware revision. Please provide your full drive nameplate data (type code and serial number) when contacting KNMKS — our technical team will confirm compatibility before shipment to eliminate installation risk.

Q2: What testing is performed before the SNAT631PAC ships?
Every unit undergoes visual inspection for physical damage, connector integrity check, and functional electrical testing. Units that do not meet OEM specification are rejected. A test report is available upon request for quality-critical procurement processes.

Q3: How should the SNAT631PAC be stored as a long-term spare?
Store in original anti-static packaging in a dry, temperature-controlled environment (recommended: 10–40°C, <75% RH non-condensing). Avoid proximity to strong magnetic fields or high-vibration areas. Inspect annually for connector oxidation and re-bag with fresh desiccant if the storage period exceeds 24 months.

Q4: What is the support terms coverage and what does it include?
KNMKS provides a support terms confirmed by quotation from the date of shipment covering manufacturing defects and functional failure under normal operating conditions. Support requests are supported by our technical team with replacement or repair options. Damage caused by incorrect installation, overvoltage events, or environmental contamination is excluded from support terms coverage.
