ABB SNAT608CMT Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB SNAT608CMT Maintenance-Proven Spare Part for Factory Uptime

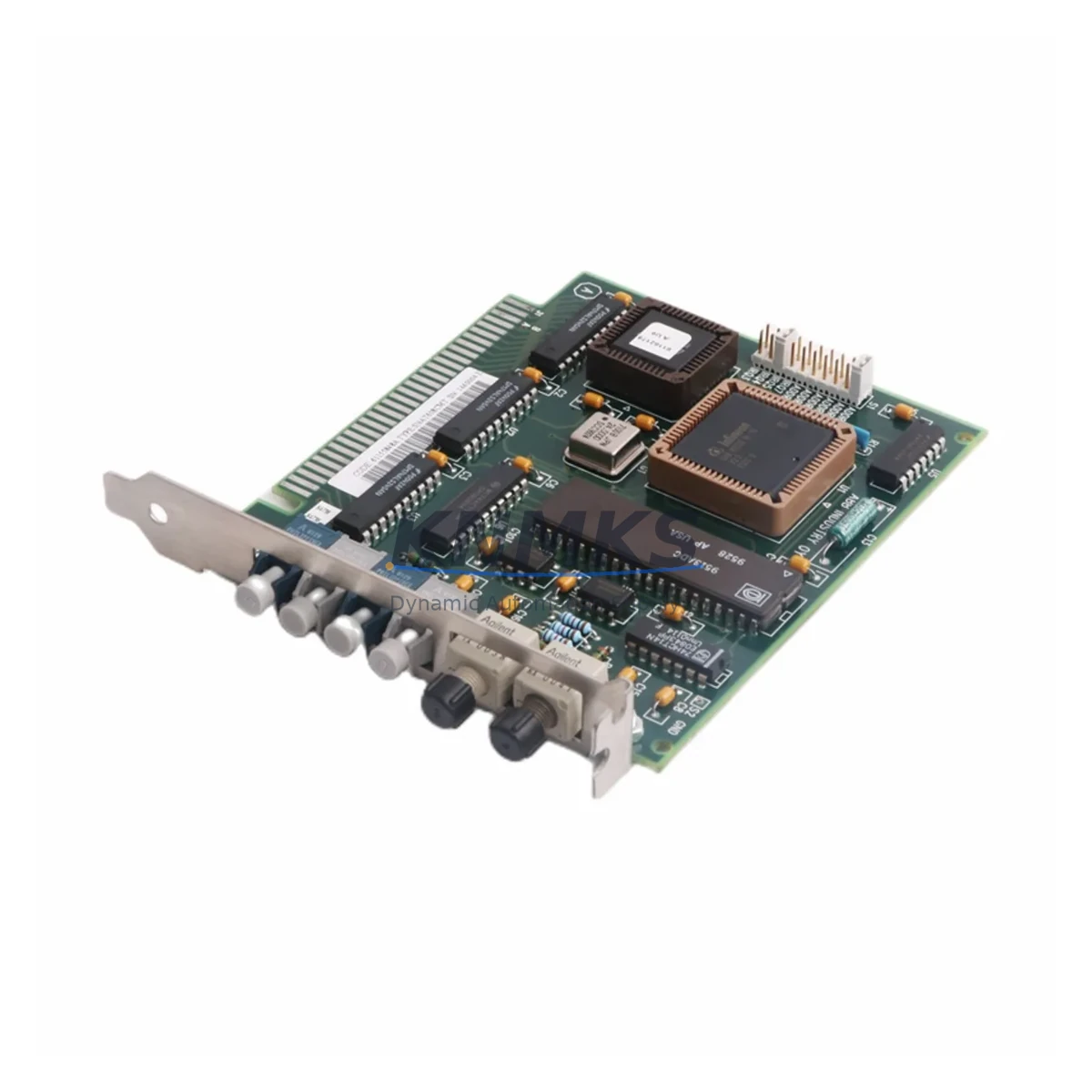

The ABB SNAT608CMT is an original IGBT drive control board engineered for the ACS600 and ACS800 series variable frequency drives. As a critical spare component in industrial automation environments, the SNAT608CMT governs gate-drive signal processing, IGBT switching logic, and fault-detection routines that are fundamental to continuous motor control operations. Procurement and maintenance engineers managing high-availability production lines, compressor stations, pump systems, or conveyor infrastructure rely on this board to restore drive functionality with minimal downtime and maximum compatibility confidence.

Sourced directly from ABB’s authorized supply chain, each SNAT608CMT unit undergoes functional verification prior to dispatch. The board is fully compatible with the ACS600 and ACS800 drive families without firmware modification, making it the preferred replacement for aging or failed control boards in legacy installations where system continuity is non-negotiable. With a support terms confirmed by quotation and pre-shipment testing protocol, this spare part supports both emergency breakdown recovery and planned annual maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies a failed or degraded SNAT608CMT in an ACS600 or ACS800 drive cabinet, the replacement workflow should extend beyond the board itself. A thorough cabinet inspection at the time of replacement significantly reduces the risk of repeat failures and unplanned shutdowns.

Begin by verifying the integrity of the AINT board (ACS800 inverter control interface) and the RMIO board (motor control and I/O interface), as these communicate directly with the SNAT608CMT and may carry latent faults triggered by the same overcurrent or overvoltage event that damaged the control board. Inspect the IGBT power module for gate-emitter resistance anomalies — a shorted IGBT is a common root cause of SNAT608CMT failure and must be ruled out before installing the replacement board.

Check the 24 VDC auxiliary power supply feeding the control section. Voltage ripple or dropout events can corrupt gate-drive signals and accelerate board degradation. If the drive cabinet includes a DDCS fiber optic communication module for distributed drive control, verify that the fiber connections are clean and undamaged, as communication errors can trigger false fault states that stress the control board.

Inspect all terminal block connections on the I/O interface for corrosion, loose crimps, or thermal discoloration — signs of sustained overload. Review the main contactor and input fuses or circuit breakers upstream of the drive for signs of arcing or degraded contact resistance. For drives in dusty or humid environments, check the condition of cooling fans and heat sink fins, as thermal stress is a leading contributor to IGBT control board failure.

For facilities maintaining ACS600 or ACS800 fleets across multiple production lines, a recommended spare parts inventory should include at minimum one SNAT608CMT per drive family, alongside the AINT board, RMIO board, and a matched IGBT power module set. This inventory posture supports same-shift restoration without waiting on international logistics.

Site Replacement Workflow

Step 1 — Isolation: De-energize the ACS600 or ACS800 drive and follow lockout/tagout (LOTO) procedures. Allow the DC bus capacitors to fully discharge (minimum 5 minutes after power-off, verify with a calibrated multimeter).

Step 2 — Documentation: Photograph the existing board orientation, connector positions, and any parameter labels before removal. Record the drive’s current parameter set via the ACS600/ACS800 control panel or DriveWindow software if accessible.

Step 3 — Board Removal: Disconnect all ribbon cables and connectors from the SNAT608CMT in sequence. Remove the board mounting screws and extract the board carefully, avoiding contact with gate-drive traces.

Step 4 — Inspection: Inspect the drive chassis for carbon deposits, burnt components, or damaged PCB traces that may indicate a root-cause fault beyond the control board.

Step 5 — Installation: Seat the replacement SNAT608CMT, reconnect all connectors in reverse order, and verify torque on any mechanical fasteners. Restore power and perform a no-load test run before reconnecting the motor load.

Step 6 — Commissioning: Confirm drive parameters are intact. Run a short-duration loaded test and monitor fault logs for 15–30 minutes before returning the drive to full production duty.

This workflow applies equally to planned annual overhauls and emergency breakdown recovery, ensuring system compatibility is maintained and downtime is minimized.

Spare Parts Support FAQ

Q1: Is the SNAT608CMT compatible with both ACS600 and ACS800 drive series?
Yes. The SNAT608CMT is designed for use across the ACS600 and ACS800 drive families. Before installation, confirm the drive’s hardware revision against the ABB spare parts compatibility matrix to ensure the board revision matches your specific drive variant.

Q2: What pre-shipment testing is performed on the SNAT608CMT?
Each unit undergoes functional verification prior to dispatch, including gate-drive signal output checks and basic power-on diagnostics. A test report is available upon request. Units are packed in anti-static ESD-safe packaging to prevent transit damage.

Q3: How should the SNAT608CMT be stored as a long-term spare?
Store in a dry, temperature-controlled environment (5–40°C, <85% RH non-condensing) in its original ESD-safe packaging. Avoid proximity to strong magnetic fields or vibration sources. Inspect annually for any signs of oxidation on connector pins.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events beyond drive specifications, or physical mishandling. Support requests are supported with a return-and-replace process coordinated through [email protected].
