ABB SNAT602TAC Migration-Ready TAC Interface for ACS800: Legacy Drive Retrofit & Control System Upgrade

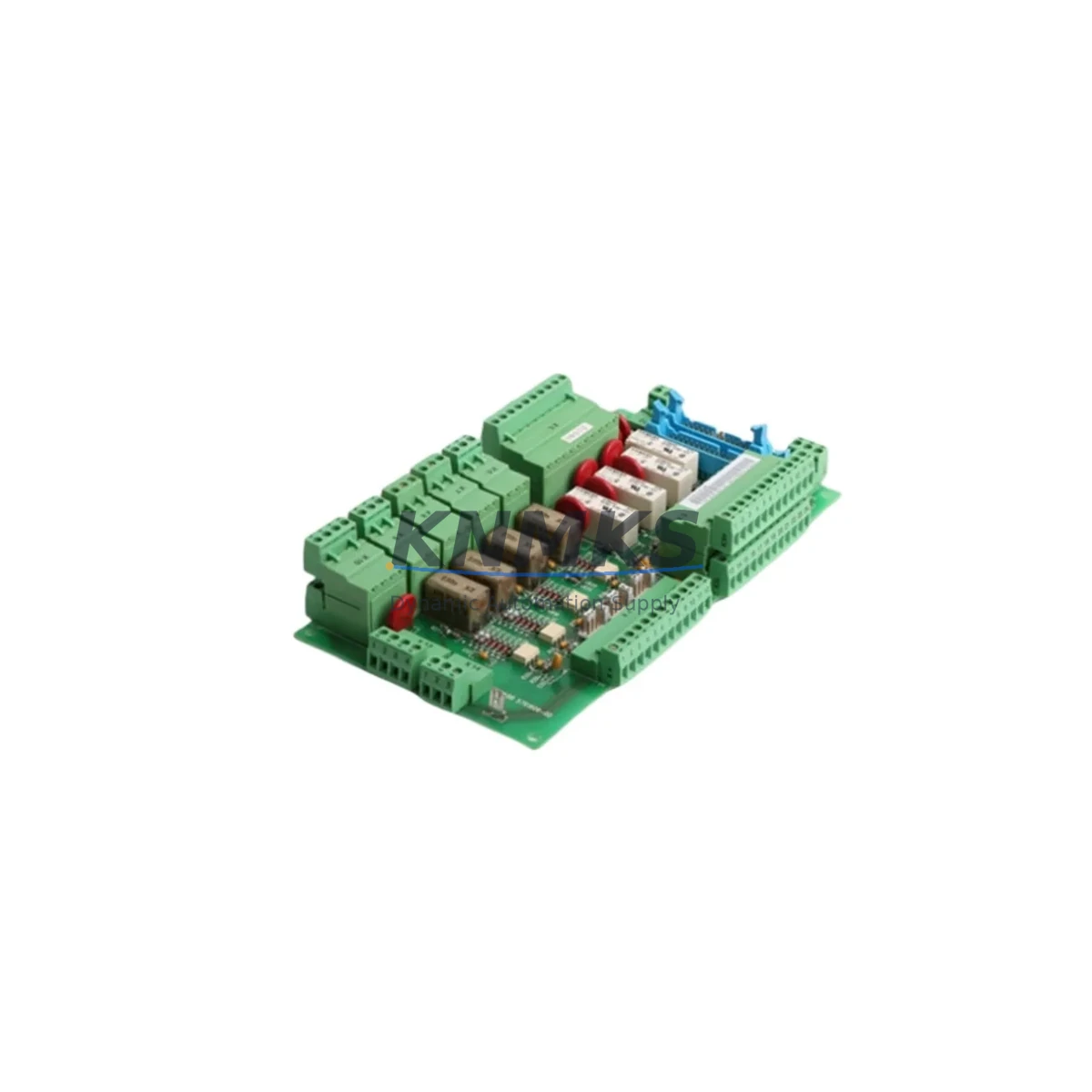

The ABB SNAT602TAC is a TAC (Torque Adaptive Control) interface module designed for the ACS800 series variable frequency drive platform. As industrial facilities face increasing pressure to modernize aging automation infrastructure, the SNAT602TAC has become a critical component in retrofit projects where the original drive control board has failed, been discontinued, or is no longer supported under the manufacturer’s active service program. This module provides the essential torque reference and speed feedback interface between the ACS800 main control board and the motor encoder or resolver, making it indispensable in high-precision motion control applications such as crane hoisting, winding machines, extruders, and paper machine drives.

For maintenance engineers and system integrators managing legacy ACS800 installations, sourcing a verified replacement SNAT602TAC with confirmed firmware compatibility and pre-shipment functional testing is the single most important factor in controlling unplanned downtime. KNMKS maintains in-stock inventory of the SNAT602TAC and ships globally with full documentation support, including wiring diagrams, parameter backup guidance, and commissioning checklists tailored to ACS800 retrofit scenarios.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SNAT602TAC retrofit begins well before the replacement module arrives on site. The first step is a thorough audit of the existing ACS800 control section, including the RMIO-11 or RMIO-02 main control board revision, the current firmware version displayed on the CDP-312 control panel, and the parameter set backed up via DriveWindow or a panel memory card. Engineers should document the encoder wiring scheme — particularly whether the installation uses a 5V TTL incremental encoder, a 24V HTL encoder, or a SinCos resolver interface — since the SNAT602TAC terminal assignments differ slightly depending on the feedback device type.

In multi-drive cabinet installations, the ACS800 is frequently paired with an RDCO-03 DDCS fiber optic communication module for master-follower torque sharing, or an RPBA-01 PROFIBUS adapter for PLC integration. Both of these option modules occupy separate slots and are unaffected by the SNAT602TAC replacement, but their parameter groups must be verified as intact after the swap. Similarly, if the control cabinet includes an AINT-02 or AINT-07 inverter control interface board for multi-drive configurations, the torque reference chain from the master controller through the SNAT602TAC must be re-validated during commissioning.

Power supply integrity within the control cabinet is another critical checkpoint. The SNAT602TAC draws its logic supply from the ACS800 internal 5V and 24V rails. If the drive has experienced a power surge or capacitor aging event that caused the original module failure, the APBU-44 or APBU-12 branching unit and the internal SMPS board should be inspected before installing the replacement. Installing a new SNAT602TAC into a drive with a degraded power supply risks immediate re-failure and voids the support terms claim process.

For installations where the ACS800 communicates with a Siemens S7-300 or Allen-Bradley ControlLogix PLC via PROFIBUS or DeviceNet, the RPBA-01 or NDNA-01 adapter configuration should be exported and saved before any hardware work begins. The SNAT602TAC replacement itself does not alter the fieldbus node address or communication parameters, but a full drive power cycle during the swap will reset the option module initialization sequence, which occasionally requires a manual re-enable of the fieldbus adapter from the CDP-312 panel.

Downtime Control During System Migration

Minimizing production downtime during an SNAT602TAC replacement requires a structured pre-outage preparation protocol. Before scheduling the maintenance window, the engineering team should complete a full parameter backup using DriveWindow Live or the CDP-312 panel upload function, export the encoder configuration from parameter group 50, and verify that a spare CDP-312 panel or parameter memory card is available on site in case the drive panel becomes unresponsive during the swap.

The physical replacement procedure for the SNAT602TAC is straightforward: power down the ACS800 drive, wait for the DC bus voltage to discharge below 50V (confirmed via the drive’s DC bus measurement terminals), remove the option slot cover, extract the failed module by releasing the retention clips, and seat the replacement SNAT602TAC firmly until the option bus connector is fully engaged. The entire hardware swap typically takes under 15 minutes for a trained technician familiar with the ACS800 option slot layout.

Post-installation commissioning focuses on three areas: encoder signal verification using the drive’s diagnostic parameter group (parameter 01.04 for encoder speed feedback), torque reference chain validation by running the drive in torque control mode at low speed under no-load conditions, and HMI screen confirmation that the speed and torque actual values displayed on the SCADA or DCS system match the drive panel readings. If the facility uses an ABB AC500 or Siemens S7 PLC with a pre-configured function block for ACS800 drive control, no PLC program changes are required — the SNAT602TAC replacement is transparent to the control layer above the drive.

For critical production lines where even a 30-minute outage carries significant cost, KNMKS recommends pre-staging the replacement SNAT602TAC with the parameter set pre-loaded where possible, and scheduling the swap during a planned shift changeover or scheduled preventive maintenance window. Our technical team can provide a site-specific commissioning checklist based on the drive’s application firmware version and encoder type upon request.

Retrofit Support FAQ

Q1: Is the SNAT602TAC a direct replacement for all ACS800 variants, including the ACS800-01, ACS800-04, and ACS800-07?
The SNAT602TAC is compatible with the ACS800 series drives that feature the standard option slot architecture on the RMIO control board. This includes the ACS800-01 (wall-mounted), ACS800-04 (cabinet-built), and ACS800-07 (regenerative) variants. However, the ACS800-11 and ACS800-31 low-harmonic drive variants use a different control board layout — please confirm the RMIO board part number before ordering to ensure slot compatibility.

Q2: What encoder types are supported, and do I need to change any wiring when replacing the SNAT602TAC?
The SNAT602TAC supports incremental encoders with HTL (24V) and TTL (5V) signal levels, as well as SinCos analog encoders depending on the module variant. The terminal block layout is identical to the original, so existing encoder cable wiring can be reconnected without modification. Always verify the encoder supply voltage selection jumper on the module matches the encoder’s rated supply before powering up.

Q3: Has each unit been tested before shipment, and what support terms coverage applies?
Yes. Every SNAT602TAC unit shipped by KNMKS undergoes pre-shipment functional testing that verifies option bus communication, encoder signal channel integrity, and power rail stability. Each unit is covered by a support terms confirmed by quotation against manufacturing defects and functional failure under normal operating conditions. A test report is available upon request for quality-critical applications.

Q4: How quickly can the SNAT602TAC be delivered, and is stock available for urgent breakdown orders?
KNMKS maintains in-stock inventory of the SNAT602TAC for immediate dispatch. Standard international shipping typically delivers within 5–10 business days depending on destination. For urgent breakdown situations, expedited air freight options are available — contact our sales team at [email protected] or +86 18359268345 to confirm current stock levels and arrange priority shipment.
