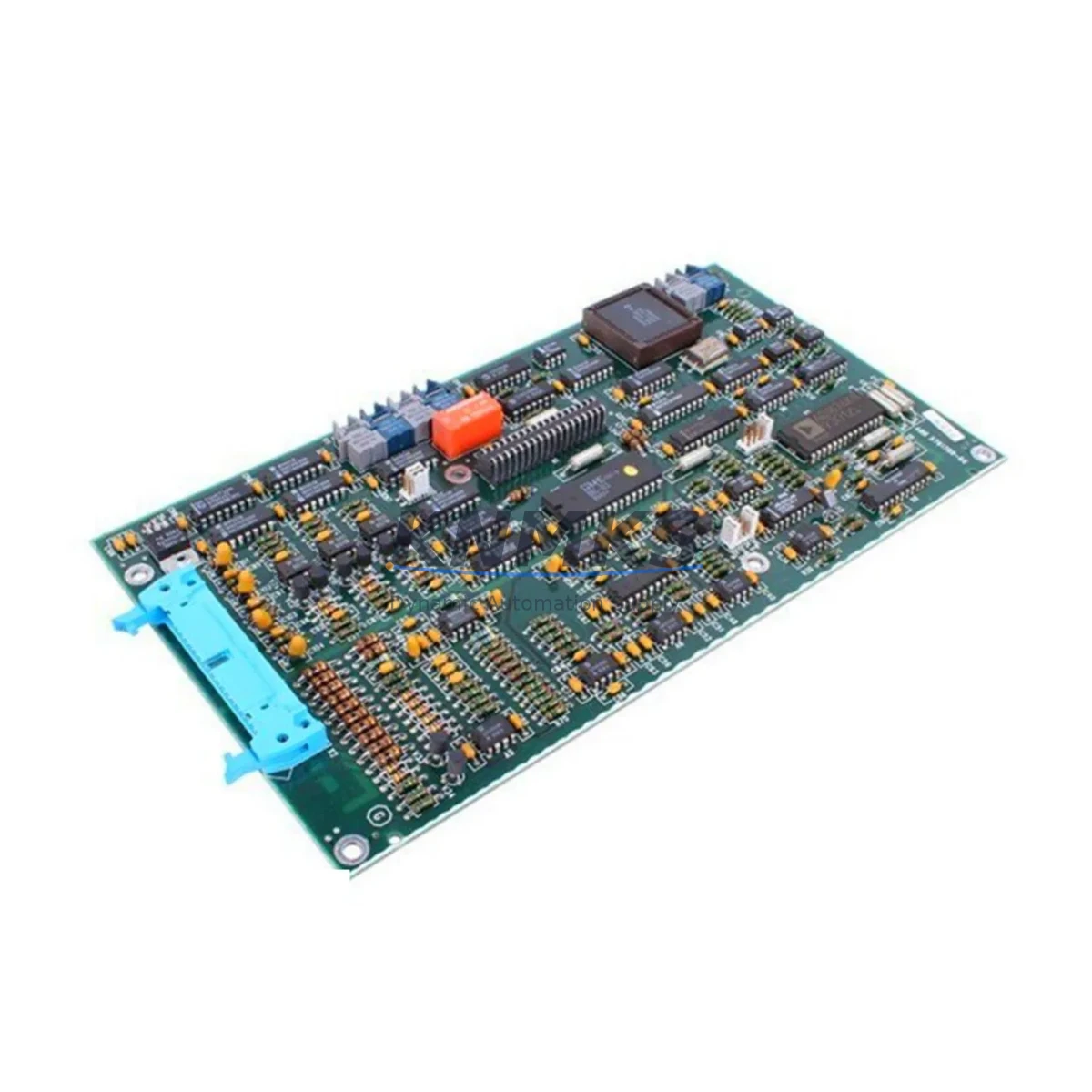

ABB SNAT601TAI Migration-Ready Thyristor Power Unit

Overview

ABB SNAT601TAI Migration-Ready Thyristor Power Unit: Legacy System Migration and Compatible Upgrade

The ABB SNAT601TAI is a thyristor power unit designed for use within ABB’s SNAT DC drive control platform. As industrial facilities face increasing pressure to modernize aging automation infrastructure, the SNAT601TAI has become a critical component in retrofit and replacement projects across paper mills, steel processing lines, crane systems, and heavy-duty conveyor applications. Whether you are replacing a failed unit in an operational line or executing a planned upgrade of a legacy DC drive cabinet, the SNAT601TAI provides a verified, drop-in compatible solution that minimizes engineering risk and reduces unplanned downtime.

When planning a replacement or retrofit involving the SNAT601TAI, engineers must carefully evaluate several interdependent system parameters before committing to installation. Power supply capacity is the first checkpoint: the incoming AC supply voltage, phase configuration, and fuse ratings must match the unit’s input specifications. Terminal wiring must be reviewed against the original cabinet drawings, as legacy SNAT cabinets often use non-standard lug sizes or busbar arrangements that require adapter terminals or re-crimping. Backplane interface compatibility is equally important — the SNAT601TAI connects to the SNAT control board stack via a defined connector arrangement, and any deviation in board revision or firmware version can result in initialization faults or gate pulse timing errors.

Module addressing within the drive system must also be confirmed. In multi-drive installations where several SNAT units share a common control bus, each module’s address setting must be verified against the original commissioning documentation. Failure to do so can cause address conflicts that prevent the drive from entering run mode. Program compatibility is another key concern: if the host controller — often an ABB AC800M or a legacy SNAT RMIO board — has been updated since the original installation, the control program may need to be re-validated against the new hardware revision. HMI screen mappings tied to drive status signals should also be reviewed, as parameter index changes between firmware versions can cause incorrect display values or alarm mismatches on the operator panel.

Communication link integrity must be verified before and after installation. The SNAT601TAI typically operates within a system that includes a SNAT RDCO communication option board or a DDCS fiber optic link connecting the drive to the master controller. Any interruption or reconfiguration of this link during the retrofit must be managed carefully to avoid loss of drive reference signals. Physical installation space should be measured precisely — the SNAT601TAI’s mounting footprint and cooling clearance requirements must be confirmed against the existing cabinet layout, particularly in older enclosures where space is constrained by legacy wiring harnesses and bus bars.

Firmware version alignment is a frequently overlooked step in SNAT retrofit projects. The SNAT601TAI must operate with a compatible firmware version on the associated SNAT RMIO or RAMO control board. Mismatched firmware can cause parameter set incompatibility, requiring a full parameter re-entry or upload from a backup file. Field commissioning should include a full functional test under no-load conditions before reconnecting the mechanical load, followed by a ramp test to verify speed reference tracking, current limit response, and fault relay behavior.

In retrofit planning, the SNAT601TAI is commonly deployed alongside other SNAT platform components. The SNAT RMIO board provides the primary control interface and must be confirmed compatible with the thyristor unit’s gate drive signals. The SNAT RDCO option board handles the DDCS communication link to the master PLC or DCS. In cabinet upgrades, the SNAT power supply module — responsible for providing the low-voltage auxiliary supply to the control electronics — must be inspected and replaced if it shows signs of capacitor aging or voltage drift. For I/O expansion, the SNAT RAIO analog I/O extension board is frequently used to add speed feedback or process reference channels without modifying the core drive wiring. In systems where the original HMI has been decommissioned, a CDP312R control panel can be temporarily connected for local parameter access and fault diagnostics during commissioning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SNAT601TAI retrofit begins with a complete audit of the existing drive cabinet. The SNAT RMIO control board must be inspected for firmware version and parameter backup availability. If the original RMIO board is also degraded, it is advisable to replace both the SNAT601TAI thyristor unit and the RMIO board simultaneously to avoid a second shutdown. The SNAT power supply module should be load-tested to confirm it can sustain the auxiliary voltage under full drive load — capacitor degradation in aging power supply modules is a common cause of intermittent drive faults in legacy SNAT installations.

For I/O-intensive applications, the SNAT RAIO analog extension board provides additional reference and feedback channels that can be mapped to the new control program without rewiring the field instrumentation. In systems where the original communication link used a SNAT RDCO DDCS board, the fiber optic cables and connectors should be inspected for contamination or physical damage before recommissioning. If the master controller has been upgraded to a newer ABB AC800M or a third-party PLC, a protocol gateway may be required to bridge the DDCS link to a modern fieldbus such as PROFIBUS or Modbus TCP.

Where the original HMI has been replaced or is no longer functional, a CDP312R control panel can be used for local parameter access during the commissioning phase. Signal isolators should be installed on any analog reference or feedback channels that run through areas with high electromagnetic interference, particularly in steel or mining environments where variable-frequency drives and large motors are in close proximity to the DC drive cabinet.

Downtime Control During System Migration

Minimizing downtime during a SNAT601TAI replacement requires advance preparation. Before the maintenance window opens, the existing parameter set should be uploaded and saved using the ABB DriveWindow tool or a CDP312R panel backup. This ensures that if the new unit requires parameter re-entry, the process can be completed from a verified baseline rather than from memory or incomplete documentation.

The original control program in the host PLC or DCS should be archived before any hardware changes are made. If the SNAT RMIO board is being replaced alongside the thyristor unit, the program logic governing drive start/stop interlocks, speed reference scaling, and fault response must be re-validated against the new hardware. HMI screens that display drive status, current, speed, and fault codes should be tested in simulation mode before the drive is energized.

During the physical swap, the incoming AC supply should be isolated and locked out before any terminal connections are disturbed. The gate pulse wiring between the SNAT601TAI and the RMIO board is particularly sensitive — incorrect connection sequence can damage the thyristor stack. After installation, a controlled ramp test under no-load conditions confirms that the gate firing angle, current feedback, and speed reference are all functioning correctly before the mechanical load is reconnected. This structured approach consistently reduces total retrofit downtime to within a single planned maintenance shift.

Retrofit Support FAQ

Q: Is the SNAT601TAI a direct drop-in replacement for the original unit in my SNAT DC drive cabinet?
A: In most cases, yes. The SNAT601TAI is designed for direct installation into SNAT platform cabinets. However, you should verify the board revision of your SNAT RMIO control board and confirm firmware compatibility before installation. Our technical team can assist with compatibility verification based on your cabinet serial number and existing documentation.

Q: What pre-shipment testing is performed on the SNAT601TAI?
A: Every SNAT601TAI unit is functionally tested before shipment. Testing includes gate pulse verification, auxiliary power supply check, and interface connector inspection. Units are shipped with a test report and are covered by a support terms confirmed by quotation from the date of delivery.

Q: How do I handle parameter migration when replacing the SNAT601TAI in an existing installation?
A: We recommend uploading the existing parameter set using ABB DriveWindow or a CDP312R panel before removing the old unit. After installing the SNAT601TAI, restore the parameter backup and perform a full functional test. If the firmware version has changed, some parameters may need to be re-entered manually — our support team can provide guidance on parameter mapping between firmware revisions.

Q: What is your lead time and stock availability for the SNAT601TAI?
A: We maintain inventory of the SNAT601TAI to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For large-quantity orders or scheduled maintenance programs, please contact our sales team to confirm availability and arrange priority allocation.
