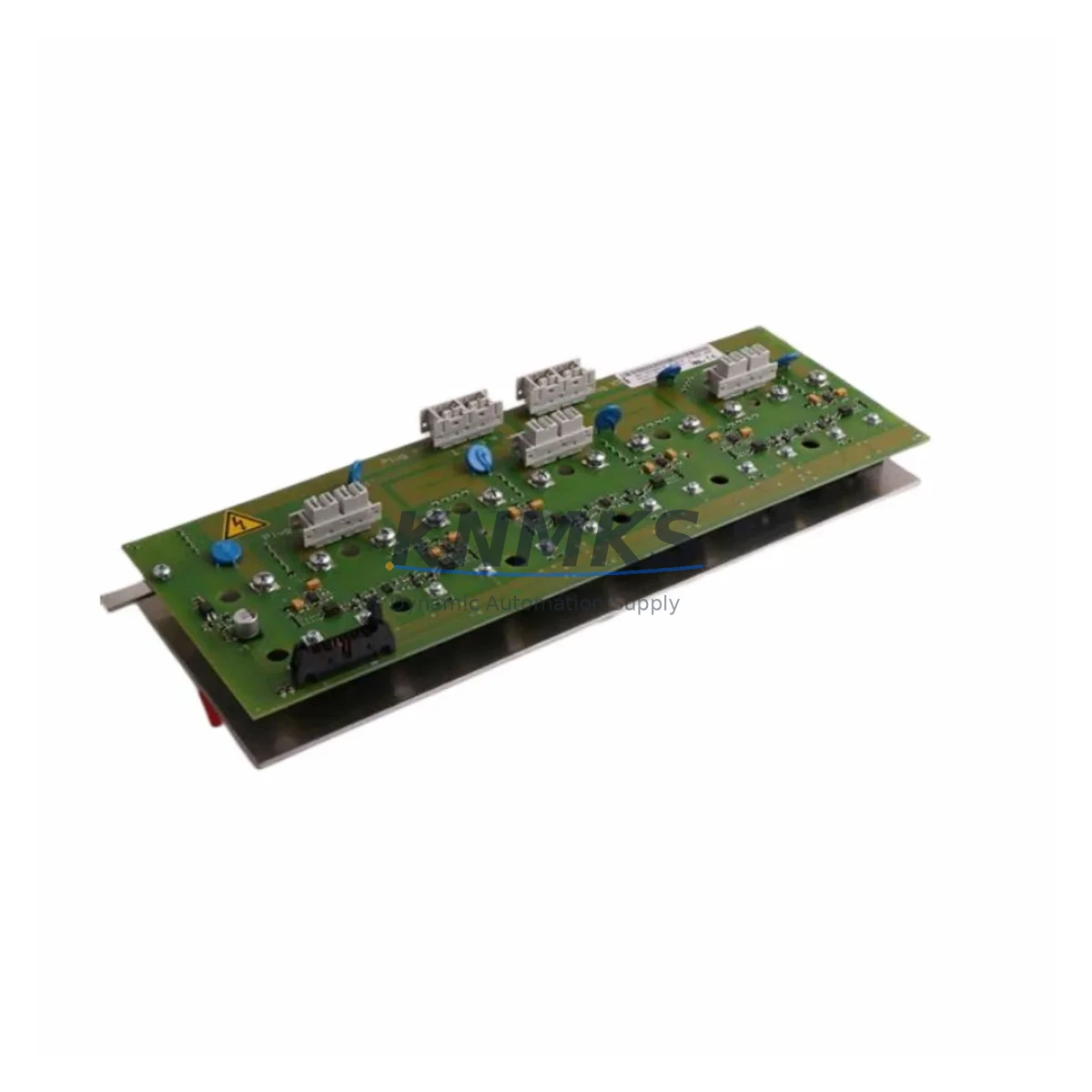

ABB SNAT-7030 Migration-Ready Drive Control Board for Legacy ACS Systems

The ABB SNAT-7030 is a migration-ready drive control board engineered for direct replacement and retrofit integration within ABB ACS600 and ACS800 series variable frequency drive (VFD) platforms. As legacy automation infrastructure ages and OEM support for discontinued control boards diminishes, the SNAT-7030 provides a verified, drop-in compatible solution that preserves existing program logic, wiring topology, and communication architecture — minimizing retrofit risk and unplanned downtime across industrial production environments.

Designed for engineers and maintenance teams managing aging drive cabinets, the SNAT-7030 addresses the full scope of legacy system migration: from power capacity verification and terminal rewiring to backplane interface alignment, module addressing, firmware compatibility checks, and HMI screen reconfiguration. Each unit undergoes pre-shipment functional testing to confirm output signal integrity, control loop response, and communication link stability before leaving the warehouse.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the SNAT-7030 into a legacy drive cabinet begins well before the physical swap. Engineers should first audit the existing ACS600 or ACS800 drive unit to confirm the installed firmware version, frame size, and backplane slot configuration. Power supply capacity within the control cabinet must be verified — particularly where the SNAT-7030 is being installed alongside upgraded I/O modules or additional communication adapters such as the RDCO-03 DDCS Communication Module, which handles fiber-optic links between the drive and the master controller.

In multi-drive systems or coordinated motion applications, the SNAT-7030 typically operates in conjunction with an AINT-02 or AINT-14 inverter control board on the power unit side. Confirming that both the control board and inverter board revisions are mutually compatible is a critical pre-installation step. Where the existing system uses a NAMC-11 or NAMC-51 motor control board in parallel, parameter set alignment between boards must be validated to prevent reference conflicts during commissioning.

For facilities running PROFIBUS or Modbus RTU fieldbus architectures, the RPBA-01 PROFIBUS Adapter or RMBA-01 Modbus Adapter may need to be re-initialized after the control board replacement to re-establish node addressing and baud rate settings. HMI panels connected via the drive’s panel bus — including legacy CDP312R or ACS-CP-C control panels — should be tested for parameter read/write access after the board swap to confirm that the operator interface remains fully functional.

Where the retrofit scope extends to the PLC or DCS layer, verify that the AIMA-01 analog I/O extension module or any digital I/O expansion cards installed in the drive’s option slot retain their configuration after the control board is replaced. Module address settings stored in the drive’s non-volatile memory may need to be re-entered manually if the original board suffered a memory fault prior to replacement.

Downtime Control During System Migration

Minimizing production interruption during a drive control board replacement requires a structured pre-outage preparation protocol. Before initiating the physical swap, export a full parameter backup from the existing ACS600 or ACS800 drive using DriveWindow Light or DriveStudio software. This backup preserves motor nameplate data, speed reference scaling, PID tuning parameters, fault history, and all fieldbus configuration settings — enabling rapid parameter restore to the SNAT-7030 immediately after installation.

Where the production line cannot tolerate extended downtime, a staged migration approach is recommended: install and pre-configure the SNAT-7030 in a bench environment using a spare drive unit of the same frame size, restore the parameter backup, and verify all I/O signal mappings before bringing the board to the field. This approach reduces live commissioning time to under 30 minutes in most standard ACS600/ACS800 retrofit scenarios.

During the live cutover, follow the ABB-recommended power-down sequence: disable the drive enable signal, open the main contactor, discharge the DC bus, and confirm zero-voltage before accessing the control board slot. After installing the SNAT-7030, restore parameters, re-initialize the fieldbus adapter, verify analog and digital I/O signal levels, and perform a no-load test run before returning the drive to automatic control. Maintaining a written commissioning checklist — covering terminal torque values, fiber-optic connector seating, and firmware version confirmation — reduces the risk of repeat faults and protects the integrity of the original control program logic throughout the migration.

Retrofit Support FAQ

Q1: Is the SNAT-7030 a direct drop-in replacement for the original ABB ACS600 and ACS800 control boards?
Yes. The SNAT-7030 is designed as a direct slot replacement for compatible ACS600 and ACS800 drive frames. No mechanical modification is required. Confirm the drive frame size and firmware revision prior to installation to ensure full compatibility.

Q2: What commissioning steps are required after installing the SNAT-7030?
After physical installation, restore the parameter backup via DriveWindow or DriveStudio, re-initialize any installed fieldbus adapters (PROFIBUS, Modbus, or DDCS), verify all analog and digital I/O signal levels, and perform a no-load test run. HMI panel communication should also be confirmed before returning the drive to automatic operation.

Q3: Does the SNAT-7030 support DDCS fiber-optic communication for multi-drive or master-follower configurations?
Yes. The SNAT-7030 supports DDCS fiber-optic communication compatible with the RDCO-02 and RDCO-03 communication modules. For master-follower or multi-drive topologies, re-initialize the DDCS node address and verify fiber-optic connector seating after board replacement.

Q4: What support terms and stock availability does KNMKS provide for the SNAT-7030?
All SNAT-7030 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. Each unit undergoes pre-shipment functional testing covering output signal integrity, communication link verification, and control loop response. In-stock units are available for immediate dispatch. Contact [email protected] or +86 18359268345 for lead time and quantity availability.
