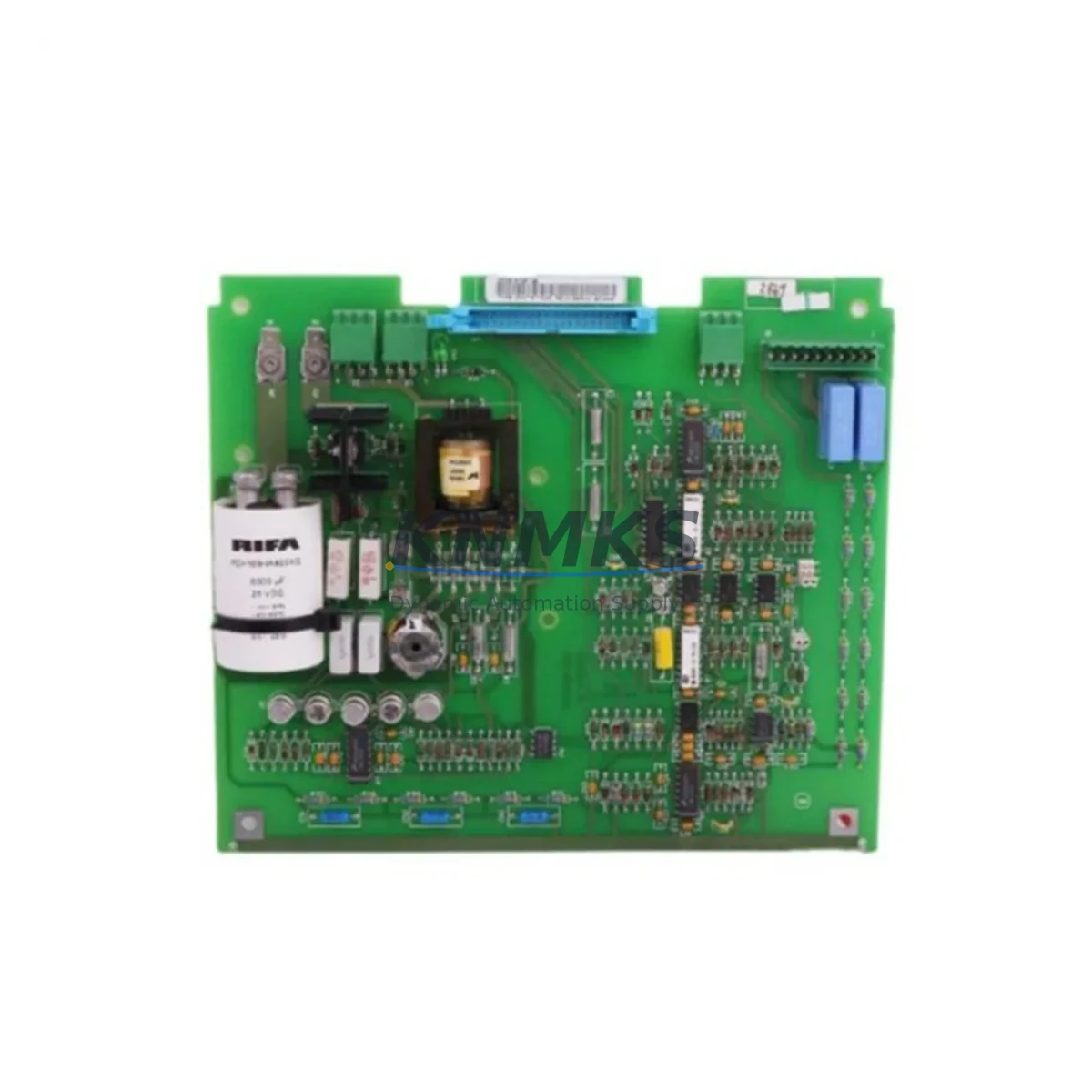

ABB SNAT-617-CHC 61037136 Migration-Ready Control Board

Overview

ABB SNAT-617-CHC 61037136 Migration-Ready Control Board for Legacy AC Drive Systems

The ABB SNAT-617-CHC (part number 61037136) is a migration-ready control board engineered for direct replacement and retrofit integration within ABB ACS600 and ACS800 series AC drive platforms. As legacy drive systems approach end-of-life and OEM support windows close, the SNAT-617-CHC provides a verified, drop-in upgrade path that preserves existing control architecture while restoring full drive functionality. Whether you are managing a planned modernization project or responding to an unplanned drive failure, this board is stocked, tested, and ready for immediate dispatch with a support terms confirmed by quotation.

Industrial facilities running ACS600 or ACS800 drives in pump stations, compressor lines, conveyor systems, and process control cabinets rely on the SNAT-617-CHC as the central control intelligence of the drive. The board manages speed reference processing, fault diagnostics, fieldbus communication, and I/O coordination. When this board fails or degrades, the entire drive becomes inoperable — making rapid, compatible replacement critical to minimizing production downtime.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the SNAT-617-CHC into an existing control cabinet begins with a thorough pre-replacement audit. Engineers should document the current drive parameter set using the ABB CDP312R control panel or DriveWindow software before removing the faulty board. This ensures that motor nameplate data, speed scaling, acceleration/deceleration ramps, and PID control parameters can be restored immediately after the new board is seated.

Power supply capacity within the control cabinet must be confirmed before installation. The SNAT-617-CHC draws its logic supply from the drive’s internal SMPS (Switched Mode Power Supply) section — typically the SNAT-601-PAC or equivalent power supply board within the ACS600 chassis. If the existing power supply board shows signs of aging or voltage ripple, it is advisable to replace it concurrently to avoid a secondary failure shortly after the control board retrofit.

For systems using DDCS fiber-optic communication links — common in multi-drive configurations where an NAMC master controller coordinates several ACS600 drives — the fiber optic cables connecting the SNAT-617-CHC to the NAMC board must be inspected for bend radius compliance and connector cleanliness. Contaminated or damaged fiber links are a frequent cause of communication faults that can be misdiagnosed as control board failure.

In installations where PROFIBUS-DP fieldbus integration is required, the NPBA-12 PROFIBUS adapter module connects to the SNAT-617-CHC via the drive’s option slot. The GSD file and node address configured in the PLC — typically a Siemens S7-300 or S7-400 series controller in legacy plant environments — must match the drive’s fieldbus parameter settings. Confirm that the PLC program’s I/O mapping remains consistent with the drive’s process data word configuration after the board swap.

For facilities managing I/O expansion across multiple drive cabinets, the SNAT-617-CHC’s digital and analog I/O terminals should be mapped against the original wiring diagram before disconnection. Standard ACS600 control wiring includes 24 VDC digital inputs for start/stop and fault reset commands, analog speed reference inputs (0–10 V or 4–20 mA), and relay outputs for run/fault status feedback to the plant DCS or SCADA system. Retaining the original terminal block layout eliminates rewiring errors and accelerates recommissioning.

Where the legacy system includes an ABB ACS800 with an RDCO-02 DDCS communication board or an RINT-5611C rectifier control board, these companion modules should be functionally tested during the same maintenance window. Replacing only the SNAT-617-CHC while leaving degraded companion boards in service increases the risk of a repeat outage within a short interval.

Downtime Control During System Migration

Minimizing production downtime during a control board replacement requires preparation that begins before the drive is de-energized. The complete parameter backup — including application macros, motor data, and fieldbus configuration — should be saved to the CDP312R panel memory or exported via DriveWindow to a laptop. This backup becomes the restoration baseline and eliminates the need for re-commissioning from scratch.

Before powering down the drive, confirm that the process can be safely held in a stable state: upstream and downstream equipment should be brought to a controlled stop, and any interlocks or permissive signals from the plant DCS should be acknowledged. For continuous process lines where even brief interruptions are costly, coordinate the replacement during a scheduled maintenance window or shift changeover.

Physical replacement of the SNAT-617-CHC is straightforward: discharge the DC bus capacitors fully (minimum 5 minutes after power-off), remove the control section cover, disconnect the ribbon cables and fiber optic links, unseat the board, install the replacement, and reconnect all cables in reverse order. Verify that all connectors are fully seated and that no fiber optic cables are sharply bent.

On power-up, restore the parameter backup and perform a motor identification run if the drive’s motor data was not previously optimized. Verify fieldbus communication status, confirm digital I/O operation with the plant control room, and run the drive at low speed under no-load conditions before returning to full production. A structured commissioning checklist — covering firmware version confirmation, fault log clearance, speed reference verification, and relay output testing — reduces the risk of overlooked configuration errors that could cause a nuisance trip during the first production run.

With proper preparation, a like-for-like SNAT-617-CHC replacement can typically be completed within a two- to four-hour maintenance window, including parameter restoration and functional verification — well within the tolerance of most planned maintenance schedules.

Retrofit Support FAQ

Q: Is the SNAT-617-CHC a direct drop-in replacement for all ACS600 and ACS800 variants?
A: The SNAT-617-CHC is compatible with the standard ACS600 and ACS800 control board slot. However, some ACS800 variants use application-specific firmware loaded onto the control board. Confirm the drive’s firmware type (standard, pump/fan, crane, etc.) and ensure the replacement board is loaded with the matching firmware version before installation. We can advise on firmware compatibility based on your drive’s type designation.

Q: Do I need to re-enter all drive parameters after replacing the board?
A: If a parameter backup was saved to the CDP312R panel or via DriveWindow prior to removal, parameters can be restored in minutes. If no backup exists, parameters must be re-entered manually from the drive’s commissioning records or motor nameplate data. We recommend always performing a parameter backup before any control board replacement.

Q: What pre-shipment testing is performed on the SNAT-617-CHC?
A: Each SNAT-617-CHC unit undergoes functional verification prior to dispatch, including power-on self-test, communication interface check, and I/O continuity verification. Units are shipped in anti-static packaging with inspection documentation. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of receipt.

Q: What is the typical lead time and stock availability?
A: The SNAT-617-CHC (61037136) is maintained availability confirmed by RFQ for immediate dispatch. Standard orders are processed and shipped within 1–3 business days. For urgent breakdown situations, expedited dispatch is available — contact our sales team directly to confirm current stock levels and arrange priority shipping.
