ABB SM560-S 1SAP280000R0001 Spare Part for Factory Uptime

Overview

ABB SM560-S 1SAP280000R0001 Spare Part for Factory Uptime

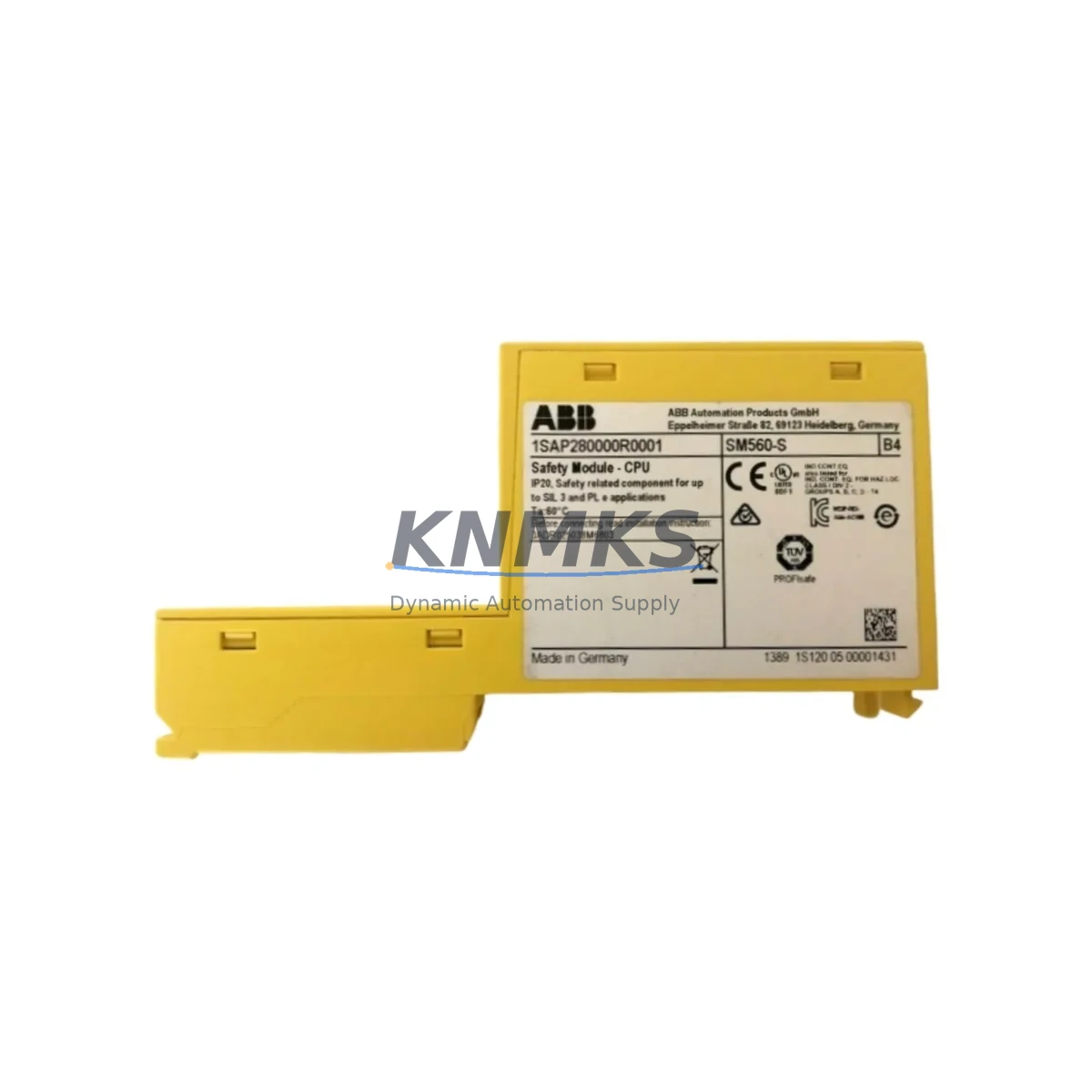

The ABB SM560-S (order reference 1SAP280000R0001) is a Safety CPU module within the AC500-S Safety PLC platform — one of ABB’s most widely deployed safety-rated control architectures in process automation, machine safety, and critical infrastructure applications. Designed to meet IEC 61508 SIL3 and EN ISO 13849 PLe requirements, this module serves as the central processing unit for safety-critical logic execution, including emergency shutdown (ESD), safety interlock, and process protection functions.

For maintenance engineers managing aging AC500-S installations, sourcing a verified replacement SM560-S is often time-critical. Unplanned CPU failures in safety PLC systems can trigger full production shutdowns, requiring immediate access to a tested, compatible spare. Keeping the SM560-S in your on-site or regional spare parts inventory is a recognized best practice for facilities operating under IEC 61511 functional safety management requirements.

Our SM560-S units are sourced from verified supply channels, individually tested prior to dispatch, and shipped with a support terms confirmed by quotation. Each unit undergoes pre-shipment functional verification to confirm communication integrity, I/O bus readiness, and firmware compatibility before leaving our facility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the SM560-S in an AC500-S safety rack, a structured maintenance review of the surrounding components is essential to avoid repeat failures and ensure the restored system meets its original SIL rating. Maintenance engineers should treat the CPU replacement as an opportunity to audit the full safety loop.

Begin with the rack power supply module (e.g., CP502 or CP504 series) — an undersized or aging PSU is a common root cause of CPU instability in AC500-S systems. Verify output voltage stability under load before re-energizing the replaced SM560-S. Next, inspect the SM560-S terminal base (TB5xx) for contact wear, corrosion, or mechanical damage; a degraded terminal base can cause intermittent communication faults even with a new CPU installed.

Review the SM560-S I/O expansion modules connected via the local bus — particularly any SM560-S-compatible digital safety I/O modules (e.g., SM560-S I/O extensions or DC532-XC digital I/O modules) for diagnostic fault codes logged prior to the CPU failure. These logs often reveal upstream wiring faults, sensor failures, or ground leakage that contributed to the original fault condition.

For systems using PROFIBUS DP or CANopen communication modules (e.g., CM572-DP or CM574-RS), confirm that the network configuration and node addresses are correctly restored after CPU replacement. Safety PLC CPU swaps frequently require re-downloading the safety application and re-validating the safety function — coordinate with your functional safety engineer before returning the system to service.

Additionally, inspect 24 VDC distribution fuses and terminal blocks feeding the safety rack. Fuse degradation or loose terminal connections are a leading cause of nuisance trips in safety PLC installations. If the facility uses signal isolators or safety relays (e.g., ABB JOKAB or equivalent) in the ESD loop, verify their output contacts and response times as part of the post-replacement commissioning checklist.

For sites running extended AC500-S installations, maintaining a minimum spare inventory of one SM560-S CPU, one compatible power supply module, and one set of safety I/O modules is recommended to support rapid recovery from unplanned failures without waiting on lead times.

Site Replacement Workflow

Step 1 — Pre-Replacement Documentation: Export the current safety application project from ABB Automation Builder / PS501 Control Builder. Confirm firmware version on the existing SM560-S (if still accessible) and note the safety application CRC checksum for post-replacement validation.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. De-energize the AC500-S rack via the upstream 24 VDC supply. Confirm all safety outputs are in their safe state before proceeding.

Step 3 — Module Removal: Release the SM560-S from the terminal base (TB5xx) by pressing the release lever and sliding the module upward. Avoid touching the backplane connector pins. Label all communication cables before disconnection.

Step 4 — Replacement Installation: Seat the new SM560-S onto the terminal base until the locking mechanism engages. Reconnect communication cables in the correct order. Restore 24 VDC supply and observe the module’s LED diagnostic indicators for normal startup sequence.

Step 5 — Application Download and Validation: Using ABB Automation Builder, download the safety application to the new SM560-S. Perform a full safety function test per your site’s functional safety validation plan. Confirm the safety application CRC matches the pre-replacement record before releasing the system to production.

Step 6 — Return to Service: Document the replacement in the site maintenance log, including the new module serial number, firmware version, and validation test results. Update the spare parts inventory record accordingly.

Spare Parts Support FAQ

Q1: Is this SM560-S unit a direct drop-in replacement for my existing AC500-S installation?
Yes. The SM560-S (1SAP280000R0001) is the standard AC500-S Safety CPU and is designed for direct replacement within compatible AC500-S racks using TB5xx terminal bases. Firmware compatibility should be confirmed against your existing safety application version before installation. Our team can assist with firmware version guidance prior to dispatch.

Q2: What pre-shipment testing is performed on each unit?
Each SM560-S undergoes functional power-on testing, communication bus verification, and visual inspection for connector and housing integrity before dispatch. Units are shipped in anti-static packaging with individual test records available on request.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or environmental conditions outside the module’s rated specifications. Support requests are processed with priority turnaround to minimize site downtime.

Q4: Can you support long-term or repeat supply of the SM560-S for multi-site maintenance programs?
Yes. We maintain standing stock of the SM560-S and can support blanket purchase orders, scheduled releases, and multi-site spare parts programs. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stock arrangements for critical spare management.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SM560-S 1SAP280000R0001
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB SM560-S 1SAP280000R0001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
