ABB SINT4420C Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB SINT4420C Maintenance-Proven Spare Part for Factory Uptime

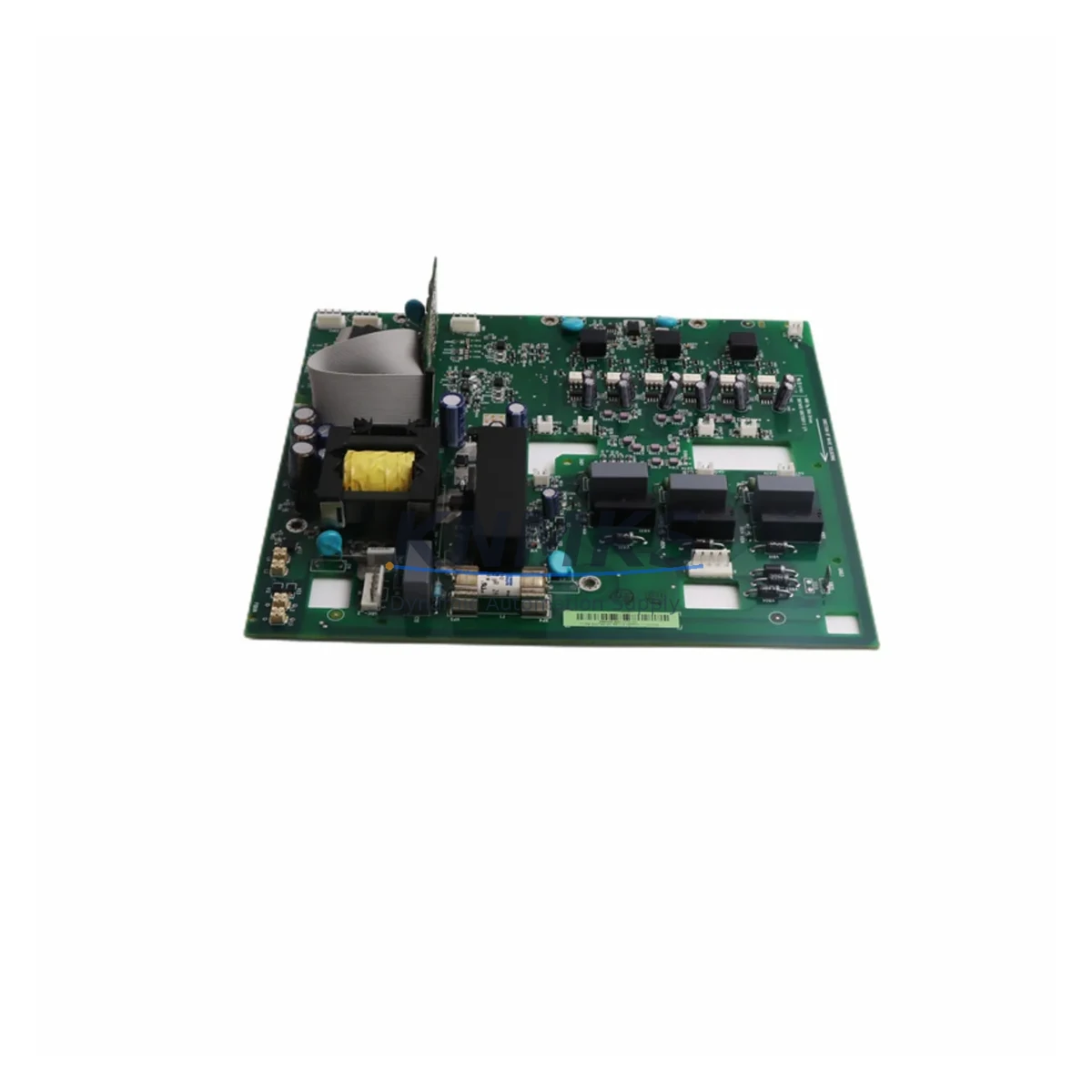

The ABB SINT4420C is a factory-original power supply board designed for the ACS800 series of industrial AC drives. In high-demand production environments — petrochemical plants, power generation facilities, mining operations, water treatment stations, and port automation systems — the ACS800 drive platform is a cornerstone of motor control infrastructure. When a power supply board fails, the result is immediate: unplanned downtime, halted production lines, and costly emergency procurement. Stocking the SINT4420C as a validated spare part is the most reliable strategy to restore operations within hours rather than days.

The SINT4420C provides regulated DC power to the ACS800 drive’s control electronics, gate driver circuits, and communication interfaces. Its failure typically manifests as a drive fault code, loss of control panel communication, or complete drive shutdown. Maintenance engineers familiar with the ACS800 platform recognize that the power supply board is among the highest-priority components to keep on the shelf — second only to the IGBT gate driver board and the main control board (RMIO or RDCO series).

Each SINT4420C unit supplied by KNMKS is sourced from verified industrial channels, inspected against ABB’s original specifications, and subjected to pre-shipment functional testing. A support terms confirmed by quotation is included with every unit, covering defects in materials and workmanship under normal industrial operating conditions. Global express shipping is available to support multi-site maintenance teams and emergency replacement scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the SINT4420C in an ACS800 drive is rarely an isolated task. A thorough maintenance engineer will use the opportunity to inspect and — where appropriate — replace adjacent components that share the same operational stress cycle. The ACS800 drive’s internal power distribution affects multiple boards simultaneously, and a failed power supply board may have caused secondary stress on connected components.

During a SINT4420C replacement, the following components should be inspected or tested as part of a complete drive service: the RMIO-02 main control board, which depends on stable low-voltage DC rails from the power supply; the RDCO-03 or RDCO-04 communication option board, which may have experienced voltage transients during the fault event; and the AINT-02 or AINT-14 auxiliary interface board if installed. The drive’s internal DC bus capacitors and the BCON-11 brake control board should also be checked for signs of thermal stress.

At the cabinet level, maintenance teams should verify the integrity of the 24 VDC auxiliary power supply feeding the drive’s control circuit, inspect terminal block connections on the X1 and X2 control wiring terminals, and confirm that the drive’s cooling fan — typically an ABB-specified axial fan module — is operating within specification. Fuse integrity on the input power circuit and the motor output circuit should be confirmed before re-energizing the drive. If the ACS800 is part of a multi-drive system using a common DC bus, the BSFC-01 or BSFC-02 bus supply filter capacitor bank should be evaluated as part of the same maintenance window.

For facilities running legacy ACS800 systems beyond their original design life, a proactive spare parts strategy should include at minimum: one SINT4420C power supply board, one RMIO main control board, one set of gate driver boards (AINT series), and one set of drive cooling fans. This four-component kit covers the majority of field-replaceable failures and enables same-shift restoration in most fault scenarios.

Site Replacement Workflow

Step 1 — Fault Isolation: Record the active fault code from the ACS800 control panel (CDP-312R or similar). Fault codes F-0001 through F-0009 and A-0001 through A-0009 in the power supply group indicate SINT4420C-related failures. Document the drive’s firmware version and frame size before ordering.

Step 2 — Safe Isolation: Isolate the drive from the main power supply using the upstream isolation switch or circuit breaker. Allow a minimum of 5 minutes for DC bus capacitor discharge. Verify zero voltage on the DC bus terminals using a calibrated multimeter before opening the drive cabinet.

Step 3 — Board Removal: Following ESD precautions (grounded wrist strap, ESD mat), disconnect all ribbon cables and connector harnesses from the SINT4420C. Note the cable routing and connector positions before removal. Remove the board using the appropriate Torx or Phillips fasteners as specified in the ACS800 hardware manual.

Step 4 — Replacement Installation: Install the new SINT4420C, reconnect all harnesses in the documented sequence, and verify connector seating. Restore drive power and observe the control panel for normal startup behavior. Clear any latched fault codes using the CDP panel or DriveWindow software.

Step 5 — Functional Verification: Run the drive through a no-load test cycle, verify output voltage and frequency on all three phases, and confirm that all I/O signals, fieldbus communication (PROFIBUS, Modbus, or DeviceNet as applicable), and speed reference inputs are responding correctly before returning the drive to production service.

Spare Parts Support FAQ

Q1: Is the SINT4420C compatible with all ACS800 frame sizes?
The SINT4420C is designed for specific ACS800 frame sizes. Compatibility depends on the drive’s power rating and hardware revision. Always provide your drive’s full nameplate data — including the type code, frame size, and firmware version — when ordering. KNMKS technical staff can cross-reference your drive’s configuration to confirm compatibility before shipment.

Q2: What pre-shipment testing is performed on each SINT4420C unit?
Every SINT4420C unit undergoes a functional power-on test prior to shipment. This includes verification of output voltage rails, visual inspection for component damage, and confirmation of connector integrity. Units that do not pass testing are not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover defects in materials and workmanship under normal industrial operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the drive’s rated parameters. KNMKS provides direct support terms support — no third-party RMA process required.

Q4: Can KNMKS support long-term or blanket purchase orders for ACS800 spare parts?
Yes. KNMKS supports long-term supply agreements for ACS800 spare parts, including the SINT4420C and related boards. For facilities managing multiple ACS800 drives or planning multi-year maintenance budgets, contact our sales team to discuss inventory reservation, scheduled delivery, and volume pricing options.
