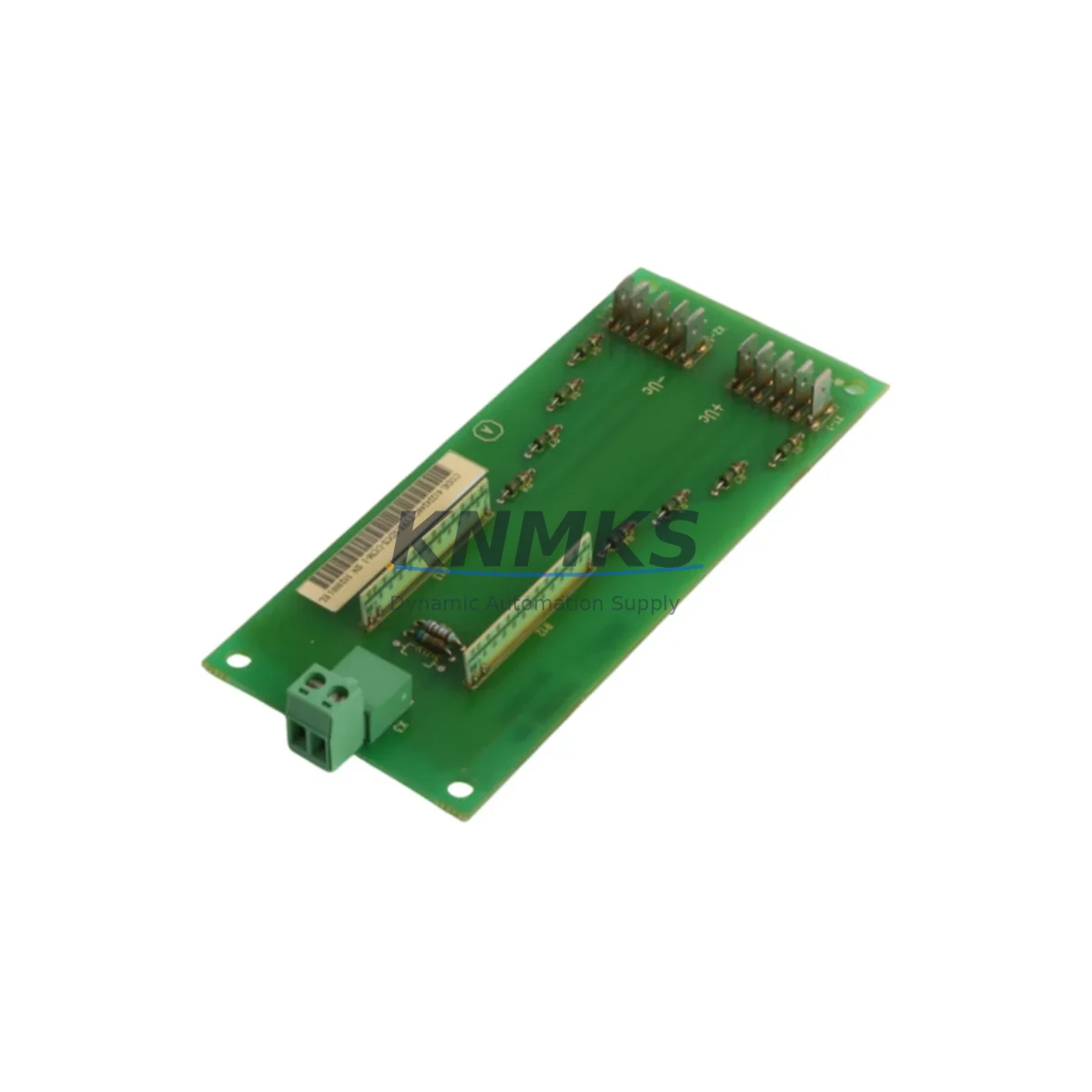

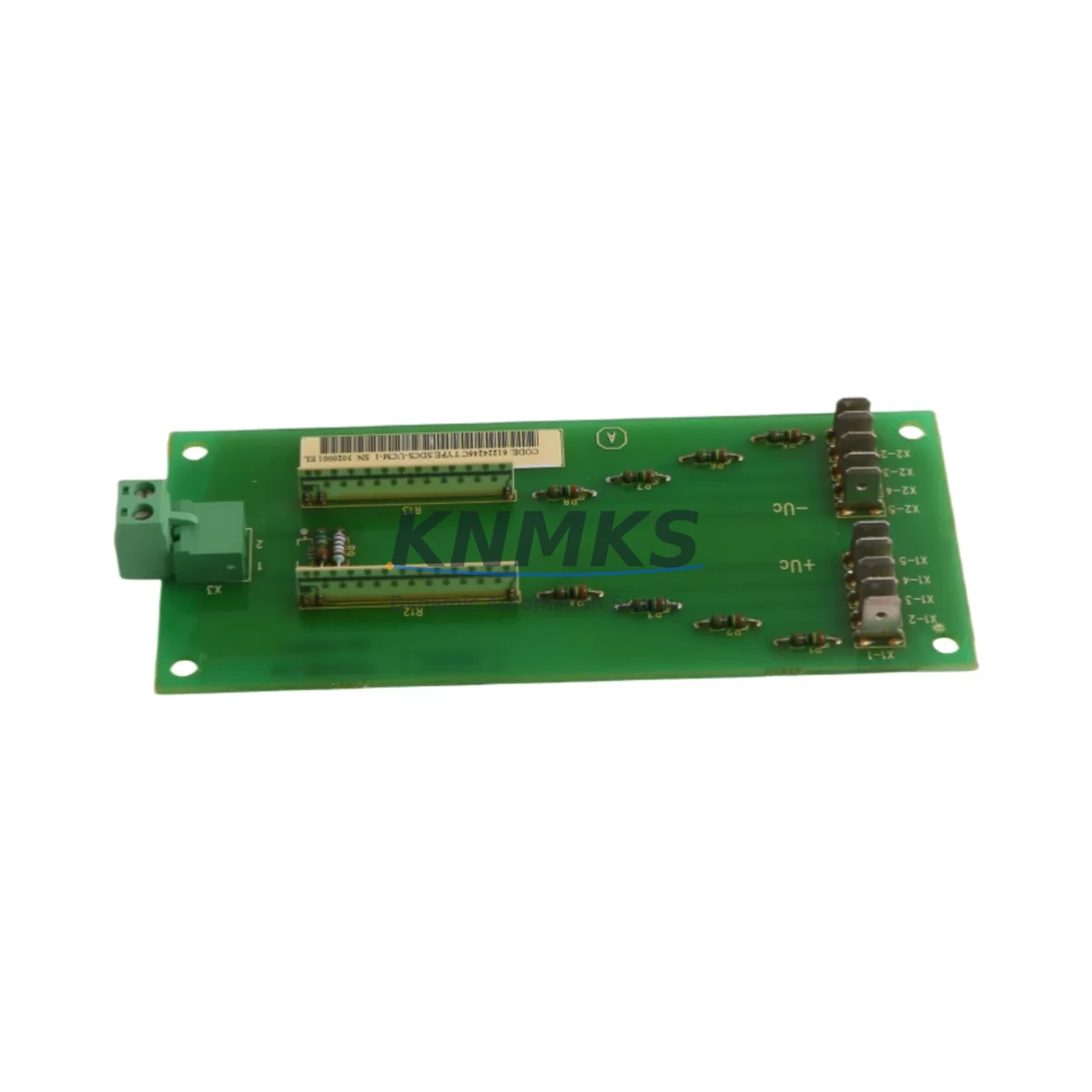

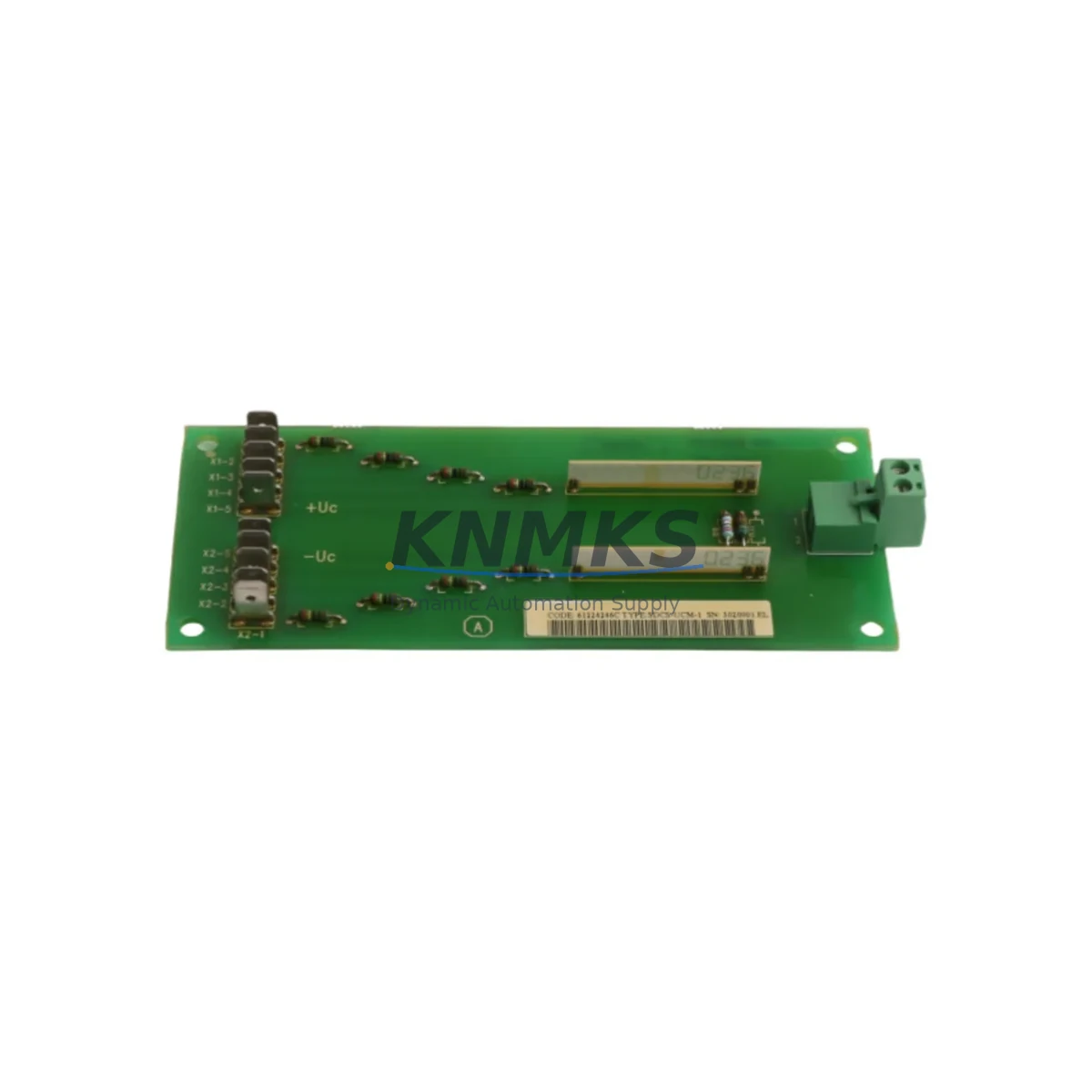

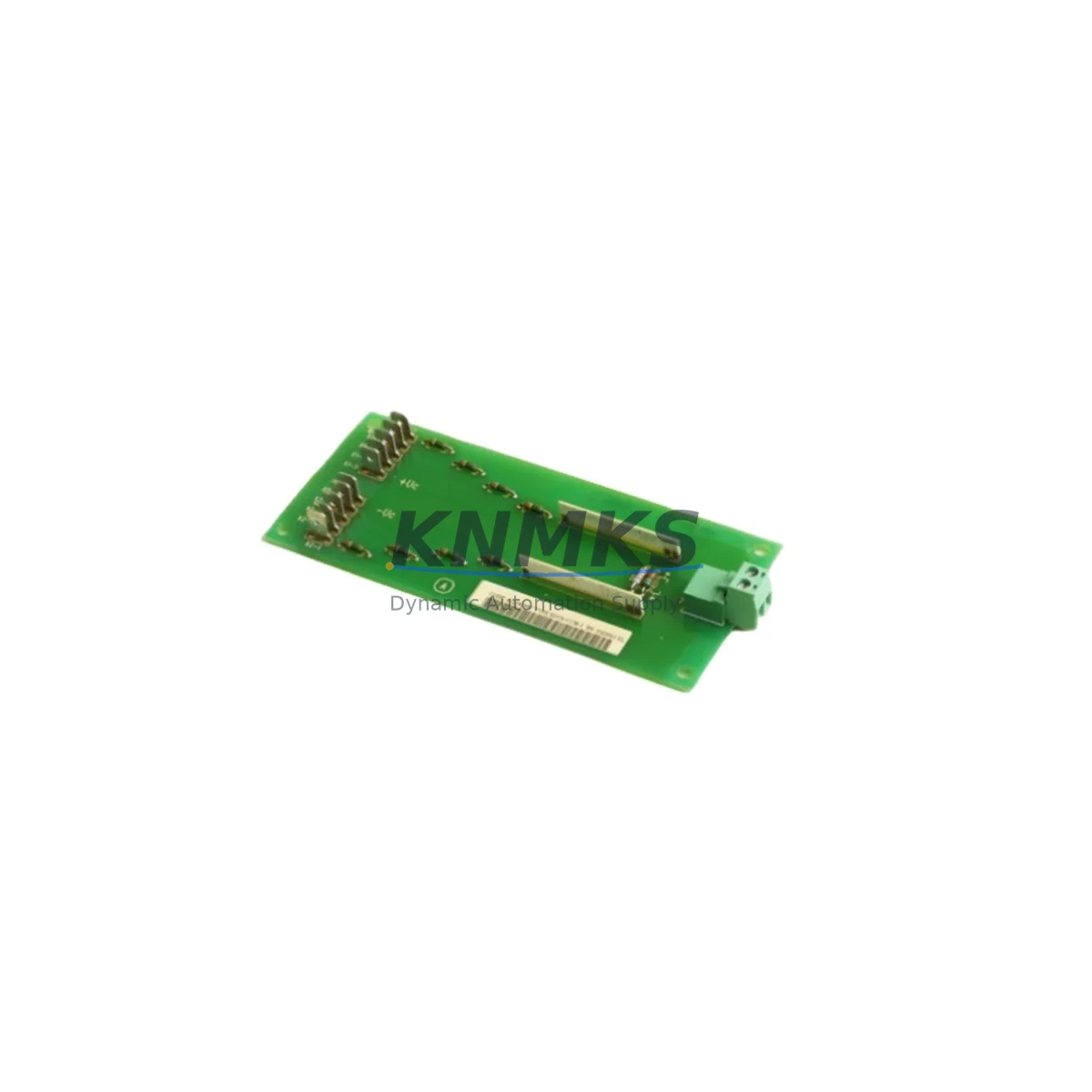

ABB SDCS-UCM-1 3ADT220090R0008 Migration-Ready Comm Module

Overview

ABB SDCS-UCM-1 3ADT220090R0008 Migration-Ready Comm Module for Legacy Control Systems

When a legacy DC drive system reaches end-of-life or a critical communication module fails in the field, every hour of unplanned downtime translates directly into production loss and safety risk. The ABB SDCS-UCM-1 (part number 3ADT220090R0008) is a universal communication module engineered for the SDCS series DC drive platform, providing a reliable, migration-ready solution for engineers tasked with replacing discontinued components, upgrading communication protocols, or modernizing aging control architectures without a full drive replacement.

The SDCS-UCM-1 serves as the communication bridge between the SDCS DC drive and the plant-level control network. Whether the existing system runs on PROFIBUS-DP, Modbus RTU, DeviceNet, or a proprietary fieldbus, the UCM-1 module supports protocol migration with minimal changes to the existing drive configuration. This makes it an essential component in retrofit projects where the control cabinet, cabling infrastructure, and PLC program must be preserved while the communication layer is upgraded to meet current network standards.

For maintenance engineers and system integrators working on SDCS-based DC drive systems in steel mills, paper machines, crane drives, extruder lines, and marine propulsion applications, the SDCS-UCM-1 provides a direct drop-in replacement path. The module occupies the same slot position on the SDCS control board, uses the same terminal connections, and is recognized by the existing drive firmware without requiring a full parameter reset — a critical advantage when the original drive program must be preserved to maintain process continuity.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SDCS-UCM-1 retrofit begins with a thorough audit of the existing control cabinet. Before ordering the replacement module, engineers should document the current drive firmware version, the active fieldbus protocol, the node address assigned to the drive, and the PLC I/O mapping that references the drive’s process data objects. In most SDCS installations, the drive communicates with a Siemens S7 or Allen-Bradley ControlLogix PLC via PROFIBUS-DP, and the UCM-1 replacement must be configured to match the existing GSD file and cyclic data structure to avoid PLC program modifications.

The SDCS-UCM-1 is typically installed alongside other SDCS option modules. In multi-axis DC drive cabinets, it is common to find the SDCS-FEX-2 field excitation module and the SDCS-IOB-3 I/O extension board occupying adjacent slots on the same control board. These modules share the SDCS backplane and must remain undisturbed during the UCM-1 swap. Engineers should also verify the SDCS-CON-4 control board condition, as a degraded control board can cause intermittent communication faults that are incorrectly attributed to the UCM module.

For systems where the legacy communication protocol is being migrated — for example, from a proprietary ABB Advant fieldbus to PROFIBUS-DP — the SDCS-UCM-1 combined with the appropriate RPBA-01 PROFIBUS adapter provides a clean migration path. The RPBA-01 mounts on the UCM-1 and handles the PROFIBUS physical layer, while the UCM-1 manages the drive-side data exchange. This two-component approach allows the fieldbus upgrade to be completed without modifying the SDCS drive’s internal parameter set or the existing HMI screen layouts that reference drive status words.

In retrofit projects involving older DCS400 or DCS500 drives, engineers frequently need to replace not only the UCM module but also the SDCS-PIN-51 pulse encoder interface or the SDCS-AMC-DC-1 advanced motor control board. Sourcing these components from a single supplier with verified compatibility and pre-shipment testing significantly reduces the risk of receiving mismatched firmware versions or counterfeit parts — a growing concern in the legacy spare parts market.

Downtime Control During System Migration

Minimizing downtime during a communication module replacement on an active DC drive system requires careful pre-migration preparation. The recommended approach is to export the full drive parameter set using the ABB DriveWindow or DriveWindow Light software before removing the existing UCM-1. This parameter backup preserves all speed references, current limits, ramp settings, and fieldbus configuration data, allowing the drive to be restored to its exact pre-maintenance state if the replacement module requires a parameter reload.

During the physical swap, the SDCS drive must be powered down completely — including the 24V auxiliary supply to the control board — before removing the UCM-1 from its slot. Failure to de-energize the control board before module removal can corrupt the drive’s non-volatile memory and cause loss of the parameter set. Once the replacement SDCS-UCM-1 is seated and the drive is powered up, the fieldbus communication should be verified at the PLC level before re-enabling the drive’s run command. Most PROFIBUS masters will report a station failure alarm during the module swap; this alarm should clear automatically once the new UCM-1 establishes communication and the node address is confirmed.

For continuous production environments where even a brief drive stop is unacceptable, a parallel commissioning strategy is recommended: install and configure the replacement UCM-1 in a bench test setup using a spare SDCS drive or a drive simulator, verify the full communication cycle with the PLC in offline mode, and then execute the field swap during a planned maintenance window. This approach reduces the live commissioning time to under 30 minutes in most cases, protecting the original process logic and maintaining field control continuity throughout the migration.

Retrofit Support FAQ

Q1: Is the SDCS-UCM-1 3ADT220090R0008 a direct replacement for all SDCS communication modules?
The SDCS-UCM-1 is the standard universal communication module for the SDCS series and is compatible with DCS400, DCS500, and DCS600 drive platforms. Compatibility depends on the drive’s control board revision and firmware version. We recommend providing your existing drive nameplate data and firmware version when ordering to confirm direct replaceability. Our technical team will verify compatibility before shipment.

Q2: What pre-shipment testing is performed on the SDCS-UCM-1?
Every SDCS-UCM-1 unit undergoes full functional testing prior to shipment, including communication interface verification, backplane connector inspection, and firmware version confirmation. Units are shipped with a test report and are covered by a support terms confirmed by quotation from the date of delivery. Failed units within the confirmed support period are replaced or refunded without additional cost.

Q3: Can the existing fieldbus wiring and PLC program be reused after replacing the UCM-1?
In most cases, yes. The SDCS-UCM-1 uses the same physical connector and fieldbus pinout as the original module, allowing existing cable harnesses to be reused without modification. The PLC program and GSD file configuration can typically be retained unchanged, provided the replacement module is configured with the same node address and cyclic data length as the original. Minor parameter adjustments may be required if the replacement module carries a different firmware revision.

Q4: Do you support long-term supply agreements for SDCS spare parts?
Yes. For customers managing multi-site SDCS drive installations or planning phased retrofit programs over 12–36 months, we offer long-term supply commitments with reserved stock allocation. This ensures consistent part availability and pricing stability across extended project timelines. Contact our sales team to discuss volume requirements and supply agreement terms.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SDCS-UCM-1 3ADT220090R0008

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB SDCS-UCM-1 3ADT220090R0008
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
