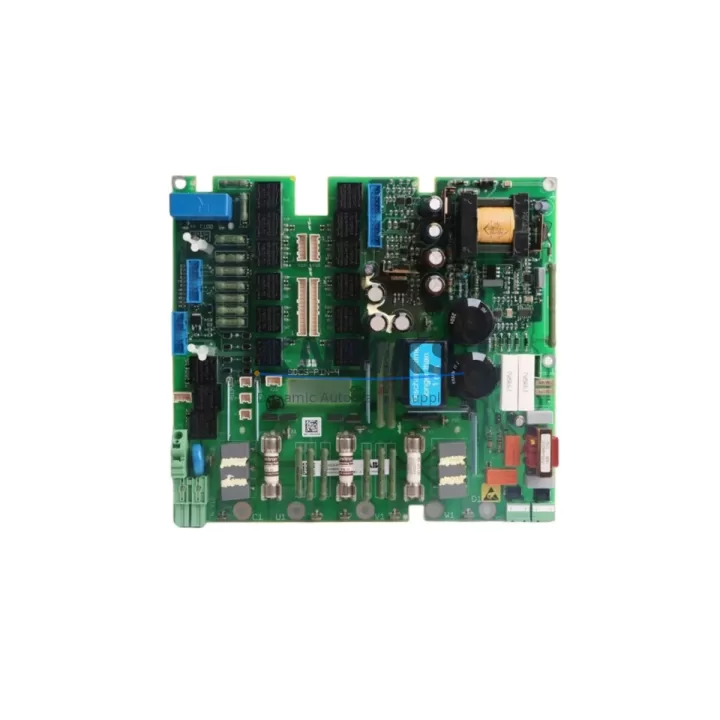

ABB SDCS-REB-1C Migration-Ready Power Interface Board

Overview

ABB SDCS-REB-1C Migration-Ready Power Interface Board for Legacy DC Drive Systems

The ABB SDCS-REB-1C is a power interface board engineered for the DCS 500 Series DC drive platform — one of ABB’s most widely deployed drive families across heavy industry, metals processing, paper mills, and marine propulsion systems. As the DCS 500 series approaches end-of-life and spare parts availability tightens, the SDCS-REB-1C remains a critical component for engineers managing legacy drive cabinets, executing controlled retrofits, or extending the operational life of existing DC motor control systems.

This board serves as the primary interface between the drive’s power electronics and its control circuitry, managing gate firing signals, feedback conditioning, and power supply distribution within the DCS 500 drive stack. Its role is central to drive stability: a degraded or failed SDCS-REB-1C typically manifests as erratic firing sequences, DC bus instability, or complete drive shutdown — all of which translate directly to unplanned production downtime in continuous process environments.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the SDCS-REB-1C within an operational DCS 500 drive cabinet requires a structured approach to avoid introducing new faults during the migration window. Before the board swap, engineers should document the existing firing angle parameters stored in the SDCS-CON-2 or SDCS-CON-4 control board — these parameter sets define motor-specific tuning and must be preserved or re-entered after the replacement. If the control board itself is also degraded, sourcing a matched SDCS-CON-4 alongside the SDCS-REB-1C is strongly recommended to avoid compounding commissioning complexity.

Power supply integrity is a prerequisite for a clean board swap. The SDCS-POW-4 auxiliary power supply board within the DCS 500 stack should be verified for correct output voltages before the new SDCS-REB-1C is installed. A marginal power supply delivering out-of-tolerance voltages will stress the replacement board immediately upon energization and may produce misleading fault codes that obscure the root cause. Confirm all PSU rails are within specification using the drive’s built-in diagnostics or a calibrated multimeter before proceeding.

For sites running the DCS 500 in a multi-drive configuration — common in rolling mill stands, winder/unwinder pairs, or coordinated conveyor systems — the SDCS-COM-8 communication board handles inter-drive coordination and fieldbus connectivity. During the replacement window, verify that the communication link remains stable and that the replacement board does not introduce timing offsets that affect coordinated drive sequences. In Profibus-connected installations, the network master should be monitored for any address conflicts or timeout alarms during the commissioning phase.

Where the DCS 500 interfaces with legacy HMI panels or SCADA systems via the NDIO-01 digital I/O extension module or analog signal conditioning boards, confirm that all feedback signals — speed reference, current feedback, fault relay outputs — are correctly re-established after the board swap. Signal drift or open-circuit feedback paths post-installation are a common source of commissioning delays and should be verified systematically against the original loop drawings.

For sites considering a broader migration from DCS 500 to the current DCS 800 platform, the SDCS-REB-1C replacement can serve as a bridge strategy — restoring drive operability while the full migration is planned and budgeted. The DCS 800 series offers direct motor compatibility with existing DC motors, reducing the scope of mechanical changes required during the eventual platform upgrade.

Downtime Control During System Migration

Minimizing production interruption during a DCS 500 power interface board replacement depends on preparation quality, not execution speed. The most effective downtime reduction strategy begins with a pre-shutdown parameter backup: all drive parameters stored in the SDCS-CON control board should be exported or manually recorded before the cabinet is de-energized. This single step eliminates the risk of losing motor-specific tuning data and reduces post-installation commissioning time from hours to minutes.

Cabinet de-energization must follow the full DCS 500 shutdown sequence — including DC bus discharge verification — before any board handling begins. Residual DC bus voltage in large drive cabinets can persist for several minutes after AC supply isolation and represents a serious safety hazard. Use a calibrated voltage tester on the DC bus terminals before touching any internal components.

Once the SDCS-REB-1C is installed, the recommended commissioning sequence is: power-on self-test verification, auxiliary PSU rail check, control board communication handshake confirmation, and finally a no-load motor run to verify firing sequence integrity before returning the drive to production load. This structured sequence catches installation errors at the lowest-risk stage and prevents load-bearing faults that could damage the motor or downstream mechanical equipment.

For critical production lines where even a planned maintenance window carries significant cost, maintaining a pre-tested SDCS-REB-1C as a cold standby spare is the most reliable downtime mitigation strategy. Each unit supplied by KNMKS is pre-shipment tested and verified against DCS 500 drive specifications, ensuring that the spare board is ready for immediate installation without additional bench testing on site.

Retrofit Support FAQ

Q1: Is the SDCS-REB-1C a direct drop-in replacement for all DCS 500 drive variants?
The SDCS-REB-1C is compatible with the standard DCS 500 drive stack. Confirm your specific drive frame size and control board variant (SDCS-CON-2 or SDCS-CON-4) before ordering. For non-standard or customized DCS 500 configurations, contact our technical team with your drive nameplate data for compatibility verification.

Q2: What pre-shipment testing is performed on each unit?
Every SDCS-REB-1C supplied by KNMKS undergoes functional verification prior to dispatch, including power rail integrity checks and interface connector inspection. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can the SDCS-REB-1C be used as a long-term spare for multi-site DCS 500 fleets?
Yes. KNMKS maintains stock of the SDCS-REB-1C to support long-term spare parts programs for industrial operators running DCS 500 drives across multiple facilities. Contact us to discuss volume availability, lead times, and consignment stock arrangements for critical spare parts programs.

Q4: What should be verified if the replacement board triggers fault codes immediately after installation?
Immediate fault codes after board replacement most commonly indicate a parameter mismatch (motor data not re-entered), a PSU rail out of tolerance, or a firmware version incompatibility between the SDCS-REB-1C and the installed SDCS-CON control board. Verify all three conditions before concluding the replacement board is faulty. Our technical support team is available to assist with fault diagnosis remotely.
