ABB SDCS-POW-4-SD 3ADT315100R1012 Maintenance-Proven Spare Part

Overview

ABB SDCS-POW-4-SD 3ADT315100R1012 Maintenance-Proven Spare Part for Factory Uptime

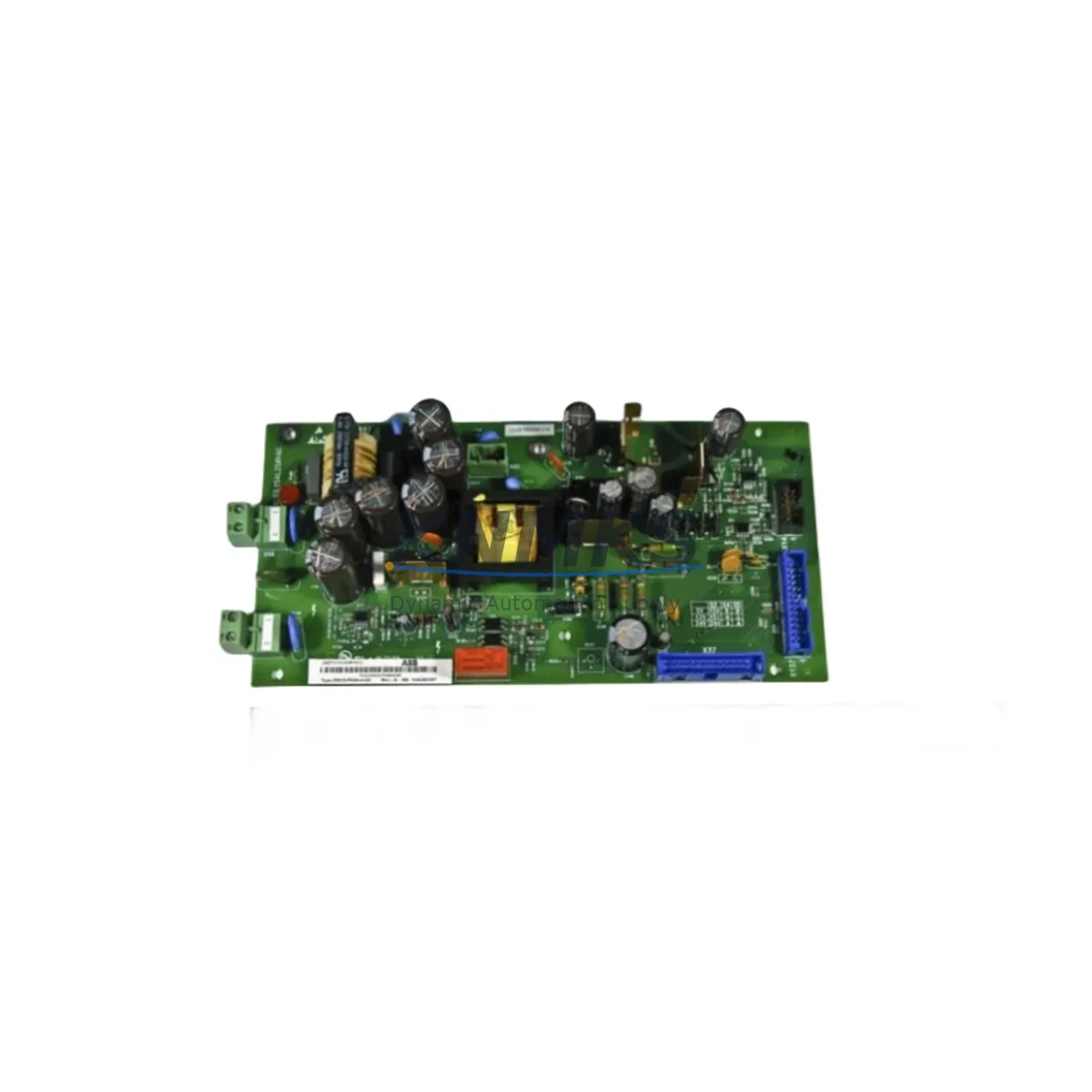

The ABB SDCS-POW-4-SD (part number 3ADT315100R1012) is the dedicated internal power supply board for the ABB DCS800 series DC drive platform. In continuous-process industries — pulp and paper, metals, mining, and marine propulsion — the DCS800 drive is a cornerstone of speed-controlled DC motor applications. When the SDCS-POW-4-SD fails, the entire drive goes offline, halting production. Holding a verified, pre-tested replacement in your spare parts cabinet is the single most effective measure to contain unplanned downtime and protect throughput.

This board generates the internal auxiliary voltages required by the DCS800 control electronics, gate-firing circuits, and field excitation subsystems. Degradation typically manifests as erratic drive behavior, nuisance fault codes (F-501, F-502 power supply faults), or complete loss of control power. Early identification and rapid board swap — using a known-good SDCS-POW-4-SD — restores the drive to service in under two hours, compared to days or weeks waiting for OEM repair or new-unit delivery.

Every unit supplied by KNMKS undergoes functional bench testing prior to dispatch. Each shipment is covered by a support terms confirmed by quotation against manufacturing defects and operational failure under normal industrial service conditions. Stock is maintained for immediate dispatch, supporting both emergency breakdown orders and planned annual maintenance procurement cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the SDCS-POW-4-SD in a DCS800 drive is rarely an isolated event. A thorough maintenance engineer will treat the board swap as an opportunity to inspect and verify the condition of every component that interacts with the power supply subsystem. Neglecting adjacent components risks a repeat fault within weeks of the initial repair.

Begin with the SDCS-CON-F (DCS800 main control board). The control board is the primary consumer of the auxiliary voltages generated by the SDCS-POW-4-SD; if the power supply board failed due to an overvoltage or short-circuit event, the control board may have sustained damage to its logic circuits or memory. Verify firmware integrity and check for latent fault codes before returning the drive to service.

Inspect the SDCS-FEX-2 field excitation module and its associated field current feedback wiring. The field excitation circuit draws from the same auxiliary power rails; a degraded SDCS-POW-4-SD often causes field weakening faults before complete failure. Confirm field current setpoints and feedback signal integrity after the board replacement.

Check the 24 VDC external control power supply feeding the DCS800 control section. If the external SMPS (switch-mode power supply) unit has been operating outside its rated load range, it may have contributed to the SDCS-POW-4-SD failure. Measure output voltage under load and replace the SMPS if ripple exceeds 200 mV peak-to-peak.

Verify the condition of the SDCS-IOB-3 I/O extension board and all associated terminal blocks. Loose or corroded I/O wiring can introduce ground loops that stress the power supply board. Re-torque all terminal connections to the DCS800 hardware manual specification and inspect for signs of heat discoloration or insulation breakdown.

Review the DDCS fiber-optic communication links (RDCO-0x adapter boards) connecting the DCS800 to the upper-level control system or to a DDCS-based multi-drive configuration. Communication faults during a power supply failure event can corrupt drive parameters; re-verify all DDCS node addresses and communication cycle times after restoration.

Finally, inspect the drive cabinet fusing and branch circuit protection. Semiconductor fuses protecting the thyristor bridge should be checked for continuity; a partial fuse failure can create asymmetric loading that stresses the internal power supply. Replace any fuse showing signs of thermal cycling fatigue, and log the replacement in the site maintenance record.

Site Replacement Workflow

Step 1 — Isolation and lockout: De-energize the DCS800 drive following site LOTO (Lockout/Tagout) procedures. Confirm that both the main AC supply and the 24 VDC external control power are isolated. Allow a minimum of 5 minutes for DC bus capacitors to discharge before opening the drive cabinet.

Step 2 — Documentation: Photograph the existing board orientation, connector positions, and any visible fault indicators (LED status) before removal. Record the drive firmware version from the SDCS-CON-F panel or via the DriveWindow commissioning tool.

Step 3 — Board removal: Disconnect all ribbon cables and board-to-board connectors from the SDCS-POW-4-SD in the sequence specified in the DCS800 Hardware Manual (document 3ADW000379). Use an ESD wrist strap throughout. Remove the four M4 mounting screws and extract the board carefully to avoid stressing the backplane connector.

Step 4 — Replacement installation: Seat the new SDCS-POW-4-SD (3ADT315100R1012) onto the backplane connector, ensuring full engagement before securing the mounting screws. Reconnect all ribbon cables in reverse removal order. Verify that no cables are pinched or routed across sharp edges.

Step 5 — Power-on verification: Restore 24 VDC control power first. Confirm that the SDCS-CON-F control board initializes correctly and that no F-5xx power supply fault codes are present. Then restore main AC power and perform a no-load test run at minimum speed reference before returning the drive to process control.

Step 6 — Documentation and stock replenishment: Log the replacement in the site CMMS (Computerized Maintenance Management System) with the board serial number, date, and technician ID. Immediately initiate a purchase order for a replacement SDCS-POW-4-SD to restore your spare parts buffer. A minimum of one board per DCS800 drive in service is the recommended stocking level for critical applications.

Spare Parts Support FAQ

Q1: Is the SDCS-POW-4-SD 3ADT315100R1012 compatible with all DCS800 frame sizes?
The SDCS-POW-4-SD is the standard internal power supply board across the DCS800 product family. Compatibility should be confirmed against the drive’s hardware revision and the board’s revision marking before installation. KNMKS can assist with revision cross-referencing prior to dispatch — contact [email protected] with your drive nameplate data.

Q2: What does the support terms confirmed by quotation cover, and how is a claim processed?
The support terms confirmed by quotation cover manufacturing defects and operational failure under normal industrial service conditions from the date of dispatch. It does not cover damage resulting from incorrect installation, overvoltage events beyond the drive’s rated input, or physical mishandling. To initiate a support terms claim, contact [email protected] with the order reference, fault description, and photographic evidence of the failure mode.

Q3: How is the board tested before shipment?
Every SDCS-POW-4-SD unit undergoes a functional bench test that includes power-on verification and measurement of all auxiliary output voltage rails (±15 VDC, +5 VDC, +24 VDC) under representative load conditions. Units that do not meet OEM voltage tolerance specifications are rejected. A test record is available upon request for quality-critical procurement processes.

Q4: Can KNMKS support long-term supply agreements for DCS800 spare parts?
Yes. For customers operating multiple DCS800 drives or managing a multi-site maintenance program, KNMKS offers forward-stocking arrangements and scheduled replenishment agreements. These programs ensure that critical boards such as the SDCS-POW-4-SD, SDCS-CON-F, and SDCS-FEX-2 are available without lead-time risk, supporting annual shutdown planning and emergency breakdown response equally. Contact [email protected] to discuss volume and scheduling requirements.
